Page 1625 of 4500

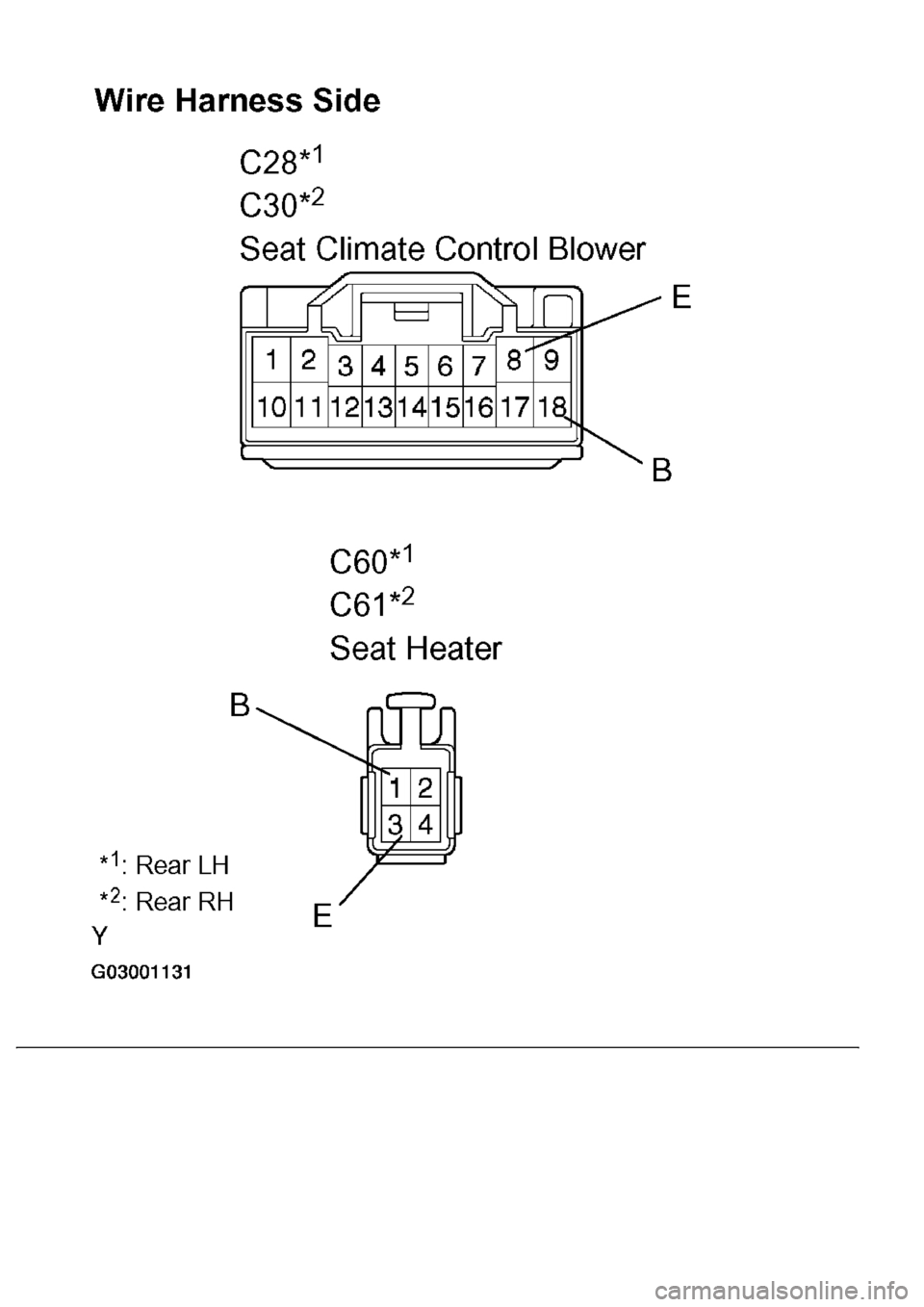

LEXUS LS430 2003 Factory Repair Manual Tester ConnectionSpecified Condition C30-8 (E) - S61-3 (E)Below 1 ohms C30-8 (E) - S61-1 (B)10 kohms or higher C30-18 (B) - S61-1 (B)Below 1 ohms C30-18 (B) - S61-3 (E)10 kohms or higher

Page 1626 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1627 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 27: Identifying Seat Climate Control Blower Connector Terminals And Seat Heater Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR O

Page 1628 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030015001b001d0003002c0047004800510057004c0049005c004c0051004a0003003600480044005700030026004f004c00500044005700480003002600520051005700550052004f00030025004f0052005a004800550003002

Page 1629 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: REPLACE SEAT CLIMATE CONTROL BLOWER (CLIMATE CONTROL ECU) CIRCUIT DESCRIPTION When the climate control

Page 1630 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Climate Control Does Not Operate (Blinking Pattern 2) Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.INSPECT FRONT SEAT HEATER SWITCH (INDICATOR) a. Ch

Page 1631 of 4500

LEXUS LS430 2003 Factory Repair Manual Result: RESULT REFERENCE B: Go to step 4 A: Go to next step 2.INSPECT FRONT SEAT HEATER SWITCH (FRONT) (SEE INSPECTION ) NG: REPLACE CLIMATE CONTROL SWITCH OK: Go to next step 3.CHECK WIR

Page 1632 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Identifying Seat Climate Control Blower Connector Terminals And Climate Control Switch Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CO
