Fig. 168: Rear IG Power Source Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
HINT:
Start the engine before inspection. Check the IG1 relay or battery if the engine does not start.
1.INSPECT FUSE (RR A/C)
a. Remove the RR A/C fuse from the luggage room J/B.
b. Measure the resistance according to the value (s) in the table below.
Standard:
Page 426 of 4500
FUSE (RR A/C) RESISTANCE
NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO
FAILURE FUSE (RR A/C FUSE)
OK: Go to next step
2.INSPECT REAR AIR CONDITIONING AMPLIFIER (IG - GND)
a. Remove the A/C amplifier assy with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
Standard:
REAR AIR CONDITIONING AMPLIFIER (IG - GND) VOLTAGE
NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
Tester itemConditionSpecified condition
RR A/C fuseAlwaysBelow 1 ohms
Tester connectionConditionSpecified condition
A46-10 (IG) -A46-6 (GND)Ignition switch OFF --> ONBelow 1 V --> 10 to 14 V
Page 427 of 4500

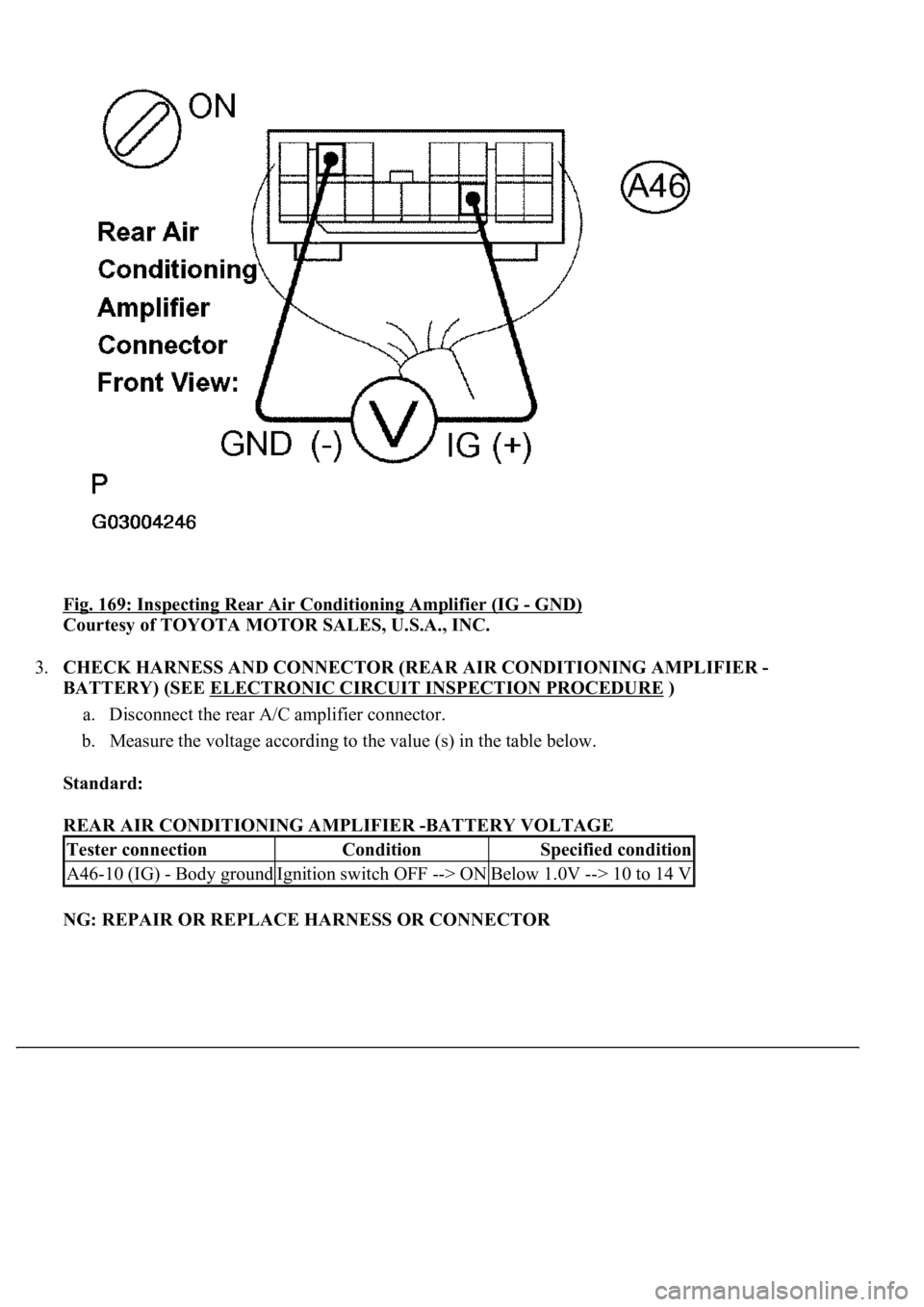

Fig. 169: Inspecting Rear Air Conditioning Amplifier (IG - GND)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.CHECK HARNESS AND CONNECTOR (REAR AIR CONDITIONING AMPLIFIER -
BATTERY) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Disconnect the rear A/C amplifier connector.
b. Measure the voltage according to the value (s) in the table below.
Standard:
REAR AIR CONDITIONING AMPLIFIER -BATTERY VOLTAGE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester connectionConditionSpecified condition
A46-10 (IG) - Body groundIgnition switch OFF --> ONBelow 1.0V --> 10 to 14 V
Page 428 of 4500
Fig. 170: Checking Harness And Connector (Rear Air Conditioning Amplifier -Battery)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
4.CHECK HARNESS AND CONNECTOR (REAR AIR CONDITIONING AMPLIFIER - BODY
GROUND) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard:
REAR AIR CONDITIONING AMPLIFIER - BODY GROUND RESISTANCE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester connectionConditionSpecified condition
A46-6 (GND) - Body groundAlwaysBelow 1 ohms
Page 429 of 4500

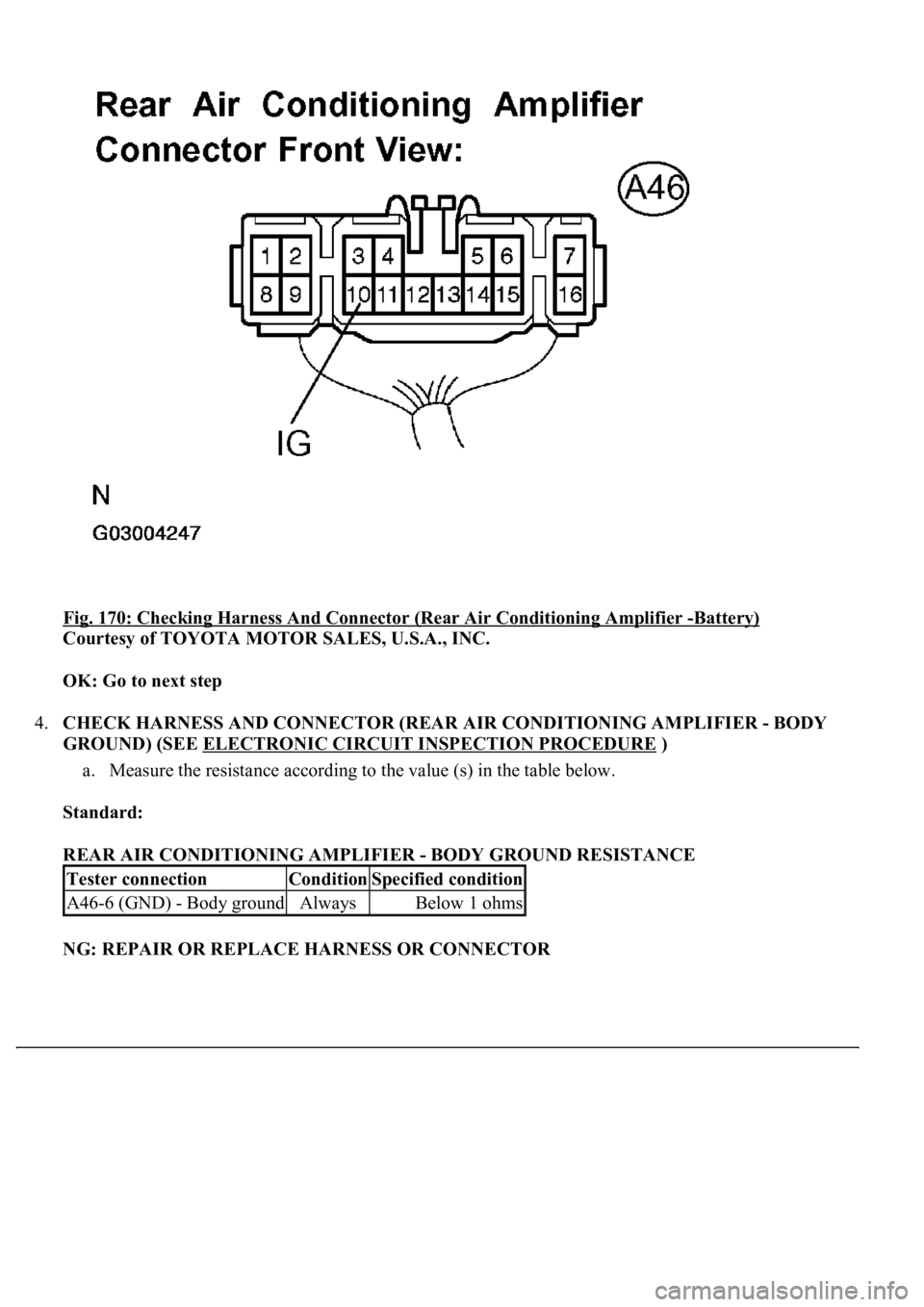

Fig. 171: Checking Harness And Connector (Rear Air Conditioning Amplifier - Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE REAR AIR CONDITIONING AMPLIFIER (SEE OVERHAUL
)
CIRCUIT DESCRIPTION
The luggage room J/B ECU requests the rear A/C amplifier to operate the rear blower motor and controls its
operation via the rear blower resistor in this circuit.
WIRING DIAGRAM
Page 430 of 4500

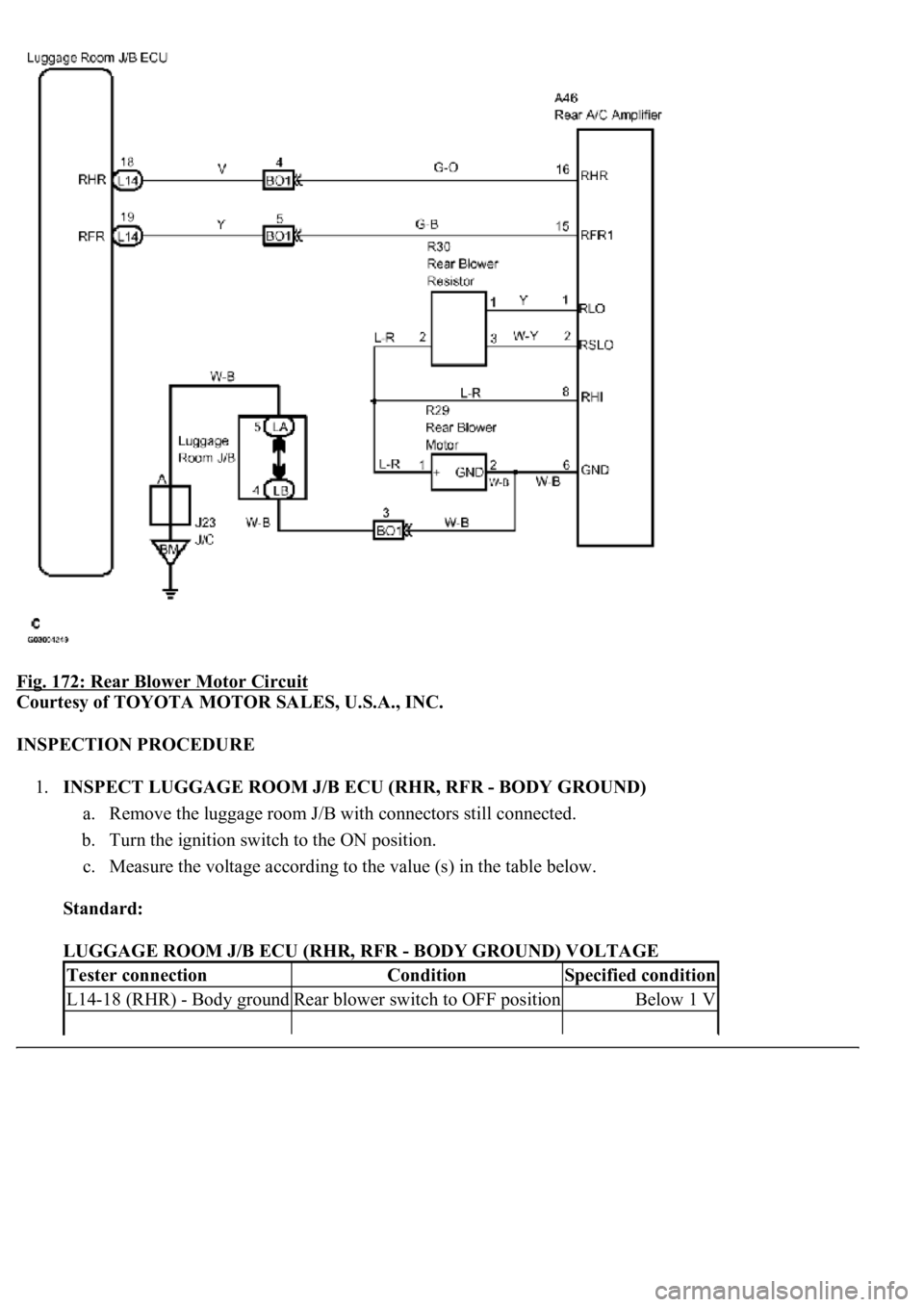

Fig. 172: Rear Blower Motor Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT LUGGAGE ROOM J/B ECU (RHR, RFR - BODY GROUND)
a. Remove the luggage room J/B with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
Standard:
LUGGAGE ROOM J/B ECU (RHR, RFR - BODY GROUND) VOLTAGE
Tester connectionConditionSpecified condition
L14-18 (RHR) - Body groundRear blower switch to OFF positionBelow 1 V
Page 431 of 4500
NG: Go to STEP 2

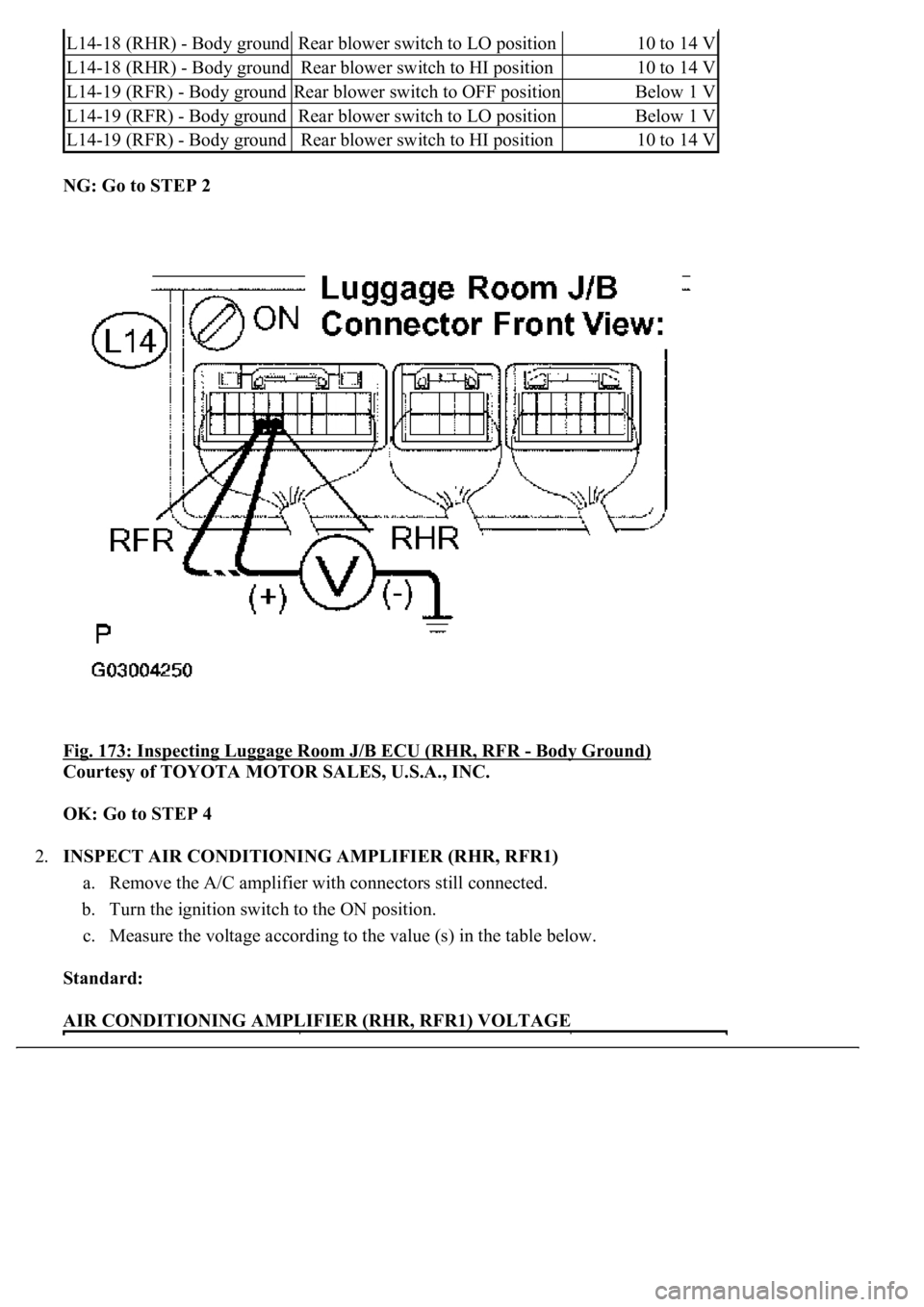

Fig. 173: Inspecting Luggage Room J/B ECU (RHR, RFR
- Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to STEP 4
2.INSPECT AIR CONDITIONING AMPLIFIER (RHR, RFR1)
a. Remove the A/C amplifier with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (RHR, RFR1) VOLTAGE
L14-18 (RHR) - Body groundRear blower switch to LO position10 to 14 V
L14-18 (RHR) - Body groundRear blower switch to HI position10 to 14 V
L14-19 (RFR) - Body groundRear blower switch to OFF positionBelow 1 V
L14-19 (RFR) - Body groundRear blower switch to LO positionBelow 1 V
L14-19 (RFR) - Body groundRear blower switch to HI position10 to 14 V
Page 432 of 4500
NG: Go to STEP 4

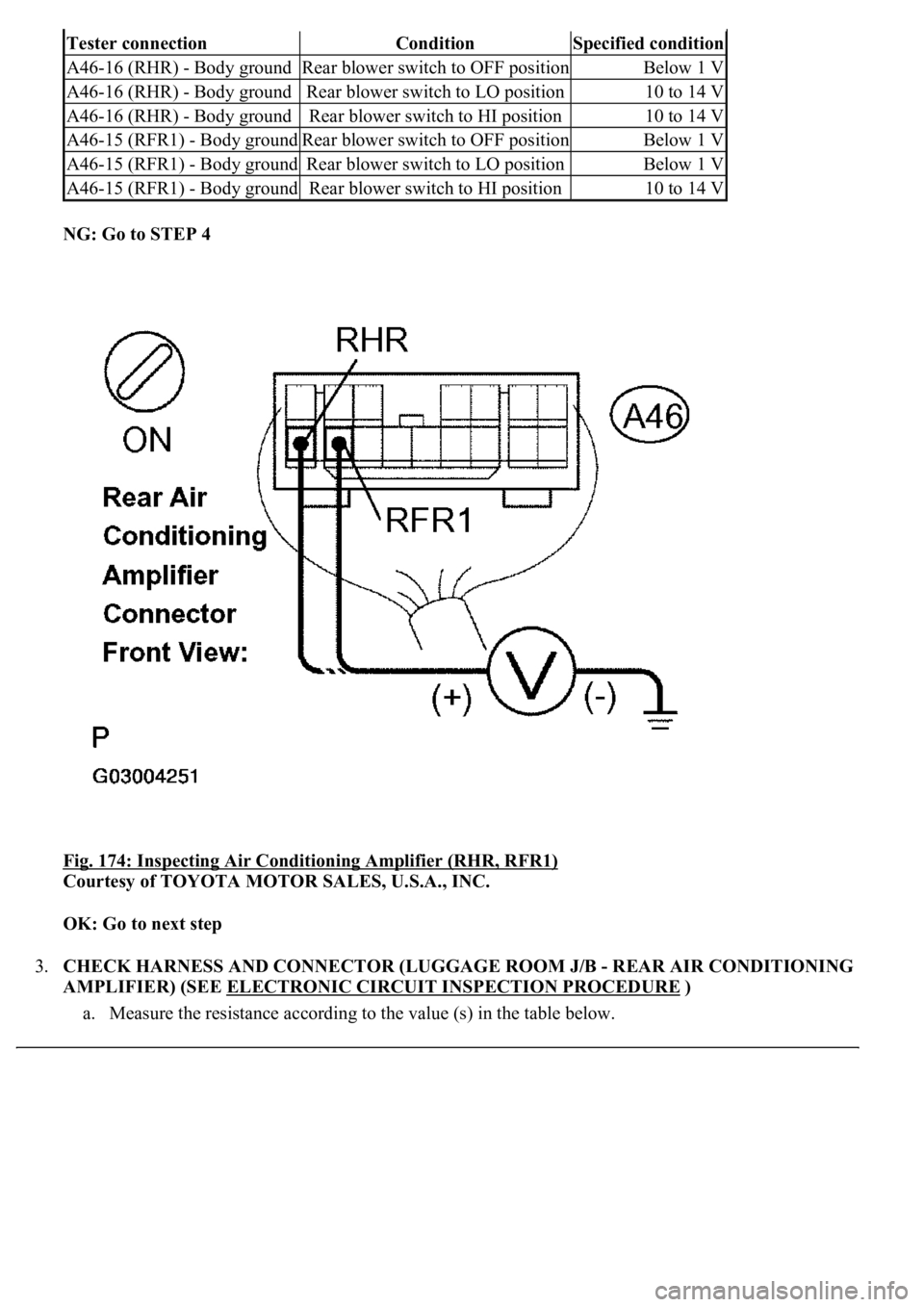

Fig. 174: Inspecting Air Conditioning Amplifier (RHR, RFR1)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
3.CHECK HARNESS AND CONNECTOR (LUGGAGE ROOM J/B - REAR AIR CONDITIONING
AMPLIFIER) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance accordin
g to the value (s) in the table below.
Tester connectionConditionSpecified condition
A46-16 (RHR) - Body groundRear blower switch to OFF positionBelow 1 V
A46-16 (RHR) - Body groundRear blower switch to LO position10 to 14 V
A46-16 (RHR) - Body groundRear blower switch to HI position10 to 14 V
A46-15 (RFR1) - Body groundRear blower switch to OFF positionBelow 1 V
A46-15 (RFR1) - Body groundRear blower switch to LO positionBelow 1 V
A46-15 (RFR1) - Body groundRear blower switch to HI position10 to 14 V
