Page 689 of 4500

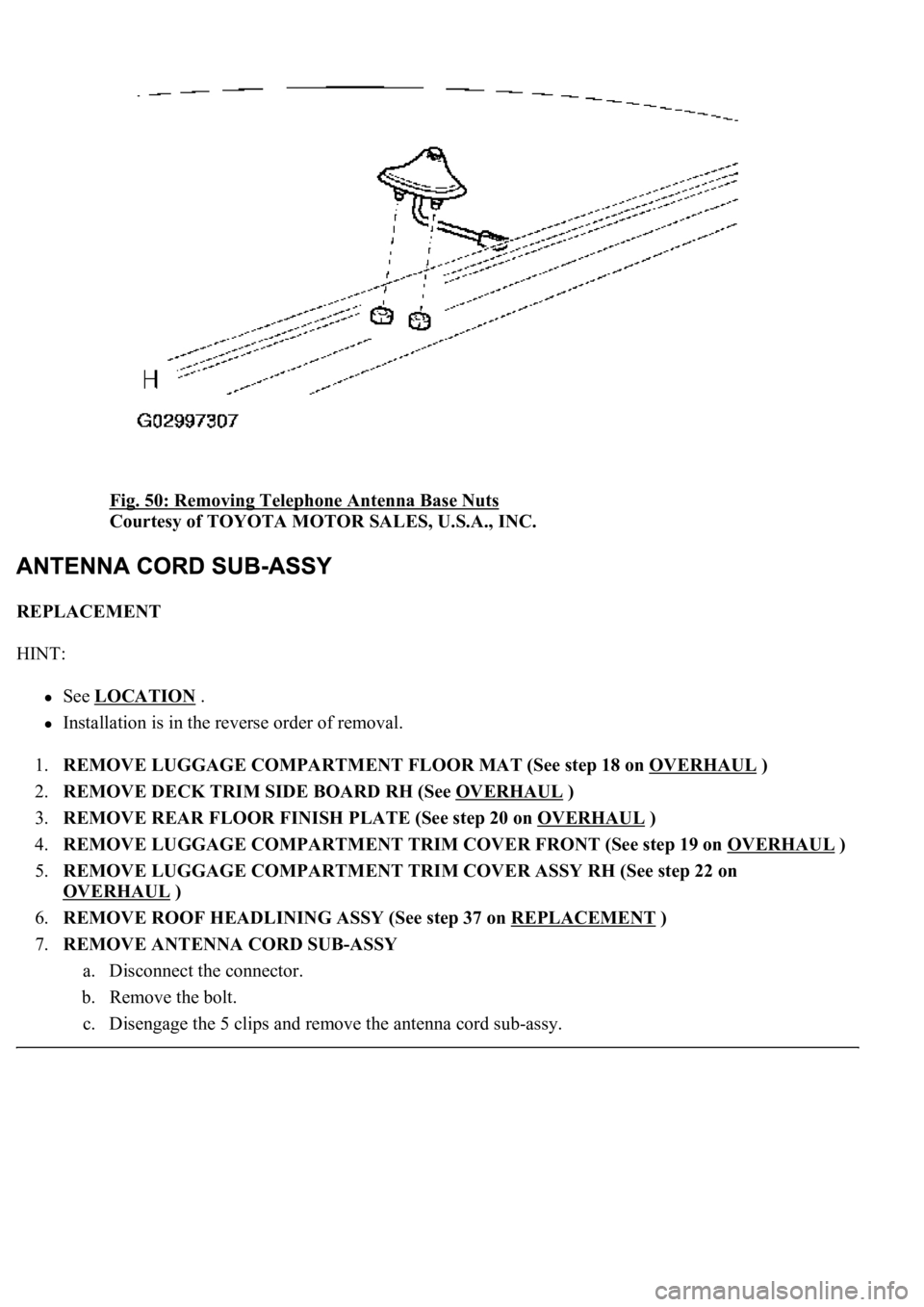

LEXUS LS430 2003 Factory Repair Manual Fig. 50: Removing Telephone Antenna Base Nuts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See LOCATION . Installation is in the reverse order of removal. 1.REMOVE LUGGAGE CO

Page 690 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 51: Removing Antenna Cord Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS . See LOCATION . Installation is in the reverse order of removal. 1.REMO

Page 691 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 52: Removing Navigation Antenna Assy Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS . Installation is in the reverse order of removal. 1.REMOVE INSTR

Page 692 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 53: Removing Cigarette Lighter Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.INSTALL CIGARETTE LIGHTER ASSY a. Properly position the socket and ring at the cutout of the cigar-lighter ho

Page 693 of 4500

LEXUS LS430 2003 Factory Repair Manual 4.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See step 39 on REPLACEMENT ) 5.REMOVE CONSOLE BOX CARPET (See step 40 on REPLACEMENT ) 6.REMOVE REAR CONSOLE ARMREST ASSY (See step 41 on REPLACEMENT

Page 694 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 55: Removing Cigarette Lighter Cover Rear Claws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE CIGARETTE LIGHTER ASSY REAR a. Turn the socket counterclockwise as shown in the illustrati

Page 695 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 56: Removing Cigarette Lighter Assy Rear Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE CIGARETTE LIGHTER BEZEL STAY REAR 11.REMOVE CIGAR LIGHTER HOLE BEZEL 12.INSTALL CIGARETTE LIG

Page 696 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Pressing the claw of the power point socket assy in the direction indicated by the arrow, push the power point socket assy toward the inside of the chamber and remove it. Fig. 57: Removing Power
