Page 3665 of 4500

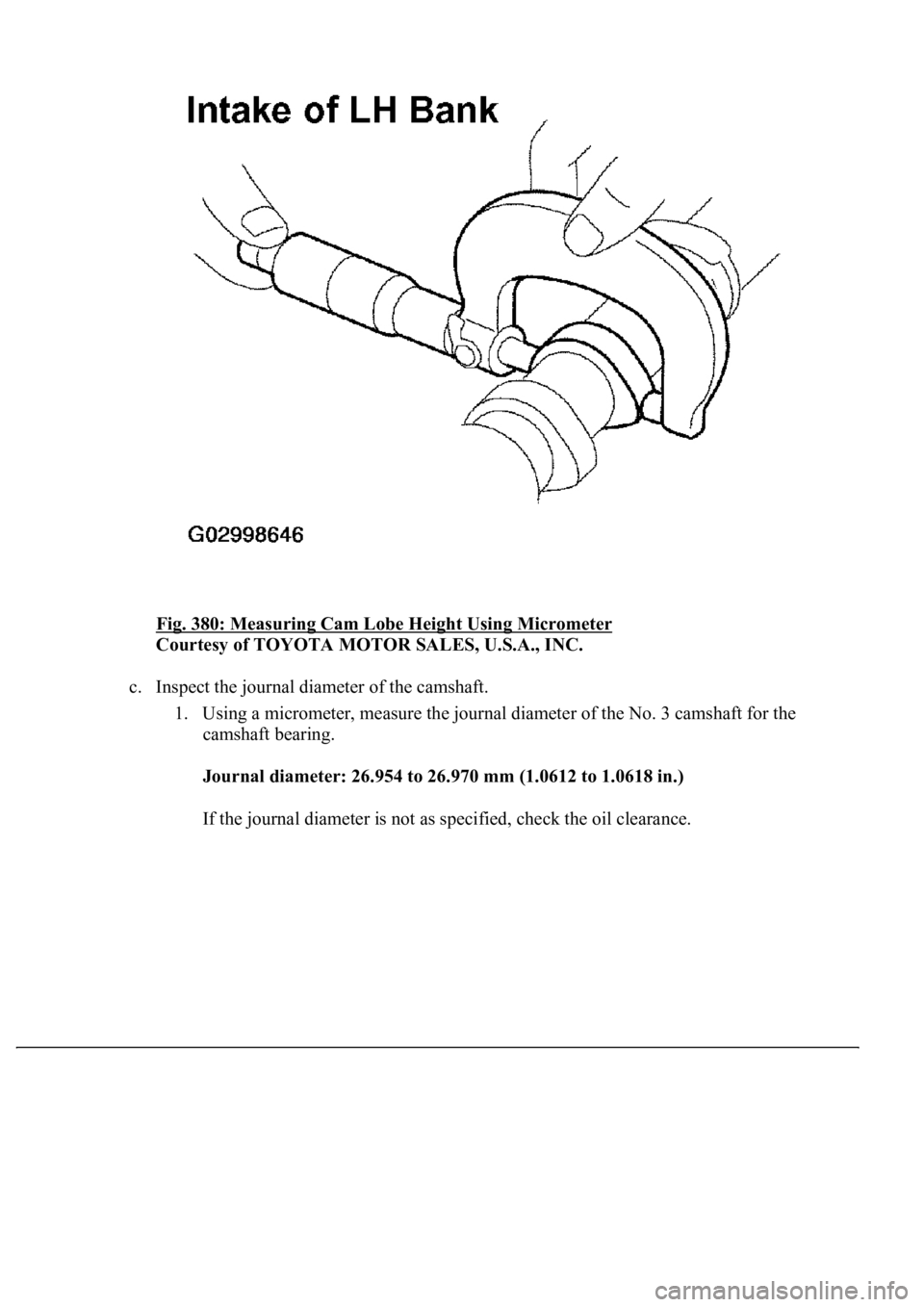

LEXUS LS430 2003 Factory Repair Manual Fig. 380: Measuring Cam Lobe Height Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Inspect the journal diameter of the camshaft. 1. Using a micrometer, measure the journal diamete

Page 3666 of 4500

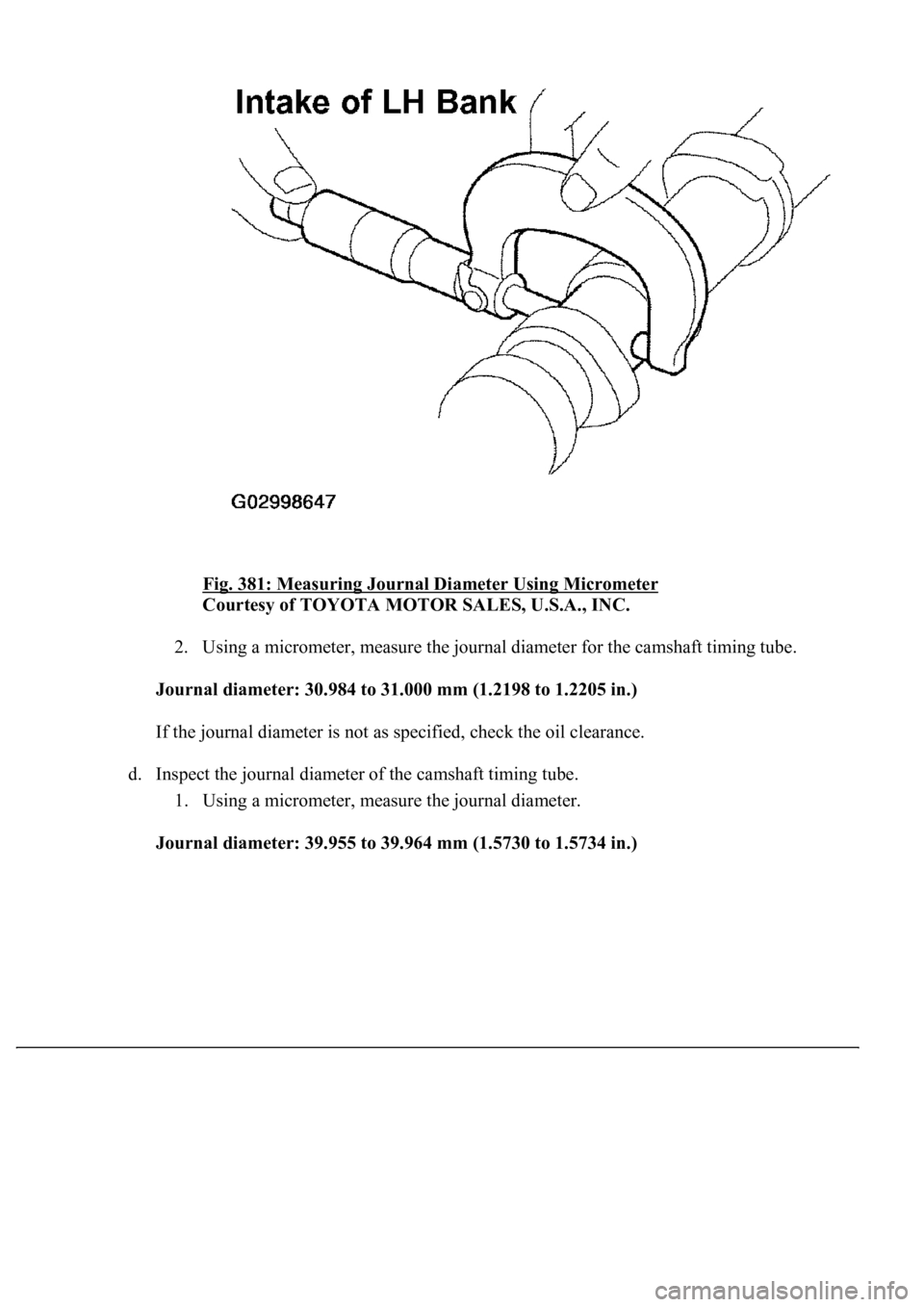

LEXUS LS430 2003 Factory Repair Manual Fig. 381: Measuring Journal Diameter Using Micrometer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2. Using a micrometer, measure the journal diameter for the camshaft timing tube. Journal diamete

Page 3667 of 4500

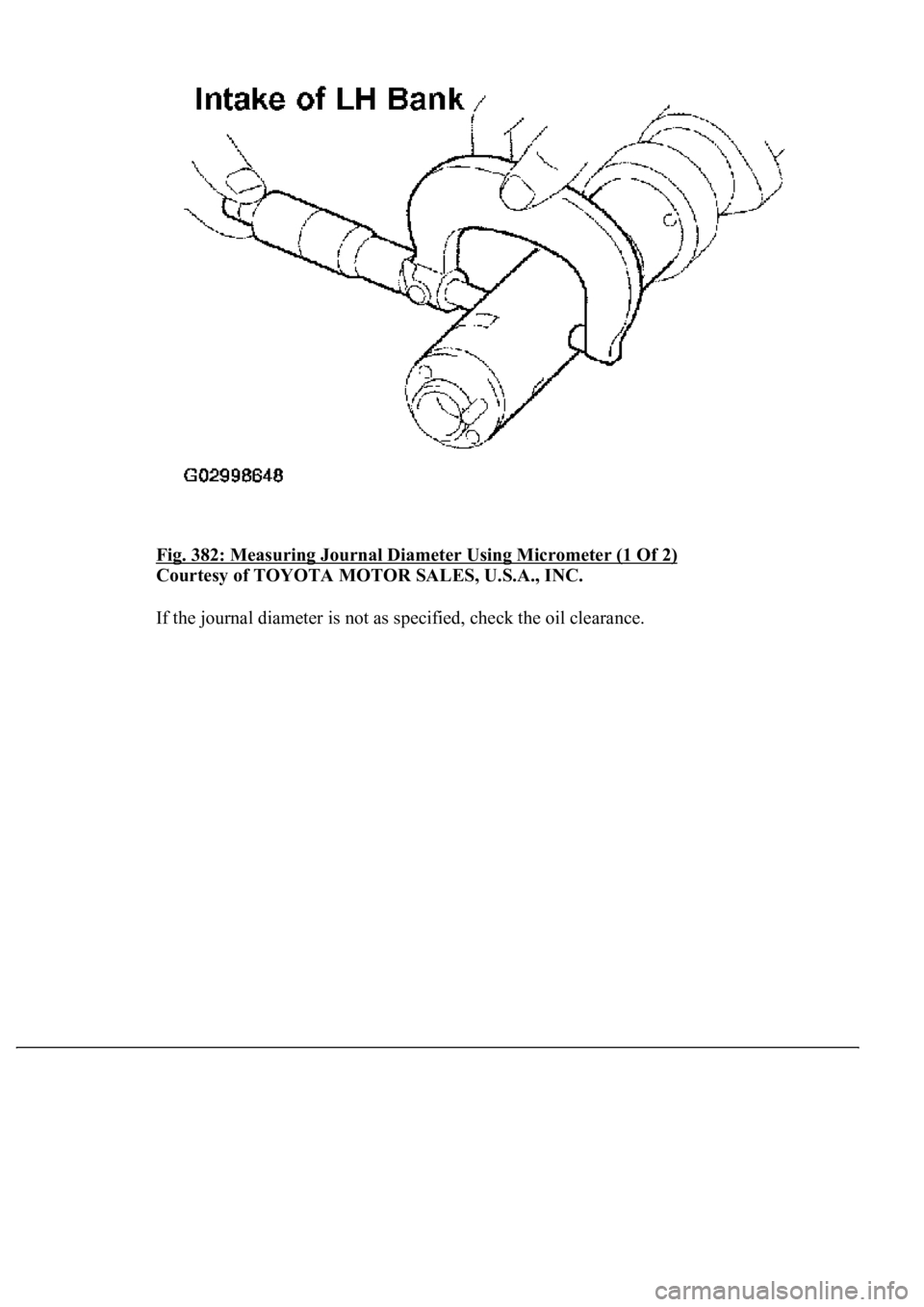

LEXUS LS430 2003 Factory Repair Manual Fig. 382: Measuring Journal Diameter Using Micrometer (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. If the journal diameter is not as specified, check the oil clearance.

Page 3668 of 4500

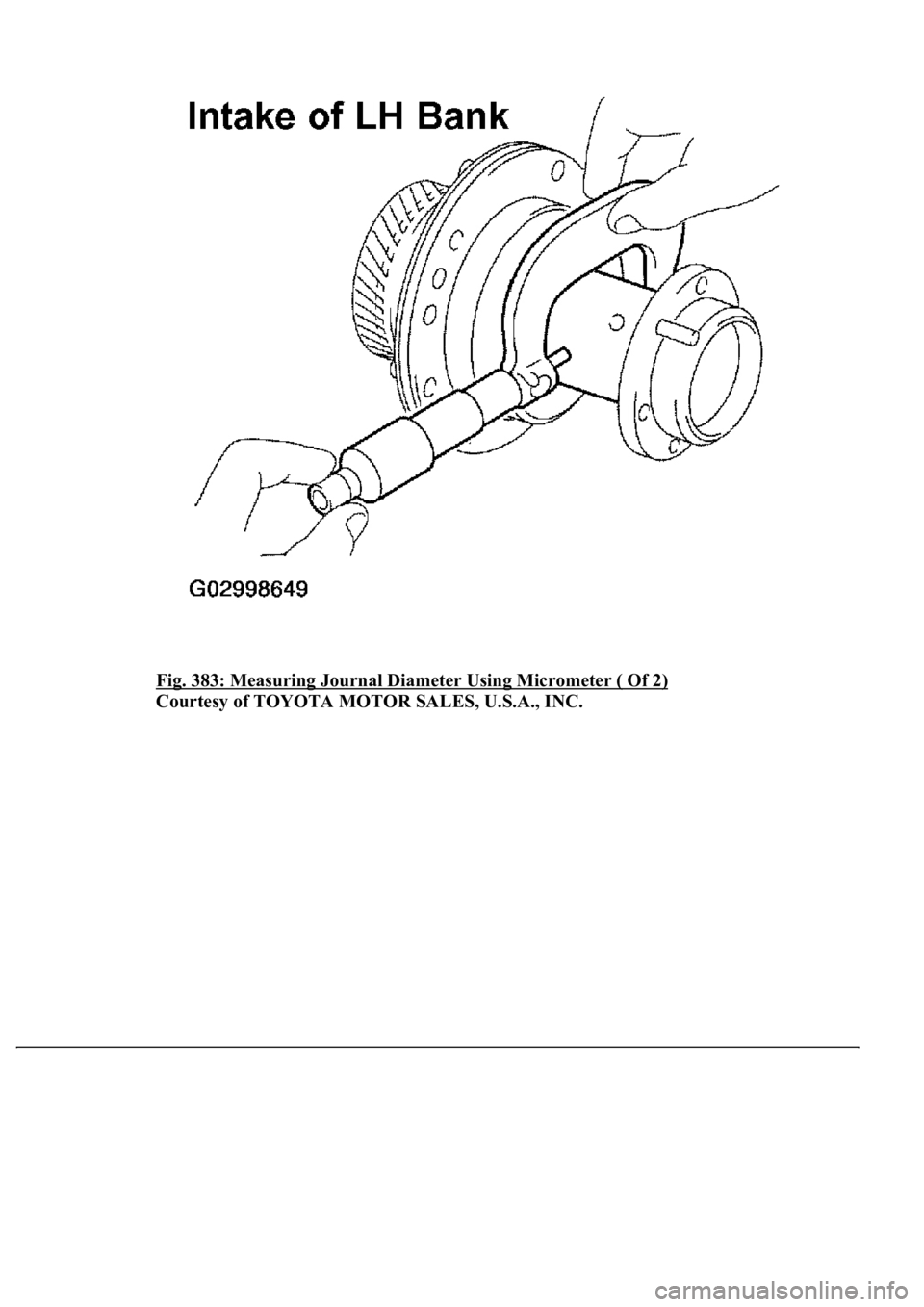

LEXUS LS430 2003 Factory Repair Manual Fig. 383: Measuring Journal Diameter Using Micrometer ( Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3669 of 4500

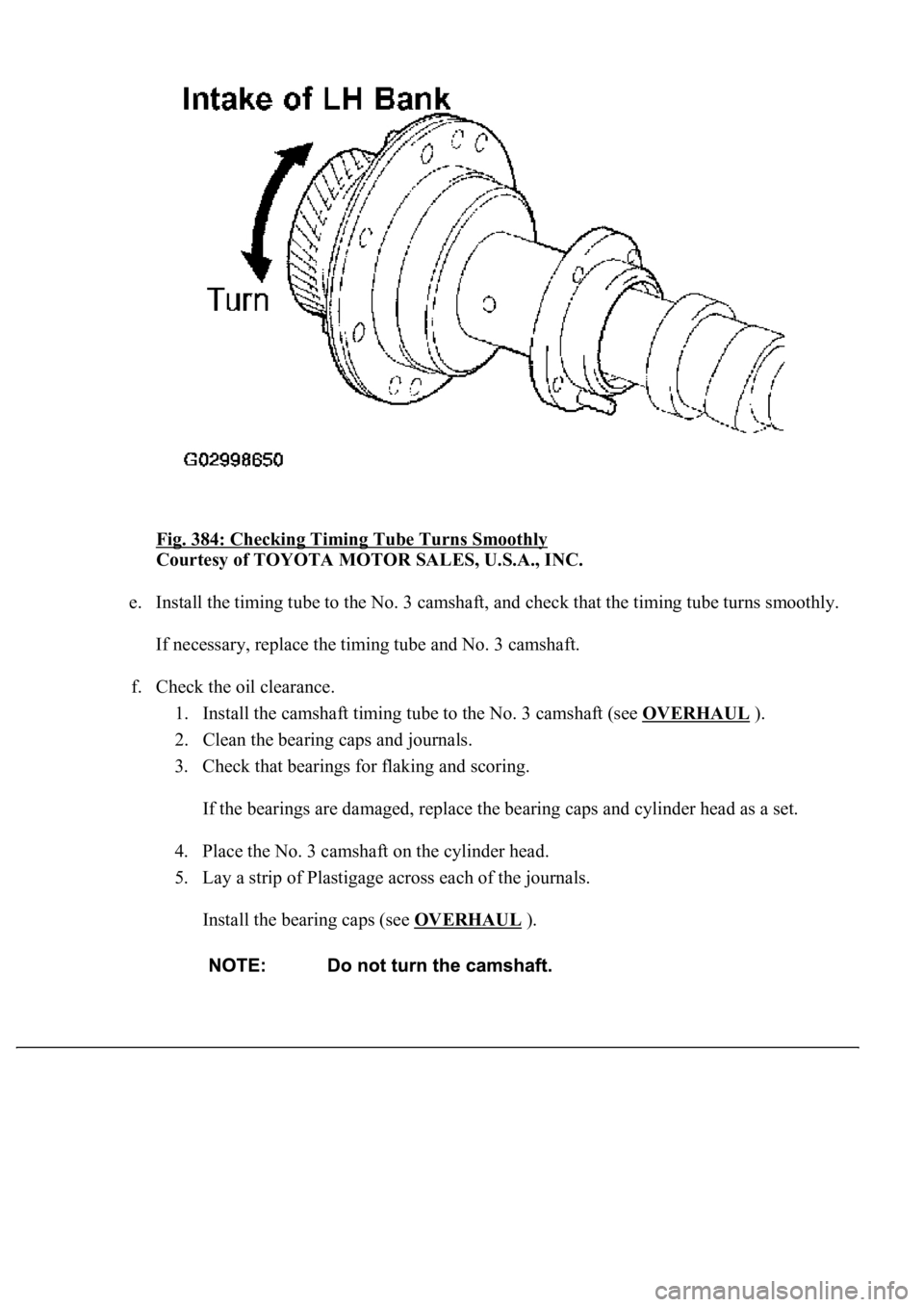

LEXUS LS430 2003 Factory Repair Manual Fig. 384: Checking Timing Tube Turns Smoothly Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Install the timing tube to the No. 3 camshaft, and check that the timing tube turns smoothly. If necess

Page 3670 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 385: Identifying Plastigage Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6. Remove the bearing caps. 7. Measure the Plastigage at its widest point. STANDARD OIL CLEARANCE: STANDARD OIL CL

Page 3671 of 4500

LEXUS LS430 2003 Factory Repair Manual g. Completely remove the Plastigage. h. Remove the camshaft. i. Remove the camshaft timing tube from the No. 3 camshaft. Fig. 386: Measuring Plastigage At Widest Point Courtesy of TOYOTA MOTOR

Page 3672 of 4500

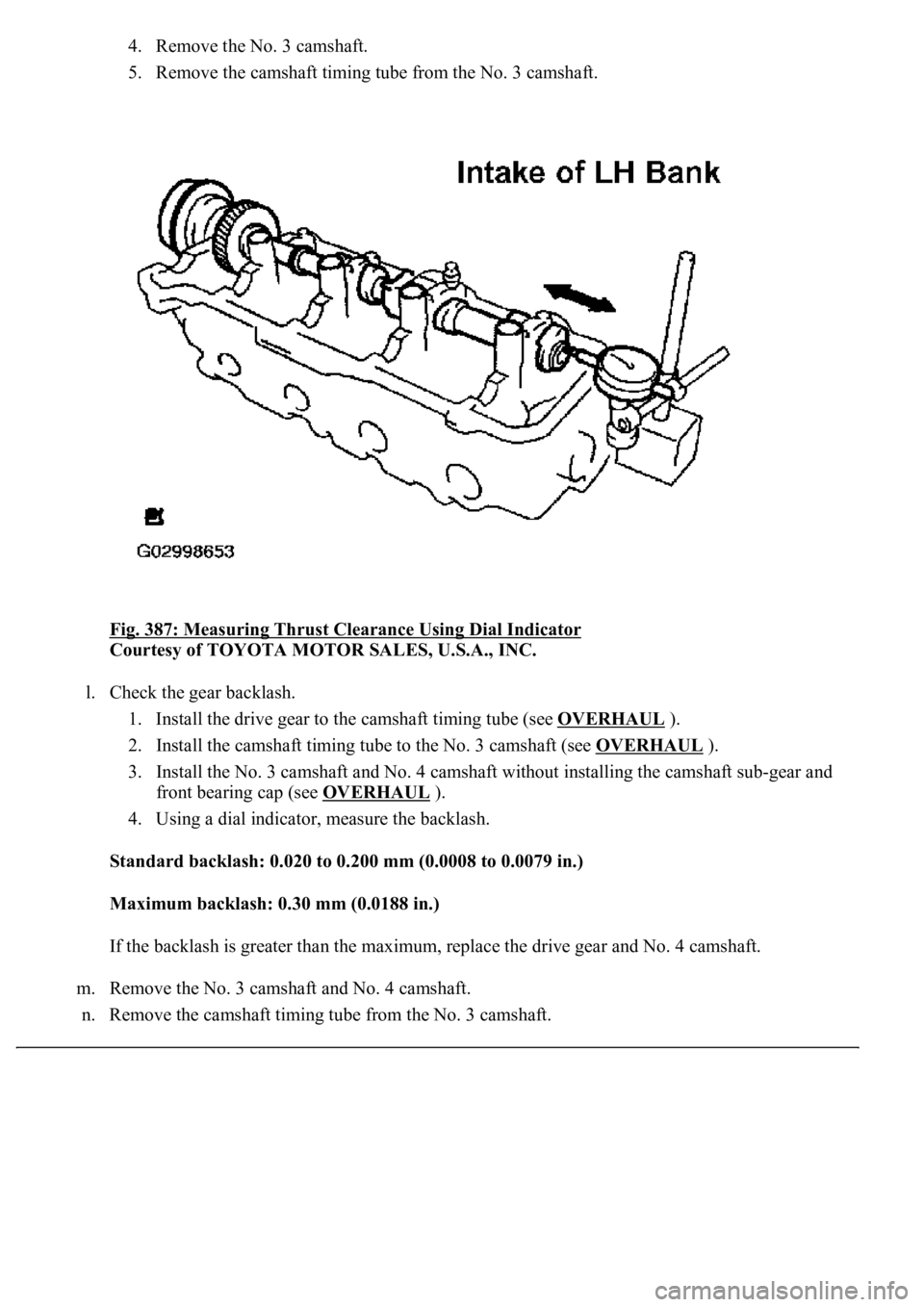

LEXUS LS430 2003 Factory Repair Manual 4. Remove the No. 3 camshaft. 5. Remove the camshaft timing tube from the No. 3 camshaft. Fig. 387: Measuring Thrust Clearance Using Dial Indicator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
