Page 601 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 116: Identifying AM1 Fuse Location Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: CHECK FOR SHORT IN ALL HARNESS AND CONNECTOR CONNECTED TO FUSE AND REPLACE FUSE OK:Go to next step 4.INS

Page 602 of 4500

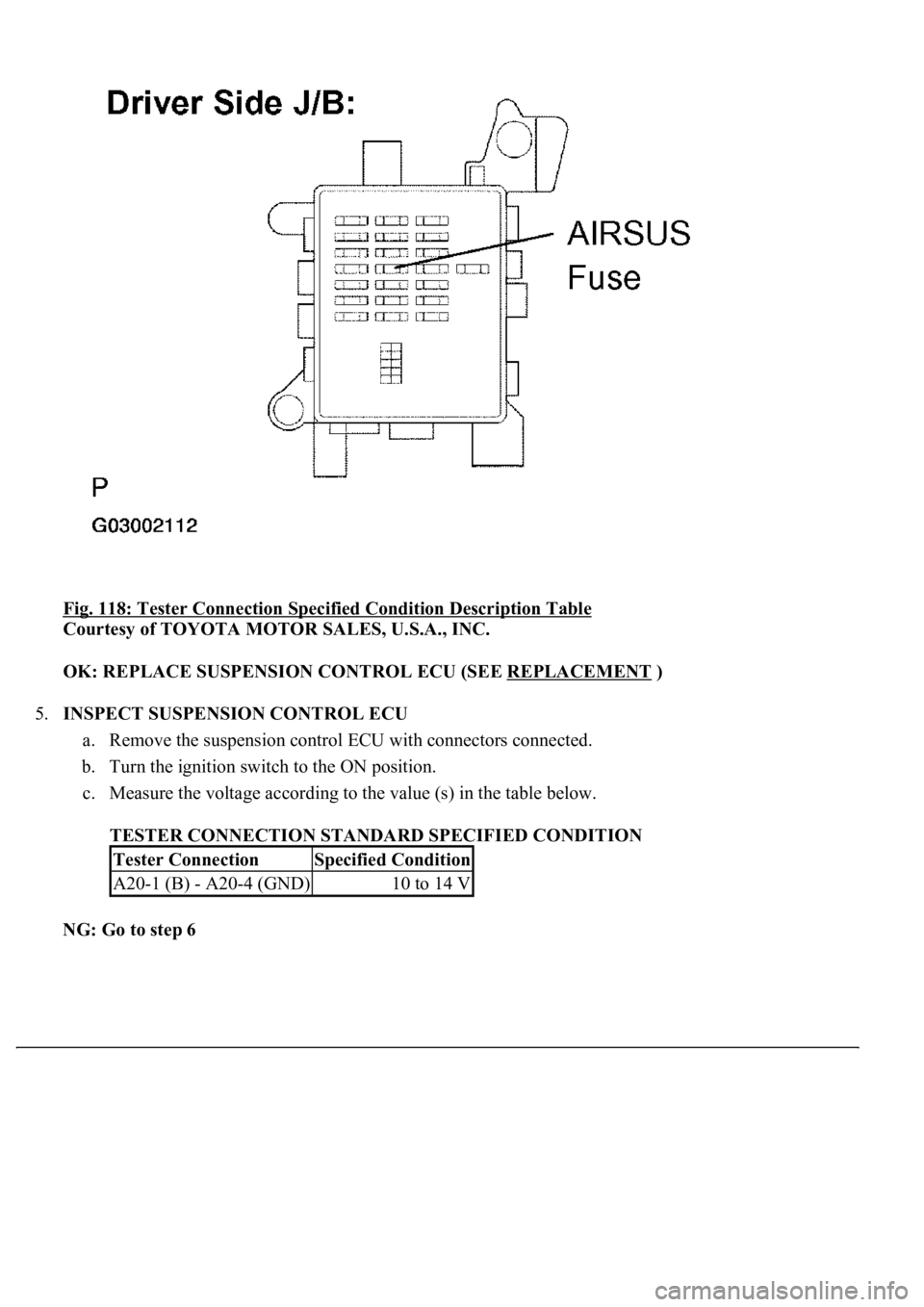

LEXUS LS430 2003 Factory Repair Manual Fig. 117: Identifying Air sus Fuse Location Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: CHECK FOR SHORT IN ALL HARNESS AND CONNECTOR CONNECTED TO FUSE AND REPLACE FUSE

Page 603 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 118: Tester Connection Specified Condition Description Table Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT ) 5.INSPECT SUSPENSION CONTROL E

Page 604 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 119: Identifying Suspension Control ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT ) 6.CHECK HARNESS AND CONNECTOR (

Page 605 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 120: Identifying Suspension Control ECU Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE SUSPENSION CONTROL ECU (SEE REP

Page 606 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 121: DTC C1776 Detecting Condition And Trouble Area Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. WIRING DIAGRAM Fig. 122: Speed Sensor Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A.,

Page 607 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: There is tolerance of +/- 10 % in the speedometer indication. NG: Go to step 2 OK: REPLACE SUSPENSION CONTROL ECU (SEE REPLACEMENT ) 2.CHECK DIAGNOSTIC CODE OUTPUT a. Check if the normal

Page 608 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 124: Steering Angle Sensor Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.READ VALUE ON HAND-HELD TESTER a. Connect the han d-held tester to the DLC3.
