Page 2297 of 4500

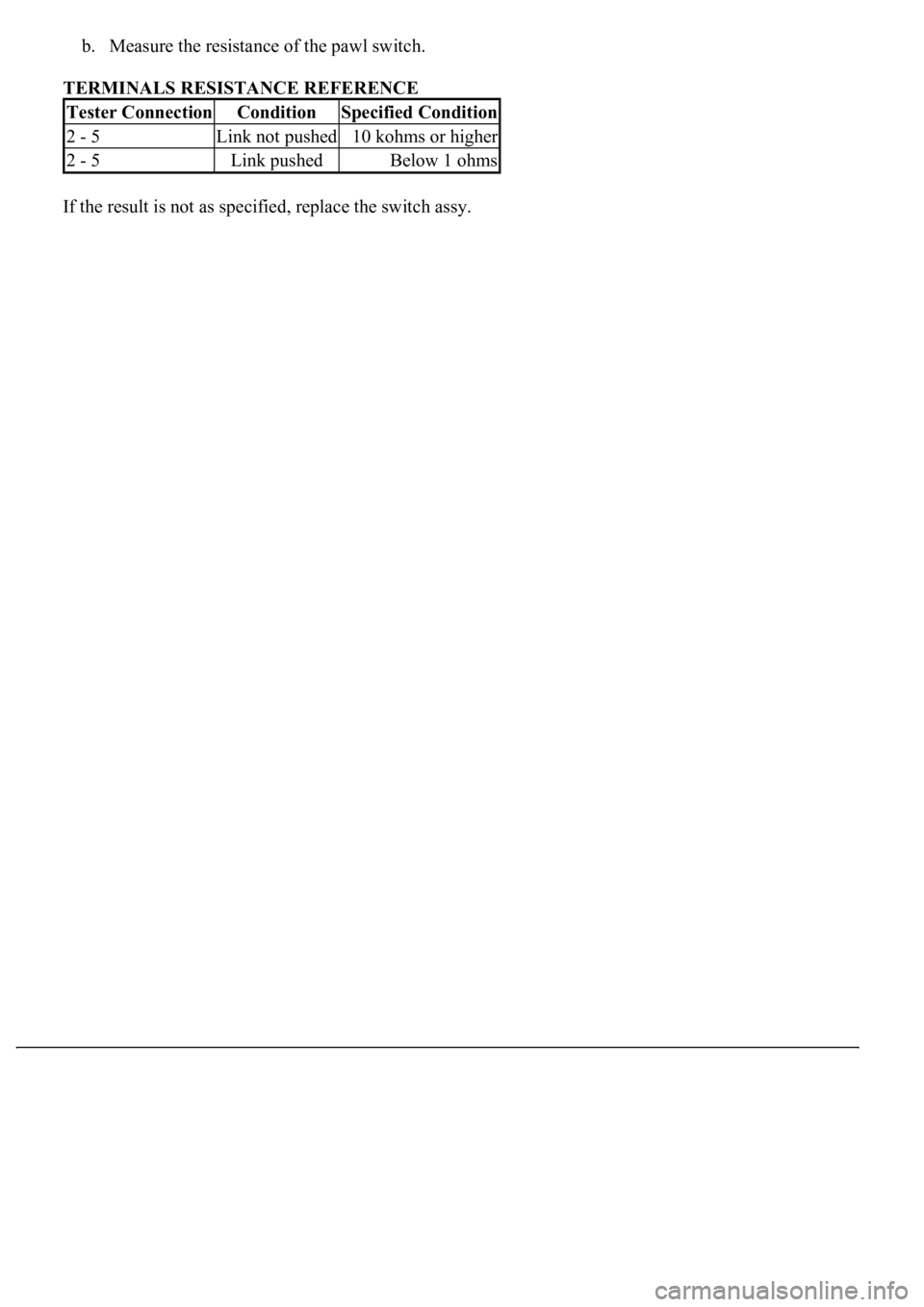

LEXUS LS430 2003 Factory Repair Manual b. Measure the resistance of the pawl switch. TERMINALS RESISTANCE REFERENCE If the result is not as specified, replace the switch ass y. Tester ConnectionConditionSpecified Condition 2 - 5Link not

Page 2298 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 94: Inspecting Combination Switch Assy (Rear Left Side) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.INSPECT DOOR CLOSER MOTOR ASSY (REAR RIGHT SIDE) a. Appl y battery voltage and check oper

Page 2299 of 4500

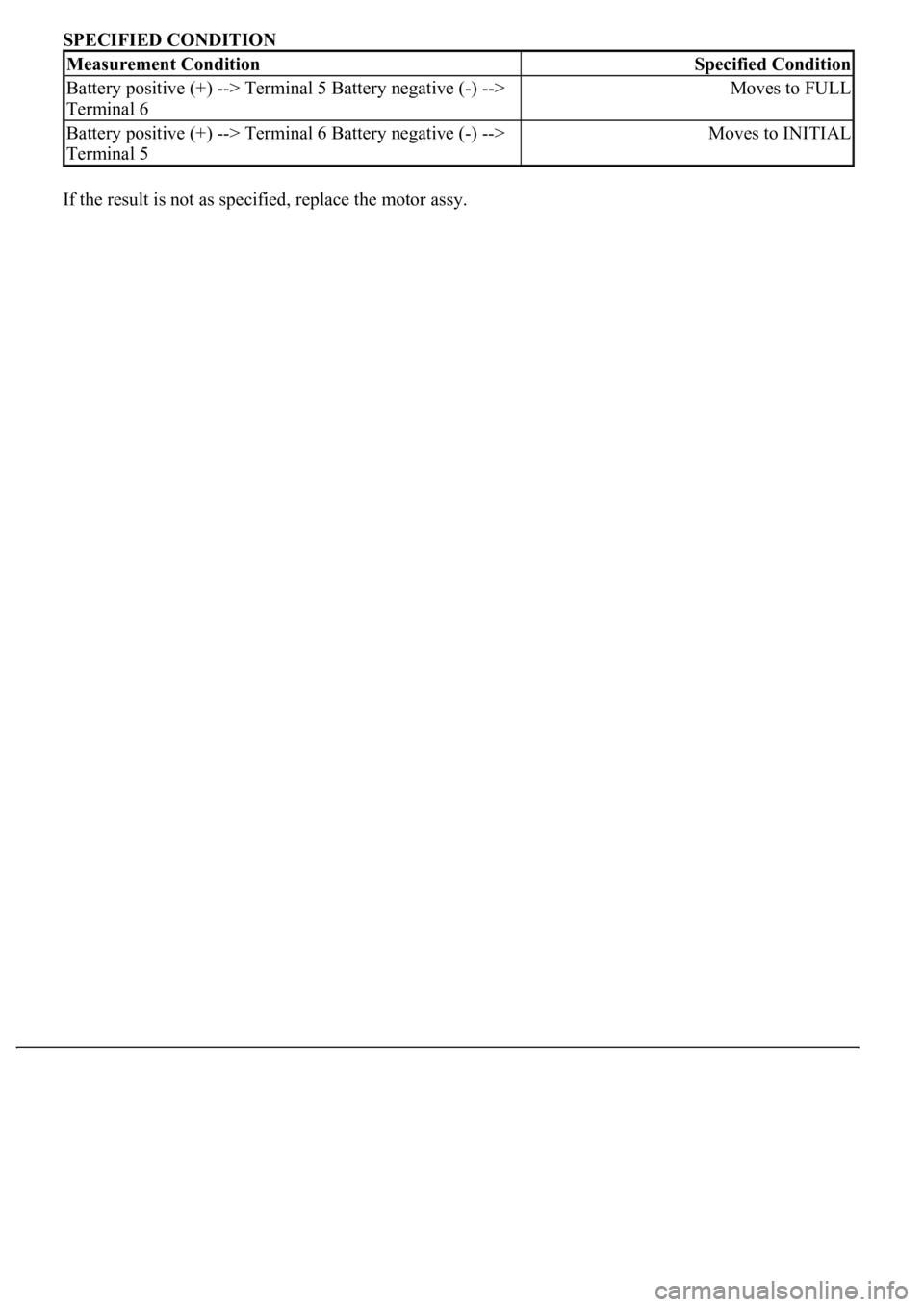

LEXUS LS430 2003 Factory Repair Manual SPECIFIED CONDITION If the result is not as specified, replace the motor assy. Measurement ConditionSpecified Condition Battery positive (+) --> Terminal 5 Battery negative (-) --> Terminal 6Moves t

Page 2300 of 4500

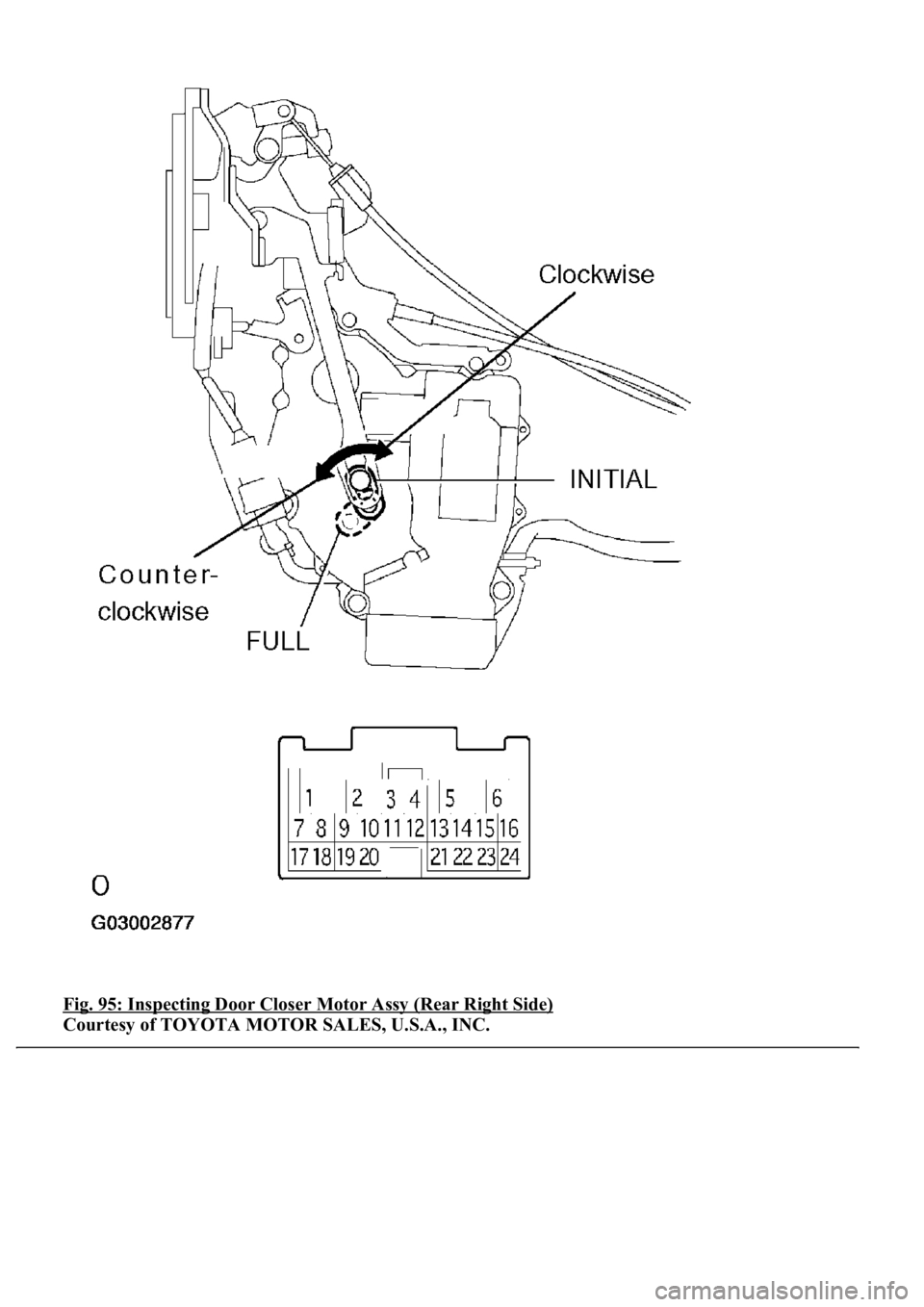

LEXUS LS430 2003 Factory Repair Manual Fig. 95: Inspecting Door Closer Motor Assy (Rear Right Side) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2301 of 4500

LEXUS LS430 2003 Factory Repair Manual 8.INSPECT COMBINATION SWITCH ASSY (REAR RIGHT SIDE) a. Measure the resistance of the half latch and full latch switches. TERMINALS RESISTANCE REFERENCE If the result is not as specified, replace th

Page 2302 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 96: Inspecting Combination Switch Assy (Rear Right Side) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 2303 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Measure the resistance of the pawl switch. TERMINALS RESISTANCE REFERENCE If the result is not as specified, replace the switch ass y. Tester ConnectionConditionSpecified Condition 2 - 5Link not

Page 2304 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 97: Inspecting Combination Switch Assy (Rear Right Side) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
