Page 3121 of 4500

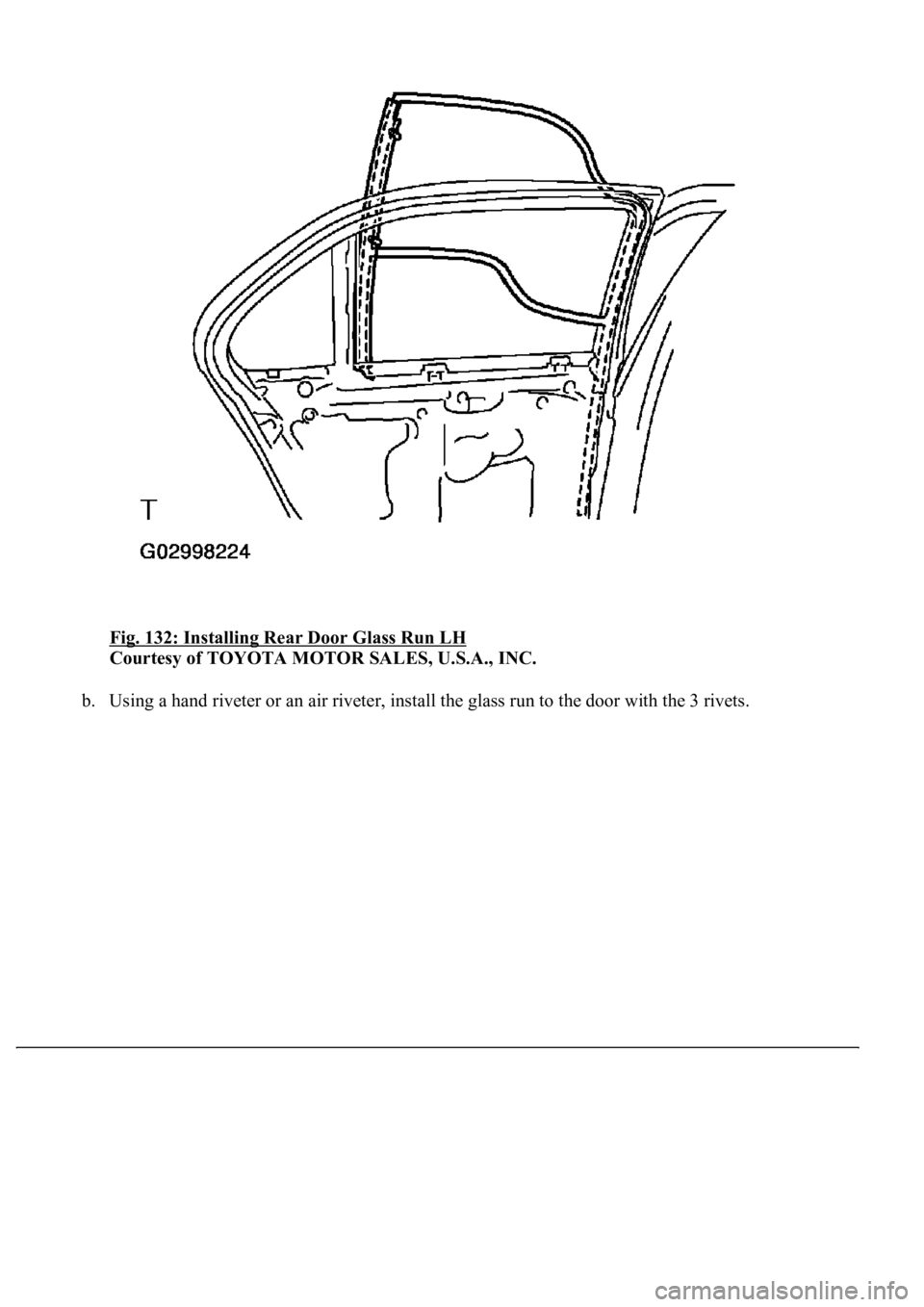

LEXUS LS430 2003 Factory Repair Manual Fig. 132: Installing Rear Door Glass Run LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b.Using a hand riveter or an air riveter, install the glass run to the door with the 3 rivets.

Page 3122 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 133: Installing Glass Run To Door With Rivets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3123 of 4500

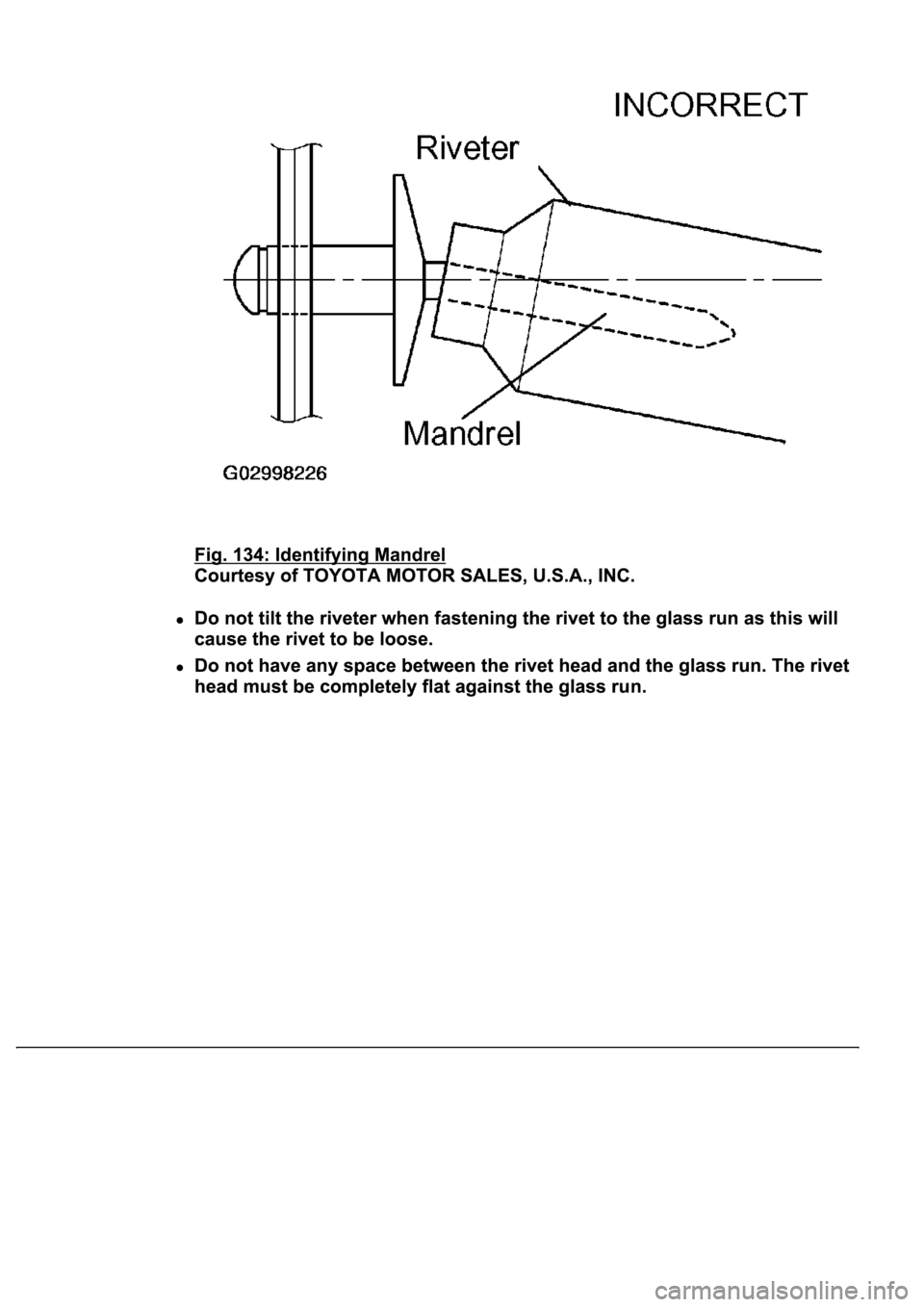

LEXUS LS430 2003 Factory Repair Manual

Page 3124 of 4500

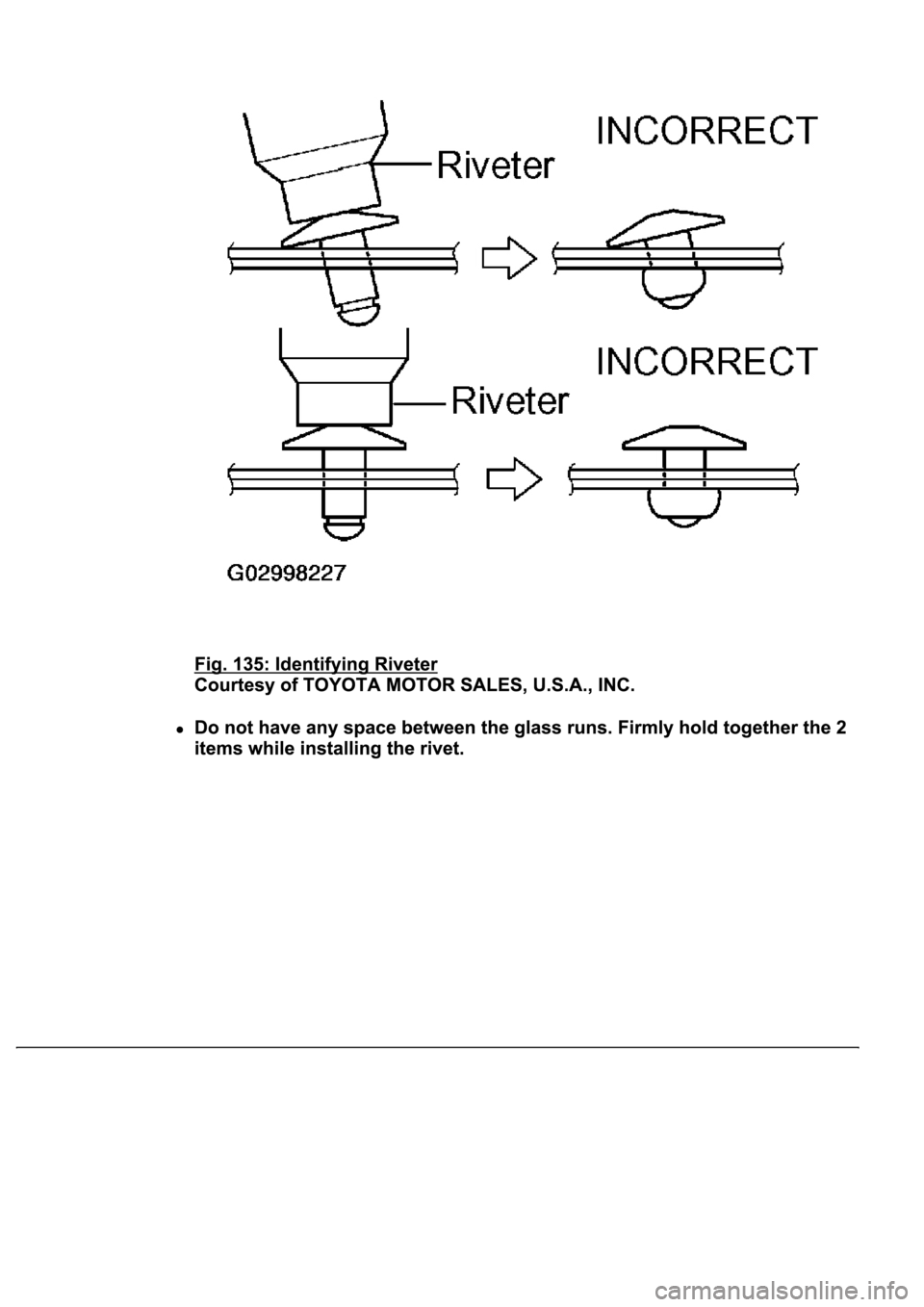

LEXUS LS430 2003 Factory Repair Manual

Page 3125 of 4500

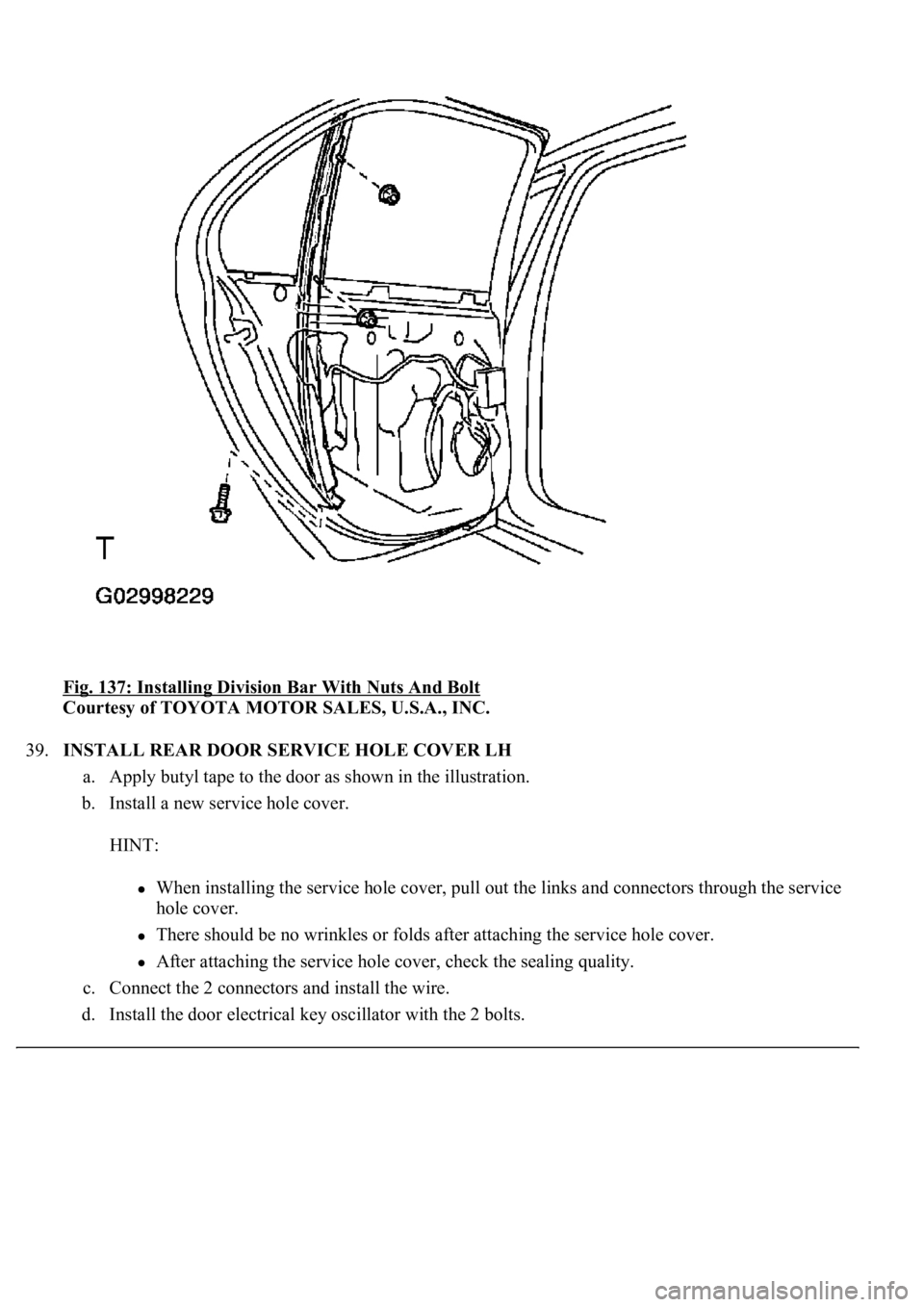

LEXUS LS430 2003 Factory Repair Manual Fig. 136: Installing Rivet Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 38.INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSY LH a. Install the division bar with the 2 nuts and bolt. Torque: 8.0 N.m (

Page 3126 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 137: Installing Division Bar With Nuts And Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 39.INSTALL REAR DOOR SERVICE HOLE COVER LH a. Apply butyl tape to the door as shown in the illustra

Page 3127 of 4500

LEXUS LS430 2003 Factory Repair Manual 40.INITIALIZE POWER WINDOW SYSTEM (See INITIALIZATION ) Fig. 138: Identifying Power Window System Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. COMPONENTS

Page 3128 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 139: Identifying Luggage Compartment Door Components Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. ADJUSTMENT HINT:
Load next 8 pages
