Page 1537 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 26: Identifying Clearance Warning ECU Assy Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE CLEARANCE WARNING ECU ASSY (SEE REPLACE

Page 1538 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 28: Front Left Center Sensor Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.INSPECT ULTRASONIC SENSOR NO.2 a. Remove ultrasonic sensor No.2. b. Measure th

Page 1539 of 4500

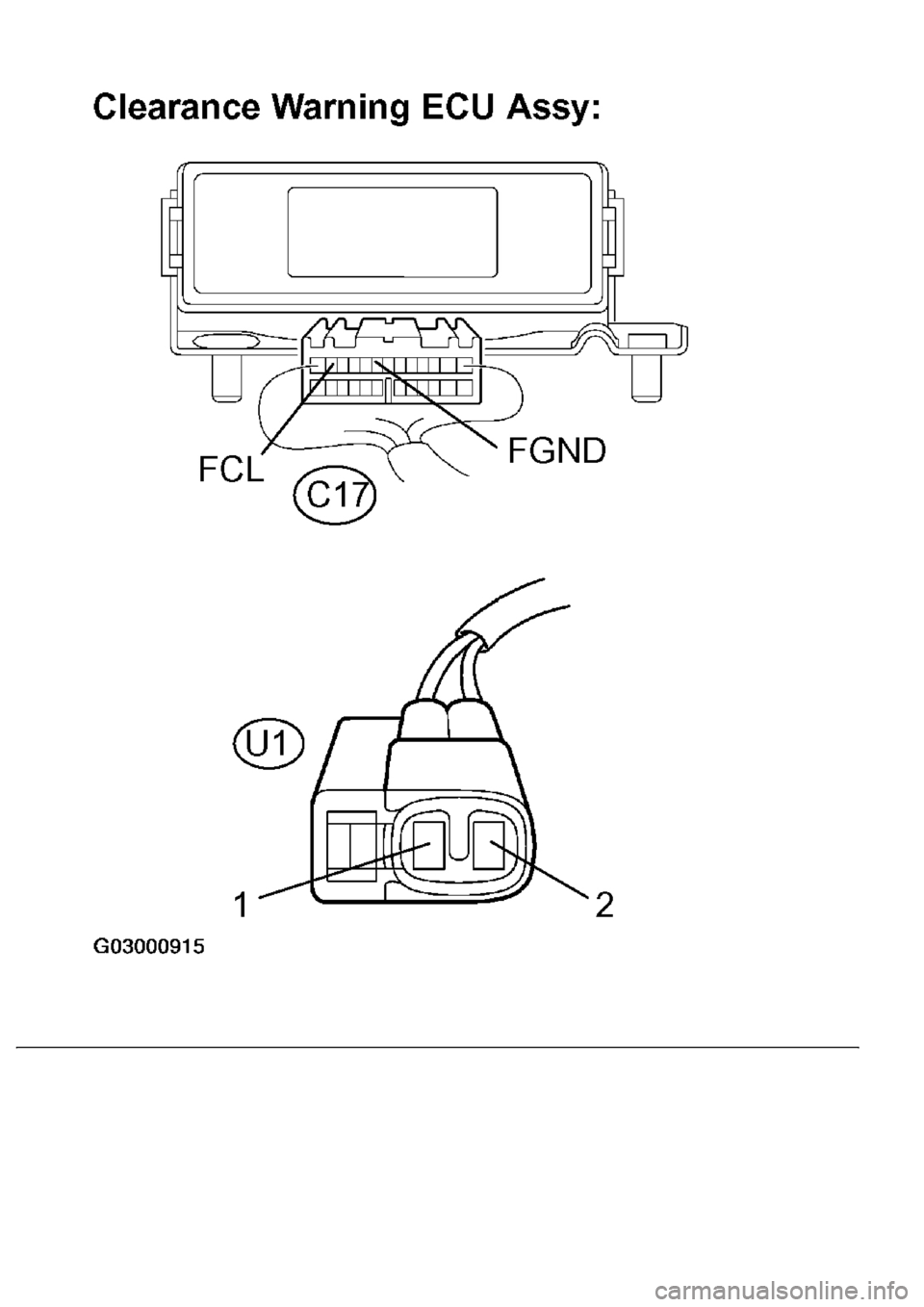

LEXUS LS430 2003 Factory Repair Manual Fig. 29: Identifying Ultrasonic Sensor No.2 Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: Go To Next Step. 2.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSY - ULTRASONIC SENSO

Page 1540 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1541 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 30: Identifying Clearance Warning ECU Assy Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: REPLACE CLEARANCE WARNING ECU ASSY (SEE REPLACE

Page 1542 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 32: Front Right Center Sensor Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.INSPECT ULTRASONIC SENSOR NO.2 a. Remove ultrasonic sensor No.2. b. Measure t

Page 1543 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Identifying Ultrasonic Sensor No.2 Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: Go To Next Step. 2.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSY - ULTRASONIC SENSO

Page 1544 of 4500

LEXUS LS430 2003 Factory Repair Manual
