Page 4009 of 4500

LEXUS LS430 2003 Factory Repair Manual REPLACEMENT HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side. 1.REMOVE FRONT WHEELS 2.REMOVE FRONT SHOCK ABSORBER CAP LH a. Remove th

Page 4010 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Removing Absorber Control Actuator Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.REMOVE HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH 5.SEPARATE FRONT STABILIZER LINK ASSY LH a. Support the s

Page 4011 of 4500

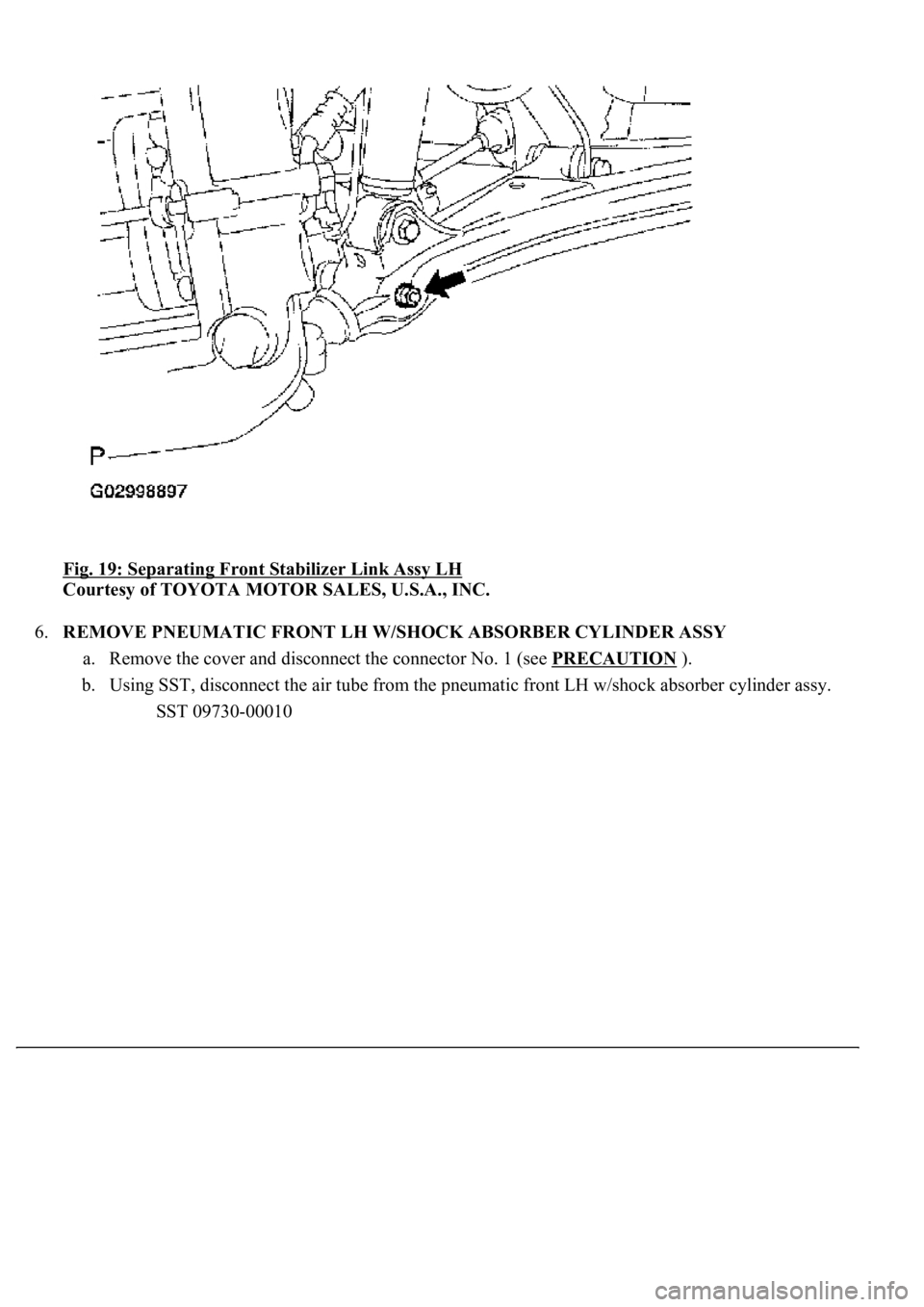

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Separating Front Stabilizer Link Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE PNEUMATIC FRONT LH W/SHOCK ABSORBER CYLINDER ASSY a. Remove the cover and disconnect the conn

Page 4012 of 4500

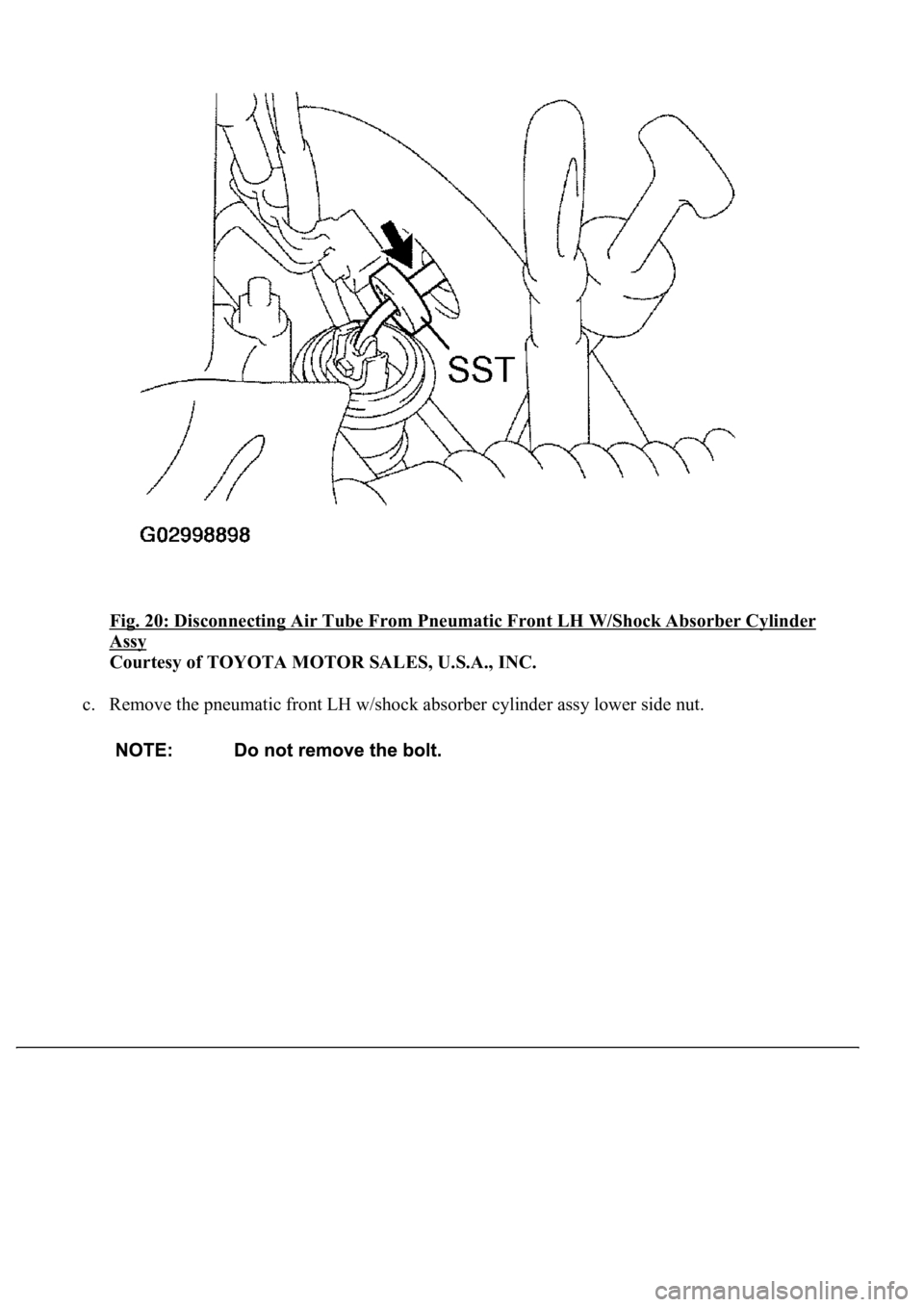

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Disconnecting Air Tube From Pneumatic Front LH W/Shock Absorber Cylinder Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the pneumatic front LH w/shock absorber cylinder assy l

Page 4013 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 21: Removing Pneumatic Front LH W/Shock Absorber Cylinder Assy Lower Side Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Remove the 3 nuts on the upper side of the pneumatic front LH w/sho

Page 4014 of 4500

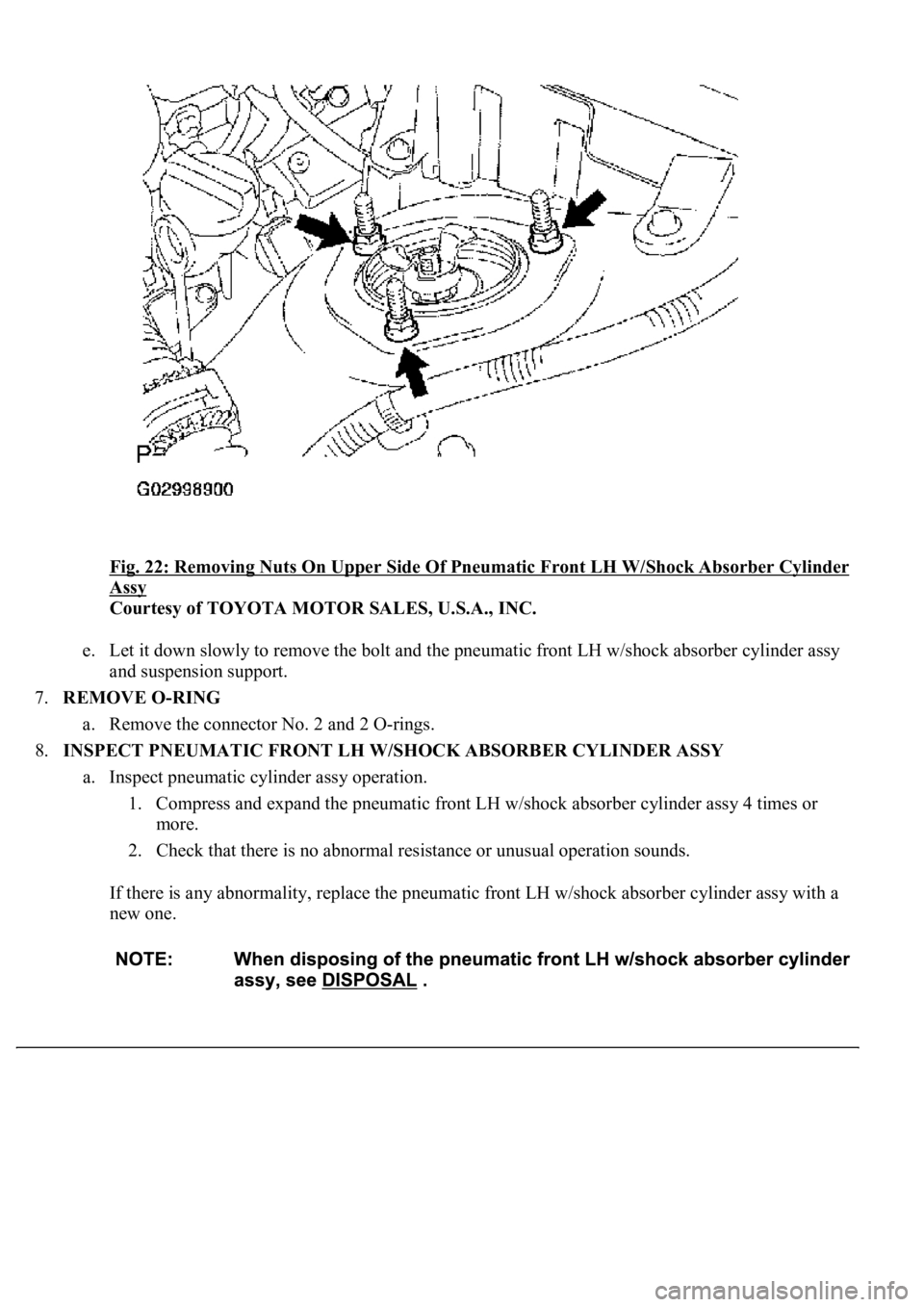

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Removing Nuts On Upper Side Of Pneumatic Front LH W/Shock Absorber Cylinder Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Let it down slowly to remove the bolt and the pneumatic fro

Page 4015 of 4500

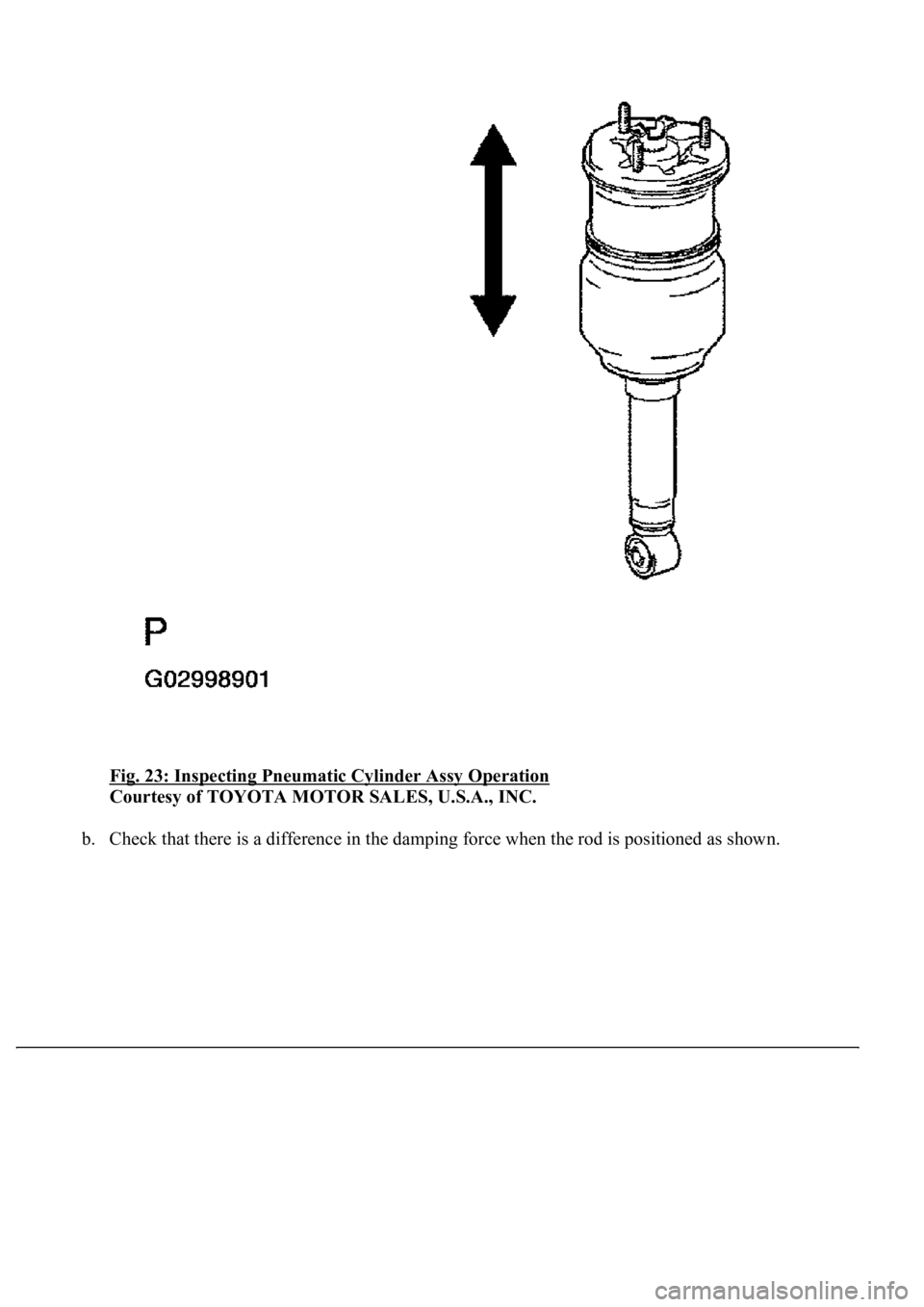

LEXUS LS430 2003 Factory Repair Manual Fig. 23: Inspecting Pneumatic Cylinder Assy Operation Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Check that there is a difference in the damping force when the rod is positioned as shown.

Page 4016 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 24: Checking Difference In Damping Force Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSTALL O-RING a. Install the 2 O-rings and connector No. 2. 10.TEMPORARILY TIGHTEN PNEUMATIC FRONT LH
