Page 2097 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 57: Heating Ring Gear Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. After the moisture on the ring gear has completely evaporated, quickly install the ring gear to the differential case. HI

Page 2098 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 58: Aligning Matchmarks On Ring Gear And Differential Case Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 47.INSTALL REAR DIFFERENTIAL CASE BOLT a. Clean the differential ring gear set bolt hole

Page 2099 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 59: Installing Rear Differential Case Bolt Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Torque the 10 set bolts uniformly and a little at a time. Torque: 64 N.m (650 kgf.cm, 47 ft.lbf) Ti

Page 2100 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 60: Identifying Rear Differential Case Bolt Tightening Angle Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 48.INSTALL REAR DIFFERENTIAL CASE BEARING a. Using SST and a press, install the 2 diff

Page 2101 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 61: Installing Differential Case Bearings Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 49.INSTALL REAR DRIVE PINION REAR TAPERED ROLLER BEARING a. Using SST and a press, install the rear beari

Page 2102 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 62: Installing Rear Bearing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Using SST and a press, install the rear bearing outer race and adjusting washer. SST 09950-70010 (09951-07100), 092

Page 2103 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 63: Installing Rear Bearing Outer Race And Adjusting Washer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 50.INSTALL DIFFERENTIAL DRIVE PINION a. Using SST and a press, install the front bearin

Page 2104 of 4500

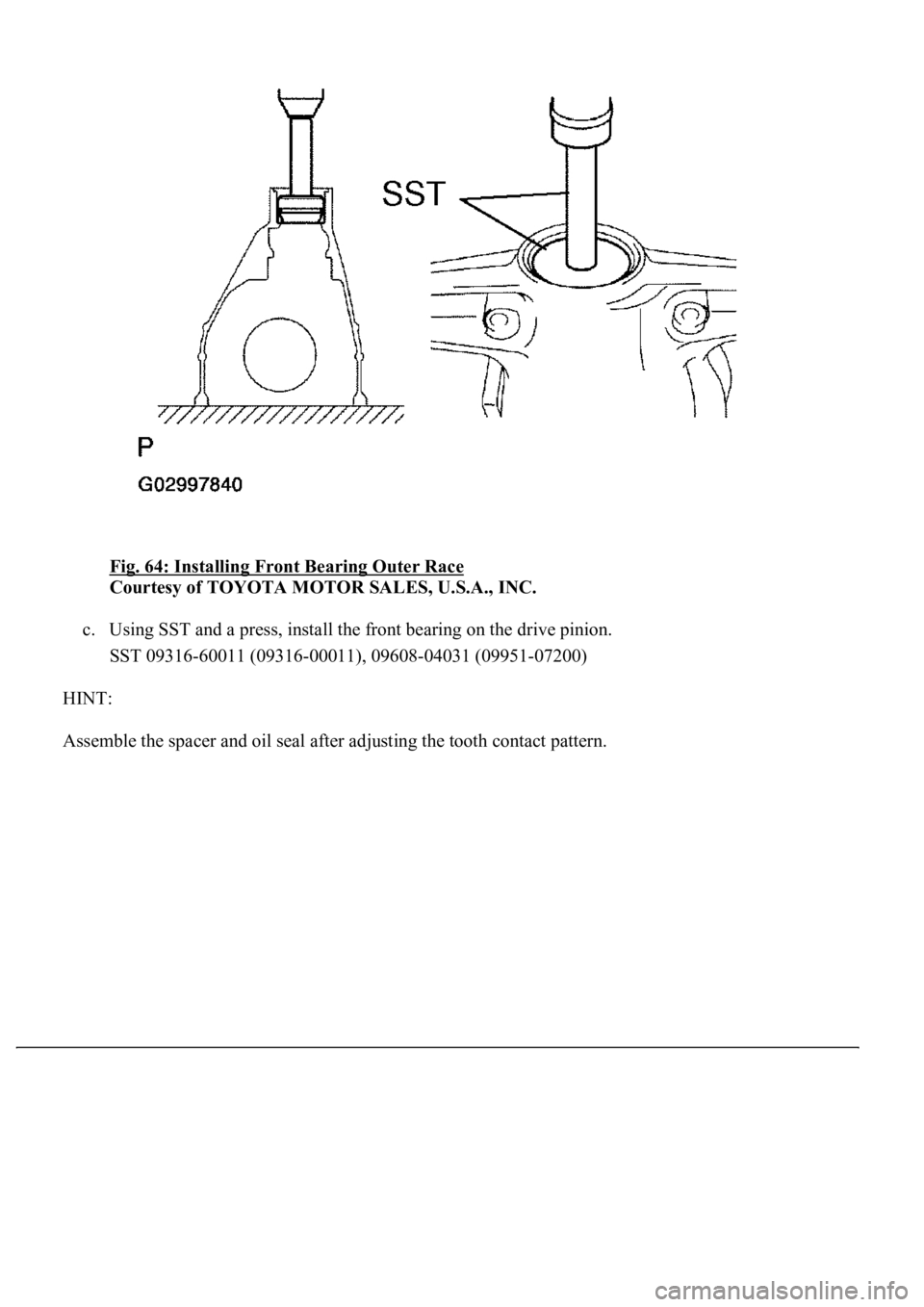

LEXUS LS430 2003 Factory Repair Manual Fig. 64: Installing Front Bearing Outer Race Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Using SST and a press, install the front bearing on the drive pinion. SST 09316-60011 (09316-00011), 09
