Page 4217 of 4500

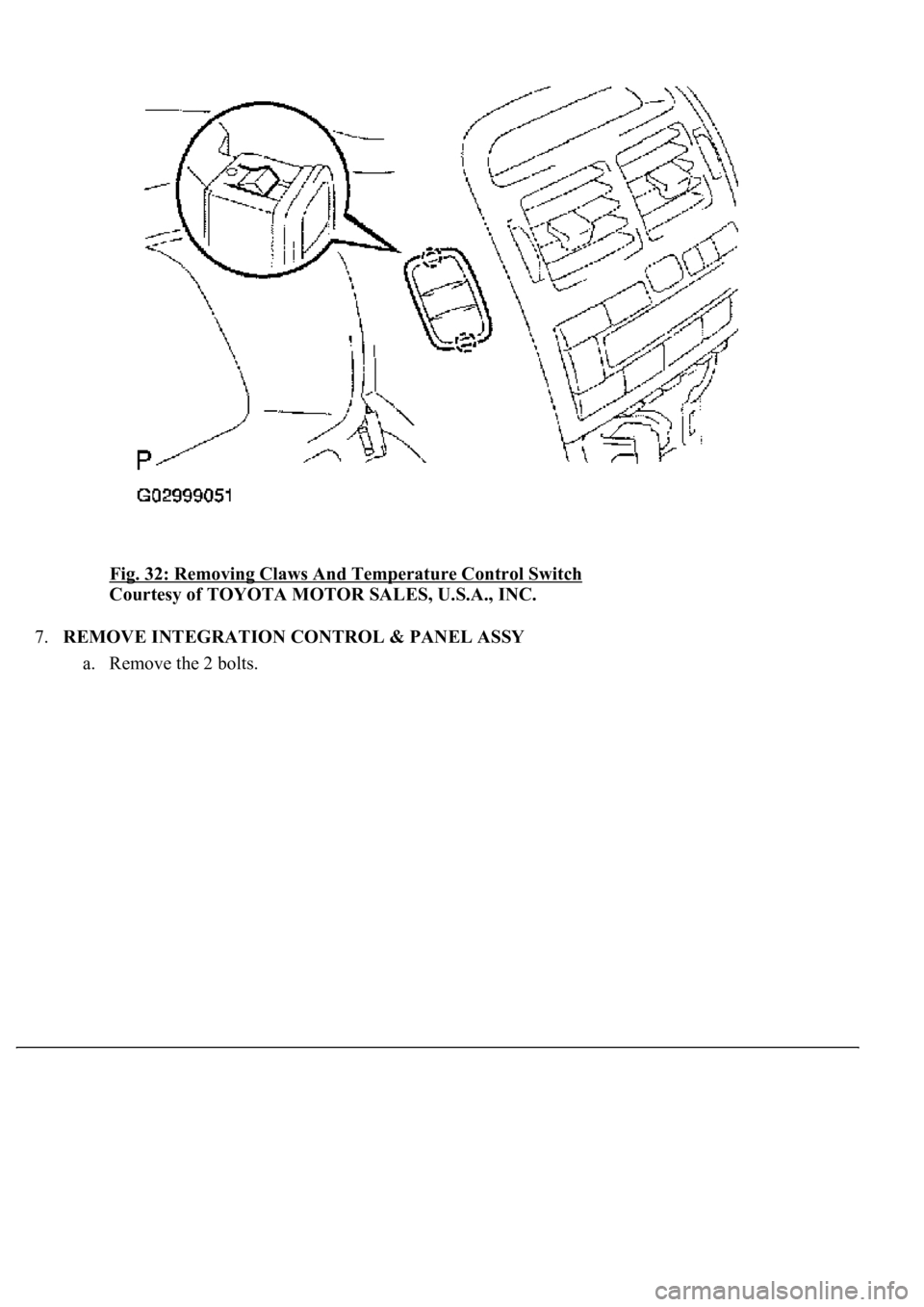

LEXUS LS430 2003 Factory Repair Manual Fig. 32: Removing Claws And Temperature Control Switch Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.REMOVE INTEGRATION CONTROL & PANEL ASSY a. Remove the 2 bolts.

Page 4218 of 4500

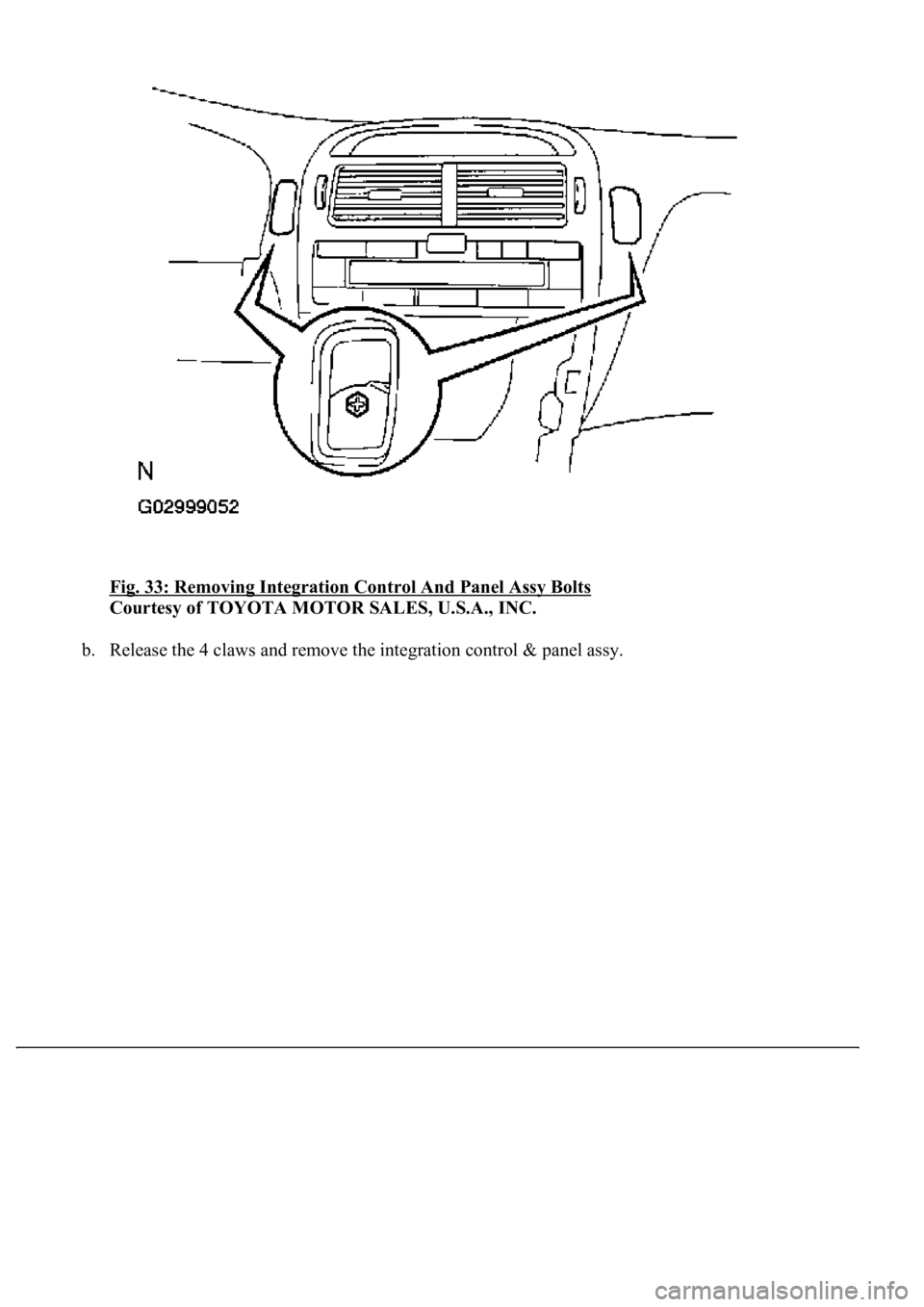

LEXUS LS430 2003 Factory Repair Manual Fig. 33: Removing Integration Control And Panel Assy Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Release the 4 claws and remove the integration control & panel assy.

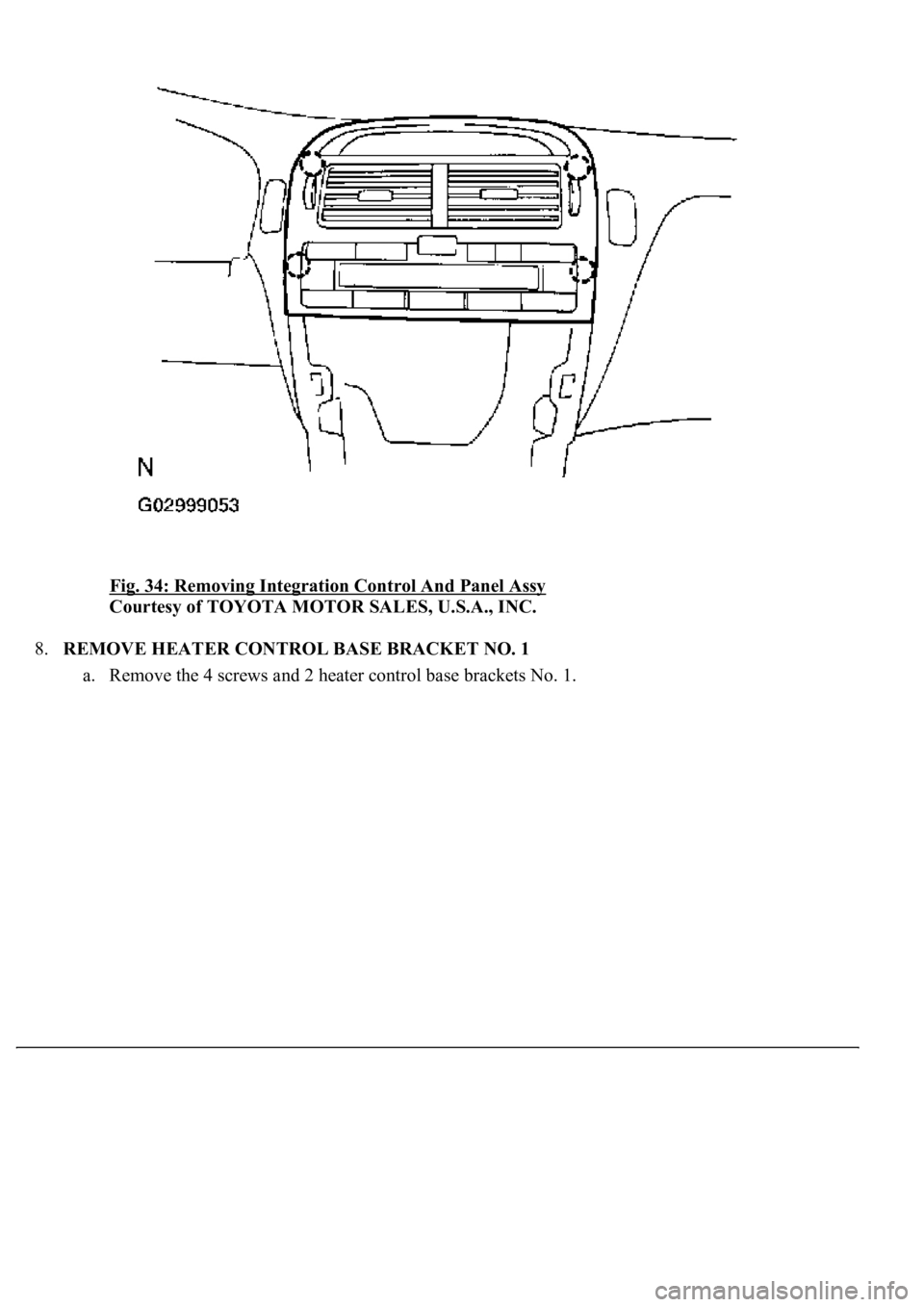

Page 4219 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300160017001d000300350048005000520059004c0051004a0003002c005100570048004a005500440057004c005200510003002600520051005700550052004f000300240051004700030033004400510048004f00030024005

Page 4220 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 35: Removing Heater Control Base Brackets No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE AIR CONDITIONER CONTROL ASSEMBLY a. Disconnect the connector. b. Remove the 4 screws, re

Page 4221 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 36: Removing Air Conditioner Control Assembly Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE HEATER CONTROL HOUSING a. Remove the 2 screws, release the 4 claws and remove the heater co

Page 4222 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 37: Removing Heater Control Housing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.REMOVE HEATER CONTROL BULB a. Usin g a screwdriver, turn the bulbs to the left and pull out the bulbs.

Page 4223 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 38: Removing Heater Control Bulb Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 12.REMOVE HEATER CONTROL BASE SUB-ASSY a. Release the 4 claws and remove the heater control base.

Page 4224 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 39: Removing Heater Control Base Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.REMOVE AIR CONDITIONER PANEL SUB-ASSY COMPONENTS
