Page 4233 of 4500

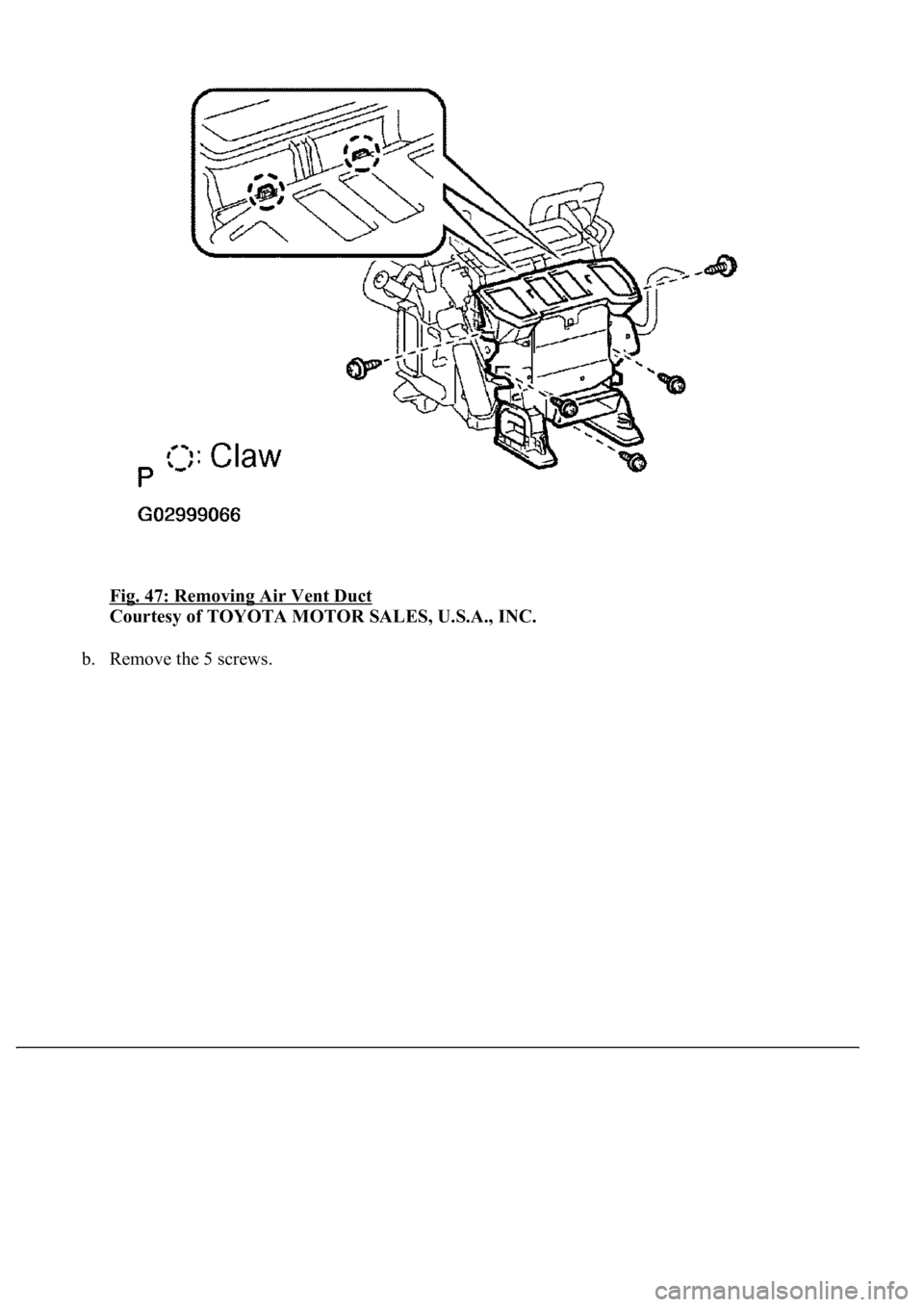

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Removing Air Vent Duct Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the 5 screws.

Page 4234 of 4500

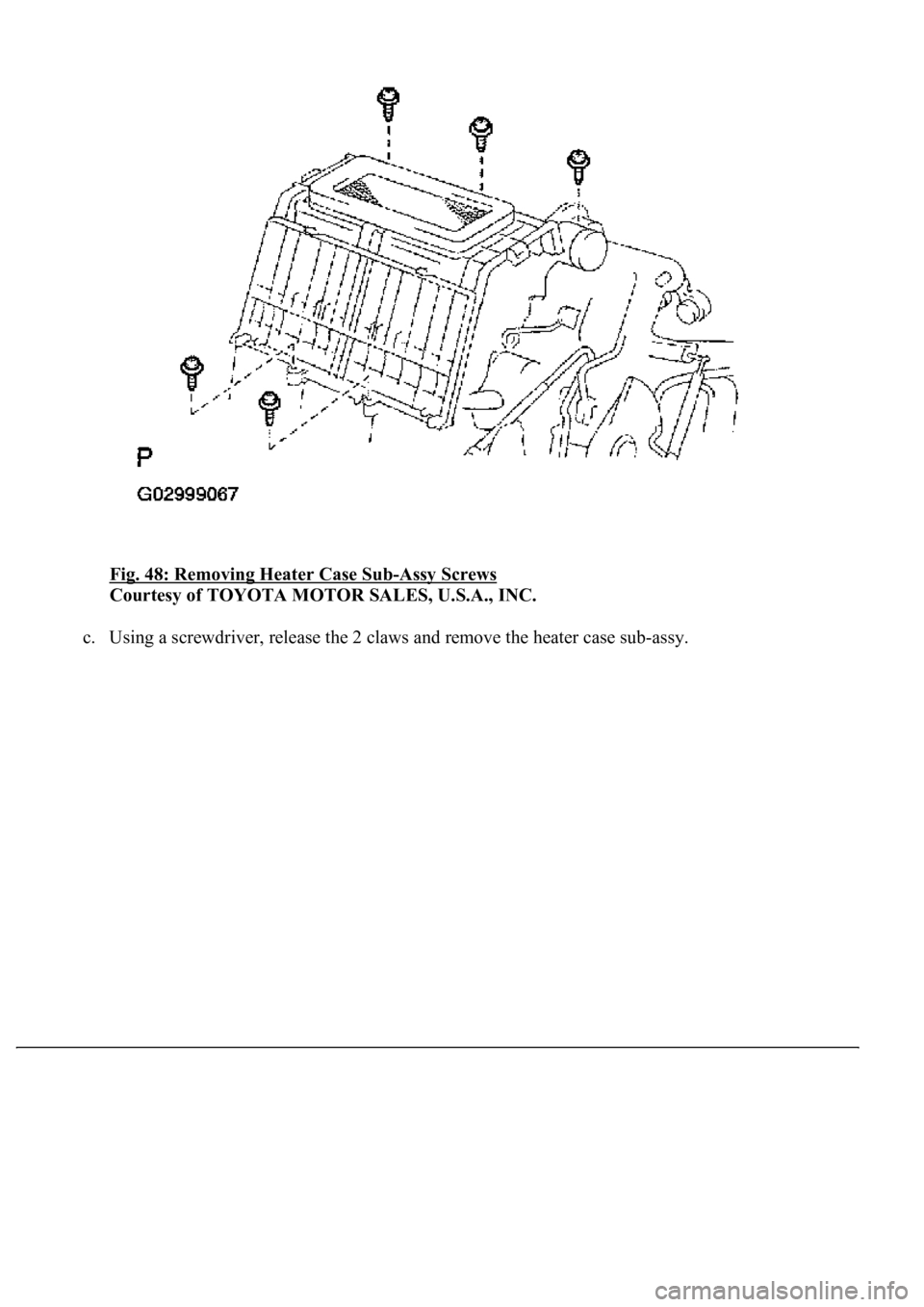

LEXUS LS430 2003 Factory Repair Manual Fig. 48: Removing Heater Case Sub-Assy Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Usin g a screwdriver, release the 2 claws and remove the heater case sub-assy.

Page 4235 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 49: Removing Heater Case Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 18.REMOVE COOLER EXPANSION VALVE a. Using a hexagon wrench 5 mm (0.20 in.), remove the 2 hexagon bolts and air co

Page 4236 of 4500

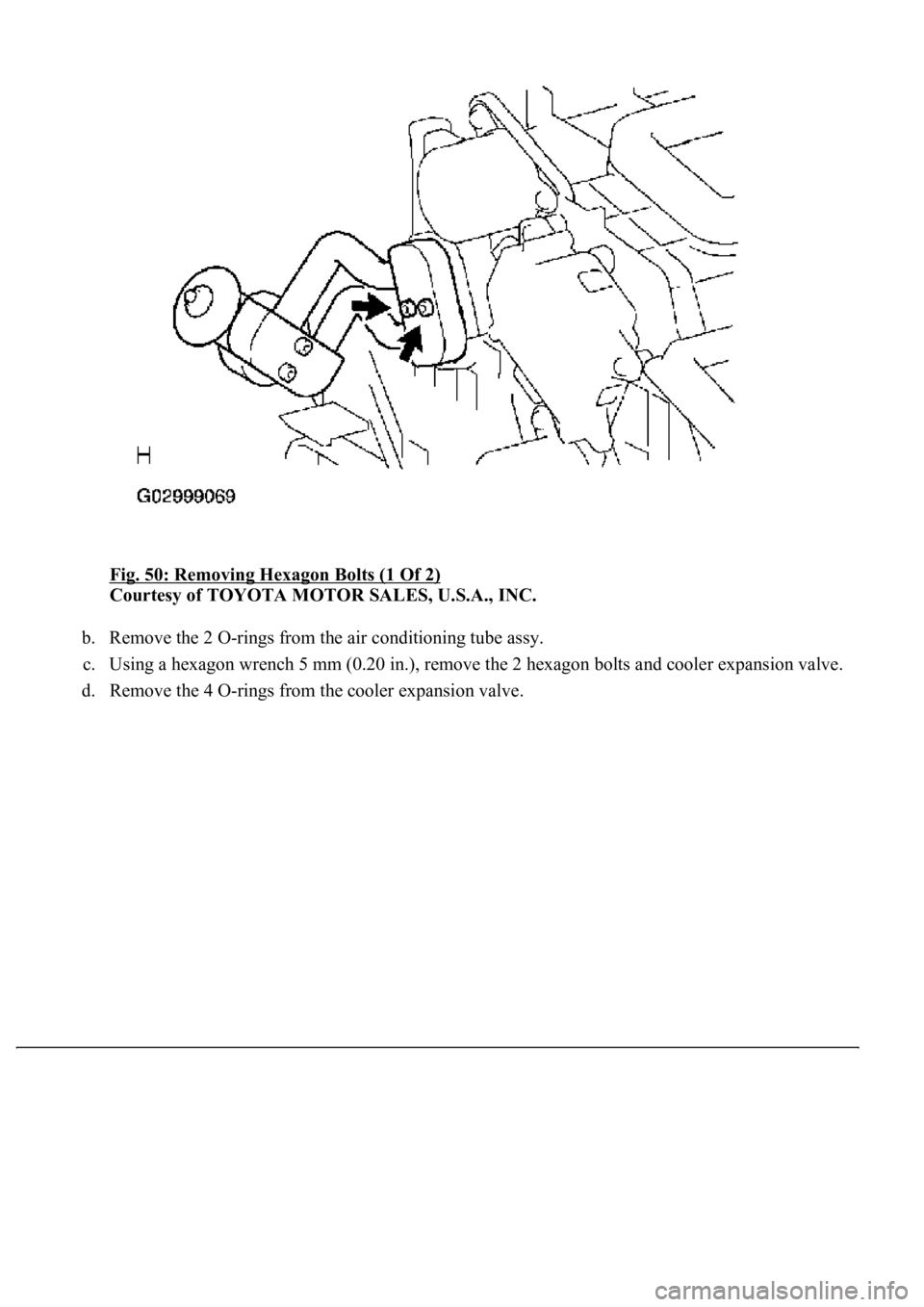

LEXUS LS430 2003 Factory Repair Manual Fig. 50: Removing Hexagon Bolts (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the 2 O-rings from the air conditioning tube assy. c. Using a hexagon wrench 5 mm (0.20 in.), remove

Page 4237 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 51: Removing Hexagon Bolts (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.REMOVE COOLER EVAPORATOR SUB-ASSY NO. 1 a. Remove the 6 screws and evaporator cover. b. Pull out the evapo

Page 4238 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 52: Removing Evaporator Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE EVAPORATOR TEMPERATURE SENSOR 21.REMOVE HEATER RADIATOR UNIT SUB-ASSY a. Remove the screw and clamp. b.

Page 4239 of 4500

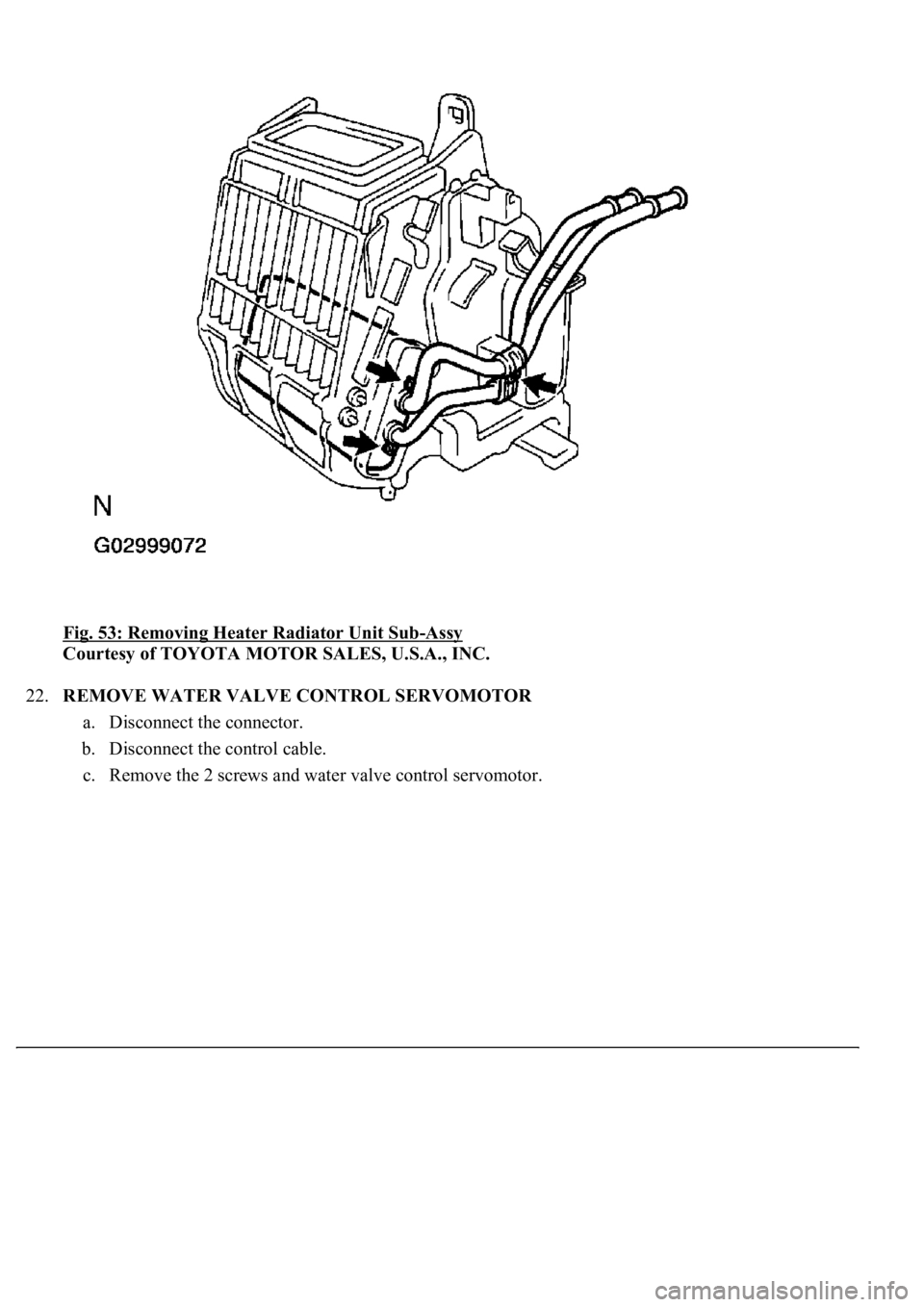

LEXUS LS430 2003 Factory Repair Manual Fig. 53: Removing Heater Radiator Unit Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.REMOVE WATER VALVE CONTROL SERVOMOTOR a. Disconnect the connector. b. Disconnect the control cable.

Page 4240 of 4500

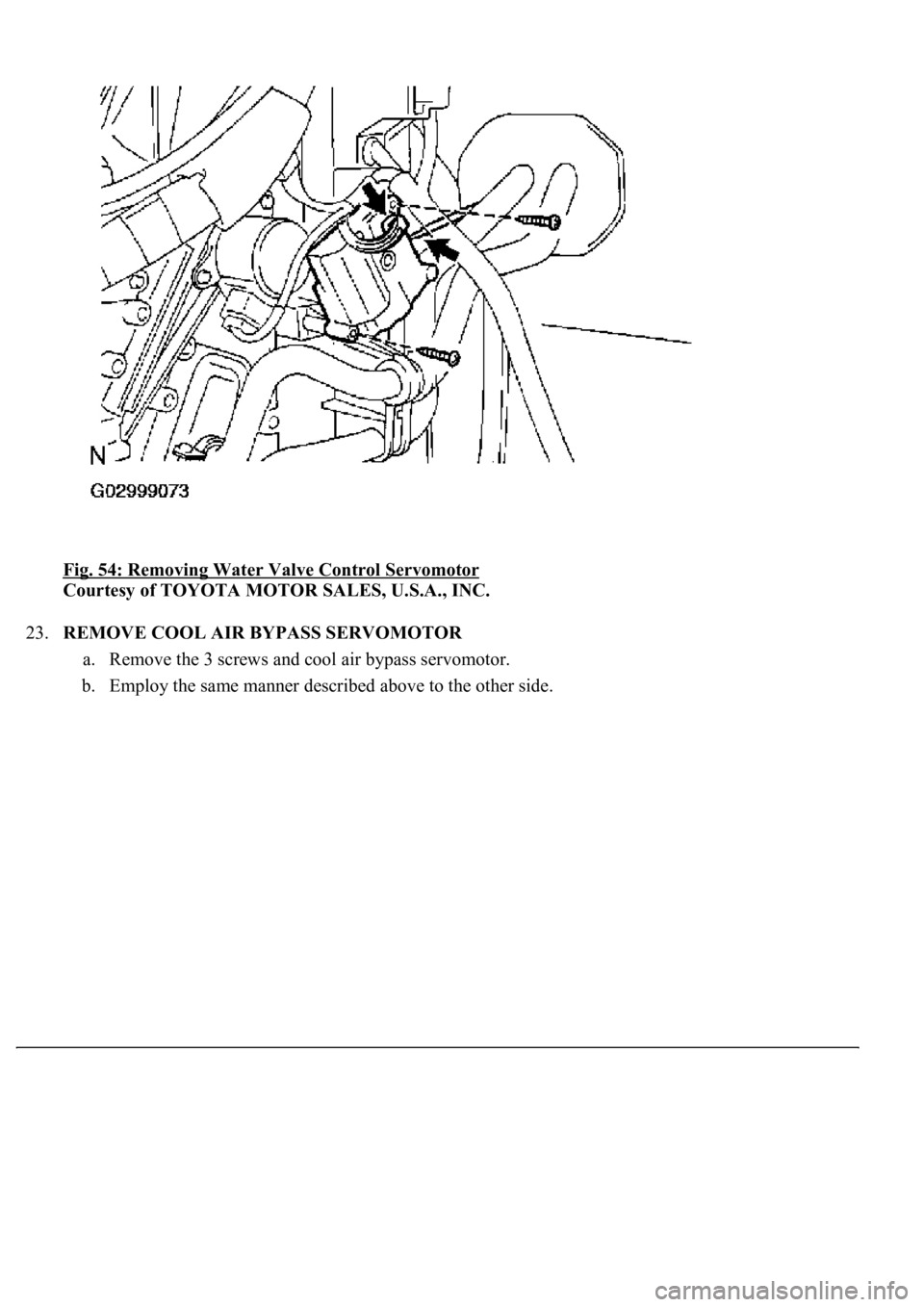

LEXUS LS430 2003 Factory Repair Manual Fig. 54: Removing Water Valve Control Servomotor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23.REMOVE COOL AIR BYPASS SERVOMOTOR a. Remove the 3 screws and cool air bypass servomotor. b.Employ
