Page 3713 of 4500

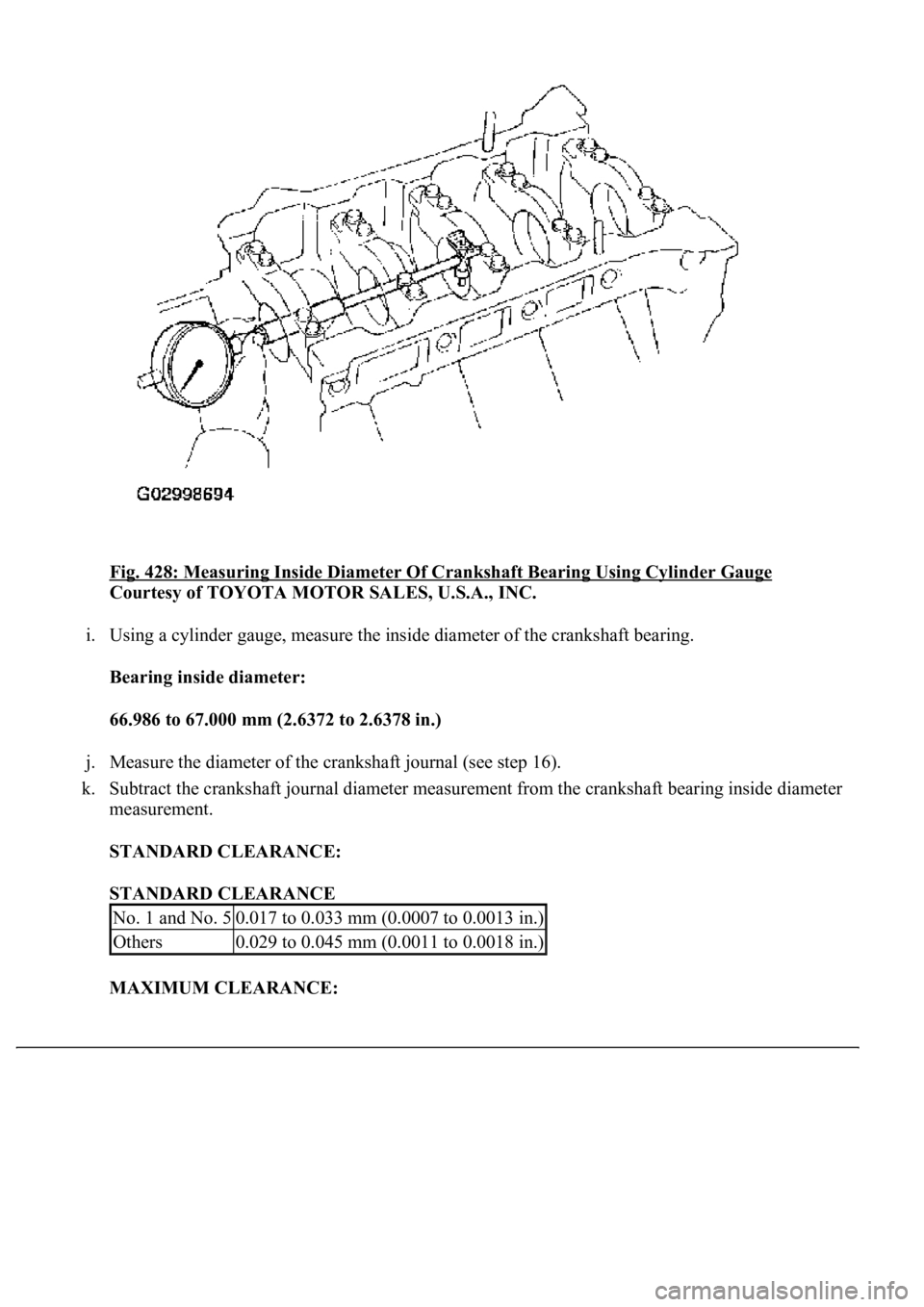

LEXUS LS430 2003 Factory Repair Manual Fig. 428: Measuring Inside Diameter Of Crankshaft Bearing Using Cylinder Gauge Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. i. Using a cylinder gauge, measure the inside diameter of the crankshaft b

Page 3714 of 4500

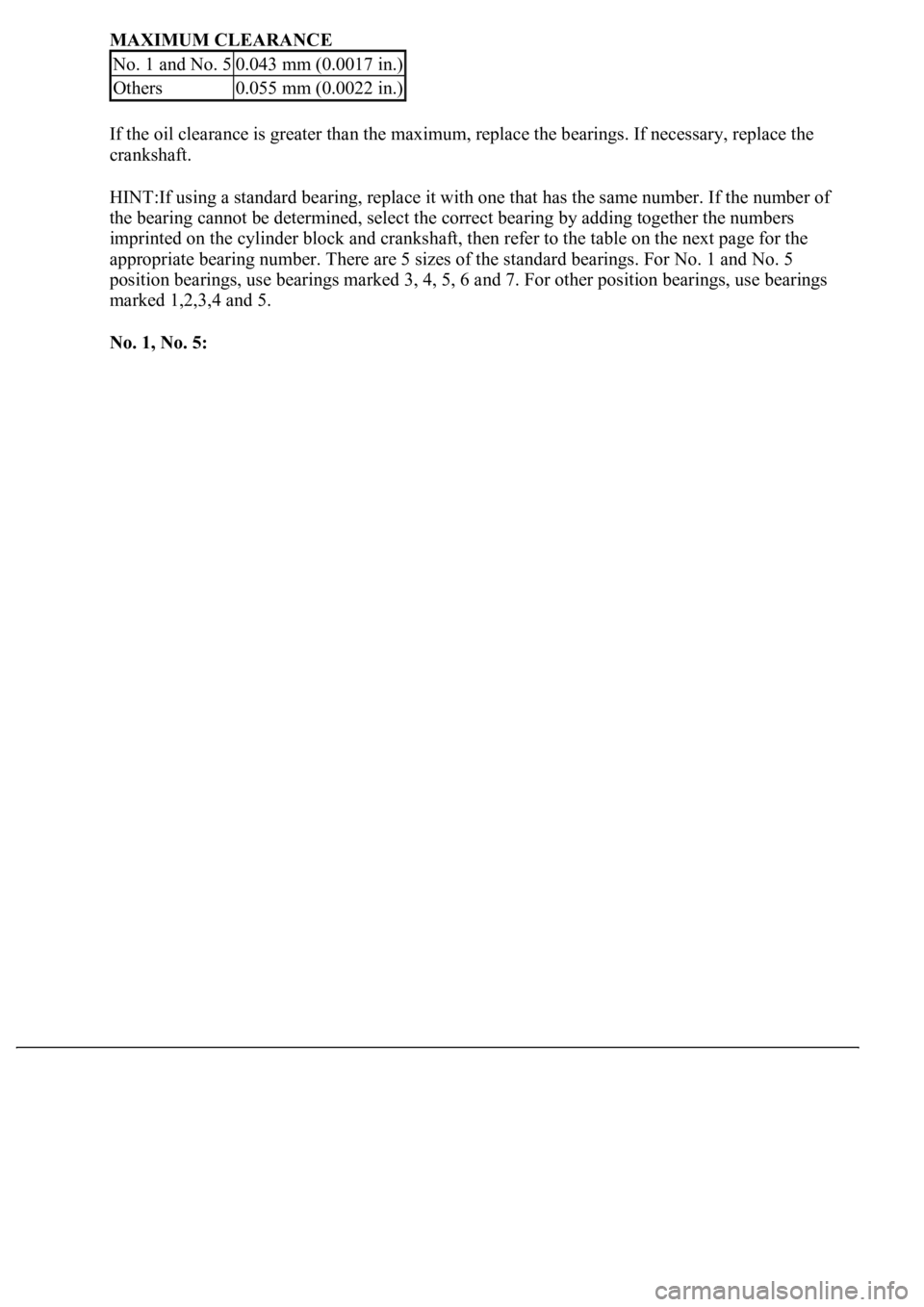

LEXUS LS430 2003 Factory Repair Manual MAXIMUM CLEARANCE If the oil clearance is greater than the maximum, replace the bearings. If necessary, replace the crankshaft. HINT:If using a standard bearing, replace it with one that has the sa

Page 3715 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 429: Identifying Crankshaft Bearings Mark

Page 3716 of 4500

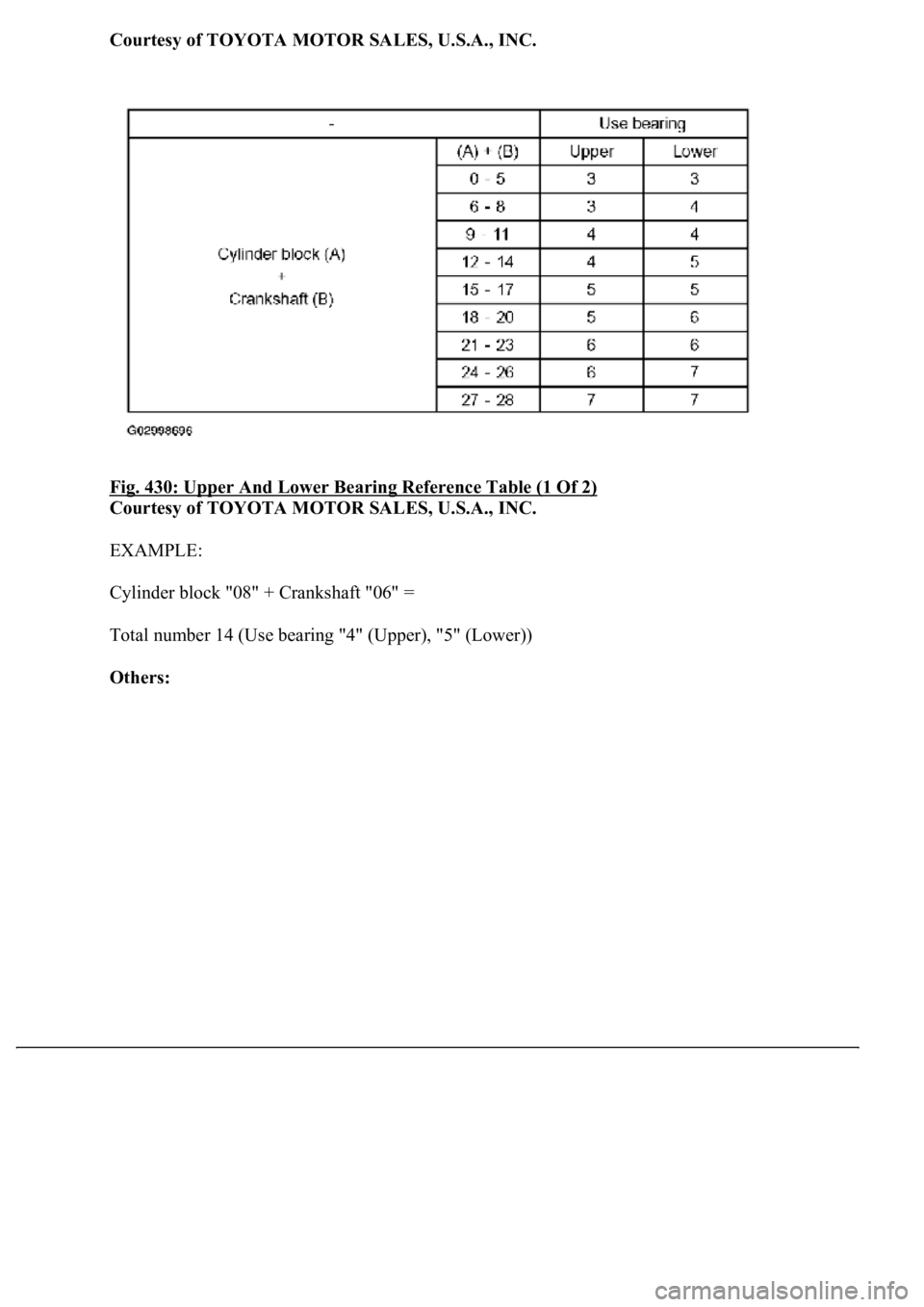

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Fig. 430: Upper And Lower Bearing Reference Table (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. EXAMPLE: Cylinder block "08" + Cranksha

Page 3717 of 4500

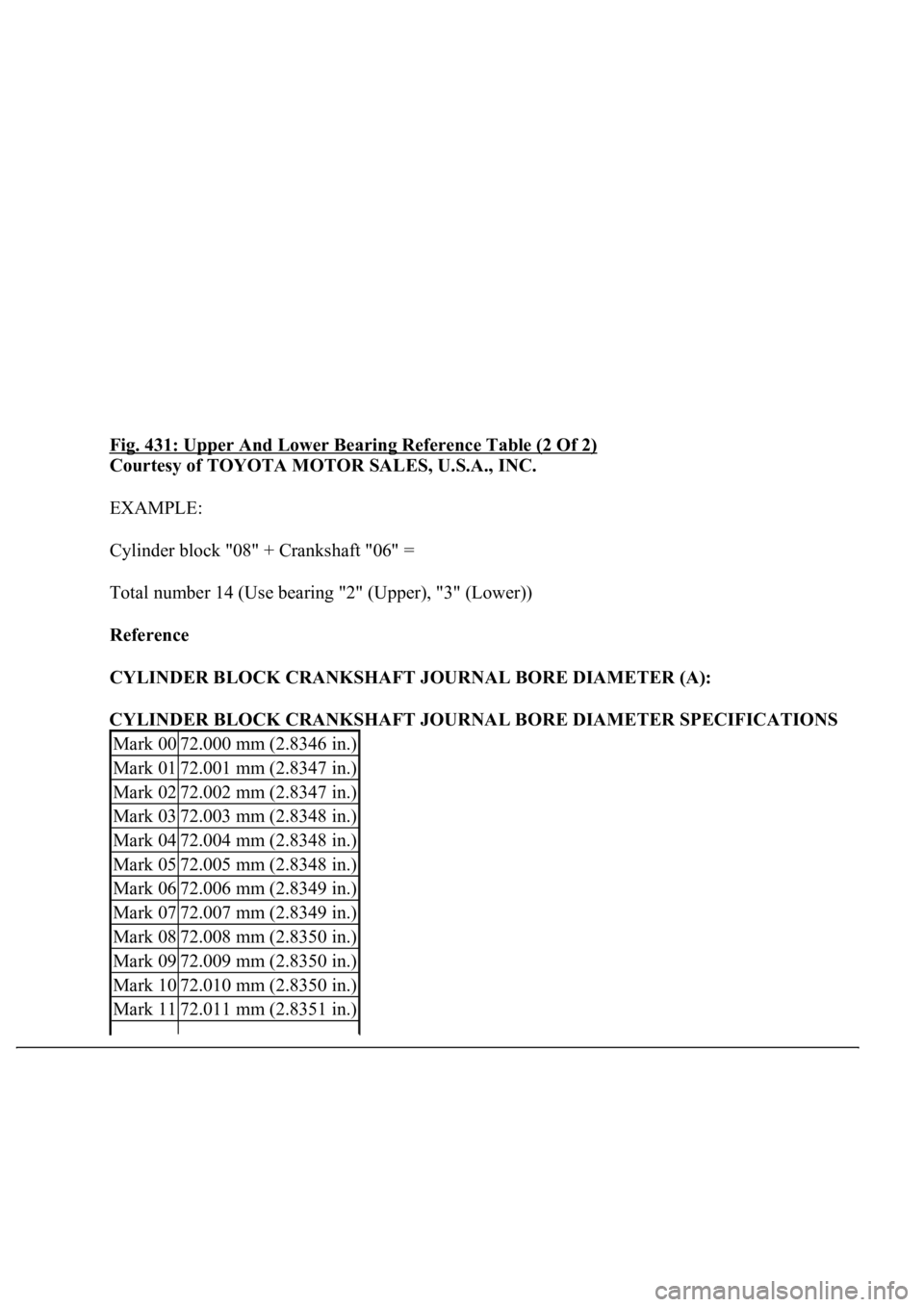

LEXUS LS430 2003 Factory Repair Manual Fig. 431: Upper And Lower Bearing Reference Table (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. EXAMPLE: Cylinder block "08" + Crankshaft "06" = Total number 14 (Use bearin

Page 3718 of 4500

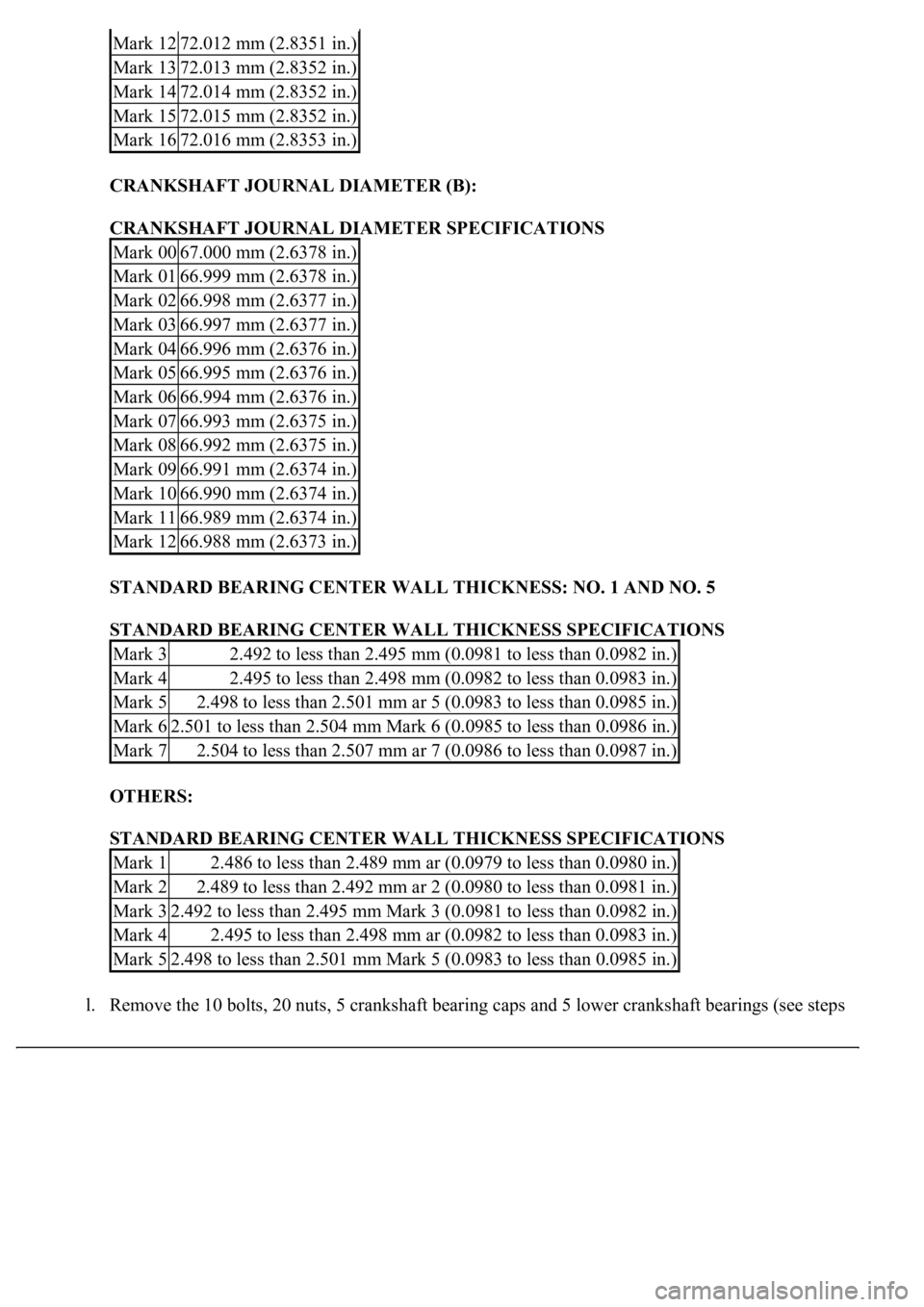

LEXUS LS430 2003 Factory Repair Manual CRANKSHAFT JOURNAL DIAMETER (B): CRANKSHAFT JOURNAL DIAMETER SPECIFICATIONS STANDARD BEARING CENTER WALL THICKNESS: NO. 1 AND NO. 5 STANDARD BEARING CENTER WALL THICKNESS SPECIFICATIONS OTHERS:

Page 3719 of 4500

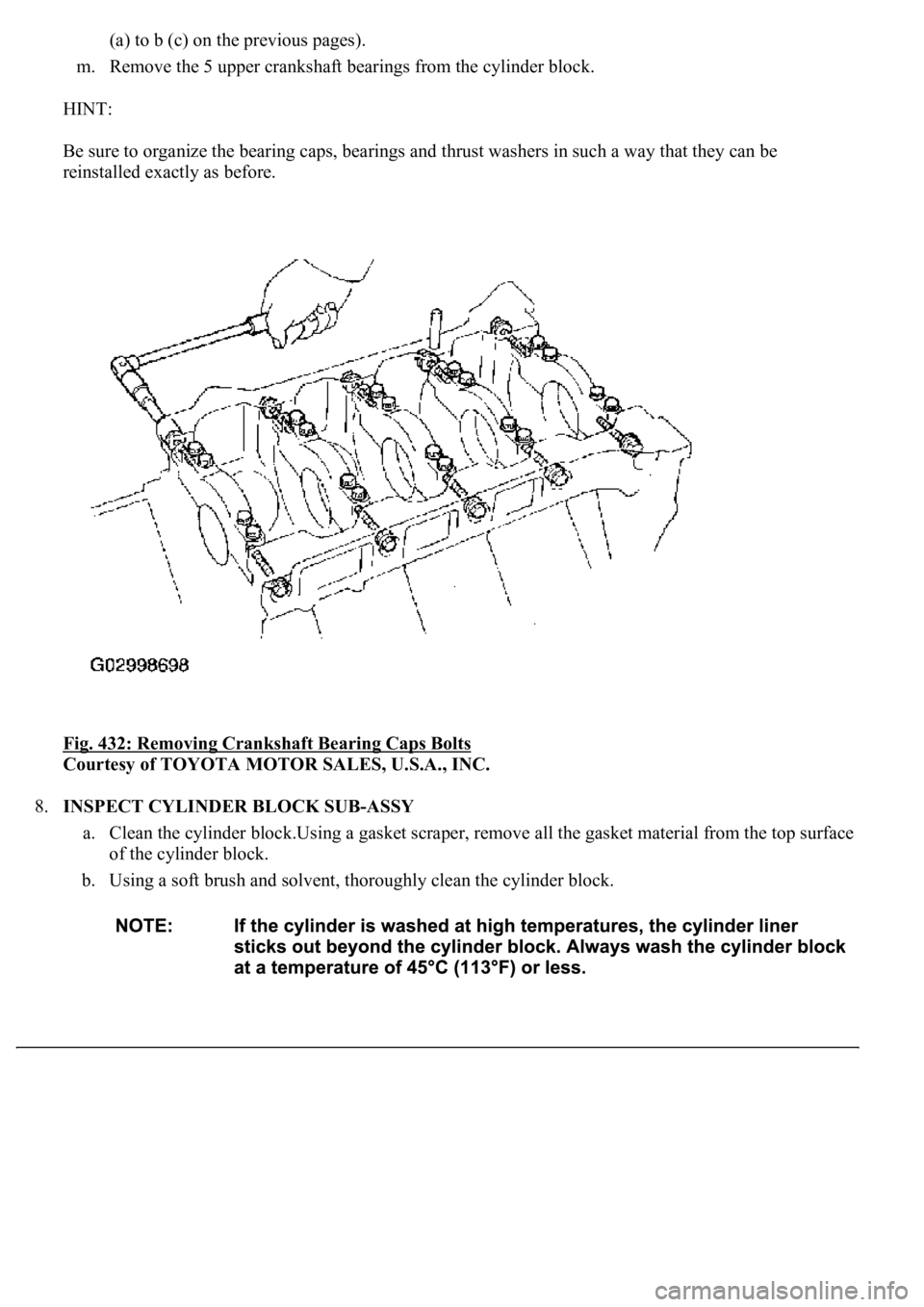

LEXUS LS430 2003 Factory Repair Manual (a) to b (c) on the previous pages). m. Remove the 5 upper crankshaft bearings from the cylinder block. HINT: <0025004800030056005800550048000300570052000300520055004a00440051004c005d0048000300570

Page 3720 of 4500

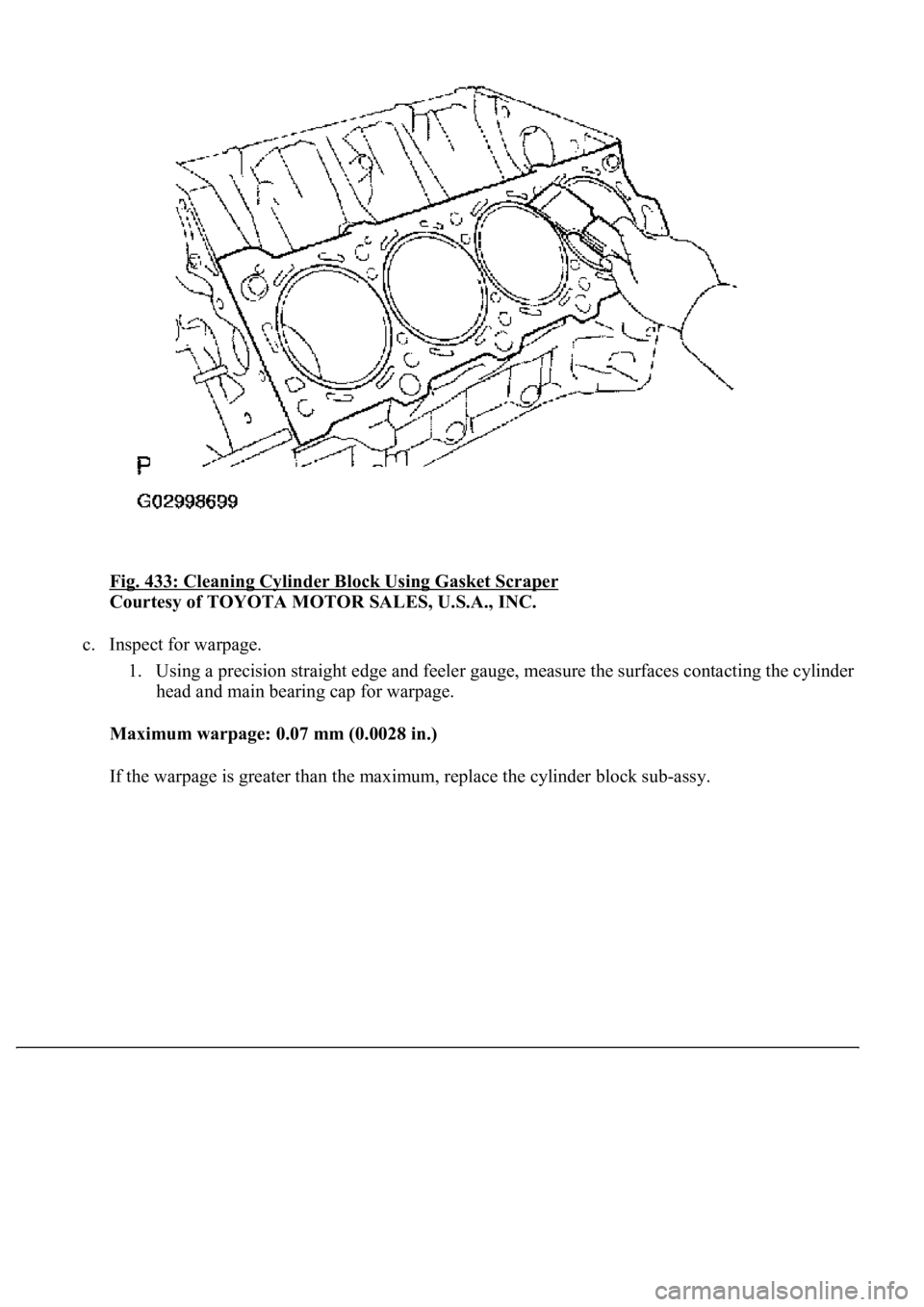

LEXUS LS430 2003 Factory Repair Manual Fig. 433: Cleaning Cylinder Block Using Gasket Scraper Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Inspect for warpage. 1. Using a precision straight edge and feeler gauge, measure the surfaces
