a. Remove the luggage room J/B ECU with connectors still connected.
b. Measure the voltage according to the value (s) in the table below.
Standard:
LUGGAGE ROOM J/B ECU (RMGV - BODY GROUND) VOLTAGE
NG: Go to STEP 3

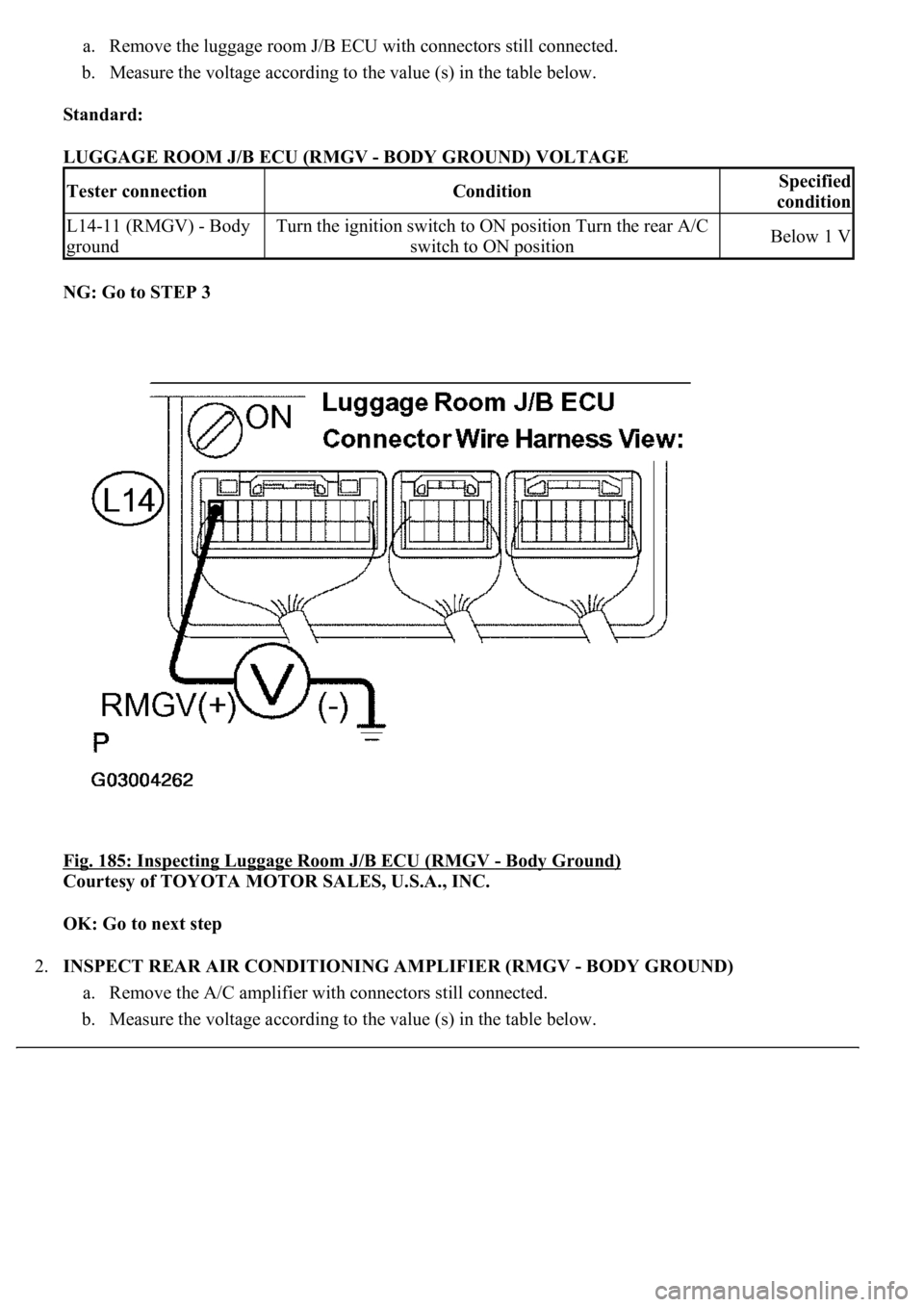

Fig. 185: Inspecting Luggage Room J/B ECU (RMGV
- Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
2.INSPECT REAR AIR CONDITIONING AMPLIFIER (RMGV - BODY GROUND)
a. Remove the A/C amplifier with connectors still connected.
b. Measure the voltage according to the value (s) in the table below.
Tester connectionConditionSpecified
condition
L14-11 (RMGV) - Body
groundTurn the ignition switch to ON position Turn the rear A/C
switch to ON positionBelow 1 V
Page 450 of 4500
Standard:
REAR AIR CONDITIONING AMPLIFIER (RMGV - BODY GROUND) VOLTAGE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (REAR AIR CONDITIONING
AMPLIFIER - REAR MAGNETIC VALVE)

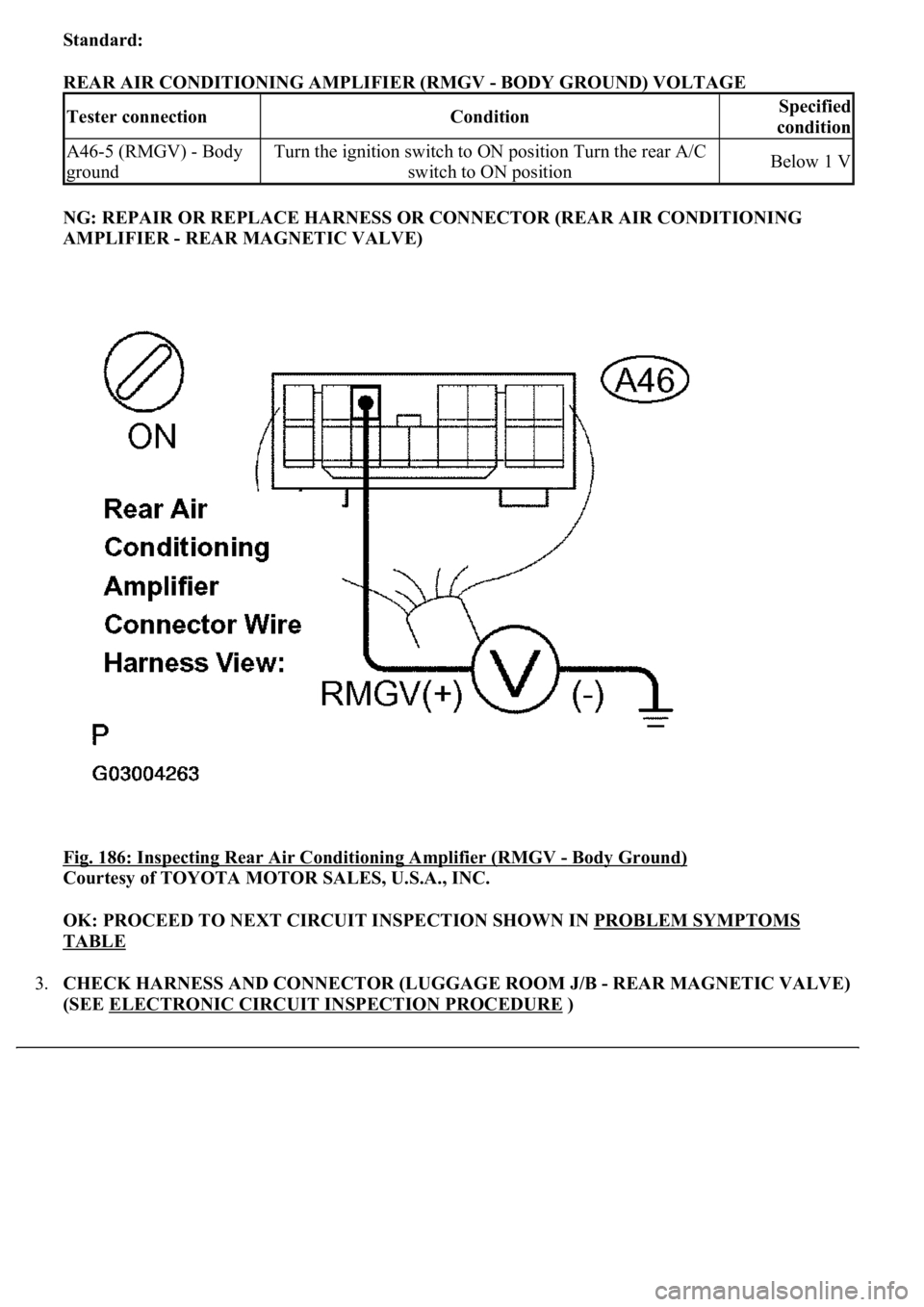

Fig. 186: Inspecting Rear Air Conditioning Amplifier (RMGV
- Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
3.CHECK HARNESS AND CONNECTOR (LUGGAGE ROOM J/B - REAR MAGNETIC VALVE)
(SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
Tester connectionConditionSpecified
condition
A46-5 (RMGV) - Body
groundTurn the ignition switch to ON position Turn the rear A/C
switch to ON positionBelow 1 V
Page 451 of 4500
a. Measure the resistance according to the value (s) in the table below.
Standard:
LUGGAGE ROOM J/B - REAR MAGNETIC VALVE VOLTAGE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Fig. 187: Identifying Terminals Of R38 Rear Magnetic Valve Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
4.INSPECT REAR MAGNETIC VALVE
Tester connectionConditionSpecified condition
R38-1 - Body groundIgnition switch OFF --> ONBelow 1 V --> 10 V to 14 V
Page 452 of 4500
a. Remove the rear magnetic valve.
b. Check the air passage through the valve with and without the battery positive voltage applied
between terminals as shown in the chart.
Standard:
REAR MAGNETIC VALVE SPECIFIED CONDITION
NG: REPLACE REAR MAGNETIC VALVE
Fig. 188: Identifying Terminals Of Rear Magnetic Valve
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (REAR MAGNETIC VALVE -
LUGGAGE ROOM J/B ECU)
ConditionSpecified condition
Apply B+ between terminalsFree passage
No Apply B+ between terminalsNo passage
Page 453 of 4500
CIRCUIT DESCRIPTION
This sensor detects the smoke inside the cabin and sends the appropriate signals to the luggage room J/B ECU.
WIRING DIAGRAM
Fig. 189: Smoke Sensor Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT LUGGAGE ROOM J/B ECU (RMGV - BODY GROUND)
a. Remove the luggage room J/B ECU with connectors still connected.
b. Measure the voltage according to the value (s) in the table below when applying or not applying
Page 454 of 4500

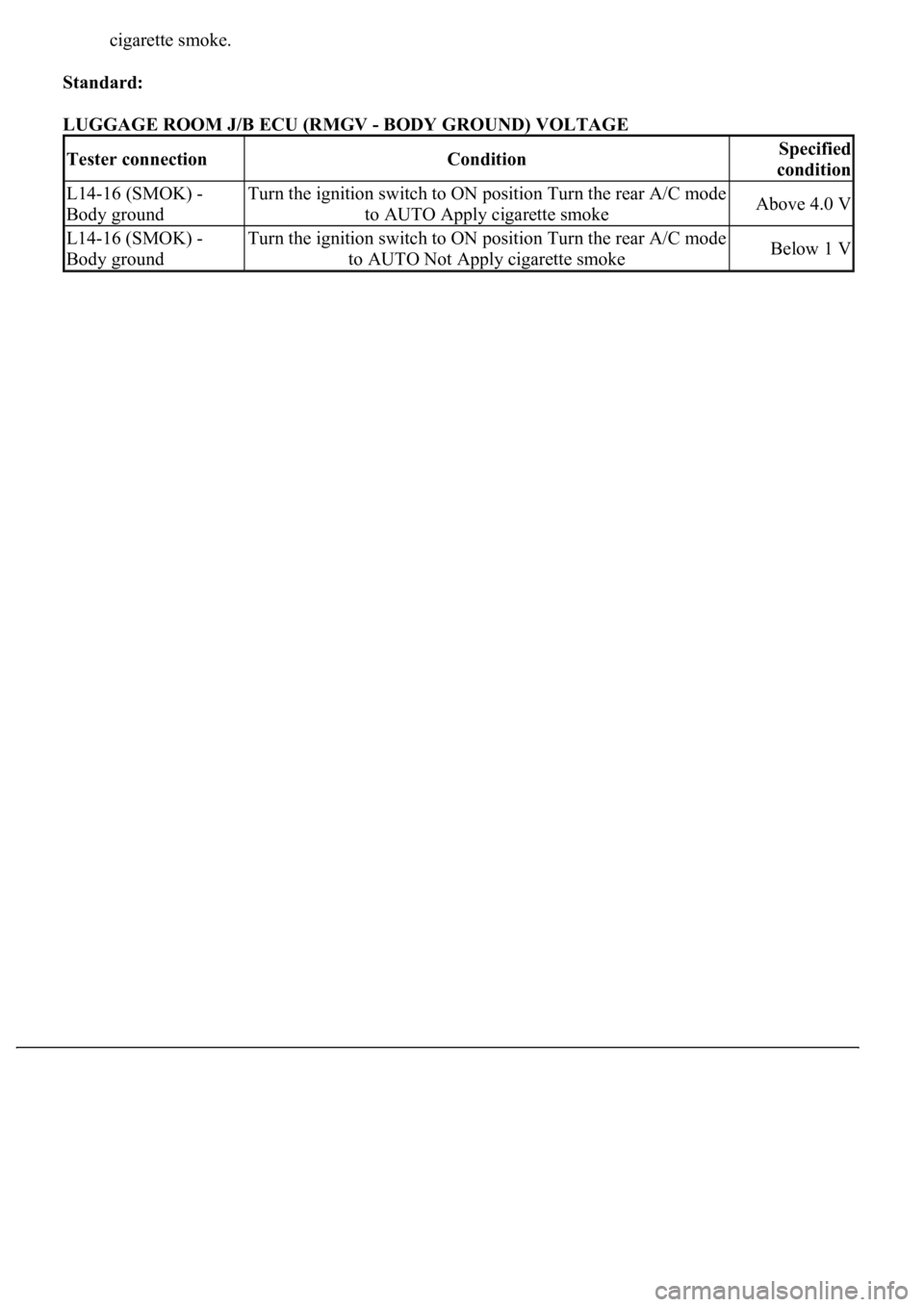

cigarette smoke.
Standard:
LUGGAGE ROOM J/B ECU (RMGV - BODY GROUND) VOLTAGE
Tester connectionConditionSpecified
condition
L14-16 (SMOK) -
Body groundTurn the ignition switch to ON position Turn the rear A/C mode
to AUTO Apply cigarette smokeAbove 4.0 V
L14-16 (SMOK) -
Body groundTurn the ignition switch to ON position Turn the rear A/C mode
to AUTO Not Apply cigarette smokeBelow 1 V
Page 455 of 4500

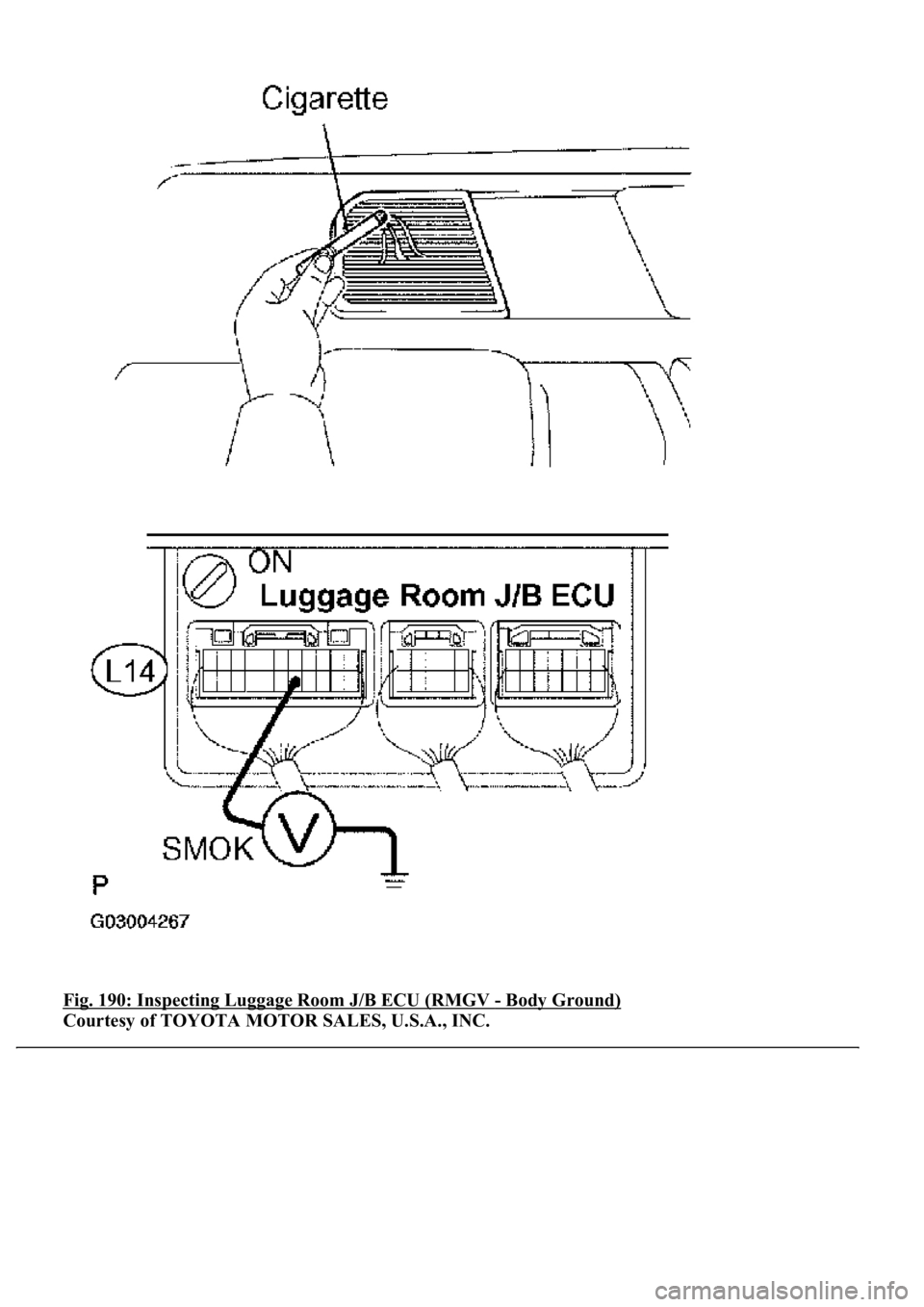

Fig. 190: Inspecting Luggage Room J/B ECU (RMGV - Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 456 of 4500
NG: Go to STEP 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
2.INSPECT SMOKE SENSOR
a. Remove the smoke sensor.
b. Connect the positive (+) lead from the battery to terminal S47-1 and negative (-) lead to terminal
S47-3.
c. Measure the voltage according to the value (s) in the table below.
Standard:
SMOKE SENSOR VOLTAGE
Tester connectionConditionSpecified condition
S47-2 - S47-3There is no smokeBelow 1.0 V
S47-2 - S47-3There is smokeAbove 4.0 V
