Fig. 72: Removing Front Stabilizer Link Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE FRONT STABILIZER LINK ASSY RH
HINT:
Remove the RH side by following the same procedures as with the LH side.
4.INSPECT FRONT STABILIZER LINK ASSY LH
a. As shown in Fig. 73
, flip the ball joint stud back and forth 5 times before installing the nut.
b. Using a torque wrench, turn the nut continuously at a rate of 2 to 4 seconds per turn and take the
torque reading on the 5th turn.
<0037005800550051004c0051004a0003005700520055005400580048001d00030013001100130018000300570052000300140011001c001b00030031001100500003000b0013001100180003005700520003001500130003004e004a004900110046005000
0f000300130011001700030057005200030014001a0003004c[n.lbf)
If there is an
y abnormality, replace the stabilizer link assy LH with a new one.
Page 4066 of 4500

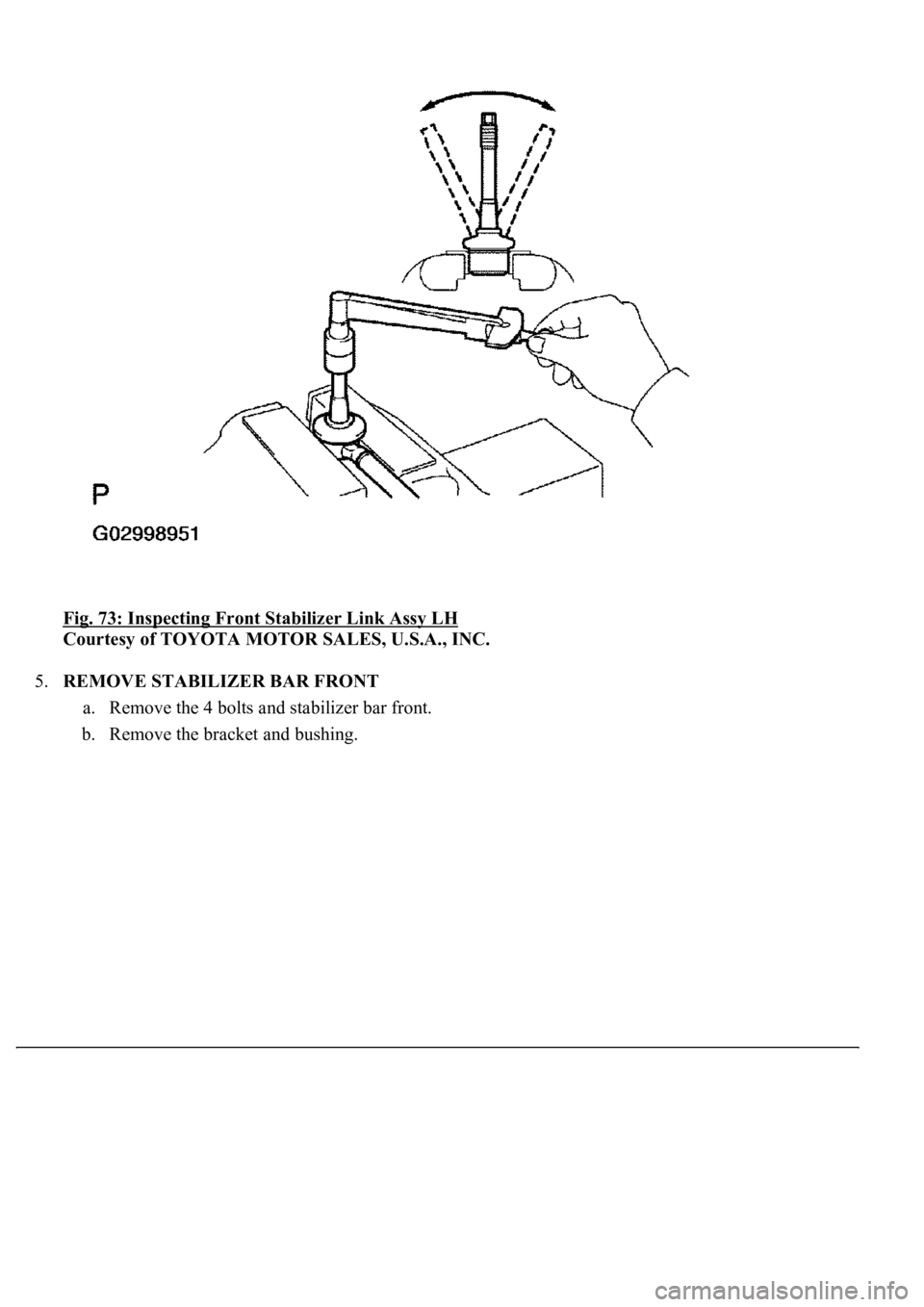

Fig. 73: Inspecting Front Stabilizer Link Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.REMOVE STABILIZER BAR FRONT
a. Remove the 4 bolts and stabilizer bar front.
b. Remove the bracket and bushing.
Page 4067 of 4500
Fig. 74: Removing Stabilizer Bar Front
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.INSTALL STABILIZER BAR FRONT
a. Install the bushing and bracket to the stabilizer bar front.
HINT:
Face the cutout of the bushing to the front.
b. Install the stabilizer bar front with the 4 bolts.
Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
Page 4068 of 4500
Fig. 75: Installing Stabilizer Bar Front
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL FRONT STABILIZER LINK ASSY LH
a. Install the front stabilizer link assy LH with the nut.
Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)
b. Install the bolt and nut.
Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)
Page 4069 of 4500
Fig. 76: Installing Front Stabilizer Link Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL FRONT STABILIZER LINK ASSY RH
HINT:
Install the RH side by following the same procedures as with the LH side.
9.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
Page 4070 of 4500

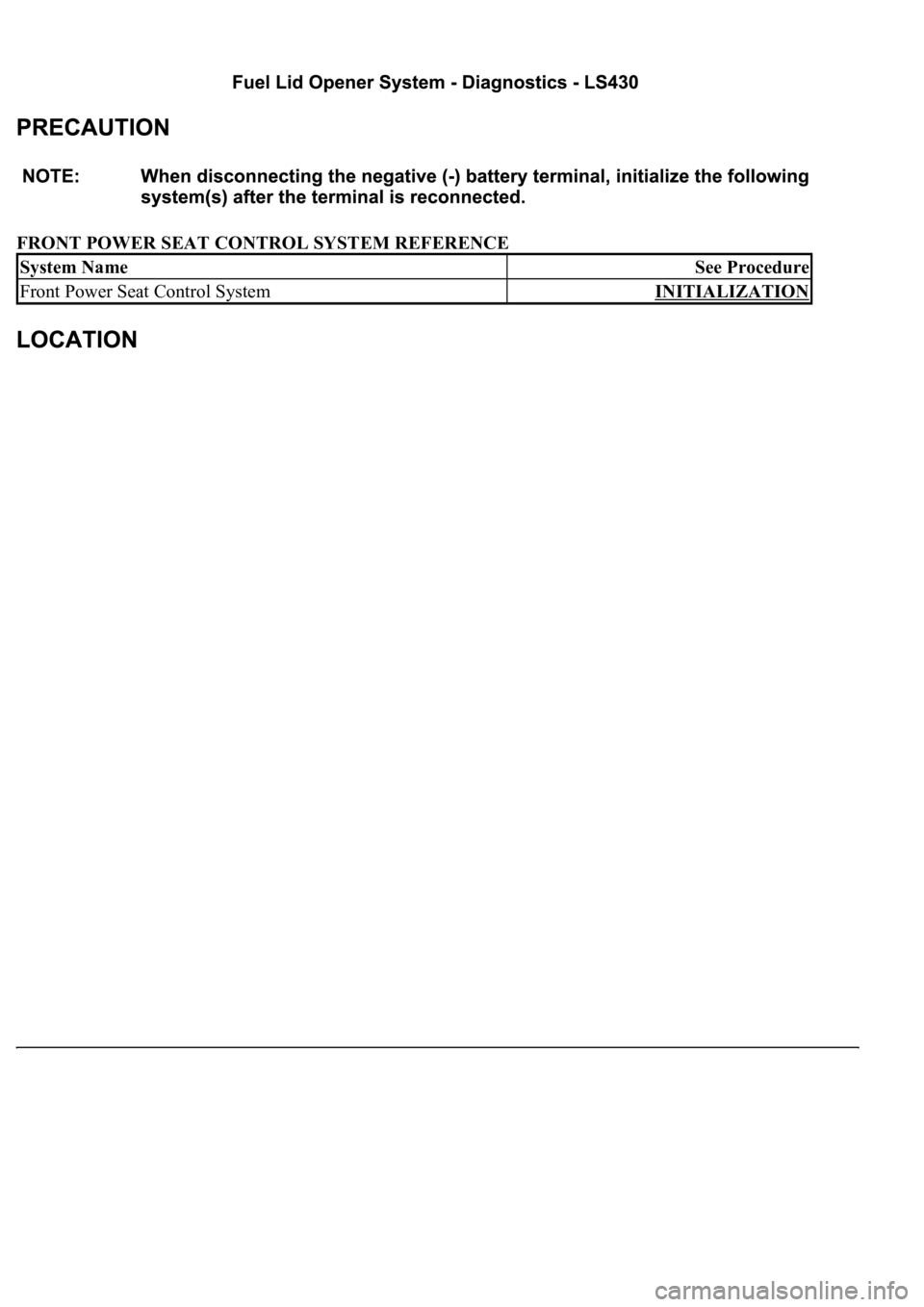

FRONT POWER SEAT CONTROL SYSTEM REFERENCE
System NameSee Procedure
Front Power Seat Control SystemINITIALIZATION
Page 4071 of 4500

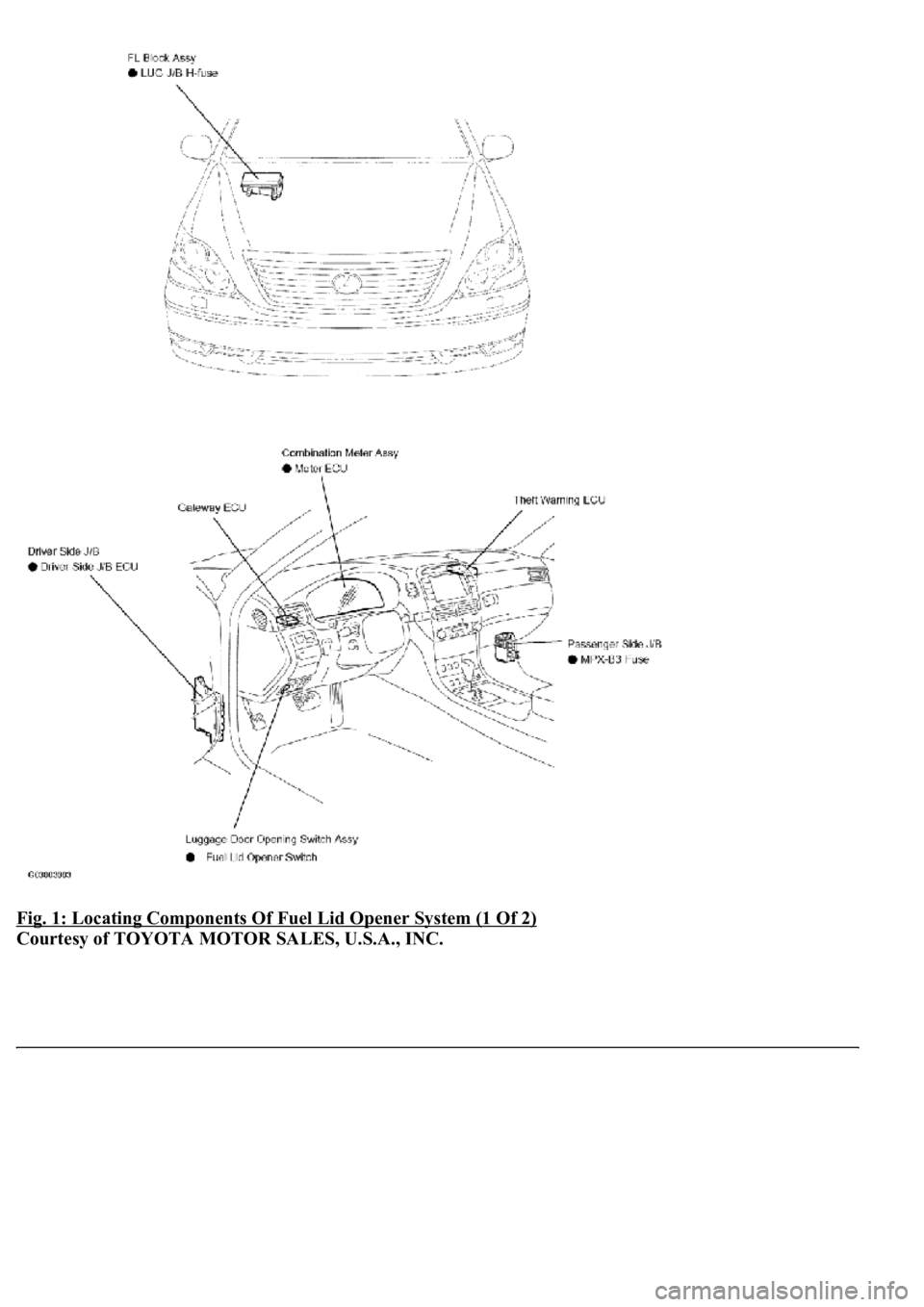

Fig. 1: Locating Components Of Fuel Lid Opener System (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 4072 of 4500
Fig. 2: Locating Components Of Fuel Lid Opener System (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
