Page 2249 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPLACE COMBINATION SWITCH ASSY OK: Go to Next Step. 3.INSPECT COMBINATION SWITCH ASSY (PAWL SWITCH) a. Disconnect the R37-a lock connector. b. Measure the resistance. TERMINALS RESISTANCE

Page 2250 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 68: Inspecting Combination Switch Assy (Pawl Switch) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE COMBINATION SWITCH ASSY

Page 2251 of 4500

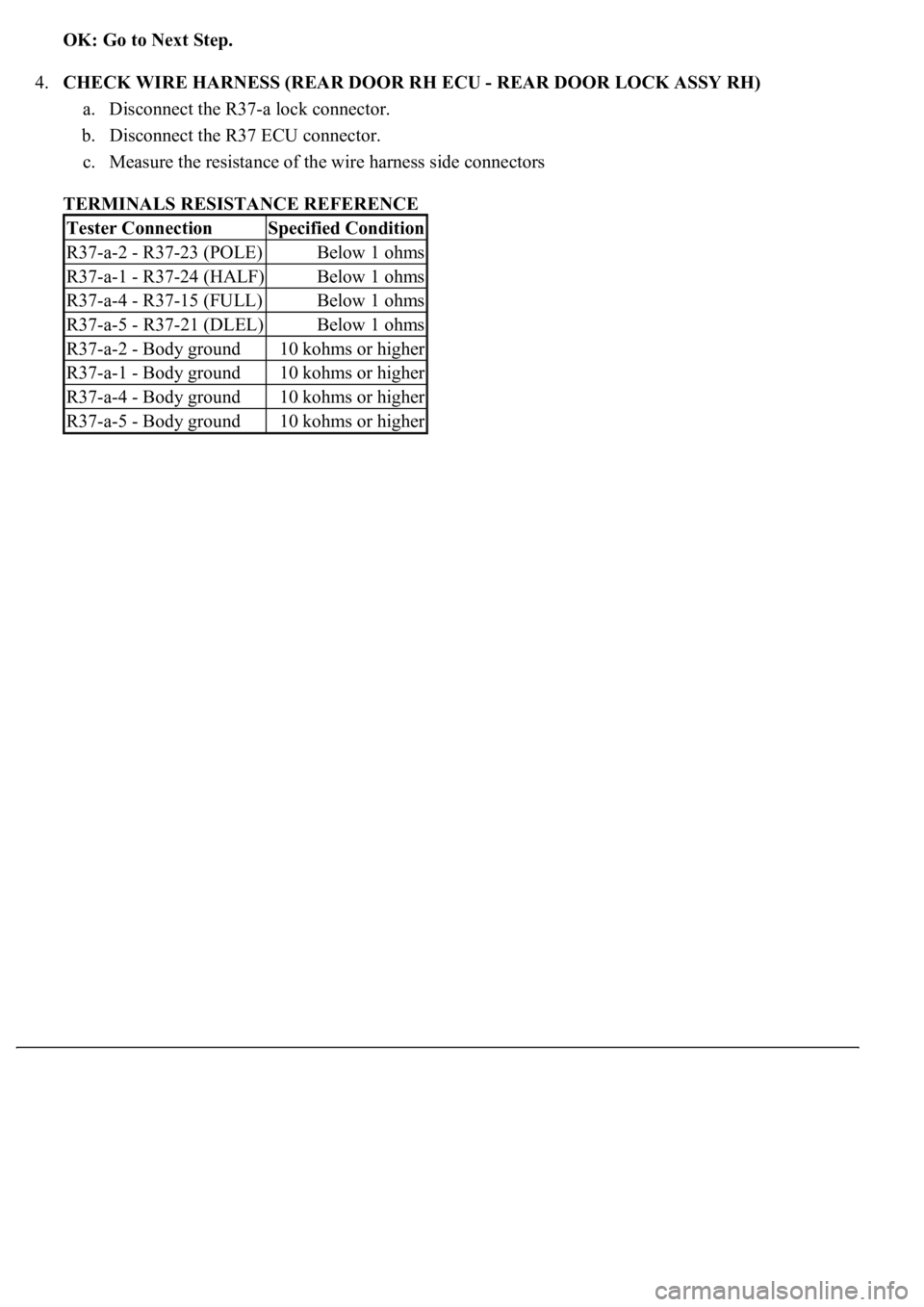

LEXUS LS430 2003 Factory Repair Manual OK: Go to Next Step. 4.CHECK WIRE HARNESS (REAR DOOR RH ECU - REAR DOOR LOCK ASSY RH) a. Disconnect the R37-a lock connector. b. Disconnect the R37 ECU connector. c. Measure the resistance of t

Page 2252 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 2253 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 69: Checking Wire Harness (Rear Door RH ECU -Rear Door Lock Assy RH) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE COMBINATION SWITCH ASSY OK: PROCEED TO NEXT CIRCUIT INSPECTION SH

Page 2254 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Apply battery voltage to the door lock and check operation of the door lock motor. SPECIFIED CONDITION Measurement ConditionSpecified Condition Battery positive (+) --> Terminal 2 Battery negati

Page 2255 of 4500

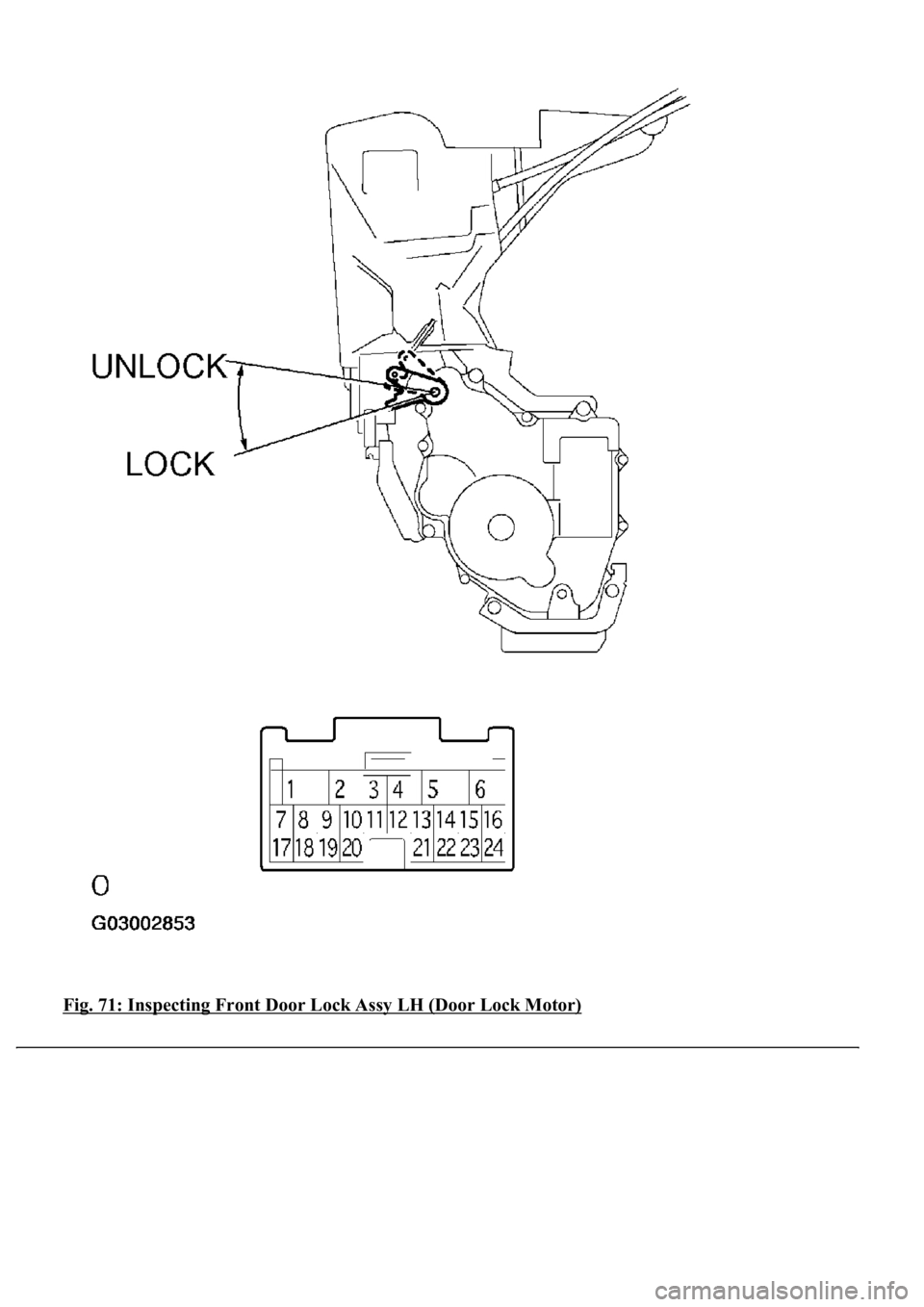

LEXUS LS430 2003 Factory Repair Manual Fig. 71: Inspecting Front Door Lock Assy LH (Door Lock Motor)

Page 2256 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE FRONT DOOR LOCK ASSY LH OK: Go to Next Step. 2.INSPECT FRONT DOOR LOCK ASSY LH (POSITION SWITCH) a. Disconnect the F23 ECU connector. b.
