Page 2833 of 4500

LEXUS LS430 2003 Factory Repair Manual P0977: Range check (High resistance) TYPICAL ENABLING CONDITIONS TABLE - P0977 TYPICAL MALFUNCTION THRESHOLDS P0976: Range check (Low resistance) TYPICAL MALFUNCTION THRESHOLDS - P0976 P0977: R

Page 2834 of 4500

LEXUS LS430 2003 Factory Repair Manual INSPECTION PROCEDURE 1.INSPECT TRANSMISSION WIRE (S2) a. Disconnect the transmission wire connector from the transmission. b. Measure the resistance according to the value(s) in the table below.

Page 2835 of 4500

LEXUS LS430 2003 Factory Repair Manual b. Disconnect the connector from the ECM. c. Measure the resistance according to the value(s) in the table below. Fig. 141: Disconnecting Connector From ECM Courtesy of TOYOTA MOTOR SALES, U.S.A.

Page 2836 of 4500

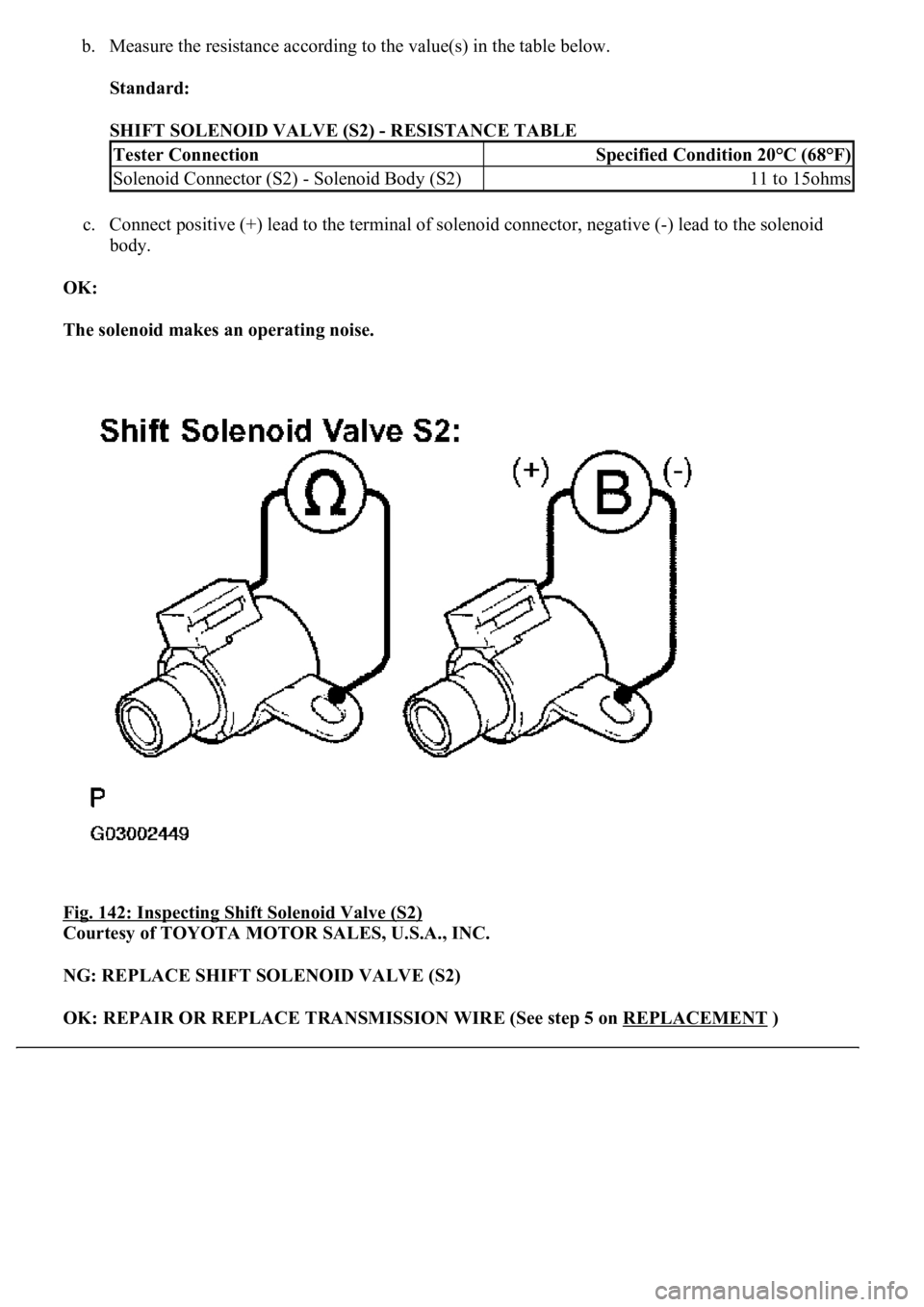

LEXUS LS430 2003 Factory Repair Manual b. Measure the resistance according to the value(s) in the table below. Standard: SHIFT SOLENOID VALVE (S2) - RESISTANCE TABLE c. Connect positive (+) lead to the terminal of solenoid connector, n

Page 2837 of 4500

LEXUS LS430 2003 Factory Repair Manual DTC P0979, P0980: SHIFT SOLENOID "C" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S3) CIRCUIT DESCRIPTION Shifting from 1st to 6th is performed in combination with "ON" and "O

Page 2838 of 4500

LEXUS LS430 2003 Factory Repair Manual P0979: Range check (Low resistance) TYPICAL ENABLING CONDITIONS TABLE - P0979 P0980: Range check (High resistance) TYPICAL ENABLING CONDITIONS TABLE - P0980 TYPICAL MALFUNCTION THRESHOLDS P0979

Page 2839 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 144: DTC P0979, P0980 - Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE 1.INSPECT TRANSMISSION WIRE (S3) a. Disconnect the transmission wire connector from th

Page 2840 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 145: Identifying Transmission Wire Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Standard: TRANSMISSION WIRE (S3) - RESISTANCE TABLE NG: Go to step 3 OK: Go to next step 2.CHECK
