Page 1673 of 4500

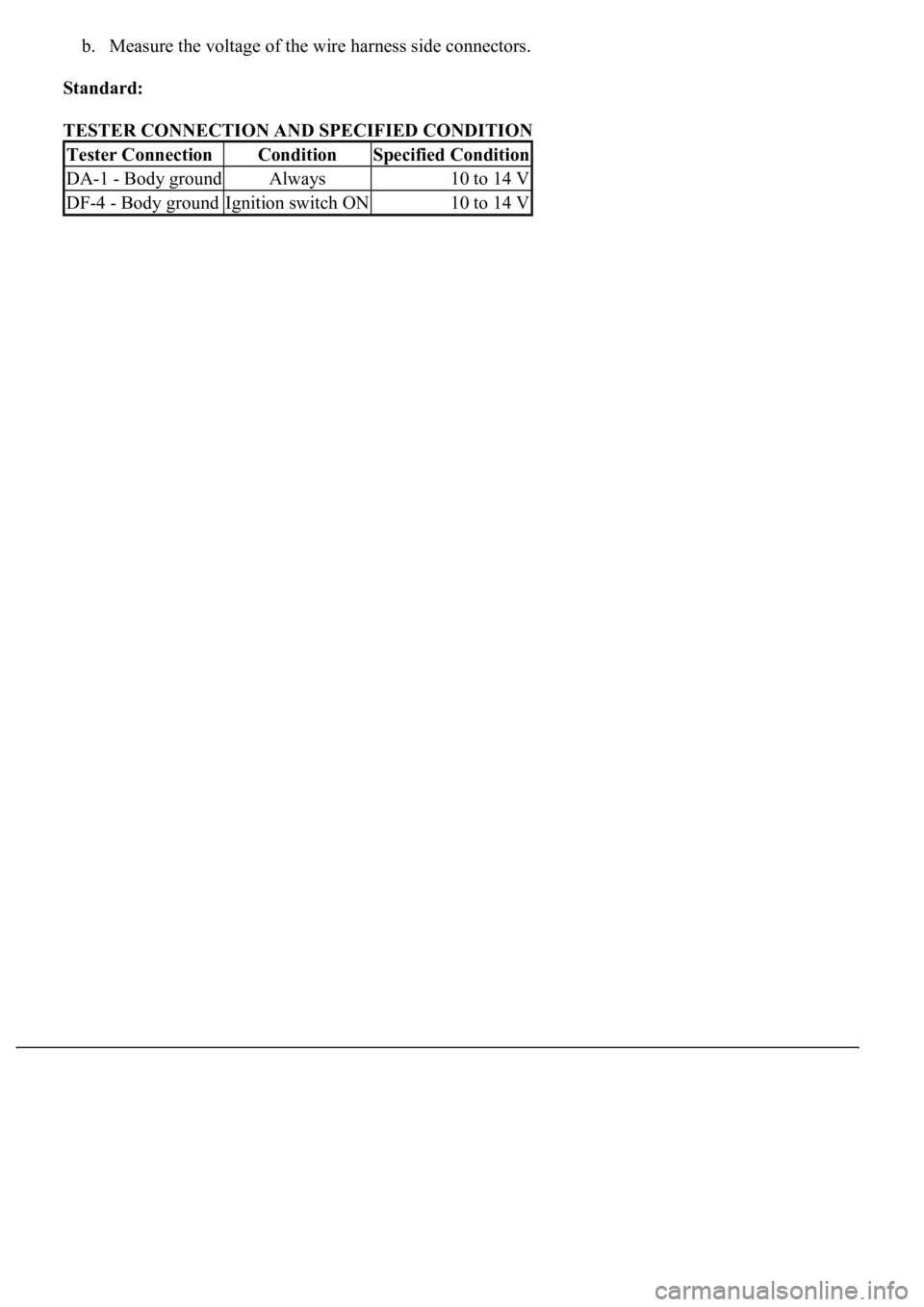

LEXUS LS430 2003 Factory Repair Manual b. Measure the voltage of the wire harness side connectors. Standard: TESTER CONNECTION AND SPECIFIED CONDITION Tester ConnectionConditionSpecified Condition DA-1 - Body groundAlways10 to 14 V DF

Page 1674 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 55: Identifying DA And DF Driver Side J/B Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Page 1675 of 4500

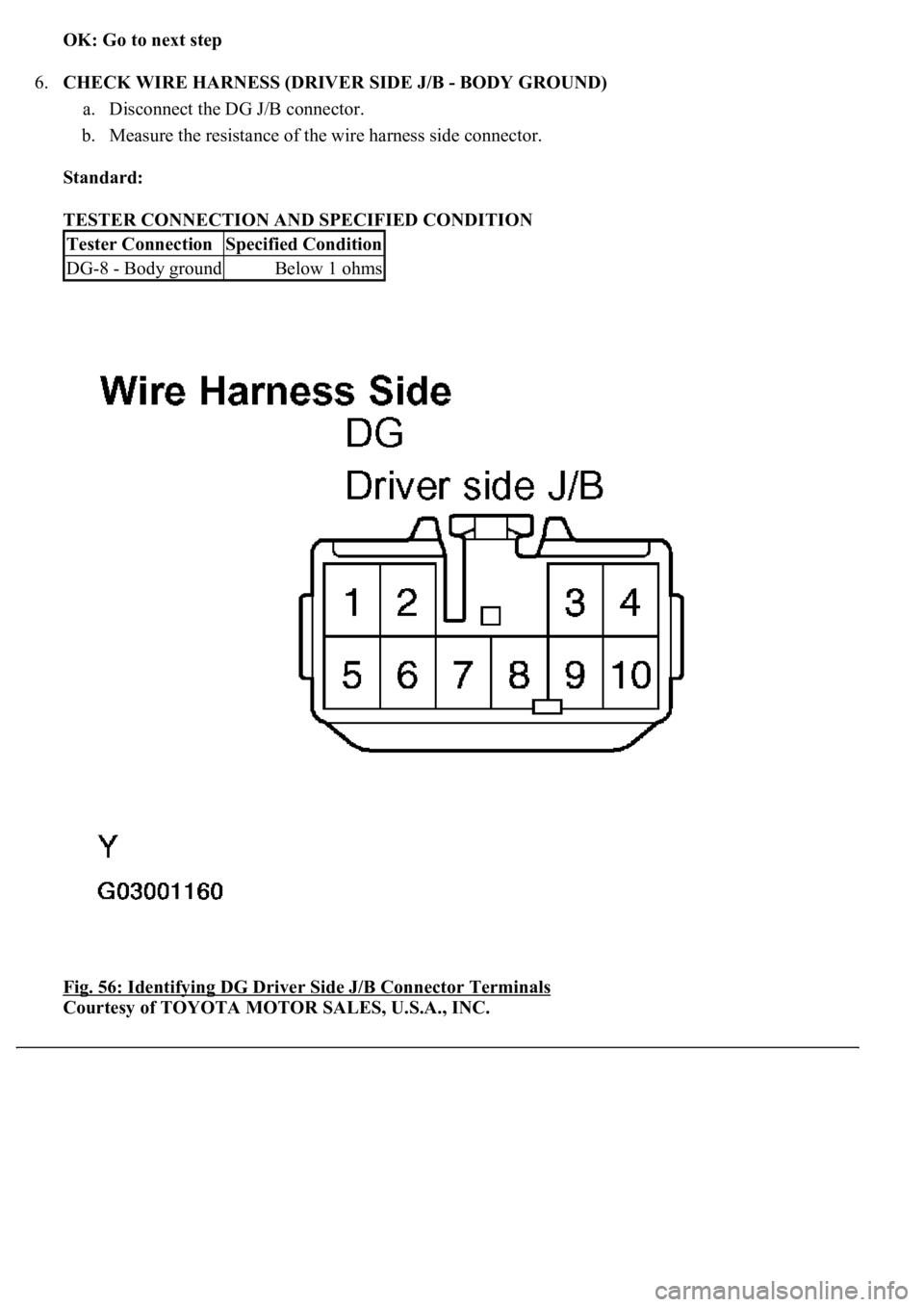

LEXUS LS430 2003 Factory Repair Manual OK: Go to next step 6.CHECK WIRE HARNESS (DRIVER SIDE J/B - BODY GROUND) a. Disconnect the DG J/B connector. b. Measure the resistance of the wire harness side connector. Standard: TESTER CON

Page 1676 of 4500

LEXUS LS430 2003 Factory Repair Manual NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: Go to next step 7.INSPECT RELAY (Marking: D-IG1) a. Remove the D-IG1 relay from the driver side J/B. b. Measure the resistance of the relay. Stan

Page 1677 of 4500

LEXUS LS430 2003 Factory Repair Manual CIRCUIT DESCRIPTION If the climate control seat does not operate, the seat climate control blower (climate control ECU) or the wire harness may be malfunctioning. WIRE DIAGRAM Fig. 58: Climate Con

Page 1678 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 59: Identifying Seat Climate Control Blower Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: Go to next step 3.CHECK WIRE HAR

Page 1679 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 60: Identifying Seat Climate Control Blower Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR OK: REPLACE SEAT CLIMATE CONTROL BLOWE

Page 1680 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 61: Identifying PJ Passenger Side J/B Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: Go to step 5 OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (PASSENGER SIDE J/B - CLIM
