Page 2257 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 72: Inspecting Front Door Lock Assy LH (Position Switch)

Page 2258 of 4500

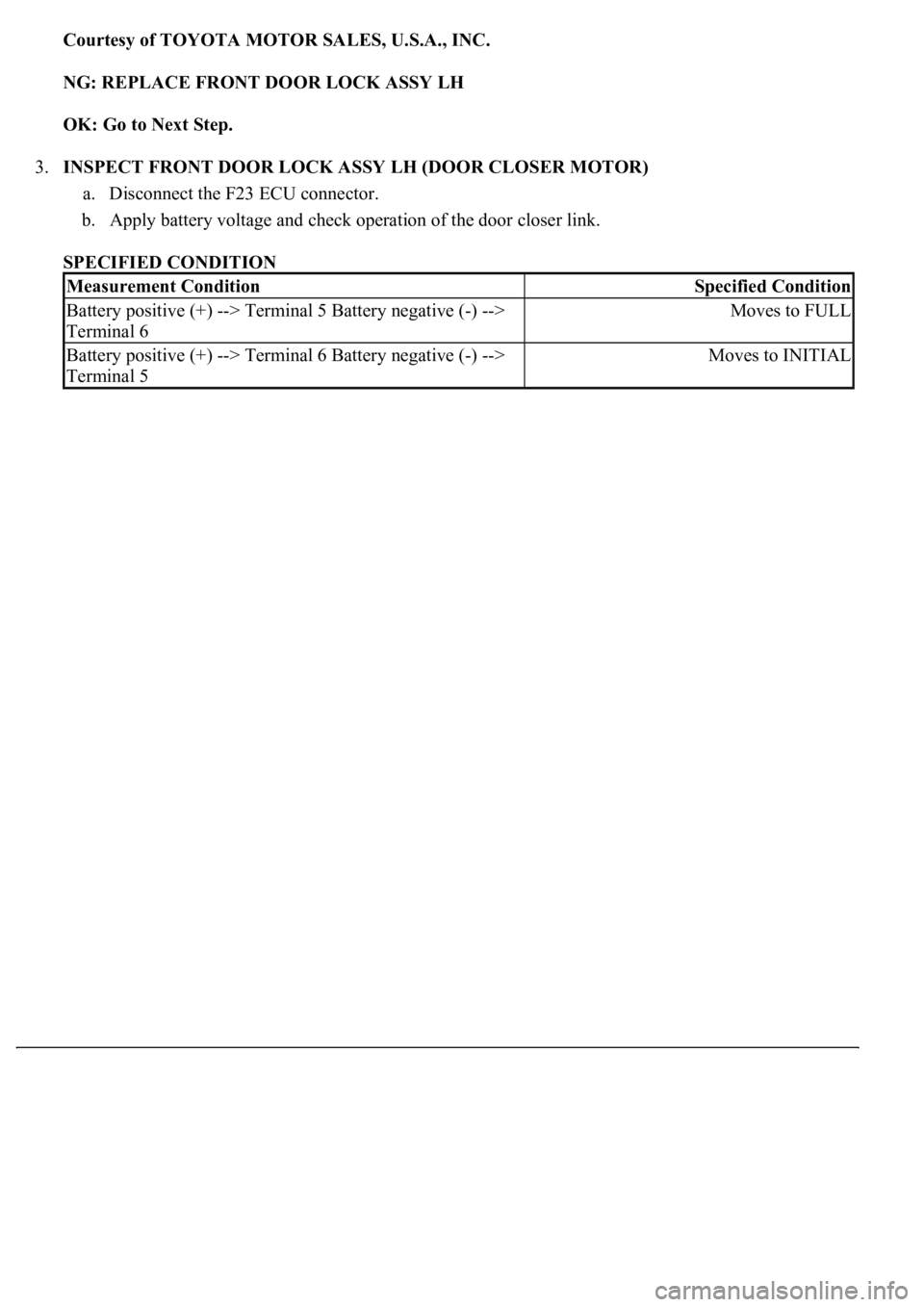

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE FRONT DOOR LOCK ASSY LH OK: Go to Next Step. 3.INSPECT FRONT DOOR LOCK ASSY LH (DOOR CLOSER MOTOR) a. Disconnect the F23 ECU connector.

Page 2259 of 4500

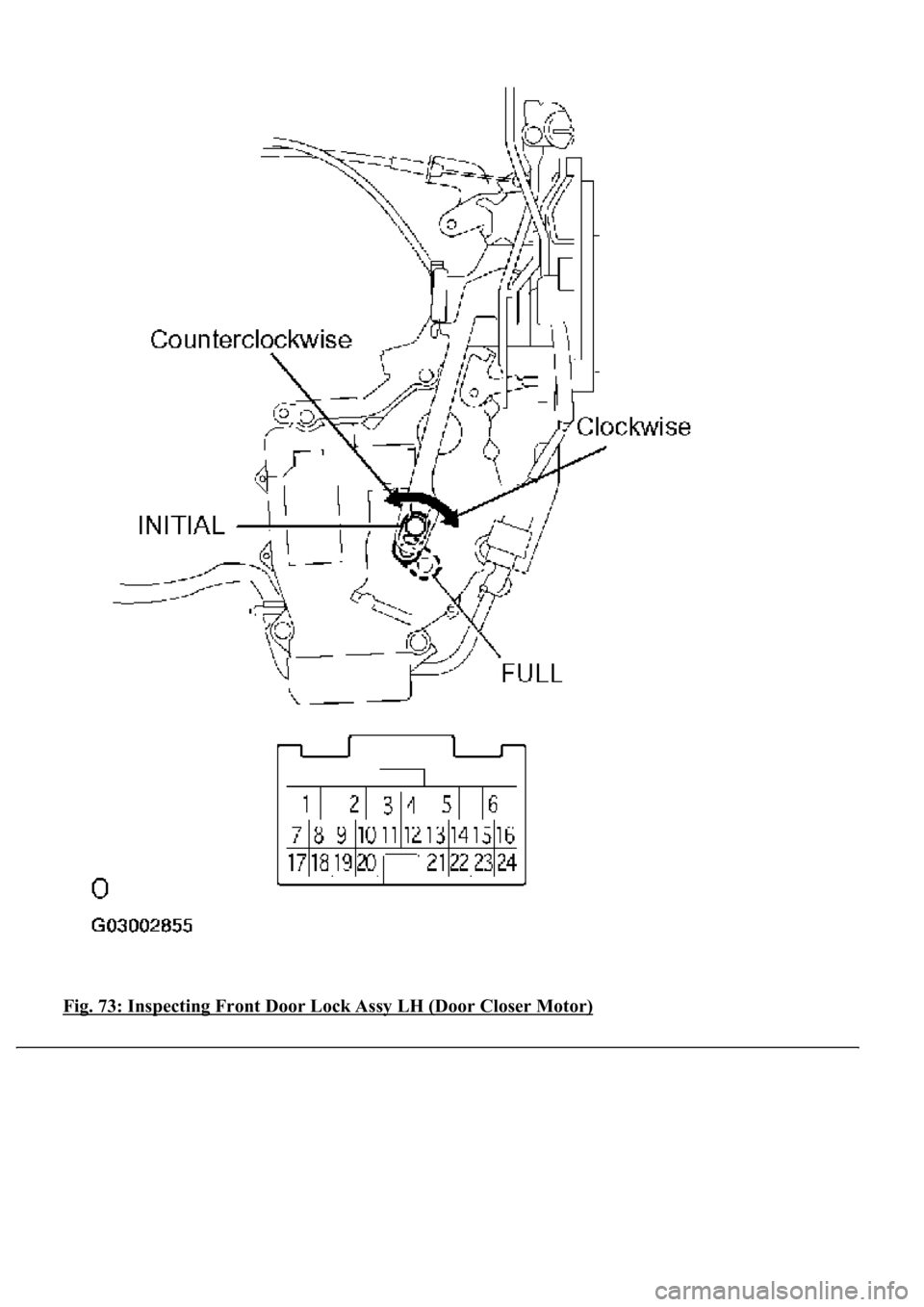

LEXUS LS430 2003 Factory Repair Manual Fig. 73: Inspecting Front Door Lock Assy LH (Door Closer Motor)

Page 2260 of 4500

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE FRONT DOOR LOCK ASSY LH OK: REPLACE DRIVER DOOR ECU CIRCUIT DESCRIPTION The door lock assembly has a built-in door closer motor. The door

Page 2261 of 4500

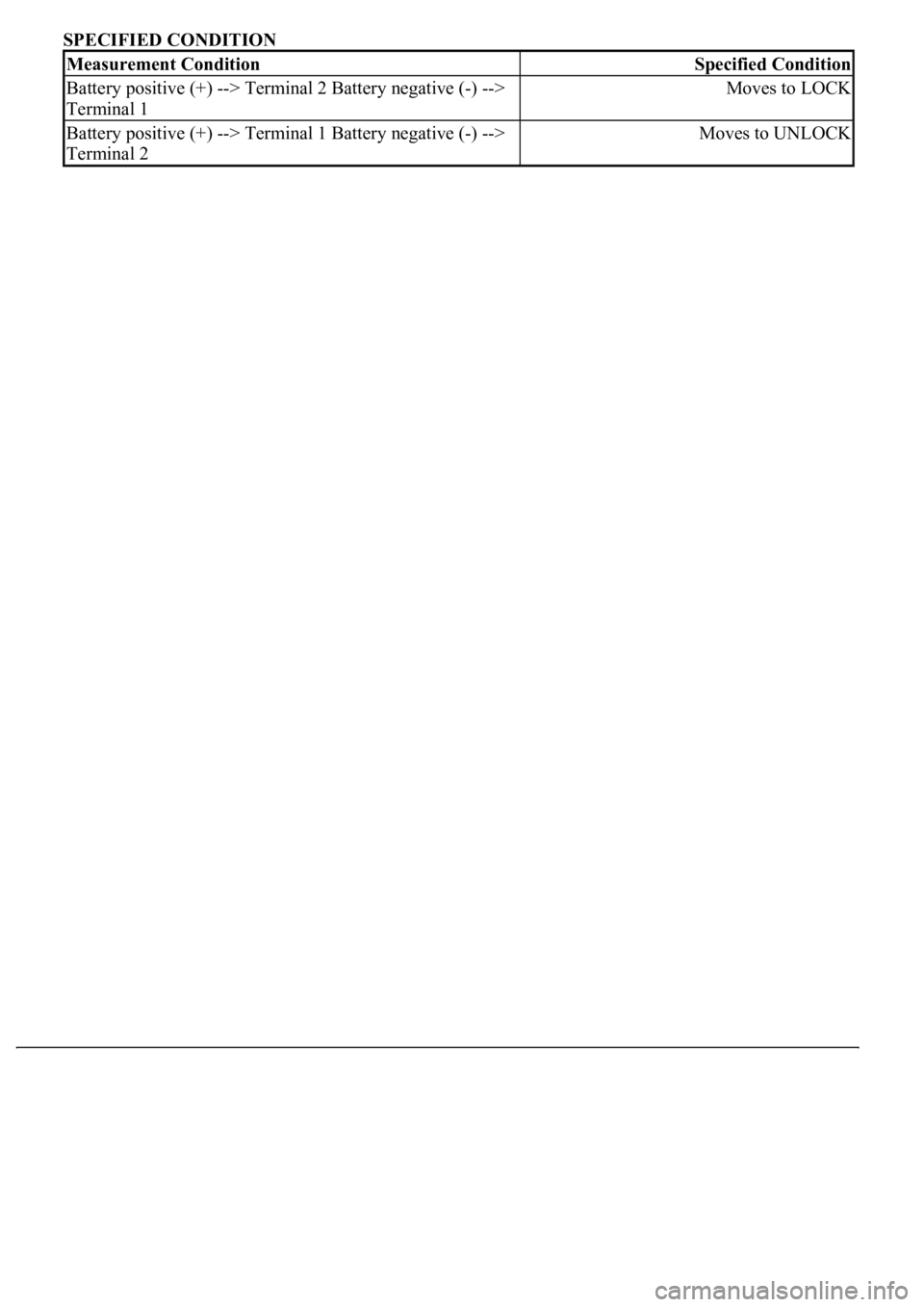

LEXUS LS430 2003 Factory Repair Manual SPECIFIED CONDITION Measurement ConditionSpecified Condition Battery positive (+) --> Terminal 2 Battery negative (-) --> Terminal 1Moves to LOCK Battery positive (+) --> Terminal 1 Battery negative

Page 2262 of 4500

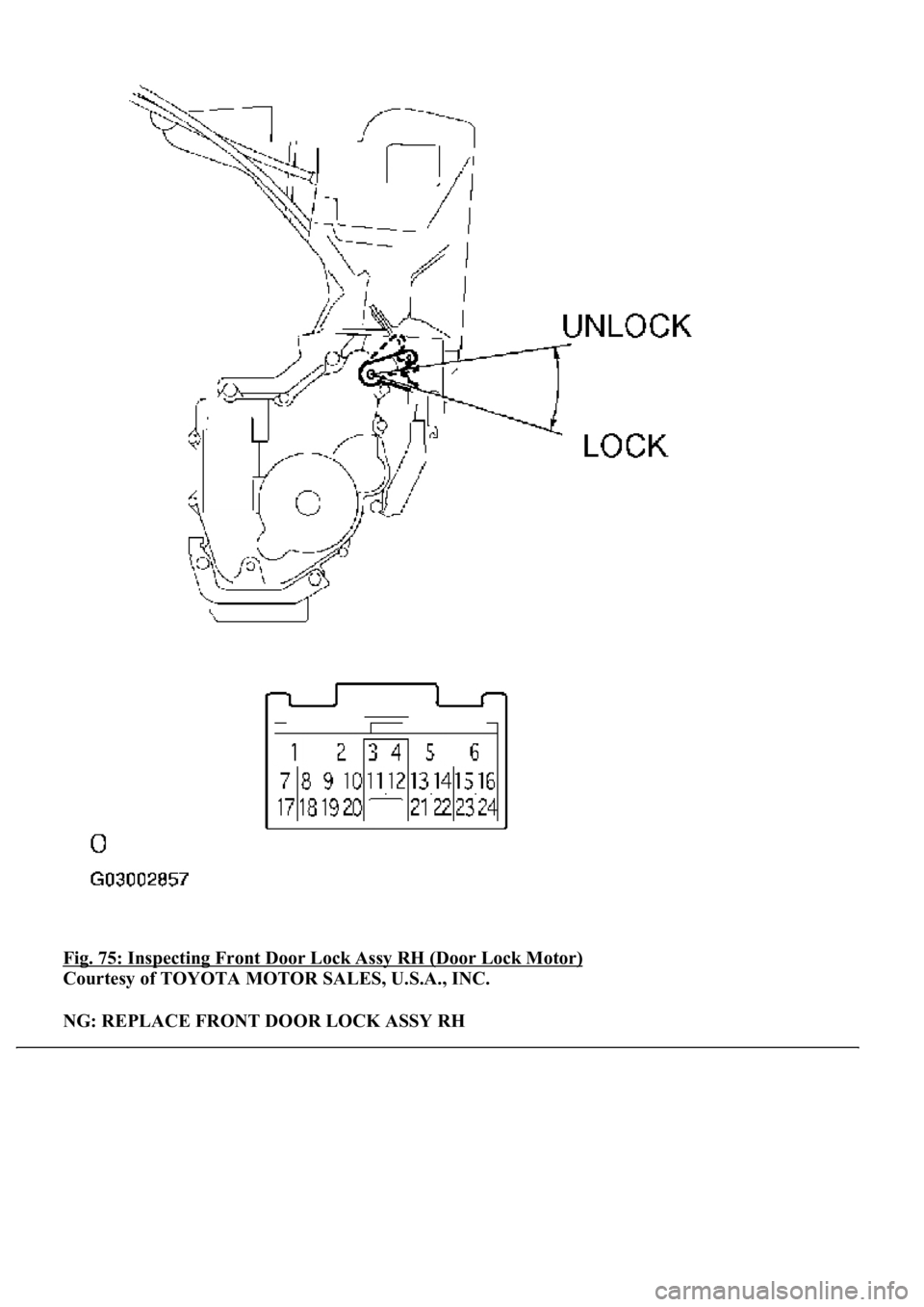

LEXUS LS430 2003 Factory Repair Manual Fig. 75: Inspecting Front Door Lock Assy RH (Door Lock Motor) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPLACE FRONT DOOR LOCK ASSY RH

Page 2263 of 4500

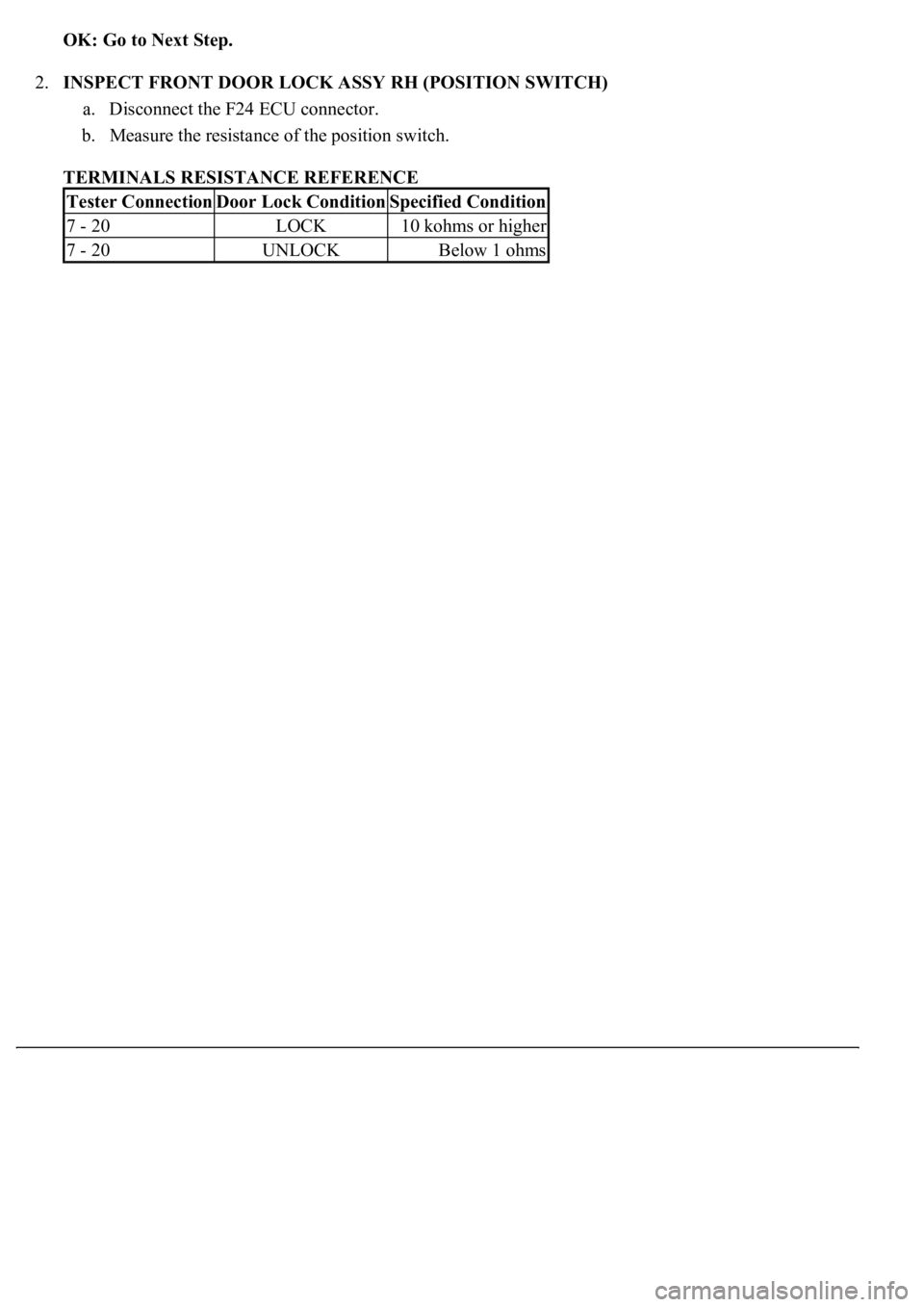

LEXUS LS430 2003 Factory Repair Manual OK: Go to Next Step. 2.INSPECT FRONT DOOR LOCK ASSY RH (POSITION SWITCH) a. Disconnect the F24 ECU connector. b. Measure the resistance of the position switch. TERMINALS RESISTANCE REFERENCE T

Page 2264 of 4500

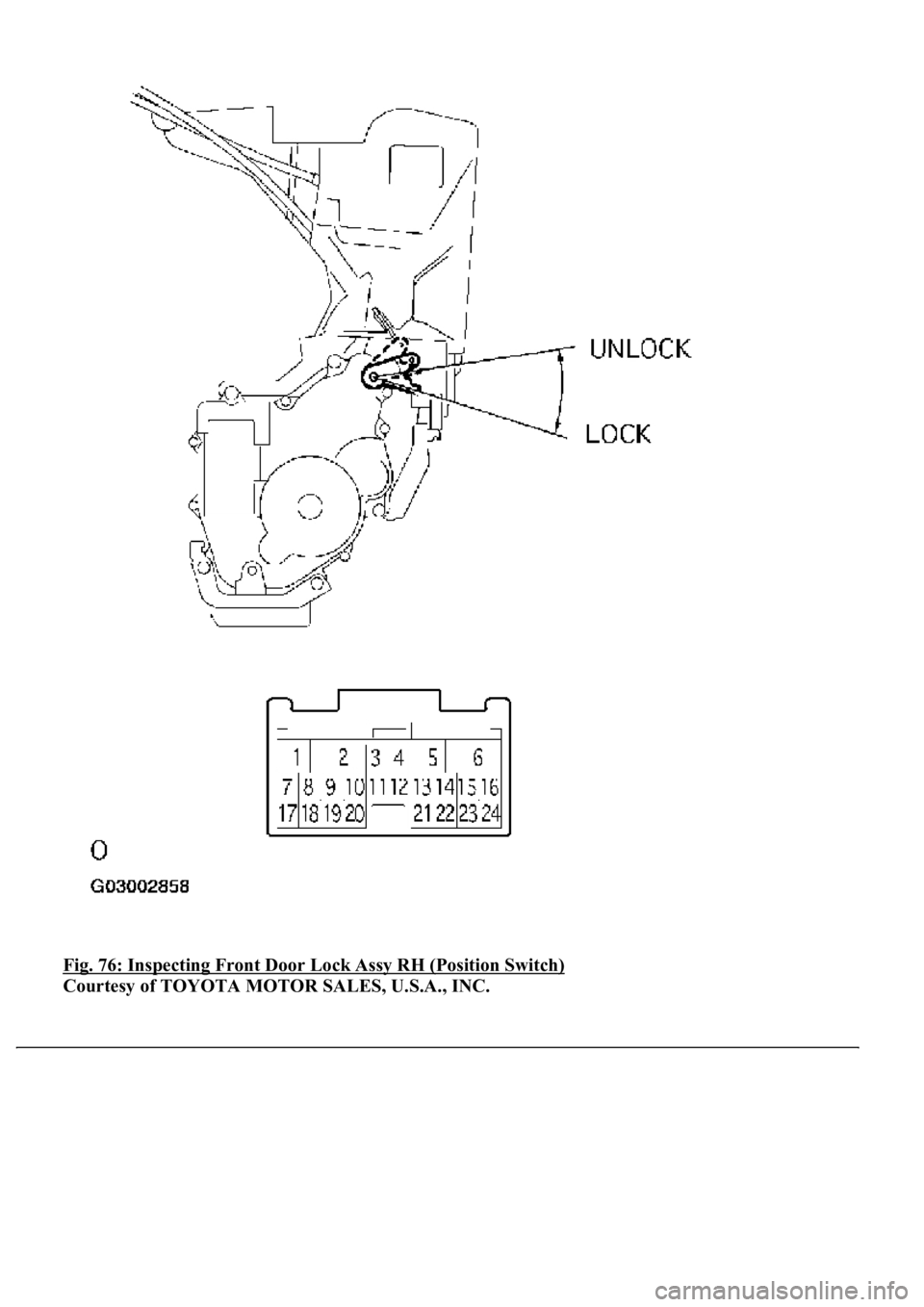

LEXUS LS430 2003 Factory Repair Manual Fig. 76: Inspecting Front Door Lock Assy RH (Position Switch) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
