Fig. 37: Removing Instrument Panel Speaker Panel Sub-Assy No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
66.REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.2
a. Use the same procedure described in the prior step.
67.REMOVE FRONT PASSENGER AIRBAG ASSY CONNECTOR (SEE REPLACEMENT
)
68.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
69.INSTALL FRONT PASSENGER AIRBAG ASSY CONNECTOR
70.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/REINFORCEMENT ASSY
a. Install the instrument panel safety pad sub-assy w/reinforcement assy with the 9 bolts < A >, < C >,
< D >.
torque: 20 N.m (204 kgf.cm, 15 ft.Ibf)
Page 4386 of 4500

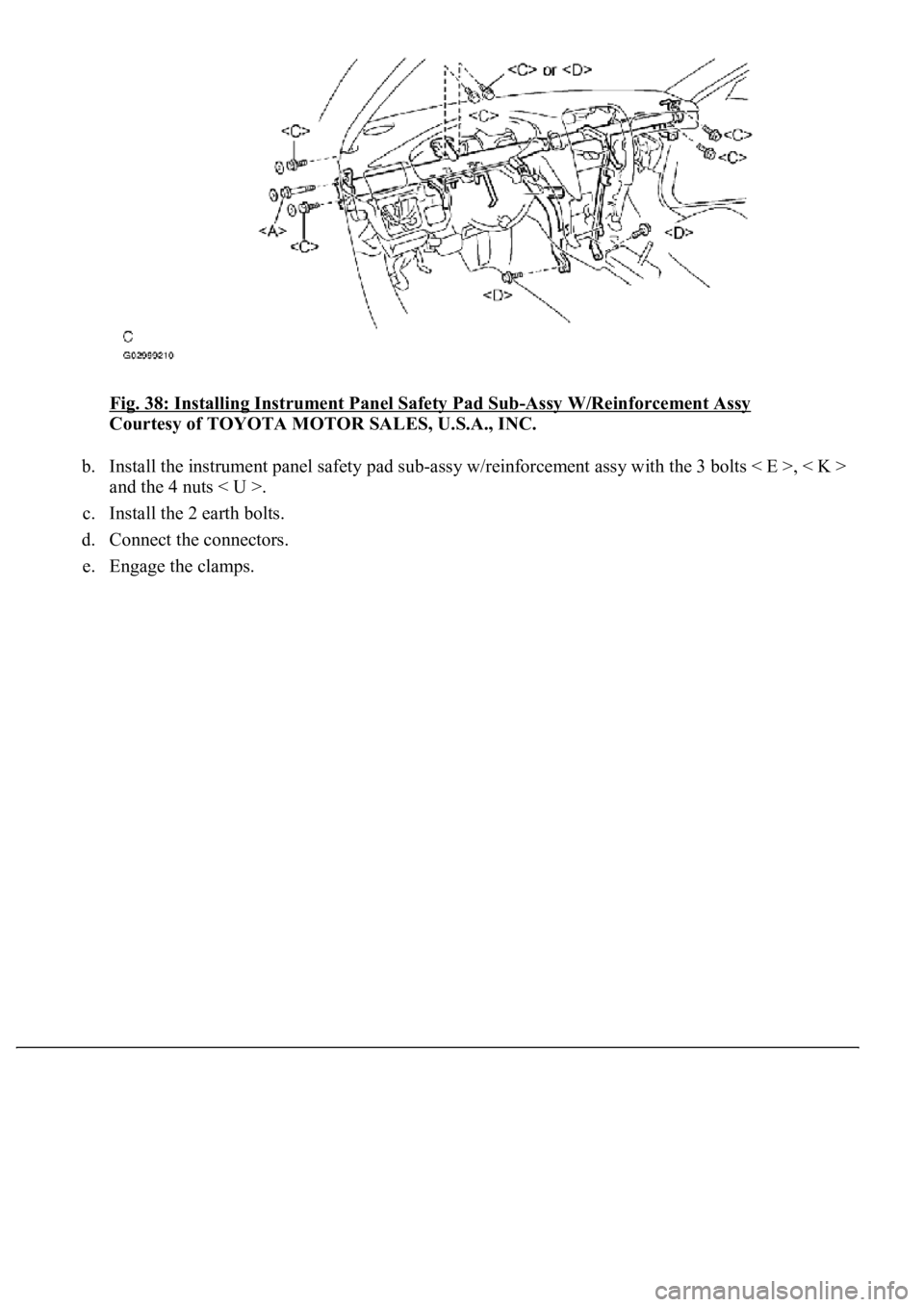

Fig. 38: Installing Instrument Panel Safety Pad Sub-Assy W/Reinforcement Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the instrument panel safety pad sub-assy w/reinforcement assy with the 3 bolts < E >, < K >
and the 4 nuts < U >.
c. Install the 2 earth bolts.
d. Connect the connectors.
e. En
gage the clamps.
Page 4387 of 4500
Fig. 39: Installing Instrument Panel Safety Pad Sub-Assy W/Reinforcement Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
71.INSTALL STEERING COLUMN ASSY (SEE OVERHAUL
)
SSt 09921-00010
72.INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
a. Connect the connectors.
b. Engage the clip and install the glove compartment door assy w/instrument panel airbag assy lower
No.2 with the 3 bolts < J > and the 3 screws < N >.
torque: 10 N.m (102 kgf.cm, 7 ft.Ibf)
Page 4388 of 4500
Fig. 40: Installing Instrument Panel Air Bag Assy Lower No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
73.INSTALL SPIRAL CABLE SUB-ASSY (SEE REPLACEMENT
)
74.CENTER SPIRAL CABLE (SEE REPLACEMENT
)
75.INSTALL STEERING WHEEL ASSY (SEE OVERHAUL
)
76.STEERING WHEEL CENTER POINT
77.INSTALL HORN BUTTON ASSY (SEE OVERHAUL
)
78.CONNECT BATTERY NEGATIVE TERMINAL
79.INSPECT HORN BUTTON ASSY (SEE REPLACEMENT
)
80.INSPECT SRS WARNING LIGHT (SEE DIAGNOSIS SYSTEM
)
81.PERFORM INITIALIZATION (SEE INITIALIZATION
)
OVERHAUL
HINt:
Page 4389 of 4500
SEE COMPONENTS
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER (SEE
REPLACEMENT
)
2.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (SEE REPLACEMENT
)
3.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (SEE REPLACEMENT
)
4.REMOVE COMBINATION METER ASSY (SEE REPLACEMENT
)
5.REMOVE COMBINATION METER GLASS
a. Using a screwdriver, disengage the 9 claws and remove the combination meter glass.
HINt:
tape up the screwdriver tip before use.
Page 4390 of 4500
Fig. 41: Removing Combination Meter Glass
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE COMBINATION METER PLATE NO.1
a. Remove the screw.
b. Using a screwdriver, disengage the 6 claws and remove the combination meter plate No.1.
HINt:
tape up the screwdriver tip before use.
Page 4391 of 4500
Fig. 42: Removing Combination Meter Plate No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE COMBINATION METER COVER NO.1
a. Remove the 6 screws.
b. Using a screwdriver, disengage the 3 claws and remove the combination meter cover No.1.
HINt:
tape up the screwdriver tip before use.
Page 4392 of 4500
Fig. 43: Removing Combination Meter Cover No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE METER DISPLAY PANEL
a. Remove the 8 screws.
b. Remove the meter display panel.
