NG: REPAIR OR REPLACE TELEVISION CAMERA ECU SUB BUS LINE OR CONNECTOR
(CAN-H, CAN-L)
42.CONNECT CONNECTOR
a. Reconnect the television camera ECU connector (T24).
43.CHECK CAN BUS LINES FOR SHORT (LUG-CAN J/C)
Fig. 120: Disconnecting Television Camera ECU Sub Bus Line Connector (J52) From LUG
-CAN
J/C A Side (W/Earth Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Page 1330 of 4500
a. Disconnect the television camera ECU sub bus line connector (J52) from the LUG-CAN J/C A side
(w/earth terminal).
Fig. 121: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPLACE JUNCTION CONNECTOR
OK: GO TO NEXT STEP
44.CONNECT CONNECTOR
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms
Page 1331 of 4500
a. Reconnect the television camera ECU sub bus line connector (J52) to the LUG-CAN J/C A side
(w/earth terminal).
45.CHECK CAN BUS LINES FOR SHORT (SEAT BELT CONTROL ECU SUB BUS LINE)
Fig. 122: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the seat belt control ECU connector (S63).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPLACE SEAT BELT CONTROL ECU
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms
Page 1332 of 4500
OK: REPAIR OR REPLACE SEAT BELT CONTROL ECU SUB BUS LINE OR CONNECTOR
CIRCUIT DESCRIPTION
There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and
14 (CANL) of the DLC3 is below 54 ohms.
Fig. 123: Problem Symptom Diagnostic Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Page 1333 of 4500
Fig. 124: Wiring Diagram - CAN Bus Lines For Short Circuit (W/O LEXUS Navigation System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK CAN BUS LINES FOR SHORT CIRCUIT (DLC3 SUB BUS LINE)
Page 1334 of 4500
Fig. 125: Disconnecting DLC3 Sub Bus Line Connector (J42) From D-CAN J/C B Side (W/O Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Turn the ignition switch to the LOCK position.
b. Disconnect the DLC3 sub bus line connector (J42) from the D-CAN J/C B side (w/o earth
terminal).
Page 1335 of 4500
Fig. 126: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK: GO TO NEXT STEP
2.CONNECT CONNECTOR
a. Reconnect the DLC3 sub bus line connector (J42) to the D-CAN J/C B side (w/o earth terminal).
3.CHECK CAN BUS LINES FOR SHORT CIRCUIT (CAN BUSES TO P-CAN J/C)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF1 Mohms or more
Page 1336 of 4500

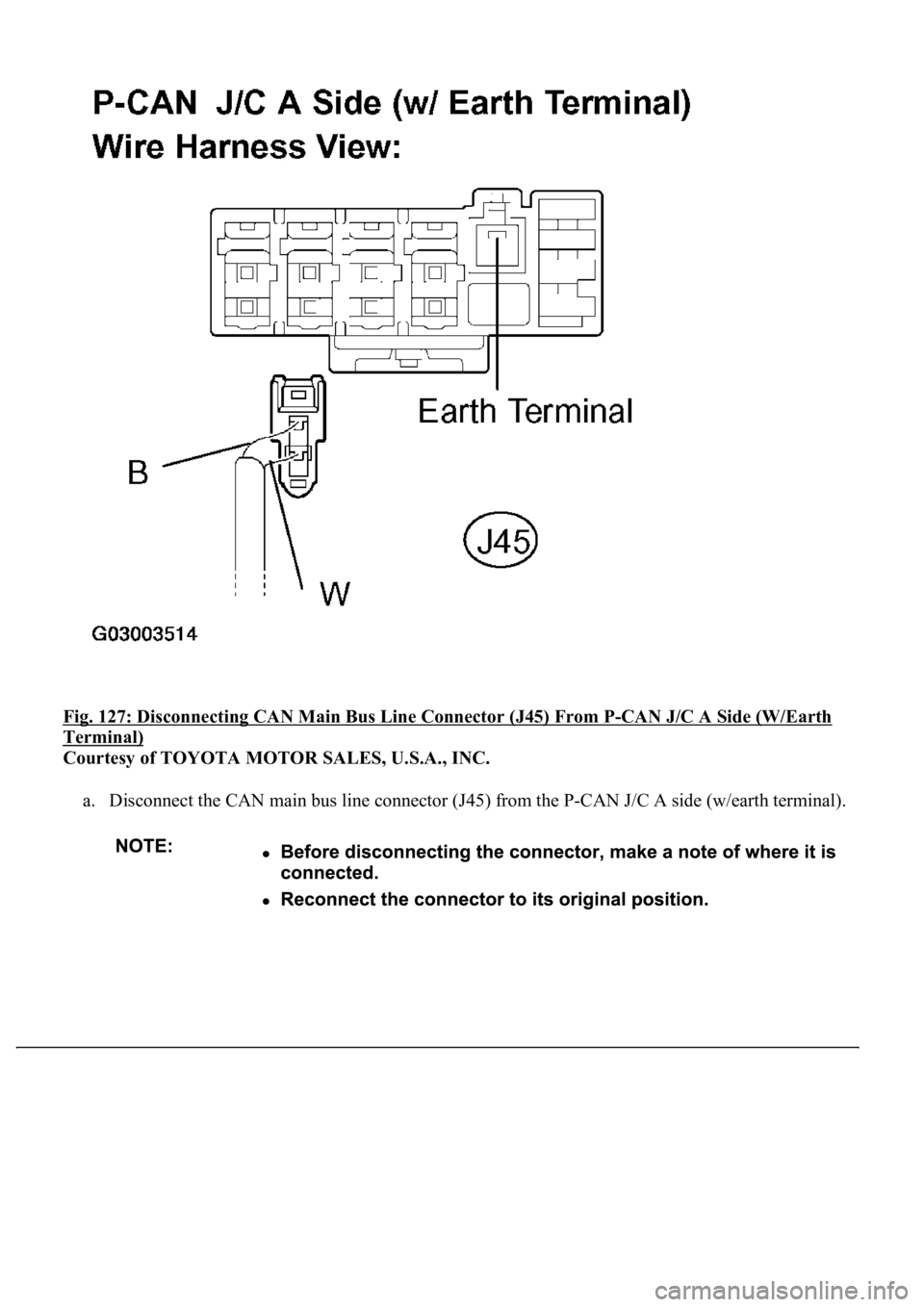

Fig. 127: Disconnecting CAN Main Bus Line Connector (J45) From P-CAN J/C A Side (W/Earth
Terminal)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the CAN main bus line connector (J45) from the P-CAN J/C A side (w/earth terminal).
