Page 1505 of 4500

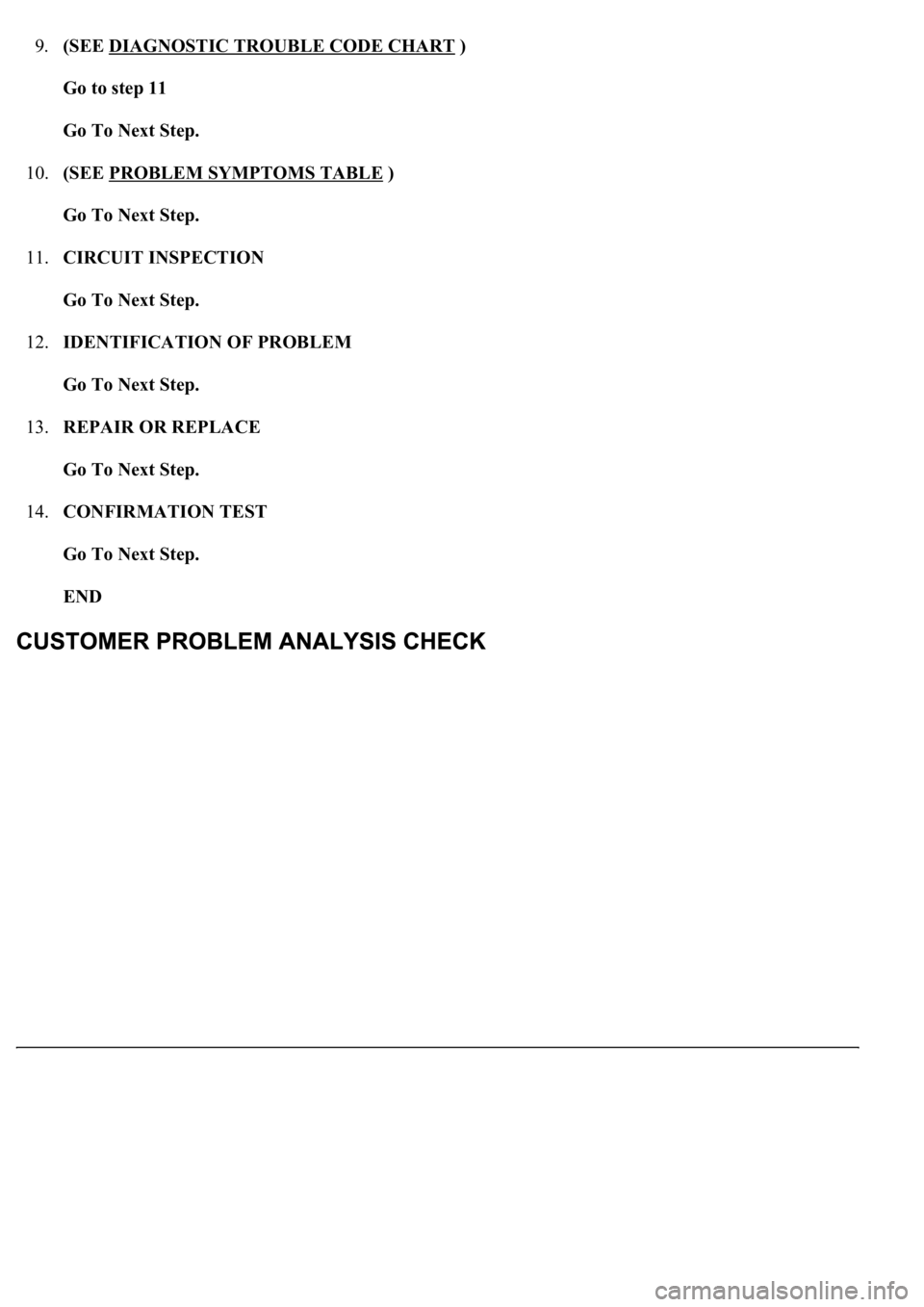

LEXUS LS430 2003 Factory Repair Manual 9.(SEE DIAGNOSTIC TROUBLE CODE CHART ) Go to step 11 Go To Next Step. 10.(SEE PROBLEM SYMPTOMS TABLE ) Go To Next Step. 11.CIRCUIT INSPECTION Go To Next Step. 12.IDENTIFICATION OF PROBLEM

Page 1506 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 4: Clearance Sonar System Check Sheet Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 1.DETECTION RANGE MEASUREMENT AND DISPLAY CHECK

Page 1507 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Turn the ignition switch to the ON position. b. Move the shift lever to the D position (when the front sonar and the front clearance sonar are checked). c. Move the shift lever to the R positi

Page 1508 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 5: Identifying Front And Back Sonar's Detection Ranges Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f. Check the multi-information display, the multi-display and the buzzer sounding conditi

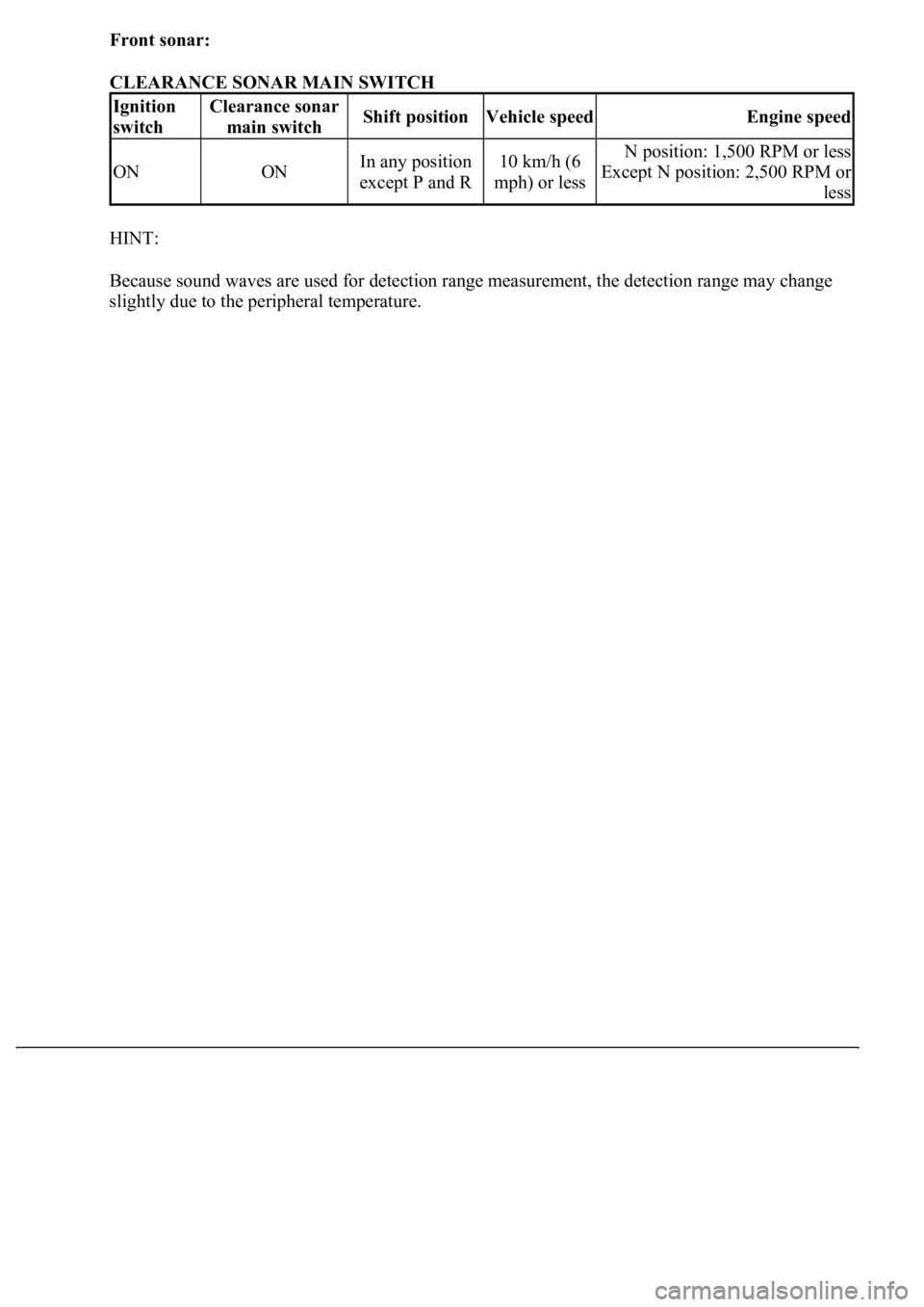

Page 1509 of 4500

LEXUS LS430 2003 Factory Repair Manual Front sonar: CLEARANCE SONAR MAIN SWITCH HINT: Because sound waves are used for detection range measurement, the detection range may change sli ghtly due to the peripheral temperature. Ignition

Page 1510 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 6: Identifying Front Sonar Display Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. g. Check the multi-information display and the buzzer sounding condition when the back sensor detects an obstacl

Page 1511 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Clearance sonar display does not appear on the multi-display if the shift lever is moved to the R position. Because sound waves are used for detection range measurement, the detection range

Page 1512 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 7: Identifying Back Sonar Display Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h. Check the multi-information display, the multi-display and the buzzer sounding condition when the clearance so
