Page 3793 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Use the same procedures described for the LH side. 20.REMOVE FRONT BUMPER MOLDING HINT: Remove the double-sided tape completely from the bumper. Double-sided tape interferes with the instal

Page 3794 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 10: Installing Front Bumper Side Retainer LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 27.INSTALL FRONT BUMPER SIDE RETAINER RH HINT: Use the same procedures described for the LH side. CO

Page 3795 of 4500

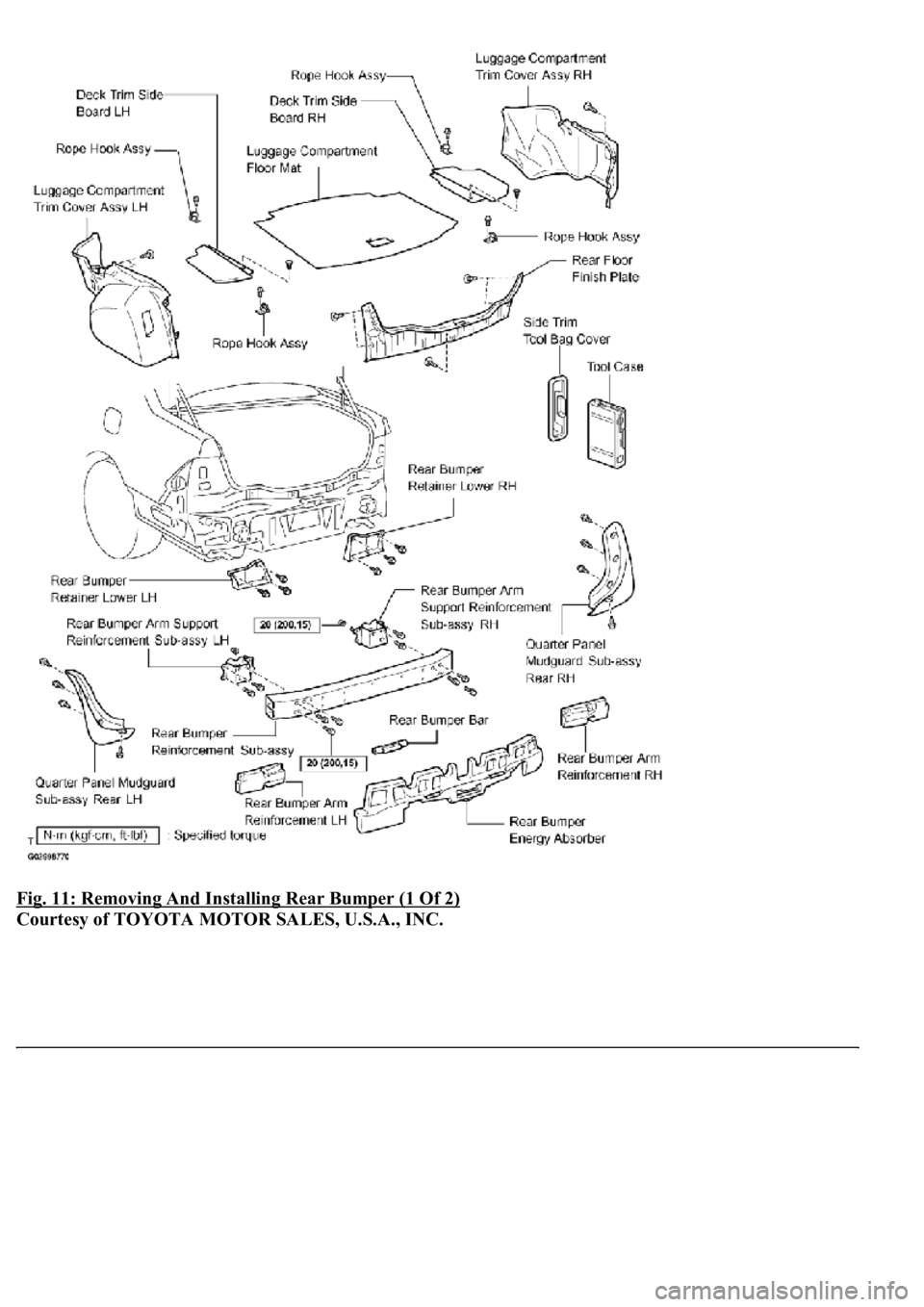

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140014001d000300350048005000520059004c0051004a00030024005100470003002c0051005600570044004f004f004c0051004a0003003500480044005500030025005800500053004800550003000b001400030032004

Page 3796 of 4500

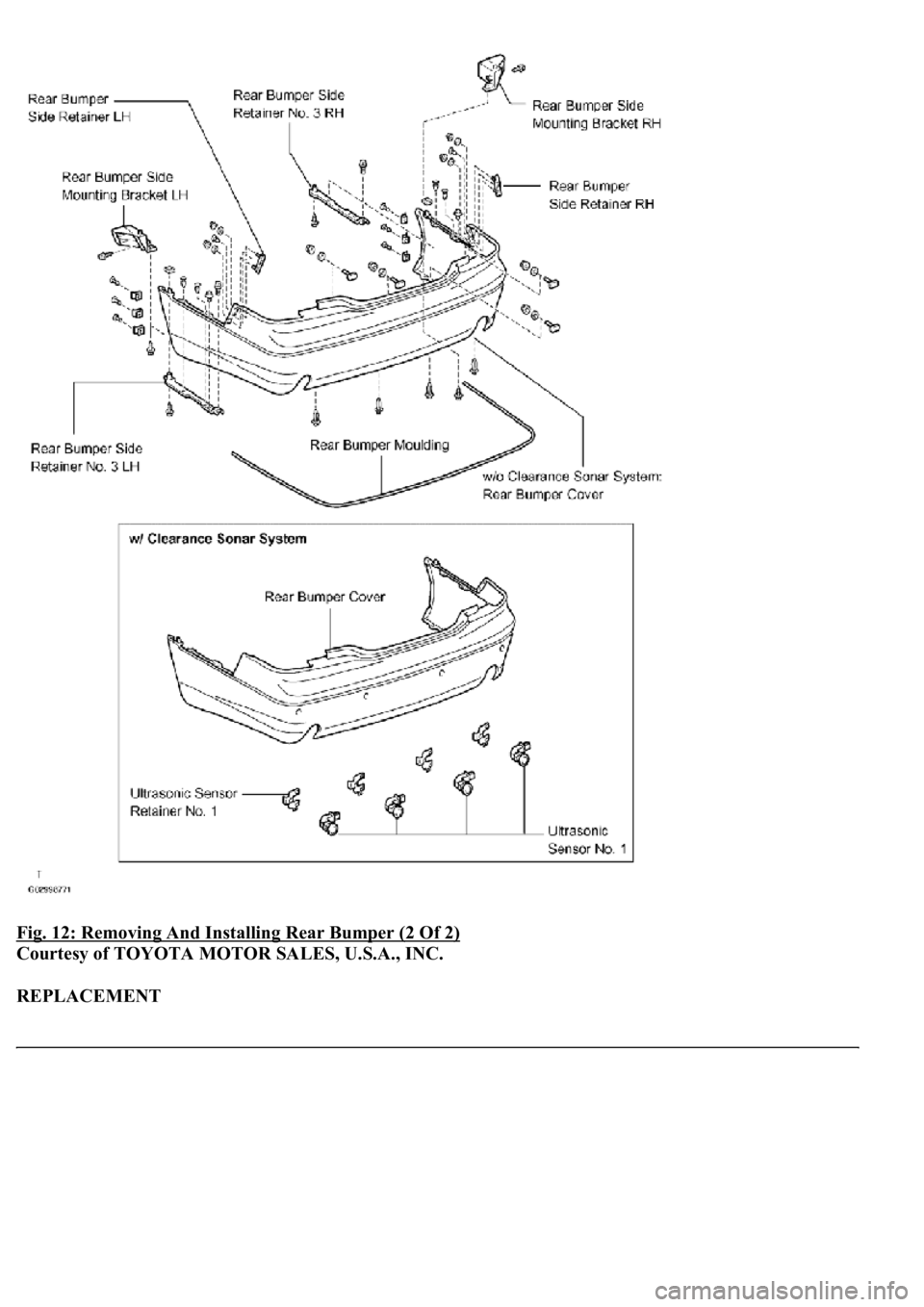

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140015001d000300350048005000520059004c0051004a00030024005100470003002c0051005600570044004f004f004c0051004a0003003500480044005500030025005800500053004800550003000b001500030032004

Page 3797 of 4500

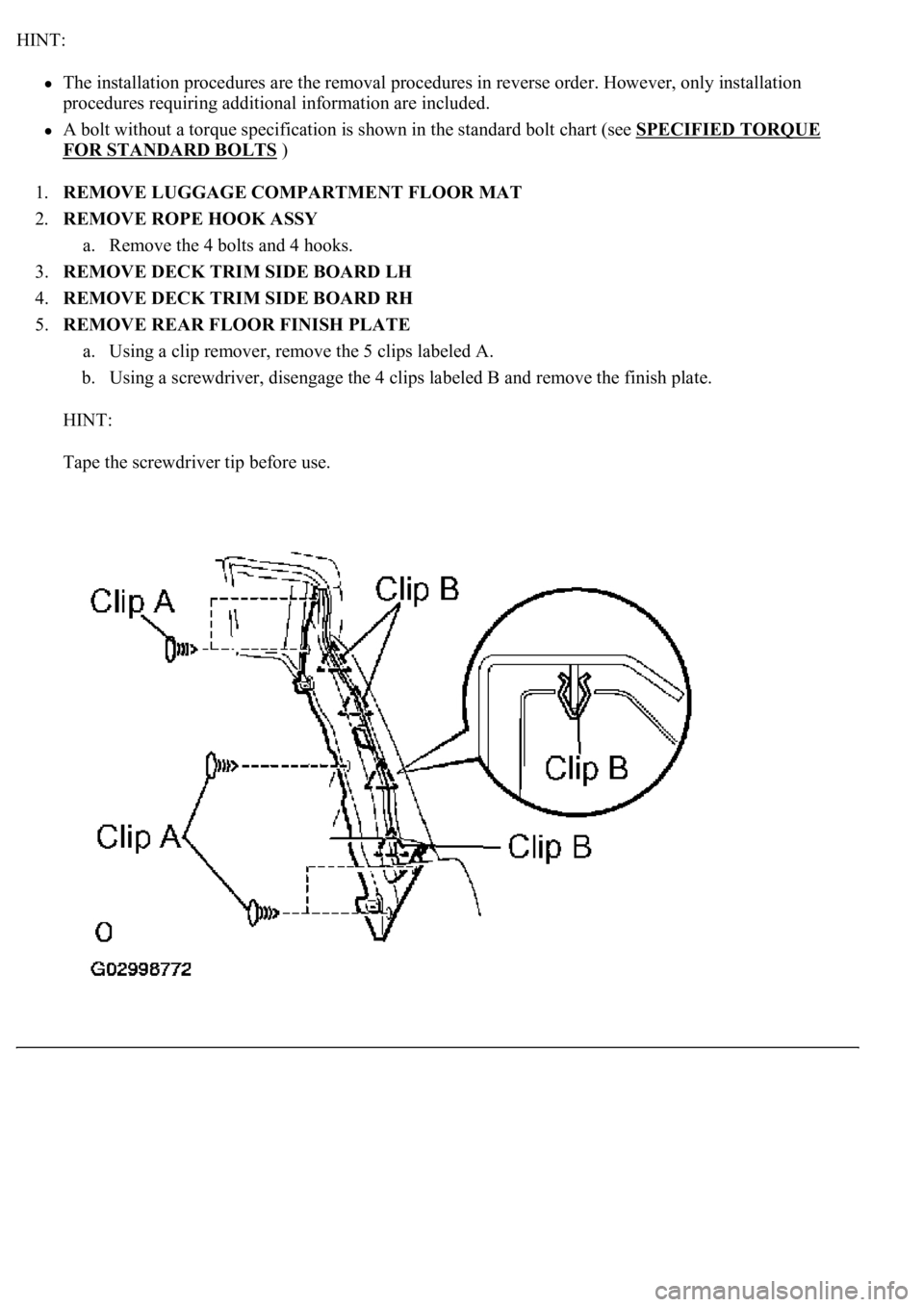

LEXUS LS430 2003 Factory Repair Manual HINT: The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included. A bolt without a torque specific

Page 3798 of 4500

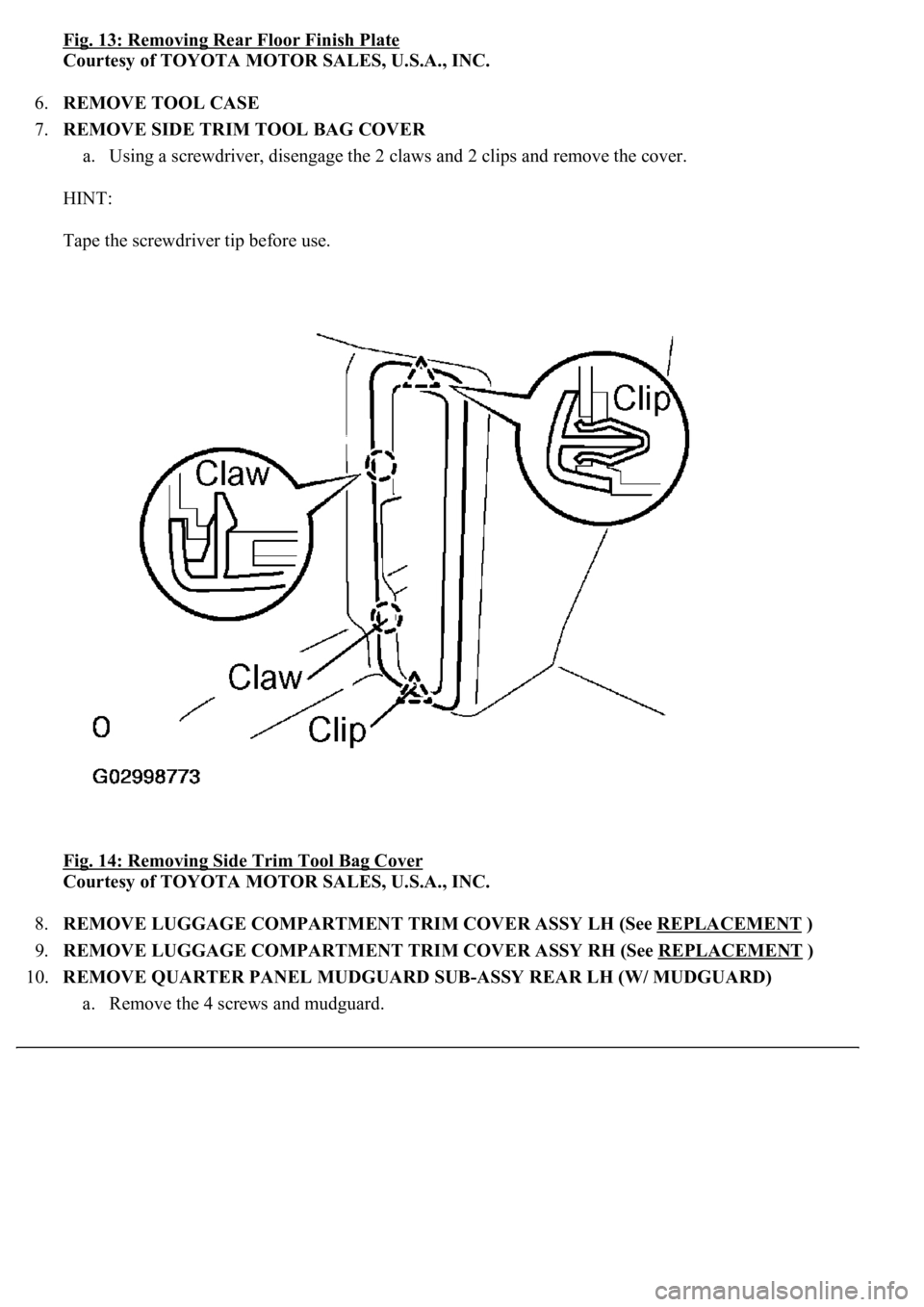

LEXUS LS430 2003 Factory Repair Manual Fig. 13: Removing Rear Floor Finish Plate Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE TOOL CASE 7.REMOVE SIDE TRIM TOOL BAG COVER a. Using a screwdriver, disengage the 2 claws and 2 clip

Page 3799 of 4500

LEXUS LS430 2003 Factory Repair Manual 11.REMOVE QUARTER PANEL MUDGUARD SUB-ASSY REAR RH (W/ MUDGUARD) a. Remove the 4 screws and mudguard. 12.REMOVE REAR BUMPER COVER a. Using a screwdriver, remove the 4 clips. HINT: Tape the screwd

Page 3800 of 4500

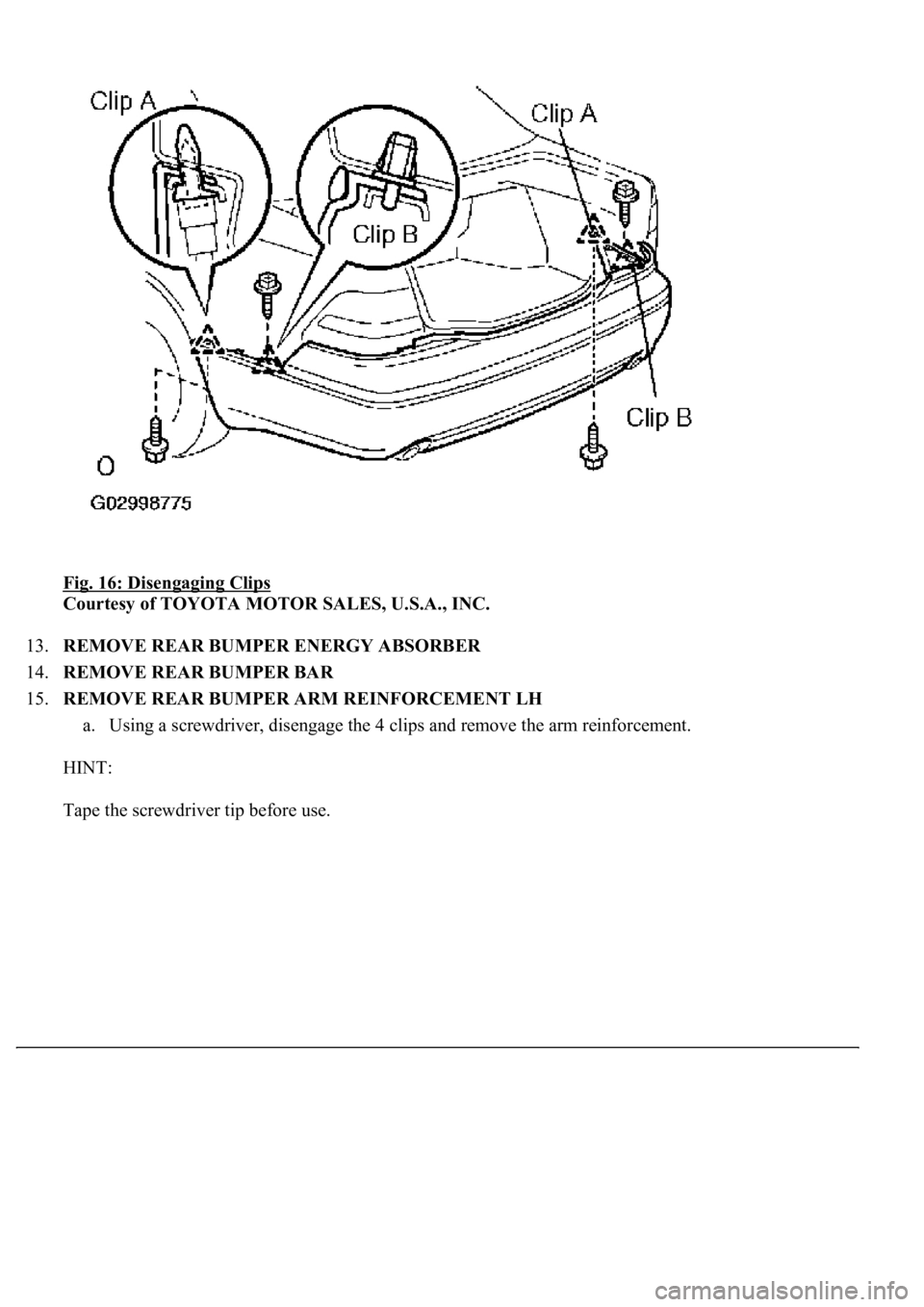

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Disengaging Clips Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.REMOVE REAR BUMPER ENERGY ABSORBER 14.REMOVE REAR BUMPER BAR 15.REMOVE REAR BUMPER ARM REINFORCEMENT LH a. Using a scr
