Page 833 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 14: Removing Transmission Control Shaft Lever Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. g. Align the neutral basic line with the switch groove, and tighten the adjusting bolt. Torque: 13 N.

Page 834 of 4500

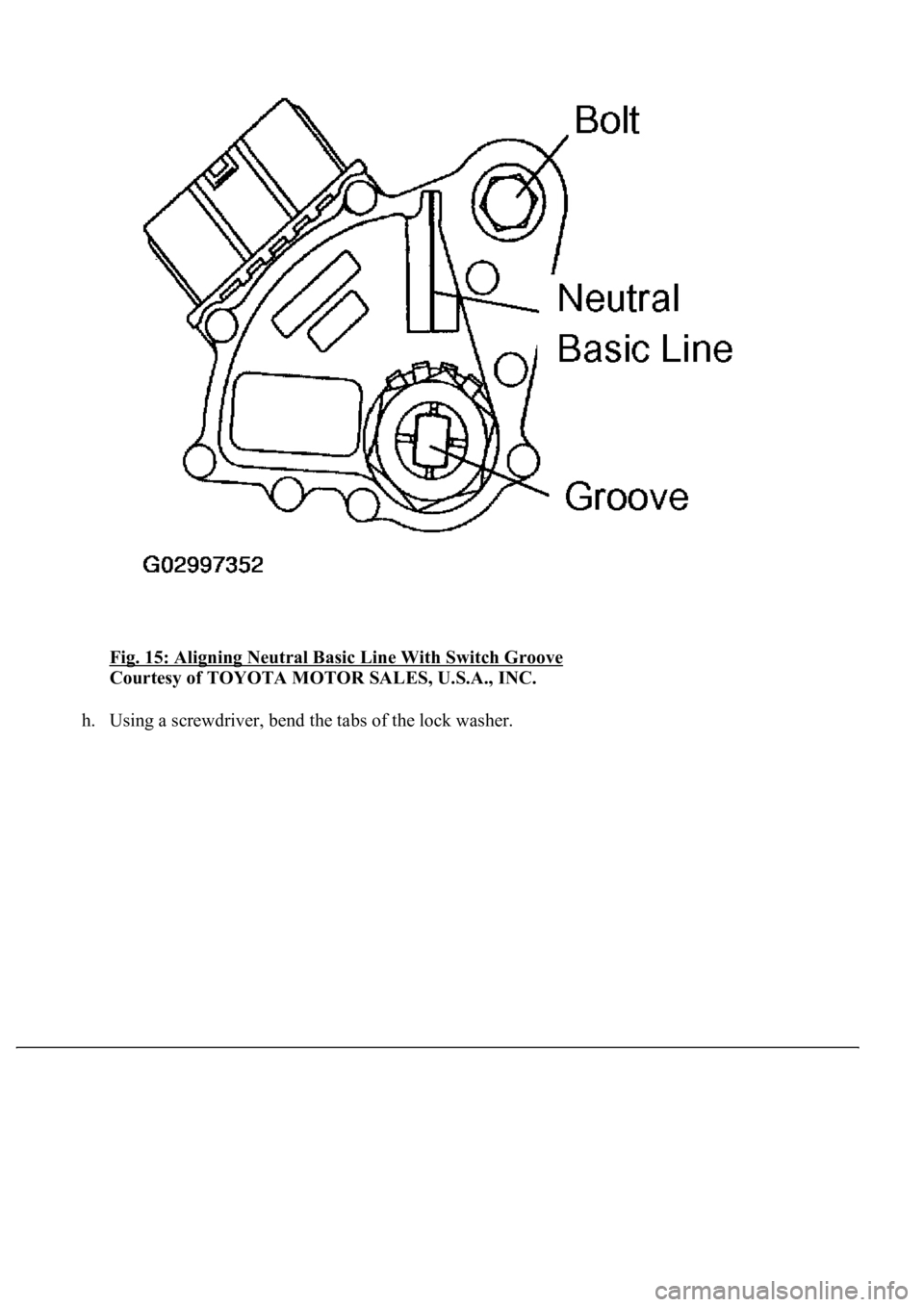

LEXUS LS430 2003 Factory Repair Manual Fig. 15: Aligning Neutral Basic Line With Switch Groove Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h. Usin g a screwdriver, bend the tabs of the lock washer.

Page 835 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Bending Tabs Of Lock Washer Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 27.INSTALL TRANSMISSION CONTROL SHAFT LEVER RH a. Install the transmission control shaft lever RH with the nut. To

Page 836 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Installing Transmission Control Shaft Lever RH With Nut Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Connect the park/neutral position switch connector. 28.INSTALL ENGINE REAR MOUNTING

Page 837 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 18: Installing Engine Rear Mounting Member With 4 Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 29.CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY a. Connect the floor shift gear shifting

Page 838 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a001100030014001c001d00030026005200510051004800460057004c0051004a00030029004f00520052005500030036004b004c004900570003002a00480044005500030036004b004c00490057004c0051004a0003003500520047000

Page 839 of 4500

LEXUS LS430 2003 Factory Repair Manual If a failure is found, check the park/neutral position switch for continuity. 2.ADJUST PARK/NEUTRAL POSITION SWITCH ASSY a. Loosen the bolt of the park/neutral position switch and move the shift leve

Page 840 of 4500

LEXUS LS430 2003 Factory Repair Manual c. Remove the O-ring from the transmission revolution sensor. Fig. 21: Removing Bolt And Transmission Revolution Sensor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2.REMOVE TRANSMISSION REVOLUTI
