Page 691 of 4500
Fig. 52: Removing Navigation Antenna Assy Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
2.REMOVE CONSOLE PANEL SUB-ASSY UPPER (See step 38 on REPLACEMENT
)
3.REMOVE CIGARETTE LIGHTER ASSY
a. Rotate the socket cap counterclockwise to remove it.
b. Remove the cigarette lighter assy from the cigar-lighter hole bezel.
Page 692 of 4500

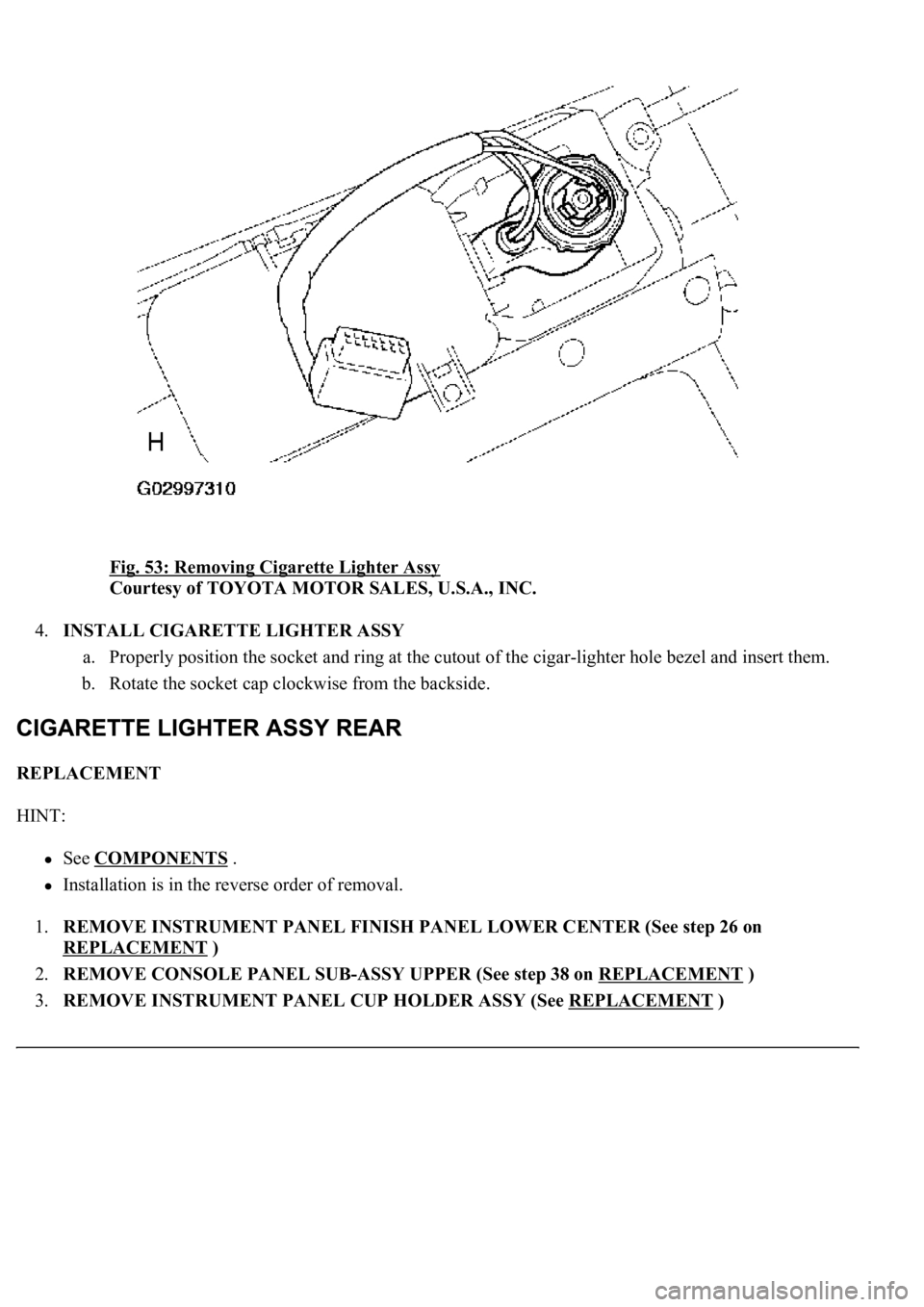

Fig. 53: Removing Cigarette Lighter Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL CIGARETTE LIGHTER ASSY
a. Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
b. Rotate the socket cap clockwise from the backside.
REPLACEMENT
HINT:
See COMPONENTS .
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
)
2.REMOVE CONSOLE PANEL SUB-ASSY UPPER (See step 38 on REPLACEMENT
)
3.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (See REPLACEMENT
)
Page 694 of 4500

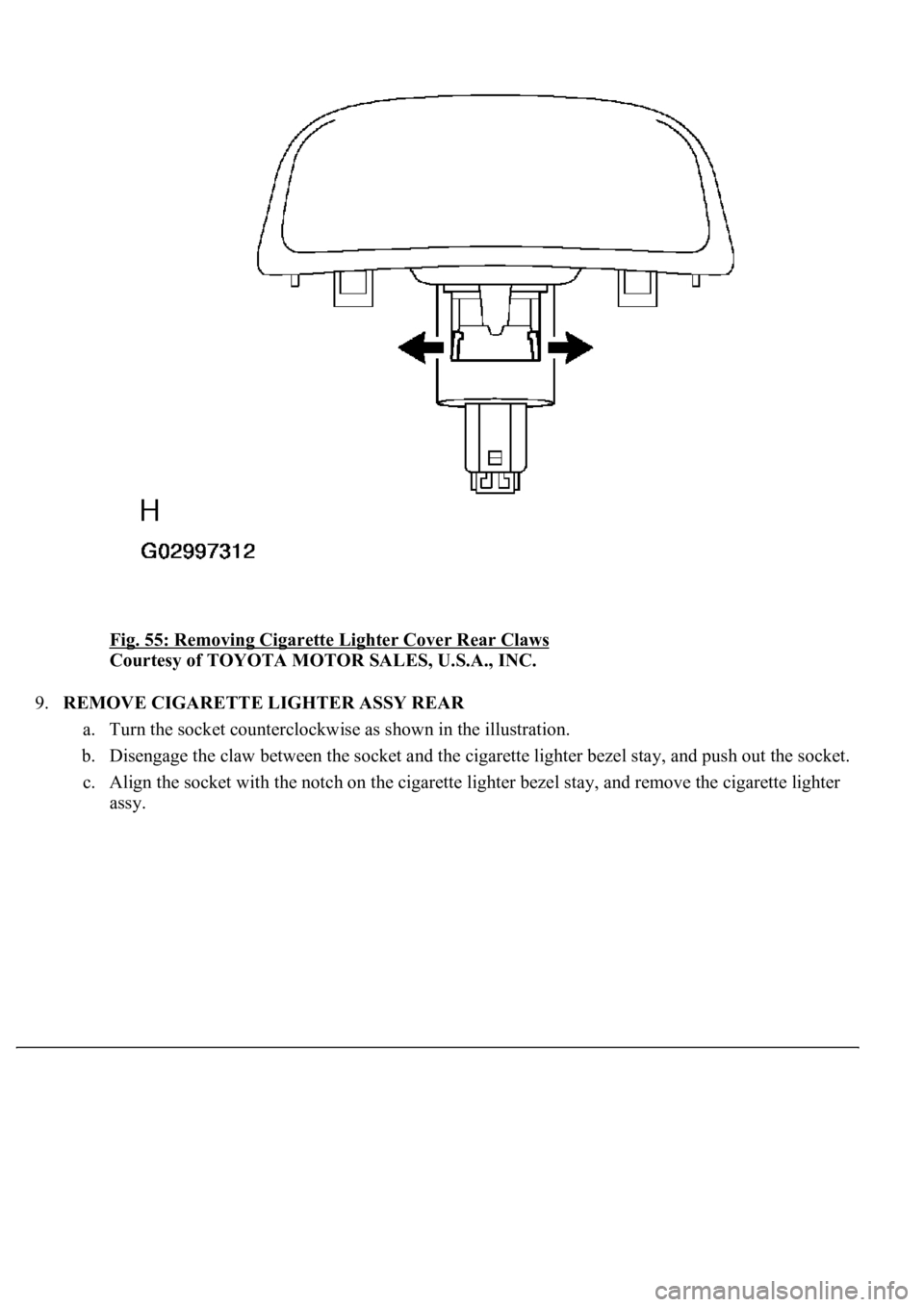

Fig. 55: Removing Cigarette Lighter Cover Rear Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.REMOVE CIGARETTE LIGHTER ASSY REAR
a. Turn the socket counterclockwise as shown in the illustration.
b. Disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket.
c. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter
ass
y.
Page 697 of 4500

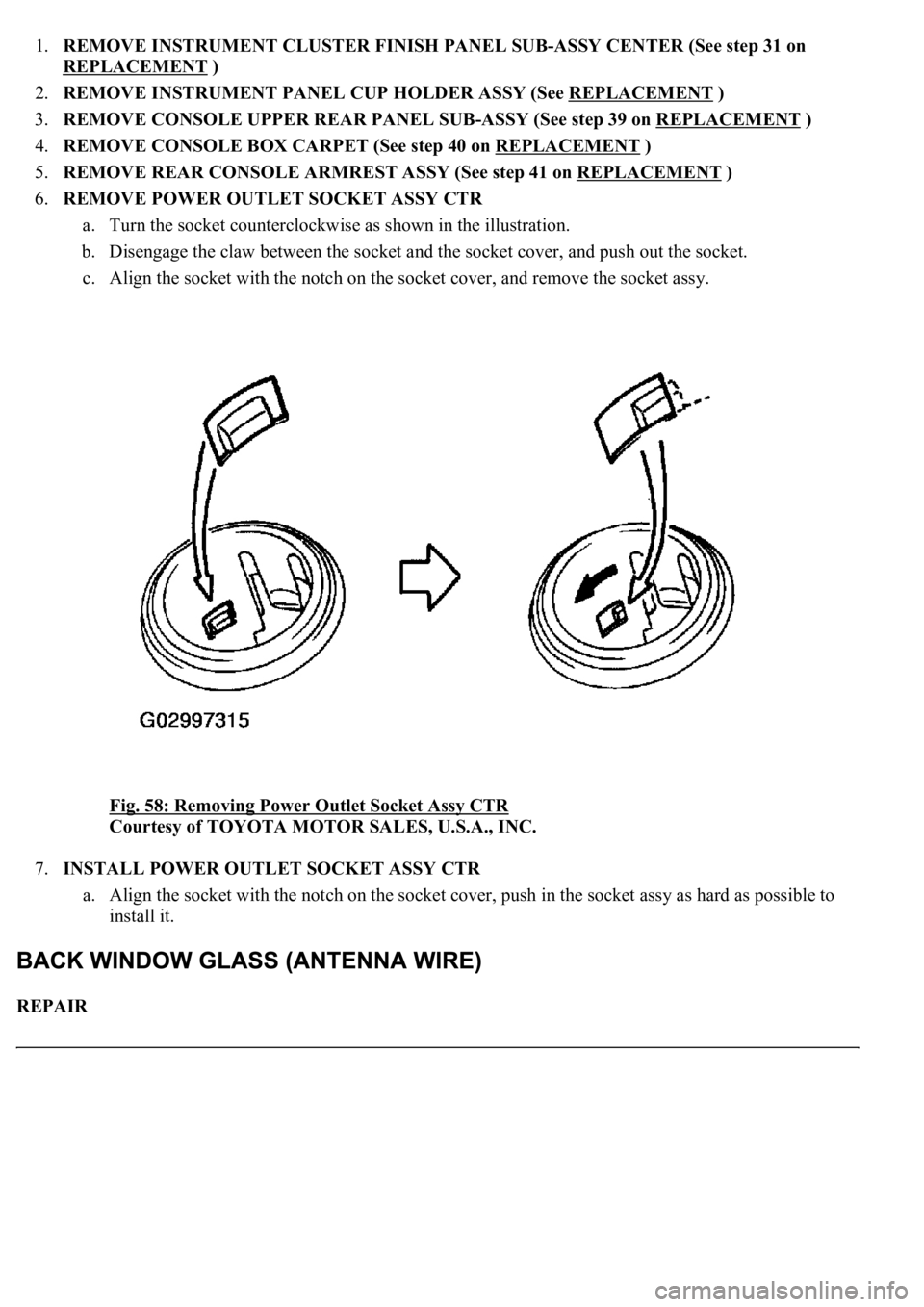

1.REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See step 31 on
REPLACEMENT
)
2.REMOVE INSTRUMENT PANEL CUP HOLDER ASSY (See REPLACEMENT
)
3.REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See step 39 on REPLACEMENT
)
4.REMOVE CONSOLE BOX CARPET (See step 40 on REPLACEMENT
)
5.REMOVE REAR CONSOLE ARMREST ASSY (See step 41 on REPLACEMENT
)
6.REMOVE POWER OUTLET SOCKET ASSY CTR
a. Turn the socket counterclockwise as shown in the illustration.
b. Disengage the claw between the socket and the socket cover, and push out the socket.
c. Align the socket with the notch on the socket cover, and remove the socket assy.
Fig. 58: Removing Power Outlet Socket Assy CTR
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL POWER OUTLET SOCKET ASSY CTR
a. Align the socket with the notch on the socket cover, push in the socket assy as hard as possible to
install it.
REPAIR
Page 832 of 4500
Fig. 13: Installing Control Shaft Lever
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Turn the control shaft lever counterclockwise until it stops, and turn it clockwise 2 notches to set it
to the N position.
f. Remove the transmission control shaft lever.
Page 874 of 4500
INSPECTION
1.INSPECT TORQUE CONVERTER CLUTCH ASSY
a. Inspect the one-way clutch.
1. Install SST so that it fits in the notch of the converter hub and outer race of the one-way
clutch.
SST 09350-30020 (09351-32020)
Fig. 55: Installing SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Press on the serrations of the starter with a finger and rotate it.
Clean the converter and retest the one-way clutch.
When the one-way clutch is turned clockwise, it rotates freely and when turned counterclockwise, it
locks.
Page 961 of 4500
Fig. 136: Removing Nut And Disconnecting Shifting Rod From Connecting Rod Swivel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Turn the control shaft lever of the neutral start switch counterclockwise until it stops, and turn it
clockwise 2 notches to set it to the N position.
c. Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the
R position.
d. After adjustment, check that the shift lever moves smoothly and the shift lever and gear operate
correctl
y.
Page 1008 of 4500
Fig. 41: Removing Brake Master Cylinder Sub-Assy Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.REMOVE BRAKE MASTER CYLINDER RESERVOIR SUB-ASSY
a. Remove the brake master cylinder reservoir filler cap and master cylinder reservoir strainer.
HINT:
Using 2 fingers, pull up and turn the master cylinder reservoir strainer counterclockwise to remove.
b. Remove the set screw and pull out the reservoir.
