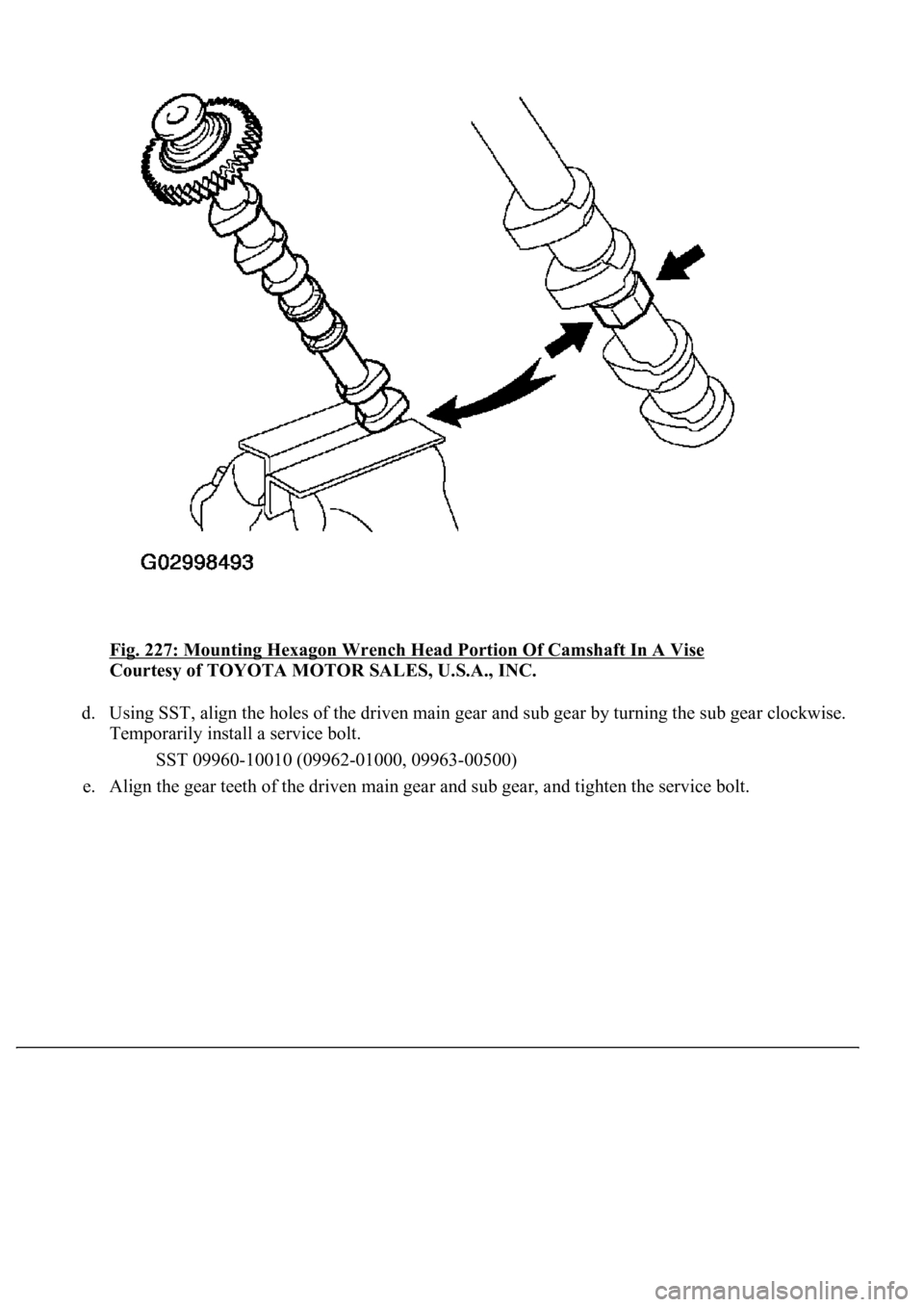

Fig. 227: Mounting Hexagon Wrench Head Portion Of Camshaft In A Vise
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using SST, align the holes of the driven main gear and sub gear by turning the sub gear clockwise.
Temporarily install a service bolt.
SST 09960-10010 (09962-01000, 09963-00500)
e. Ali
gn the gear teeth of the driven main gear and sub gear, and tighten the service bolt.

<0029004c004a00110003001500170015001d0003002c0047004800510057004c0049005c004c0051004a00030026005c004f004c00510047004800550003002400510047000300390044004f0059004800030033004c005600570052005100030033005200
56004c0057004c00520051[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.PISTON & VALVE BREAK PREVENT WORK

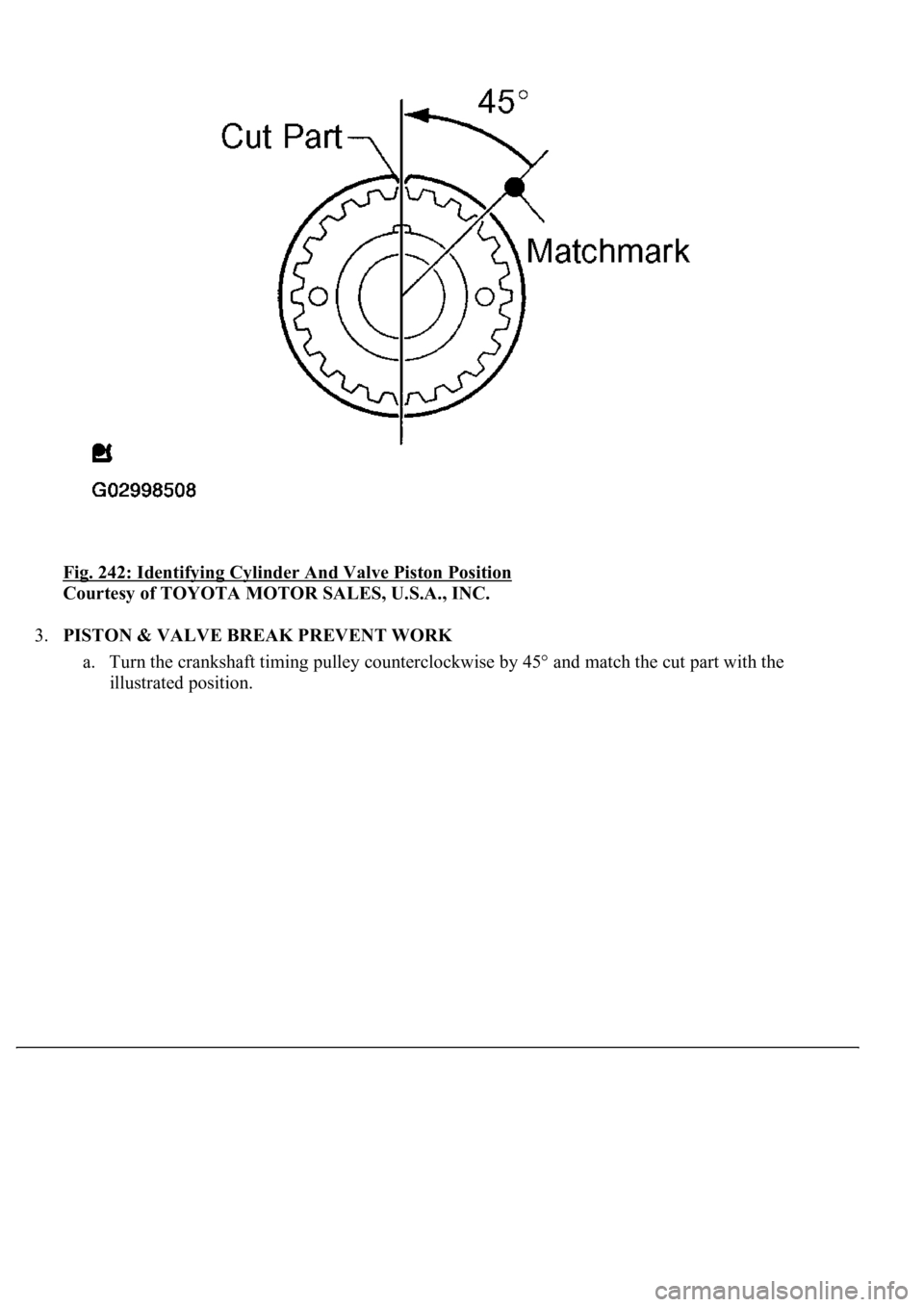

a. Turn the crankshaft timing pulley counterclockwise by 45° and match the cut part with the
illustrated position.

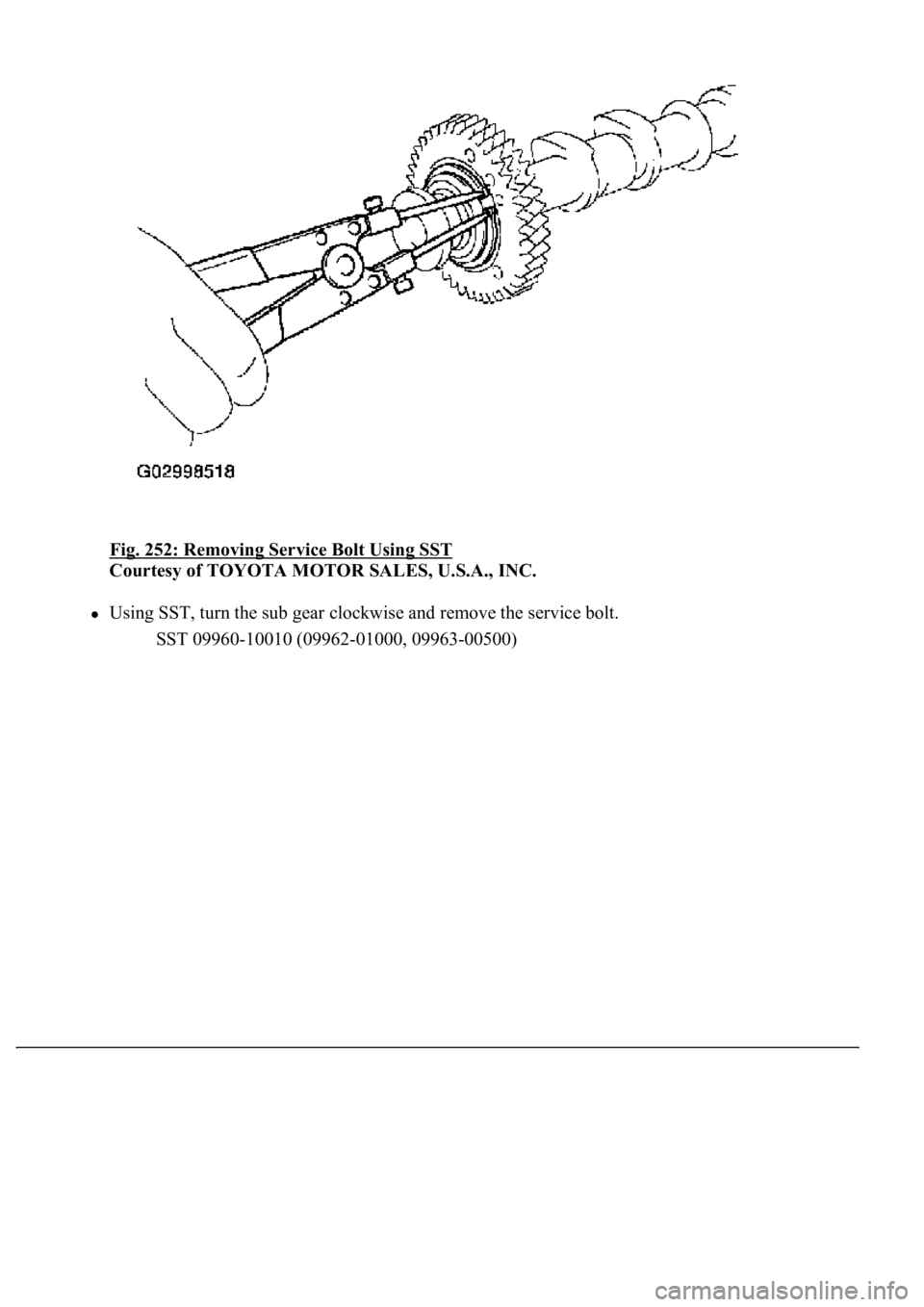

Fig. 252: Removing Service Bolt Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Using SST, turn the sub gear clockwise and remove the service bolt.
SST 09960-10010 (09962-01000, 09963-00500)

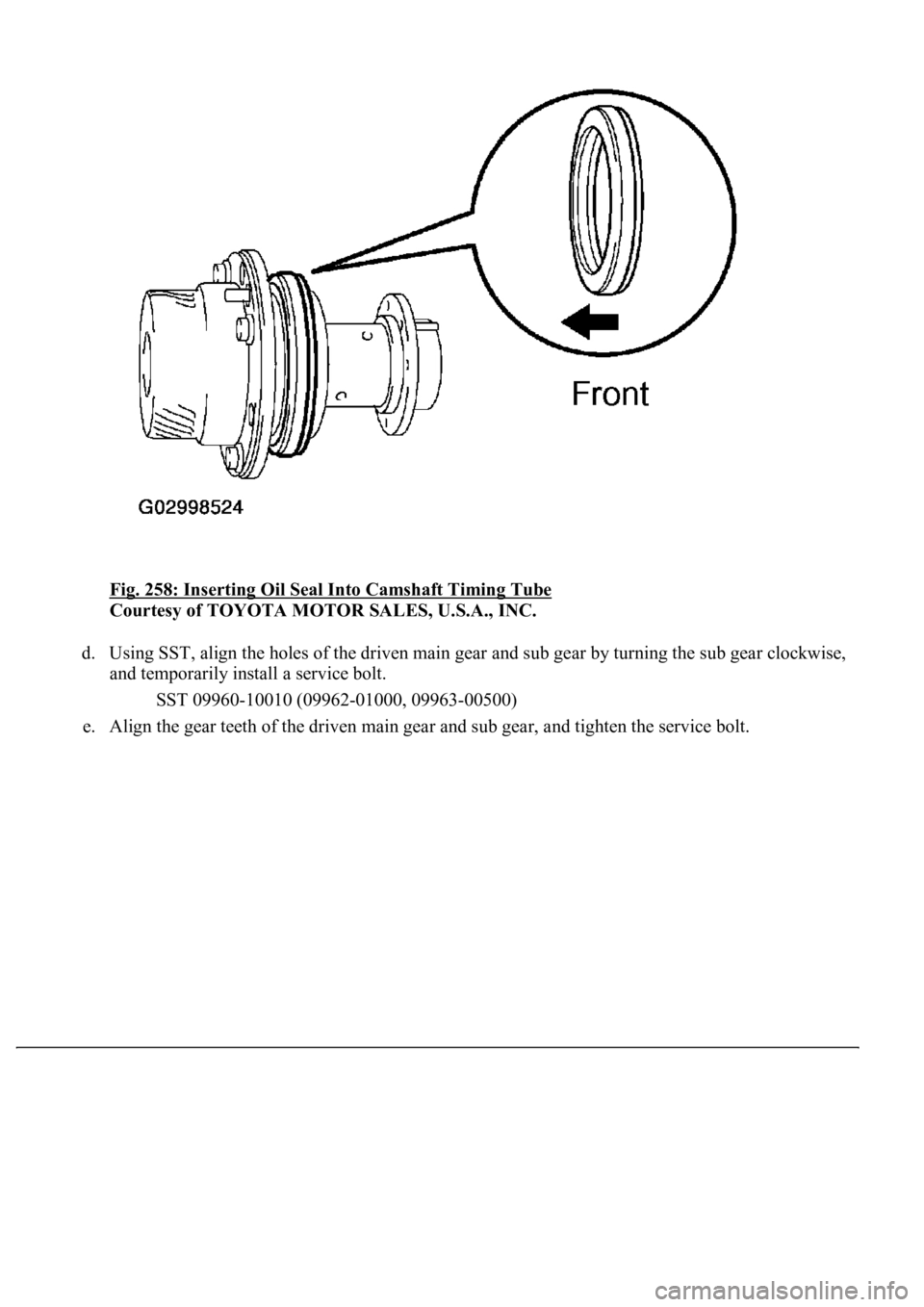

Fig. 258: Inserting Oil Seal Into Camshaft Timing Tube
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using SST, align the holes of the driven main gear and sub gear by turning the sub gear clockwise,
and temporarily install a service bolt.
SST 09960-10010 (09962-01000, 09963-00500)
e. Ali
gn the gear teeth of the driven main gear and sub gear, and tighten the service bolt.

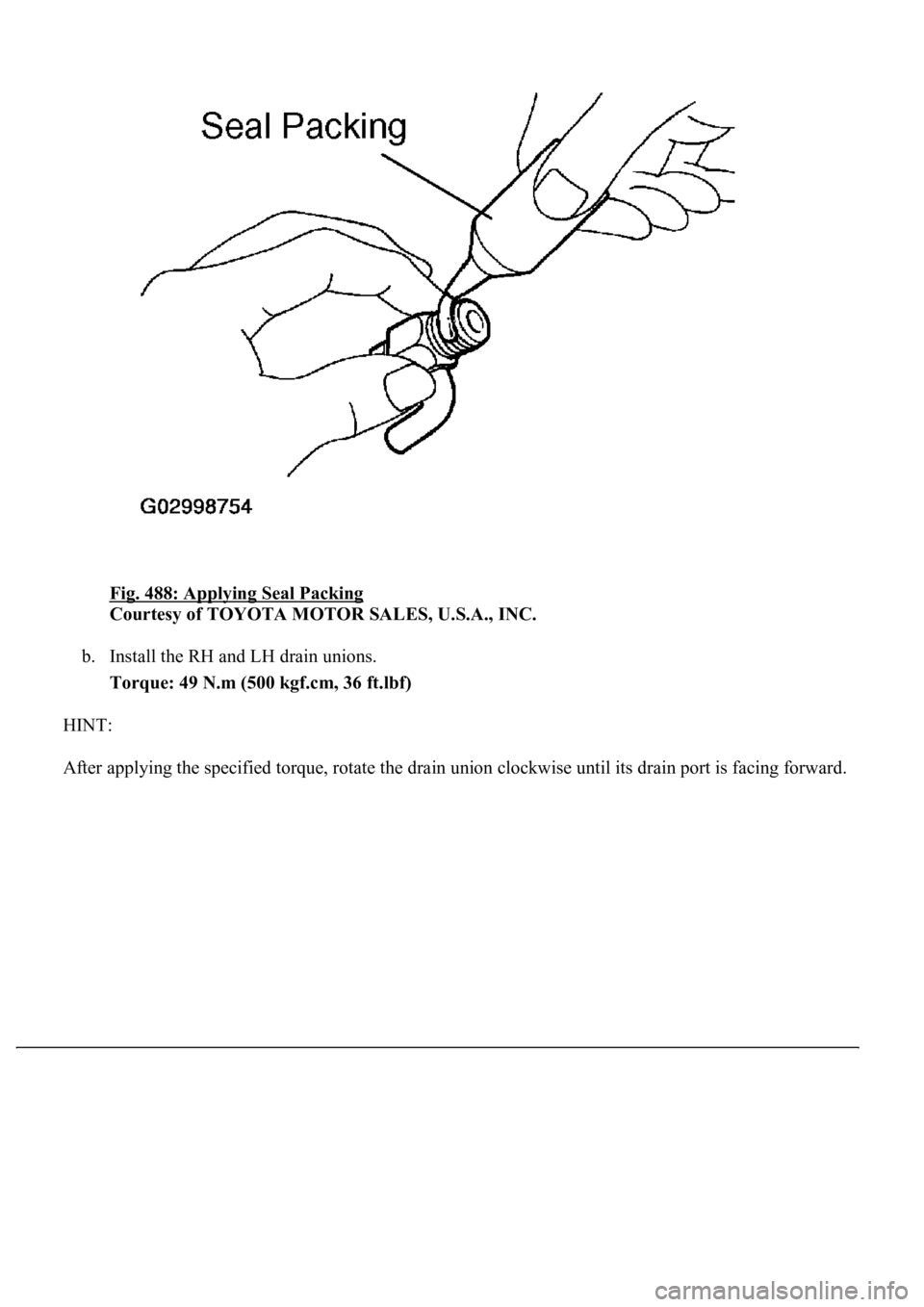

Fig. 488: Applying Seal Packing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the RH and LH drain unions.
Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
HINT:
After appl
ying the specified torque, rotate the drain union clockwise until its drain port is facing forward.

1.REMOVE FRONT FLOOR BRACE CENTER
a. Remove the 4 bolts and floor brace.
2.Bank 1, 2 sensor 2:
REMOVE HEATED OXYGEN SENSOR
a. Remove the 2 sensors.
3.REMOVE EXHAUST PIPE ASSY FRONT
a. Loosen the clamp.
b. Remove the 4 bolts, 4 nuts, pipe and 2 gaskets.
4.REMOVE EXHAUST PIPE ASSY CENTER
a. Loosen the 2 clamps.
b. Remove the pipe.
5.REMOVE EXHAUST PIPE ASSY TAIL (LH)
a. Remove the pipe from the 3 rings.
6.REMOVE EXHAUST PIPE ASSY TAIL (RH)
a. Remove the pipe from the 3 rings.
7.INSTALL EXHAUST PIPE ASSY FRONT
a. Install the 2 new gaskets to the pipe.
b. Install the pipe to the TWC with the 4 bolts and 4 nuts.
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
8.Bank 1, 2 sensor 2:
INSTALL HEATED OXYGEN SENSOR
a. Install the 2 sensors.
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
HINT:
Before installing the sensor, twist the sensor wire counterclockwise 3 and 1/2 turns.
After installing the sensor, check that the sensor wire is not twisted. If it is twisted, remove the
sensor and reinstall it.
9.INSTALL EXHAUST PIPE ASSY CENTER
a. Install the pipe.
b. Tighten the clamp.
Standard dimension (A): 13 to 15 mm (0.51 to 0.59 in.)

e. Using a screwdriver, remove the 2 rope hooks.
HINT:
Turn the rope hook 90 degrees counterclockwise. Insert a screwdriver (with its tip taped) into the
slit in the side of the rope hook. Hold down the claw inside the slit and remove the rope hook as
shown in Fig. 24
.
f. w/ Special utility package:
Remove the 2 clips.

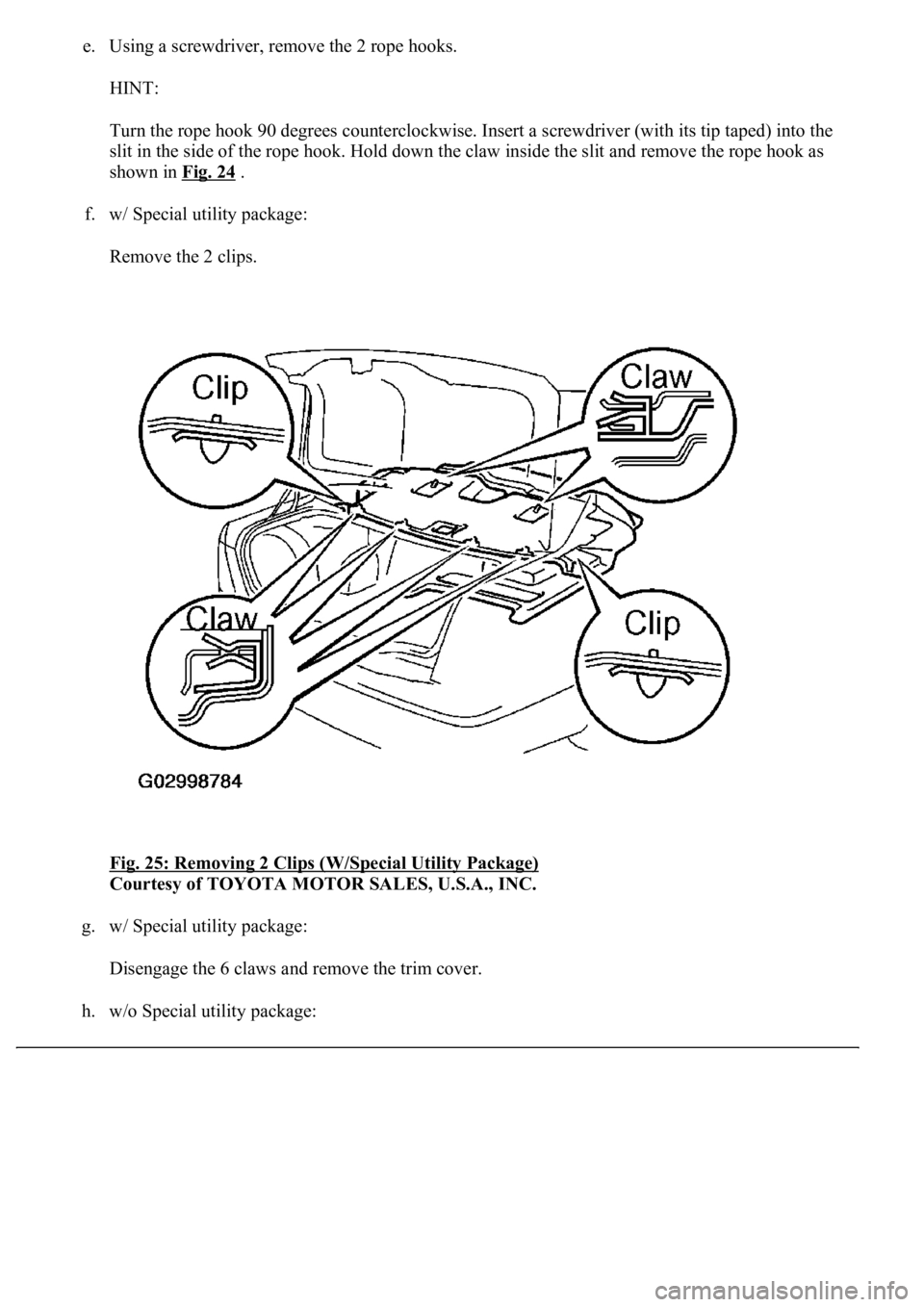

Fig. 25: Removing 2 Clips (W/Special Utility Package)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
g. w/ Special utility package:
Disengage the 6 claws and remove the trim cover.
h. w/o Special utilit
y package:

Fig. 44: Identifying Power Seat Cushion Switch Connector Terminals - Passenger Seat
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSPECT POWER SEAT MOTOR
a. Check operation of the slide motor.
1. Check if the motor rotates smoothly when the battery is connected to the slide motor
connector terminals.
OK:
MEASUREMENT CONDITION AND SPECIFIED CONDITION
If the result is not as specified, replace the slide motor.
Measurement ConditionSpecified Condition
Battery positive (+) --> 1 Battery negative (-) --> 2Counterclockwise
Battery positive (+) --> 2 Battery negative (-) --> 1Clockwise
