Bronco
1982-85
6-CylinderOn Left Front Fender
V8On Right Inner Fender Panel
1986-87On Right Front Fender, Near Starter Relay
1988-92On Left Fender Apron
1993-952 Connectors In Left Rear Of Engine
Compartment, On Bracket
1996-Below Glove Box
Bronco II
1983-85On Right Front Inner Fender Panel (2.3L
Only)
1986-90On Right Front Fender Apron
ExcursionBehind Center Of Dash
Explorer & Mountaineer (1991-94)On Right Rear Of Engine Compartment, Near
A/C-Heater Blower
Pickup
1982-85
6-CylinderOn Left Front Fender
V8On Right Inner Fender Panel
1986-87On Right Front Fender, Near Starter Relay
1988-92On Left Fender Apron
1993-952 Connectors In Left Rear Of Engine
Compartment, On Bracket
1996-Below Center Of Instrument Panel
Pickup (F250 Heavy Duty & F350)Under Right Side Of Dash
Ranger
1983-85On Right Front Inner Fender Panel (2.3L
Only)
1986-90On Right Front Fender Apron
1991Behind Engine Compartment Fuse/Relay
Block
1992On Left Front Inner Fender Panel
1993-95On Rear Of Engine Compartment Fuse/Relay
Block
Van
1986-92On Right Fender Apron
1993-95On Left Front Corner Of Engine
Compartment
1996
5.8L (49 State, Over 8600 GVW) & 7.5L (Except
Calif.)On Left Front Corner Of Engine
Compartment

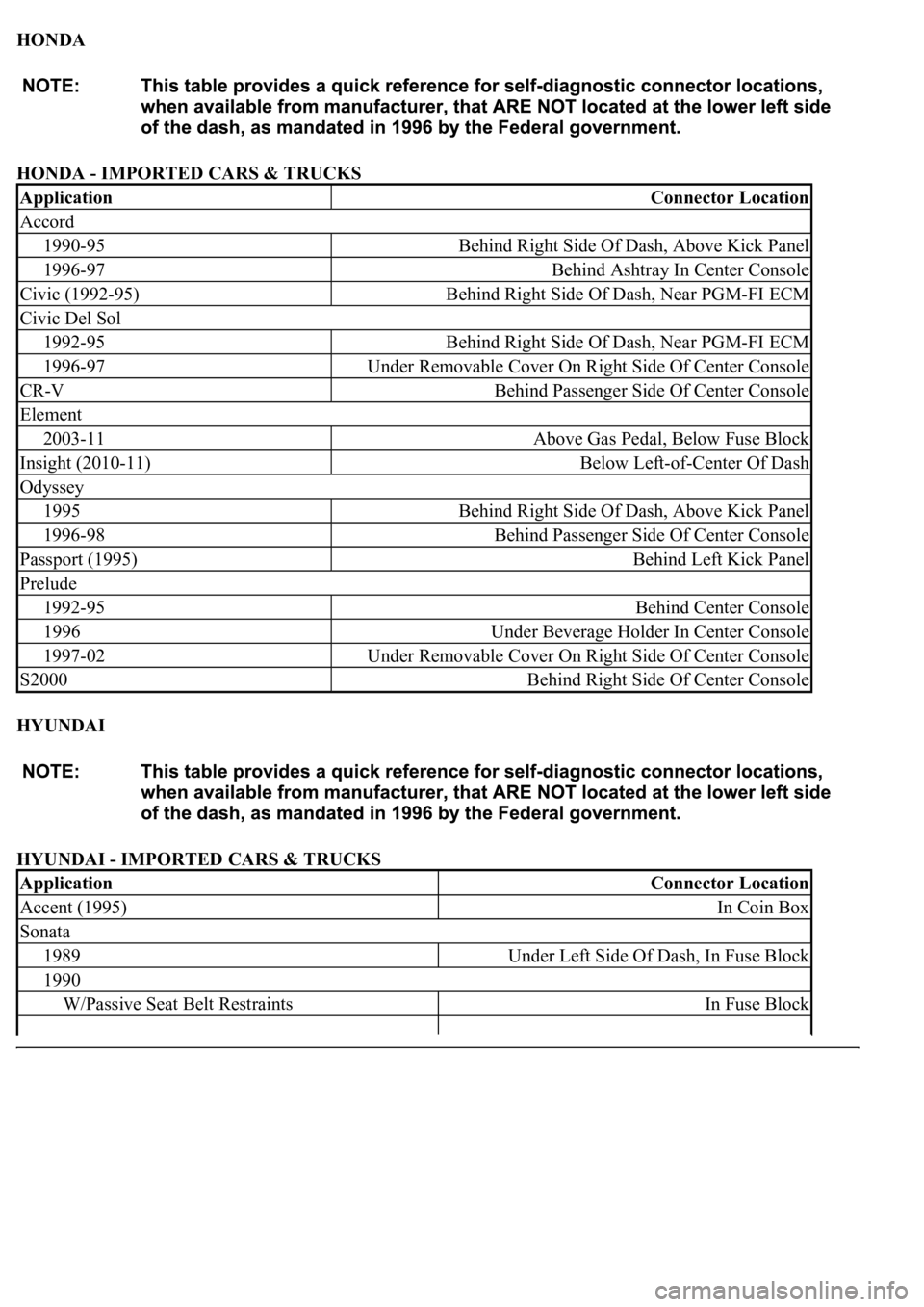

HONDA
HONDA - IMPORTED CARS & TRUCKS
HYUNDAI
HYUNDAI - IMPORTED CARS & TRUCKS
ApplicationConnector Location
Accord
1990-95Behind Right Side Of Dash, Above Kick Panel
1996-97Behind Ashtray In Center Console
Civic (1992-95)Behind Right Side Of Dash, Near PGM-FI ECM
Civic Del Sol
1992-95Behind Right Side Of Dash, Near PGM-FI ECM
1996-97Under Removable Cover On Right Side Of Center Console
CR-VBehind Passenger Side Of Center Console
Element
2003-11Above Gas Pedal, Below Fuse Block
Insight (2010-11)Below Left-of-Center Of Dash
Odyssey
1995Behind Right Side Of Dash, Above Kick Panel
1996-98Behind Passenger Side Of Center Console
Passport (1995)Behind Left Kick Panel
Prelude
1992-95Behind Center Console
1996Under Beverage Holder In Center Console
1997-02Under Removable Cover On Right Side Of Center Console
S2000Behind Right Side Of Center Console
ApplicationConnector Location
Accent (1995)In Coin Box
Sonata
1989Under Left Side Of Dash, In Fuse Block
1990
W/Passive Seat Belt RestraintsIn Fuse Block

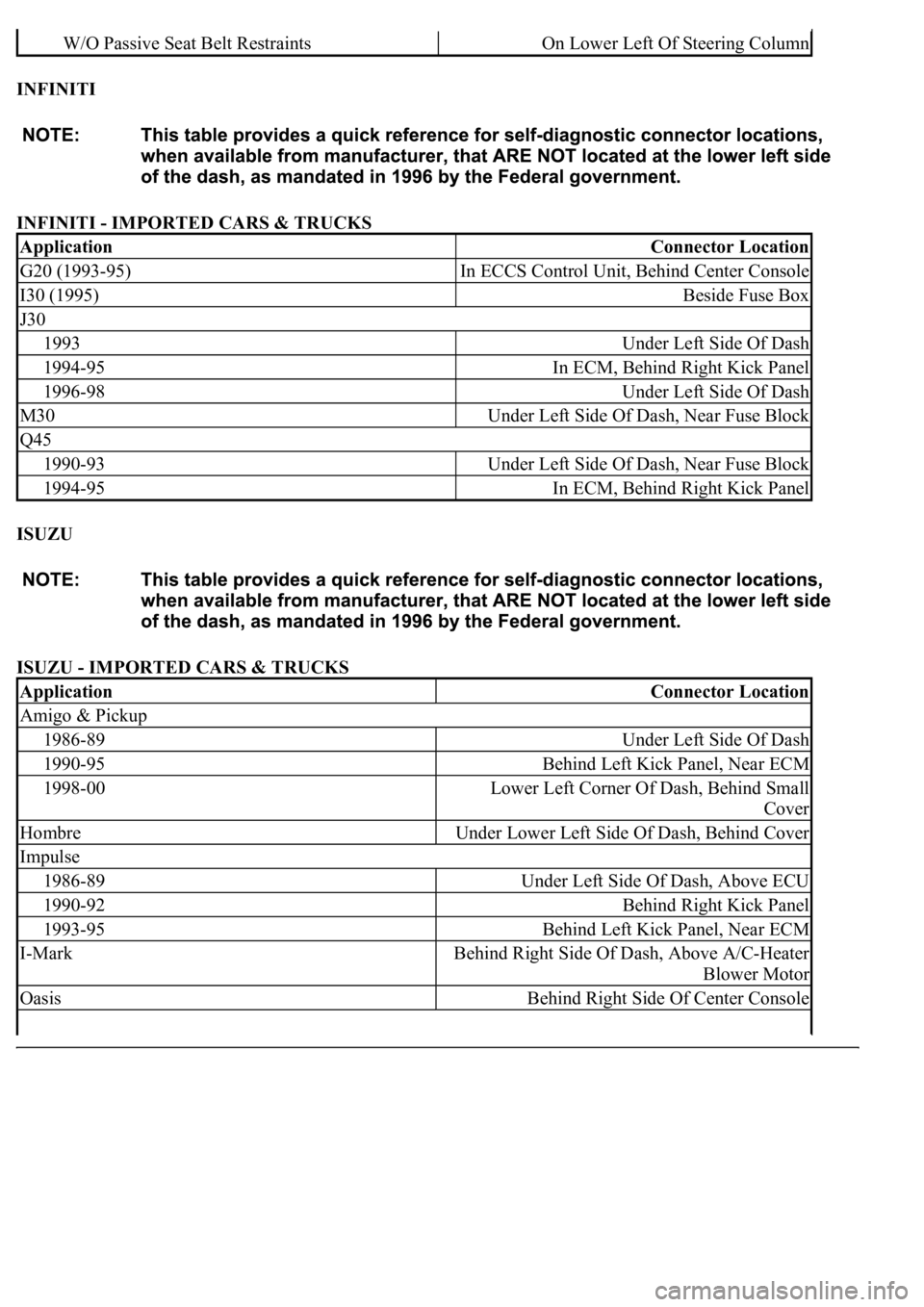

INFINITI
INFINITI - IMPORTED CARS & TRUCKS
ISUZU
ISUZU - IMPORTED CARS & TRUCKS
W/O Passive Seat Belt RestraintsOn Lower Left Of Steering Column
ApplicationConnector Location
G20 (1993-95)In ECCS Control Unit, Behind Center Console
I30 (1995)Beside Fuse Box
J30
1993Under Left Side Of Dash
1994-95In ECM, Behind Right Kick Panel
1996-98Under Left Side Of Dash
M30Under Left Side Of Dash, Near Fuse Block
Q45
1990-93Under Left Side Of Dash, Near Fuse Block
1994-95In ECM, Behind Right Kick Panel
ApplicationConnector Location
Amigo & Pickup
1986-89Under Left Side Of Dash
1990-95Behind Left Kick Panel, Near ECM
1998-00Lower Left Corner Of Dash, Behind Small
Cover
HombreUnder Lower Left Side Of Dash, Behind Cover
Impulse
1986-89Under Left Side Of Dash, Above ECU
1990-92Behind Right Kick Panel
1993-95Behind Left Kick Panel, Near ECM
I-MarkBehind Right Side Of Dash, Above A/C-Heater
Blower Motor
OasisBehind Right Side Of Center Console

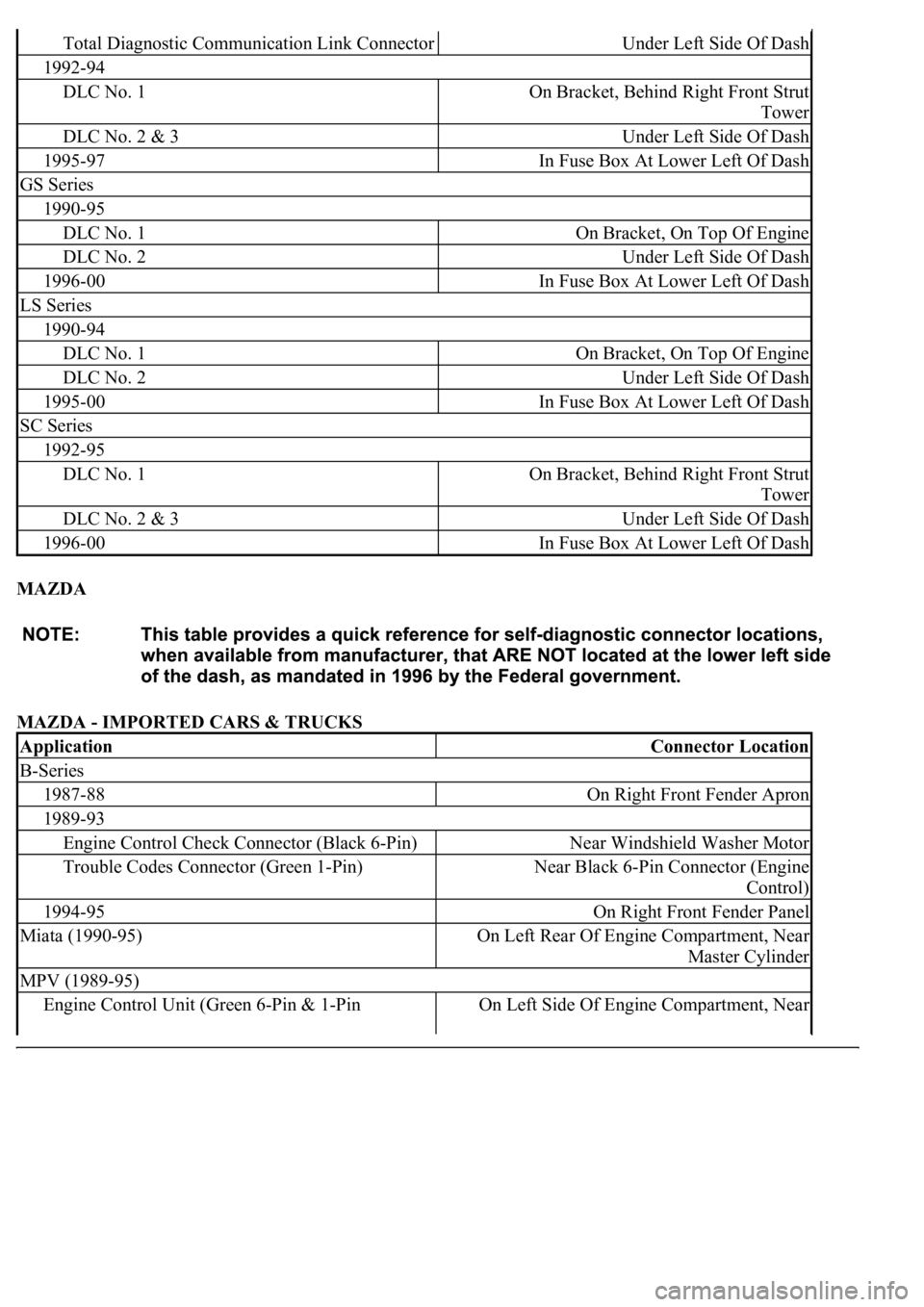

MAZDA
MAZDA - IMPORTED CARS & TRUCKS
Total Diagnostic Communication Link ConnectorUnder Left Side Of Dash
1992-94
DLC No. 1On Bracket, Behind Right Front Strut
Tower
DLC No. 2 & 3Under Left Side Of Dash
1995-97In Fuse Box At Lower Left Of Dash
GS Series
1990-95
DLC No. 1On Bracket, On Top Of Engine
DLC No. 2Under Left Side Of Dash
1996-00In Fuse Box At Lower Left Of Dash
LS Series
1990-94
DLC No. 1On Bracket, On Top Of Engine
DLC No. 2Under Left Side Of Dash
1995-00In Fuse Box At Lower Left Of Dash
SC Series
1992-95
DLC No. 1On Bracket, Behind Right Front Strut
Tower
DLC No. 2 & 3Under Left Side Of Dash
1996-00In Fuse Box At Lower Left Of Dash
ApplicationConnector Location
B-Series
1987-88On Right Front Fender Apron
1989-93
Engine Control Check Connector (Black 6-Pin)Near Windshield Washer Motor
Trouble Codes Connector (Green 1-Pin)Near Black 6-Pin Connector (Engine
Control)
1994-95On Right Front Fender Panel
Miata (1990-95)On Left Rear Of Engine Compartment, Near
Master Cylinder
MPV (1989-95)
Engine Control Unit (Green 6-Pin & 1-Pin On Left Side Of Engine Compartment, Near

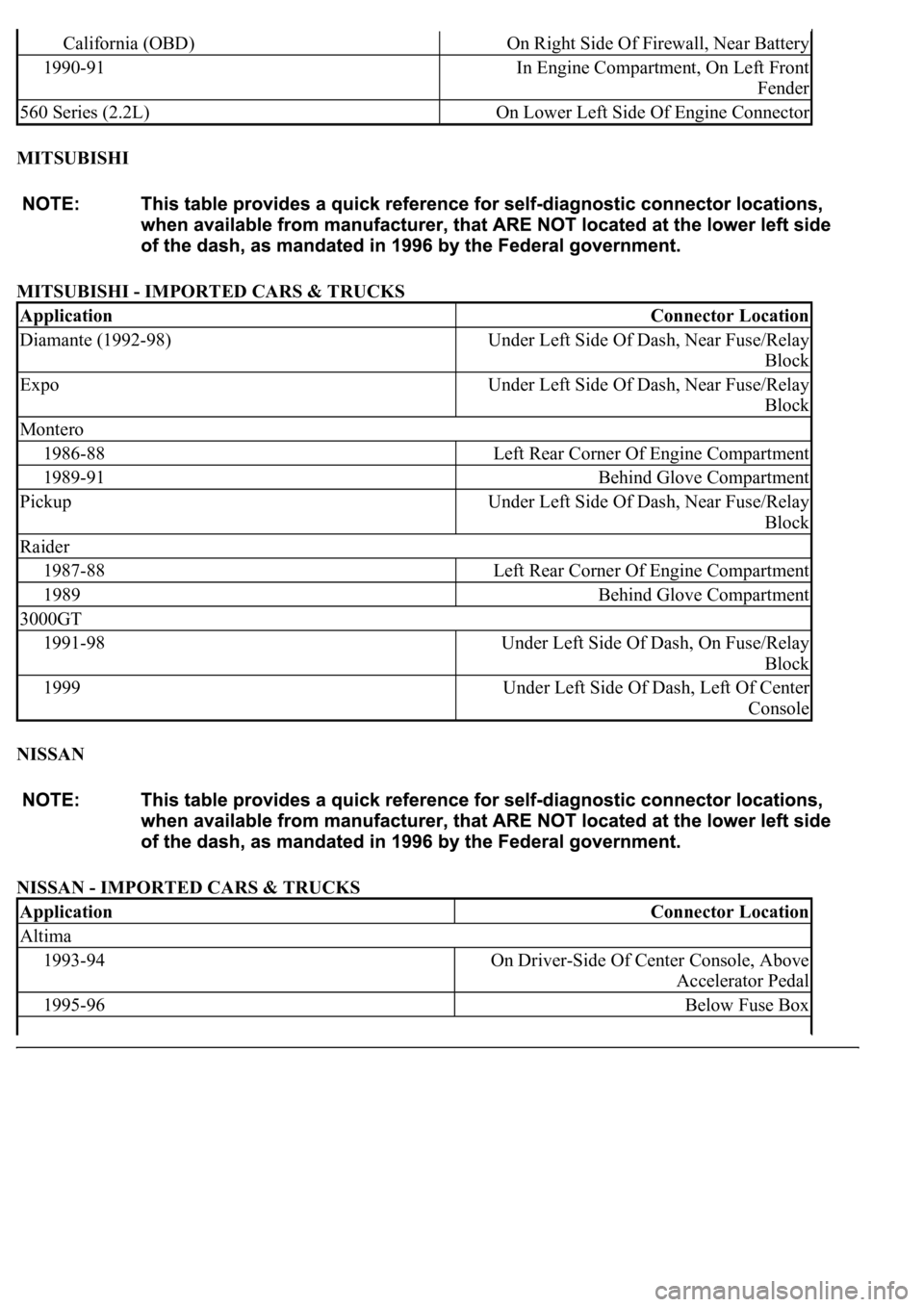

MITSUBISHI
MITSUBISHI - IMPORTED CARS & TRUCKS
NISSAN
NISSAN - IMPORTED CARS & TRUCKS
California (OBD)On Right Side Of Firewall, Near Battery
1990-91In Engine Compartment, On Left Front
Fender
560 Series (2.2L)On Lower Left Side Of Engine Connector
ApplicationConnector Location
Diamante (1992-98)Under Left Side Of Dash, Near Fuse/Relay
Block
ExpoUnder Left Side Of Dash, Near Fuse/Relay
Block
Montero
1986-88Left Rear Corner Of Engine Compartment
1989-91Behind Glove Compartment
PickupUnder Left Side Of Dash, Near Fuse/Relay
Block
Raider
1987-88Left Rear Corner Of Engine Compartment
1989Behind Glove Compartment
3000GT
1991-98Under Left Side Of Dash, On Fuse/Relay
Block
1999Under Left Side Of Dash, Left Of Center
Console
ApplicationConnector Location
Altima
1993-94On Driver-Side Of Center Console, Above
Accelerator Pedal
1995-96Below Fuse Box

PEUGEOT
PEUGEOT - IMPORTED CARS & TRUCKS
PORSCHE
PORSCHE - IMPORTED CARS & TRUCKS

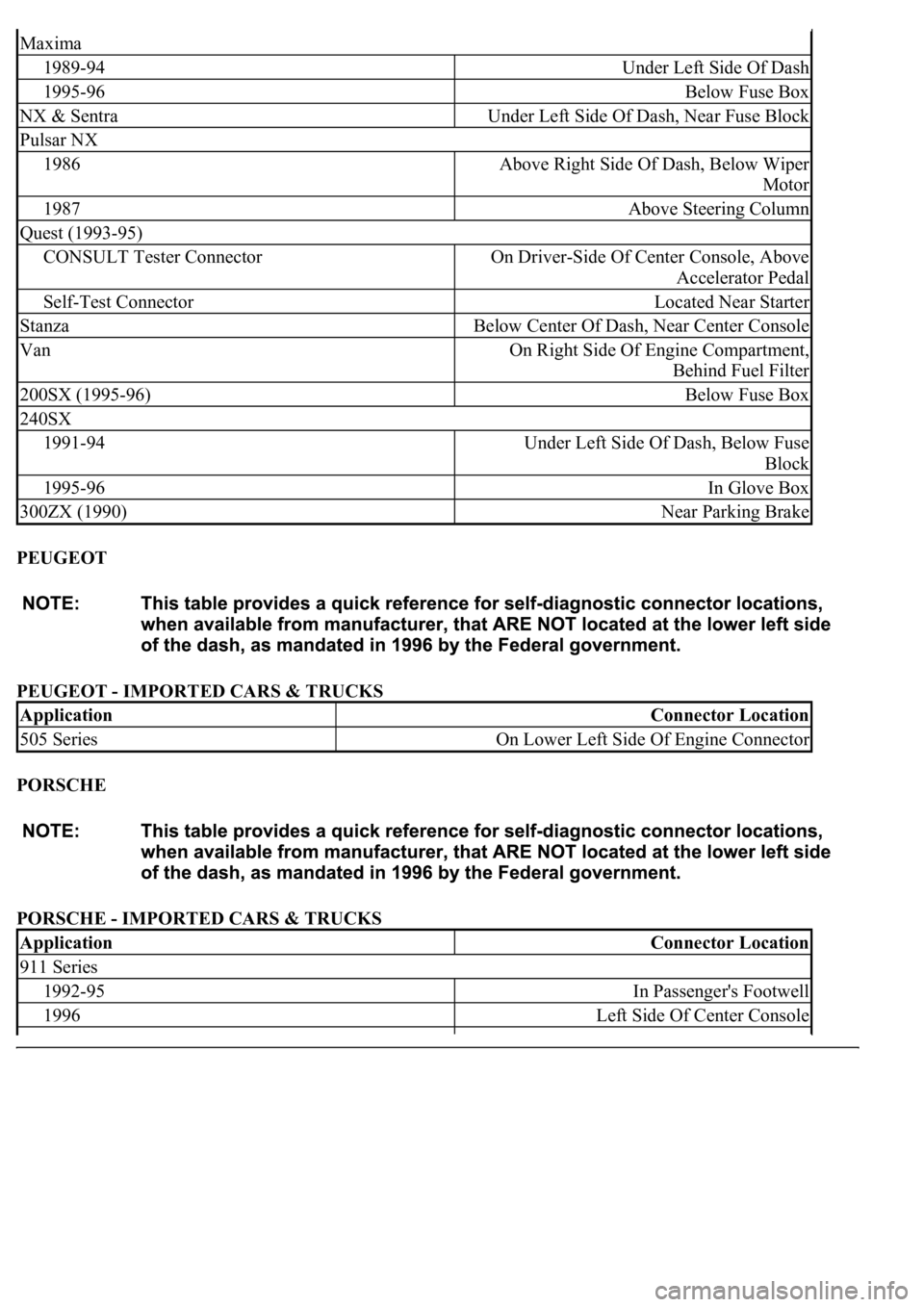

Maxima
1989-94Under Left Side Of Dash
1995-96Below Fuse Box
NX & SentraUnder Left Side Of Dash, Near Fuse Block
Pulsar NX
1986Above Right Side Of Dash, Below Wiper
Motor
1987Above Steering Column
Quest (1993-95)
CONSULT Tester ConnectorOn Driver-Side Of Center Console, Above
Accelerator Pedal
Self-Test ConnectorLocated Near Starter
StanzaBelow Center Of Dash, Near Center Console
VanOn Right Side Of Engine Compartment,
Behind Fuel Filter
200SX (1995-96)Below Fuse Box
240SX
1991-94Under Left Side Of Dash, Below Fuse
Block
1995-96In Glove Box
300ZX (1990)Near Parking Brake
ApplicationConnector Location
505 SeriesOn Lower Left Side Of Engine Connector
ApplicationConnector Location
911 Series
1992-95In Passenger's Footwell
1996Left Side Of Center Console
