tape up the screwdriver tip before use.
c. Disconnect the connectors.
33.REMOVE FRONT PILLAR GARNISH LH (SEE REPLACEMENT
)
34.REMOVE FRONT PILLAR GARNISH RH (SEE REPLACEMENT
)
35.REMOVE FRONT DOOR SCUFF PLATE LH (SEE REPLACEMENT
)
36.REMOVE FRONT DOOR SCUFF PLATE RH (SEE REPLACEMENT
)

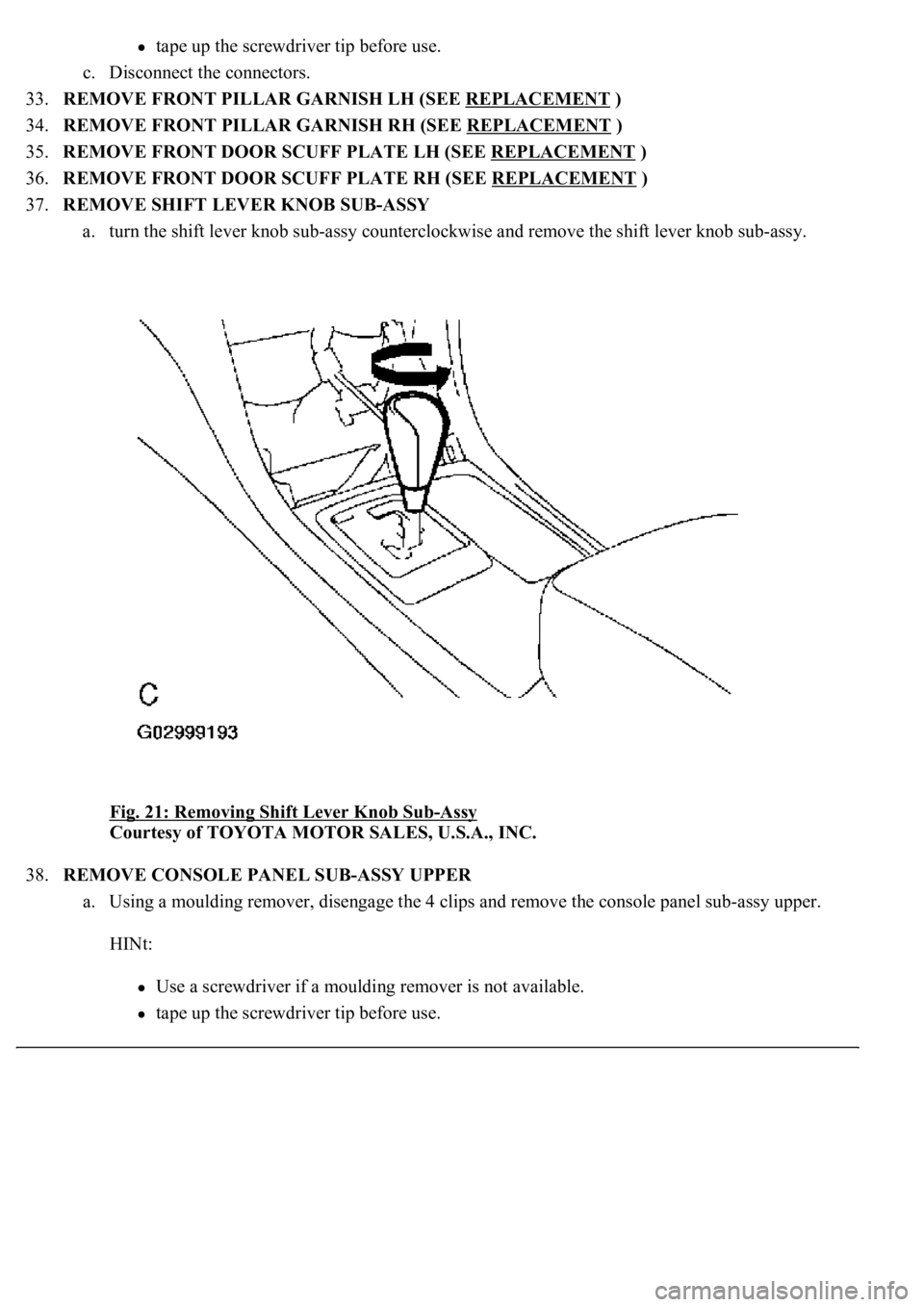

37.REMOVE SHIFT LEVER KNOB SUB-ASSY
a. turn the shift lever knob sub-assy counterclockwise and remove the shift lever knob sub-assy.
Fig. 21: Removing Shift Lever Knob Sub
-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
38.REMOVE CONSOLE PANEL SUB-ASSY UPPER
a. Using a moulding remover, disengage the 4 clips and remove the console panel sub-assy upper.
HINt:
Use a screwdriver if a moulding remover is not available.
tape up the screwdriver tip before use.
Check Result/*2
HINT:
Result codes for all devices are shown below.
Fig. 41: Result Codes Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Code Clear/*3
Present DTCs are cleared.
Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.
b.Diagnosis MENU Display
230TV-TUNER240CD-CH2
250DVD-CH280CAMERA
360CD-CH1SAOMD-CH
17DTEL440DSP-AMP
530ETC5C8MAYDAY
1AODVD-P1C6CLOCK
1F4RSA1F6RSE
480AMP--
