Page 4353 of 4500

LEXUS LS430 2003 Factory Repair Manual HINT: Disconnect the battery negative terminal with the steering column assy extended. Be sure to extend the steering column, otherwise the steering column cover cannot be removed. 5.PLACE FRONT

Page 4354 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 6: Removing Instrument Panel Safety Pad Garnish Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 14.REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER a. Using a screwdriver, disengage t

Page 4355 of 4500

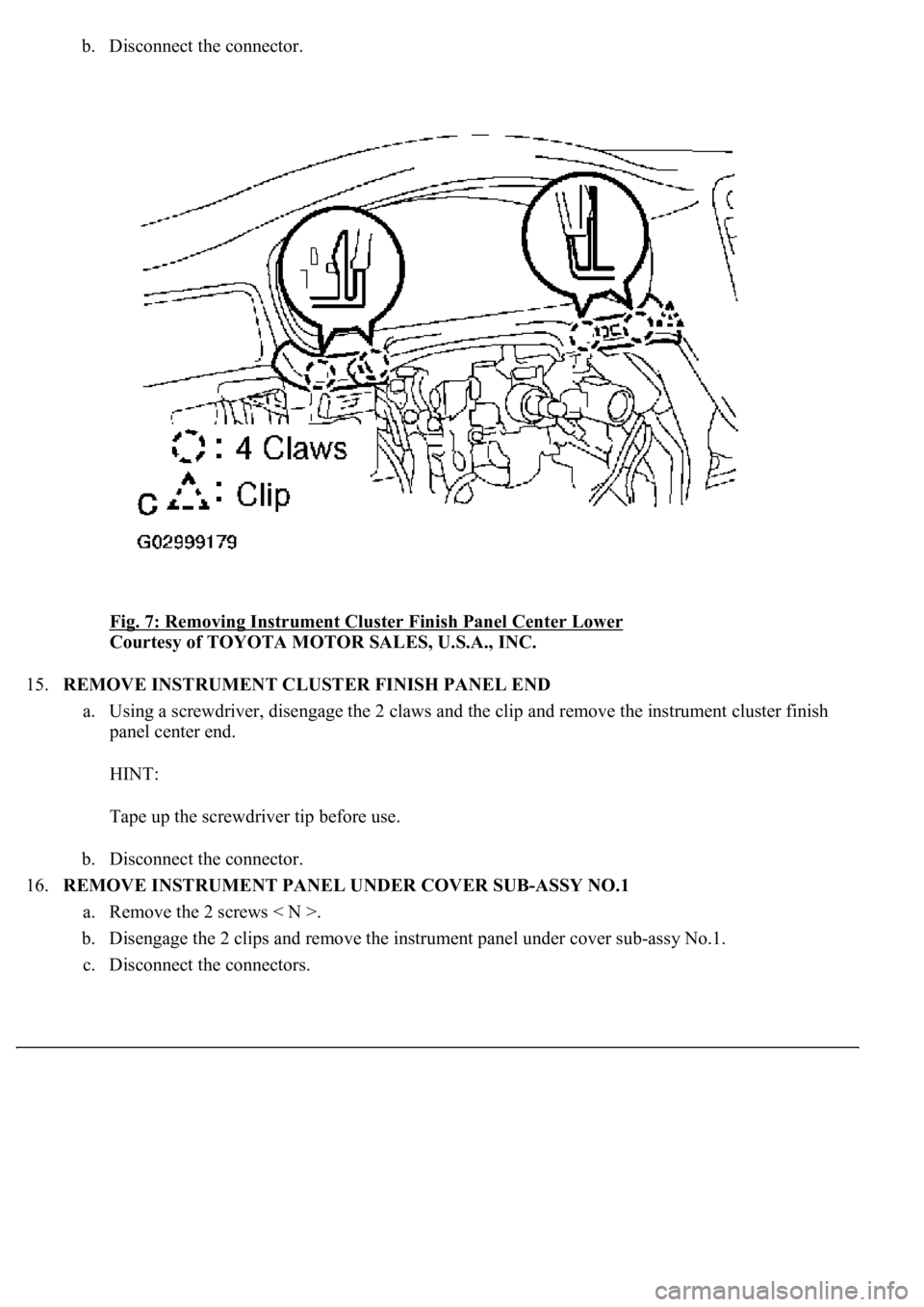

LEXUS LS430 2003 Factory Repair Manual b. Disconnect the connector. Fig. 7: Removing Instrument Cluster Finish Panel Center Lower Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.REMOVE INSTRUMENT CLUSTER FINISH PANEL END a. Using a sc

Page 4356 of 4500

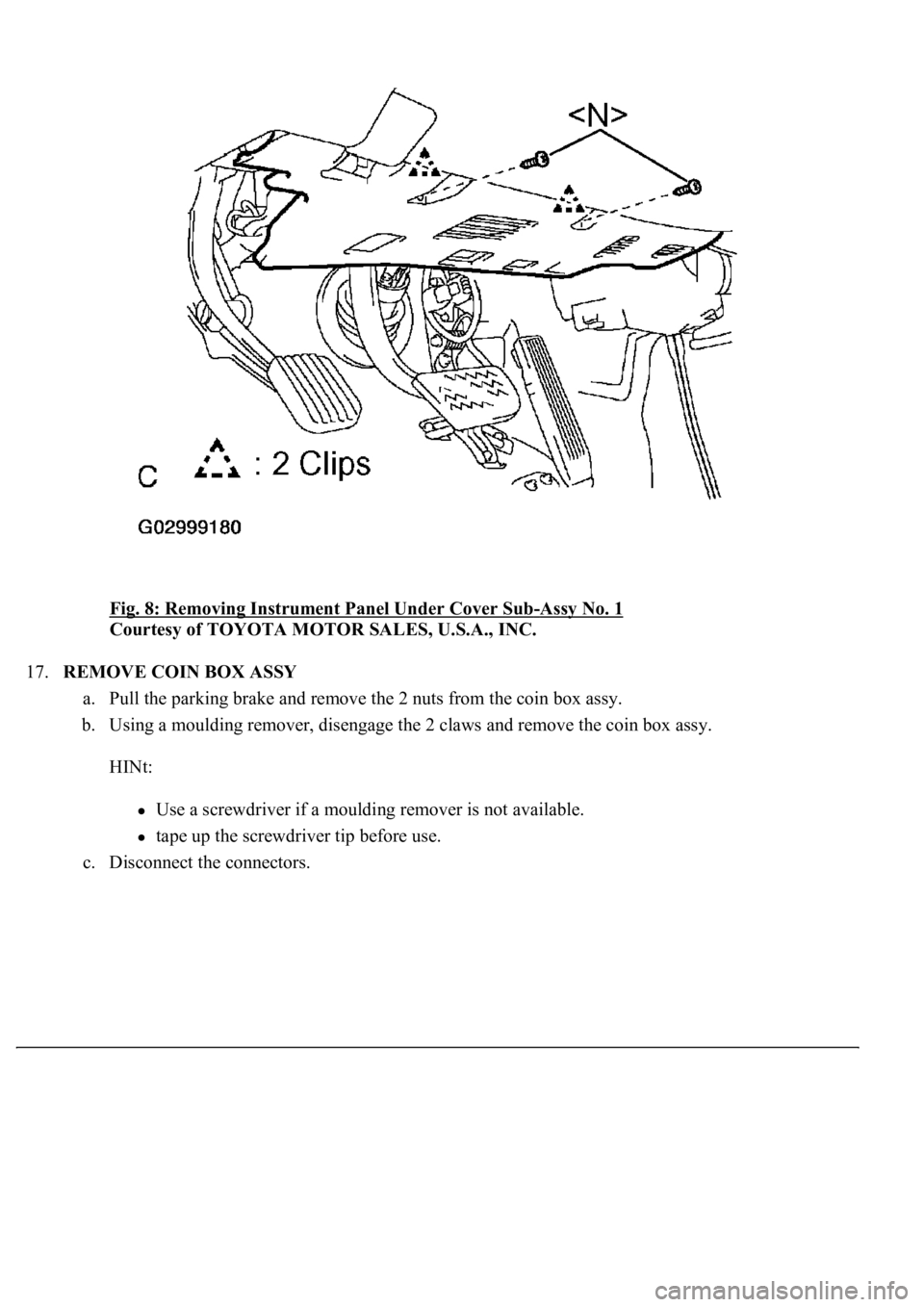

LEXUS LS430 2003 Factory Repair Manual Fig. 8: Removing Instrument Panel Under Cover Sub-Assy No. 1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 17.REMOVE COIN BOX ASSY a. Pull the parking brake and remove the 2 nuts from the coin box a

Page 4357 of 4500

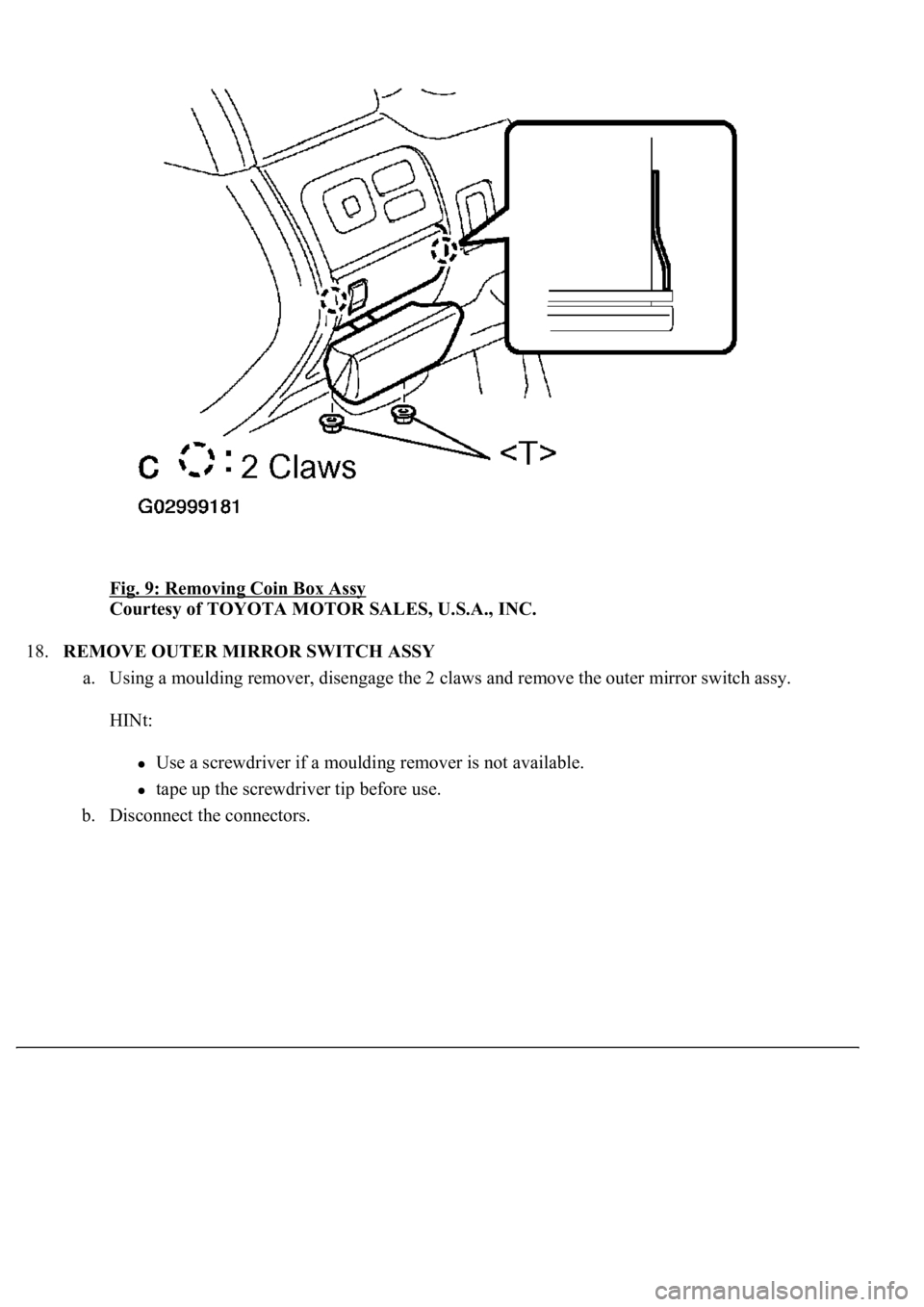

LEXUS LS430 2003 Factory Repair Manual Fig. 9: Removing Coin Box Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 18.REMOVE OUTER MIRROR SWITCH ASSY a. Using a moulding remover, disengage the 2 claws and remove the outer mirror switch

Page 4358 of 4500

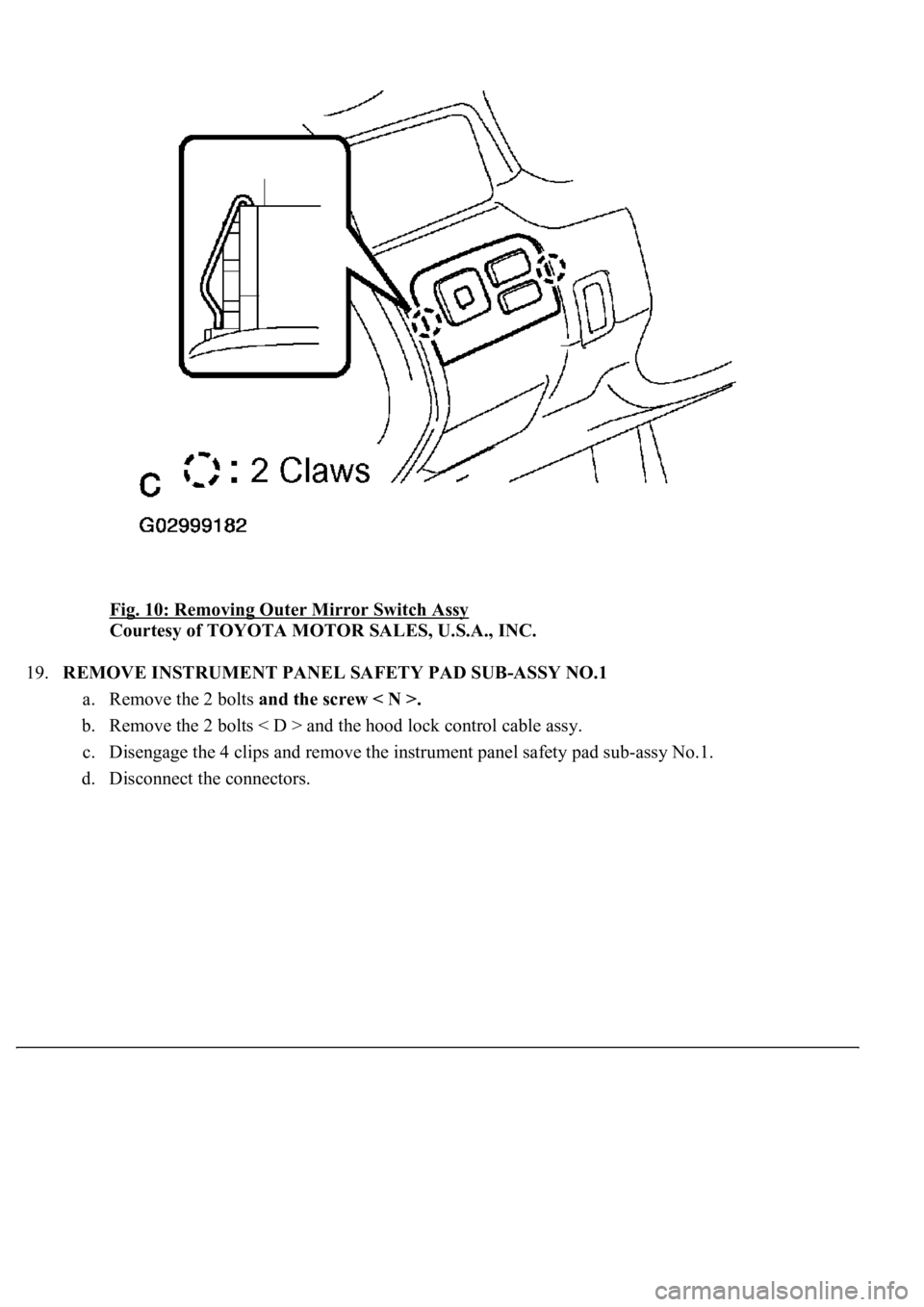

LEXUS LS430 2003 Factory Repair Manual Fig. 10: Removing Outer Mirror Switch Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 a. Remove the 2 bolts and the screw < N >. b. Remove th

Page 4359 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 11: Removing Instrument Panel Safety Pad Sub-Assy No.1 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (SEE REPLACEMENT ) 21.REMOVE INSTRUMENT

Page 4360 of 4500

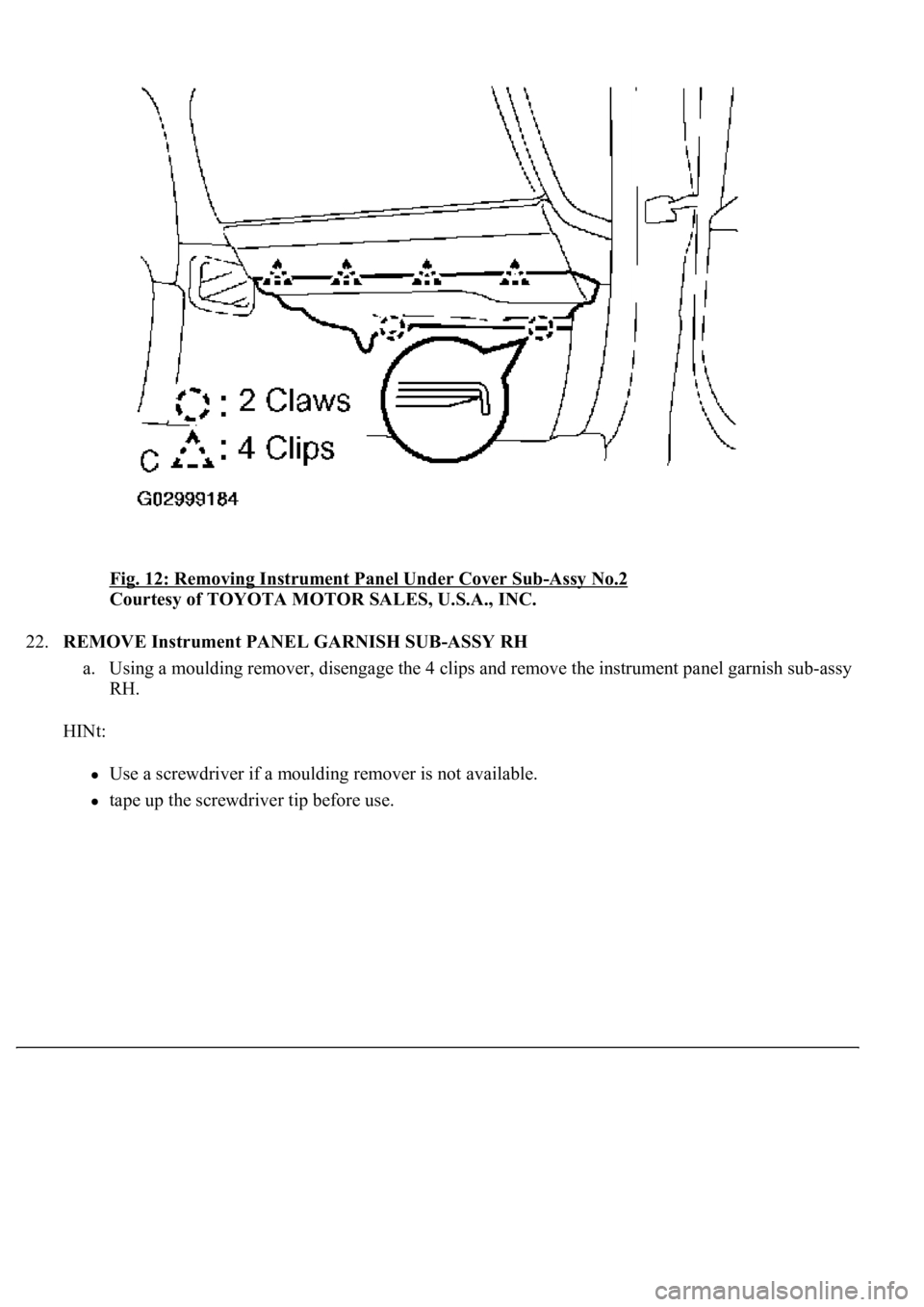

LEXUS LS430 2003 Factory Repair Manual Fig. 12: Removing Instrument Panel Under Cover Sub-Assy No.2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.REMOVE Instrument PANEL GARNISH SUB-ASSY RH a. Using a moulding remover, disengage the 4
