Page 3753 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 465: Heating Piston Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Coat the piston pin with engine oil. d. The piston's front mark and the connecting rod's outside mark should face t

Page 3754 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3755 of 4500

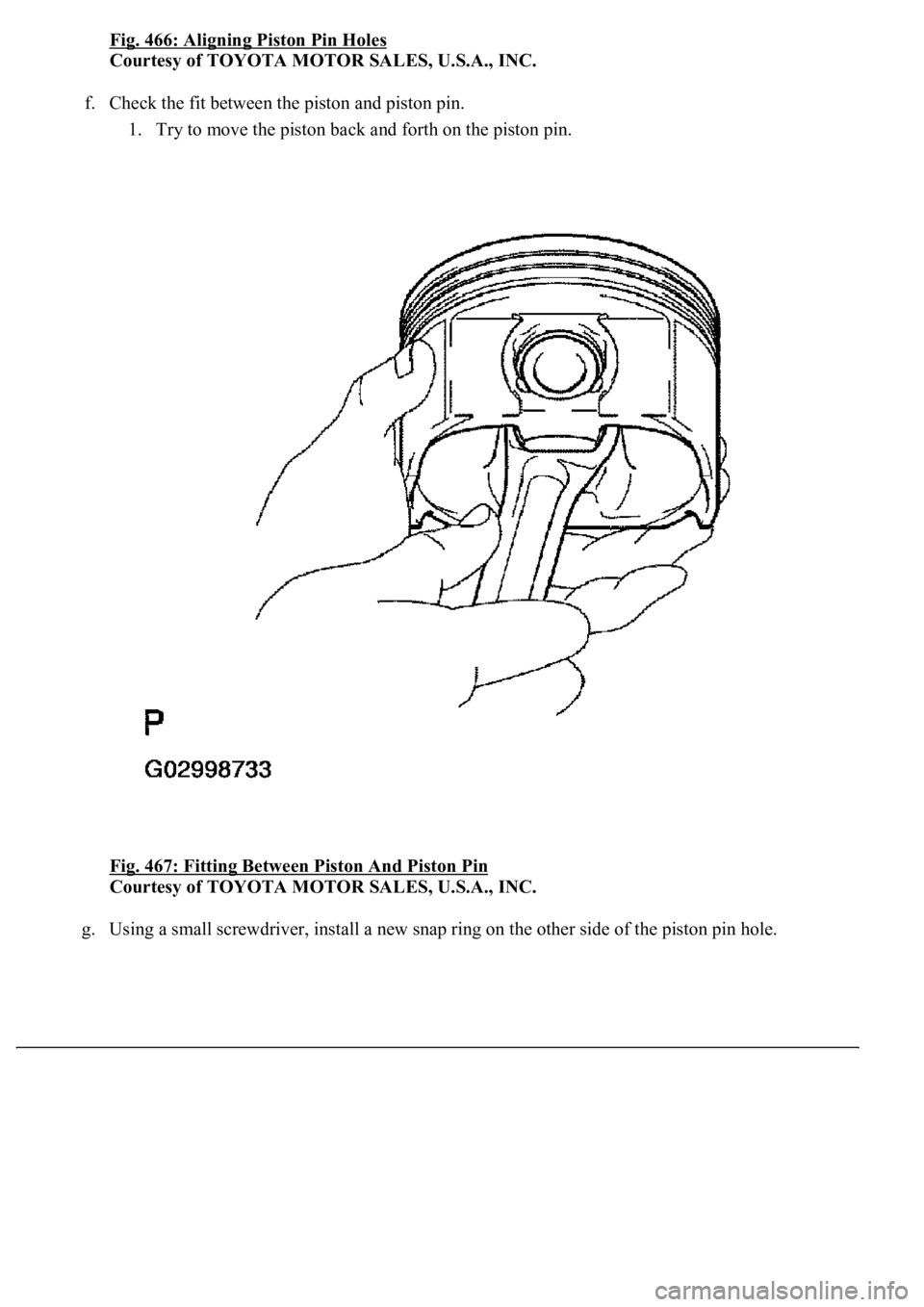

LEXUS LS430 2003 Factory Repair Manual Fig. 466: Aligning Piston Pin Holes Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. f. Check the fit between the piston and piston pin. 1. Try to move the piston back and forth on the piston pin. Fig

Page 3756 of 4500

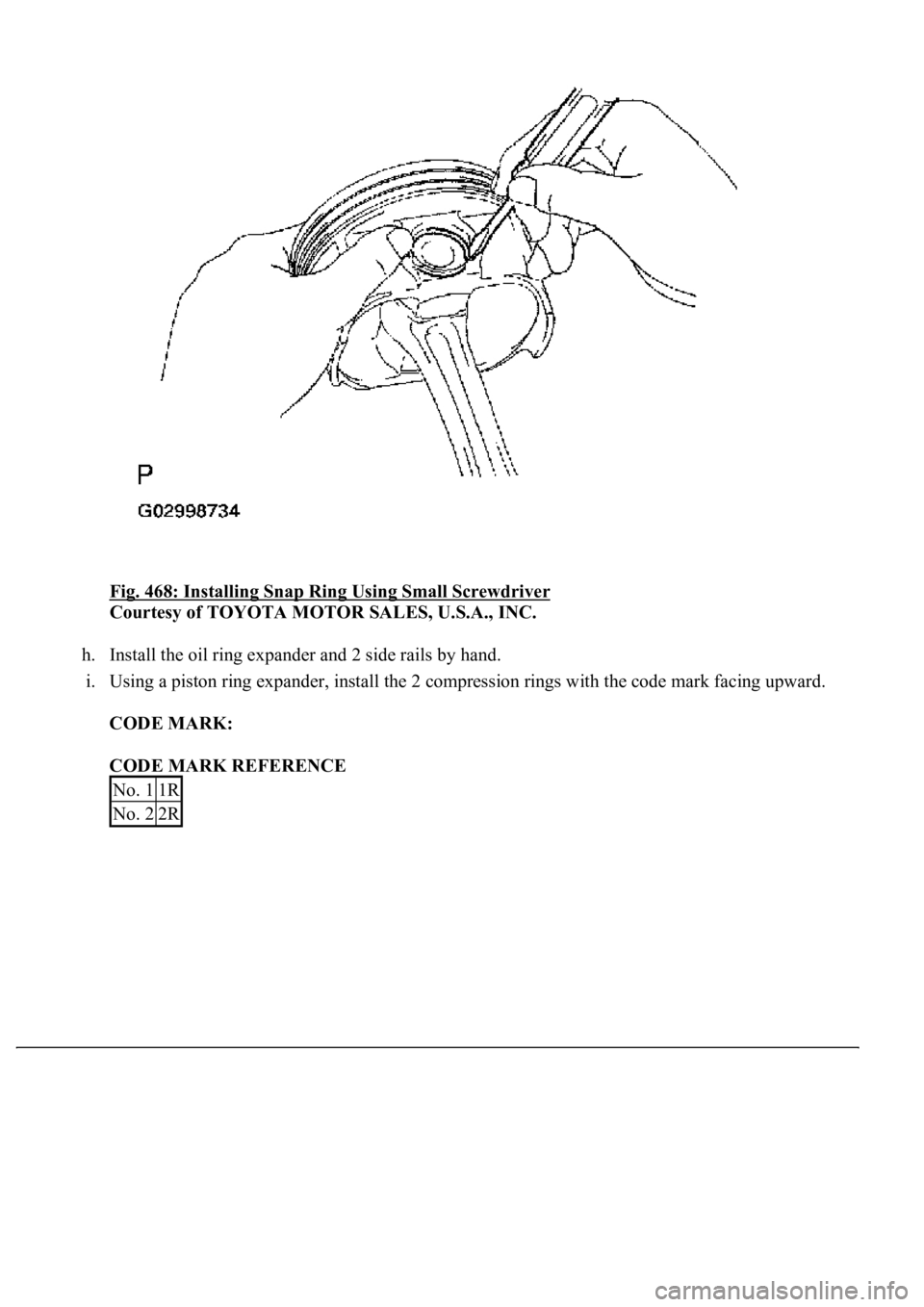

LEXUS LS430 2003 Factory Repair Manual Fig. 468: Installing Snap Ring Using Small Screwdriver Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. h. Install the oil ring expander and 2 side rails by hand. i. Using a piston ring expander, inst

Page 3757 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 469: Installing Compression Rings Using Piston Ring Expander Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. j. Position the piston rings so that the ring ends are as shown in the illustration.

Page 3758 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 470: Identifying Piston Rings Position

Page 3759 of 4500

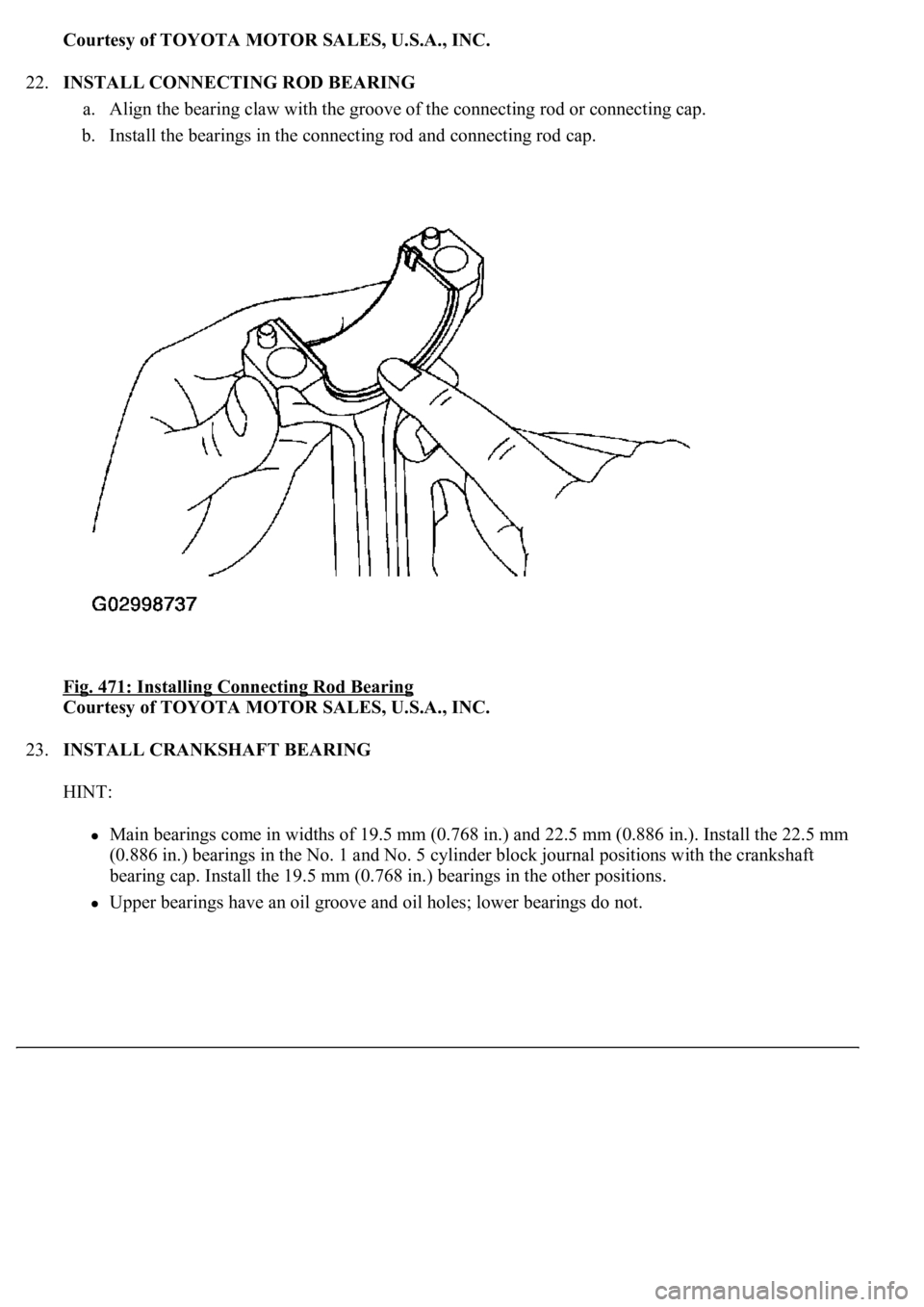

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.INSTALL CONNECTING ROD BEARING a. Align the bearing claw with the groove of the connecting rod or connecting cap. b. Install the bearings in the conn

Page 3760 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 472: Identifying Upper Bearings And Lower Bearings Oil Groove Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. a. Align the bearing claw with the claw groove of the cylinder block, and push in the
