Page 3977 of 4500

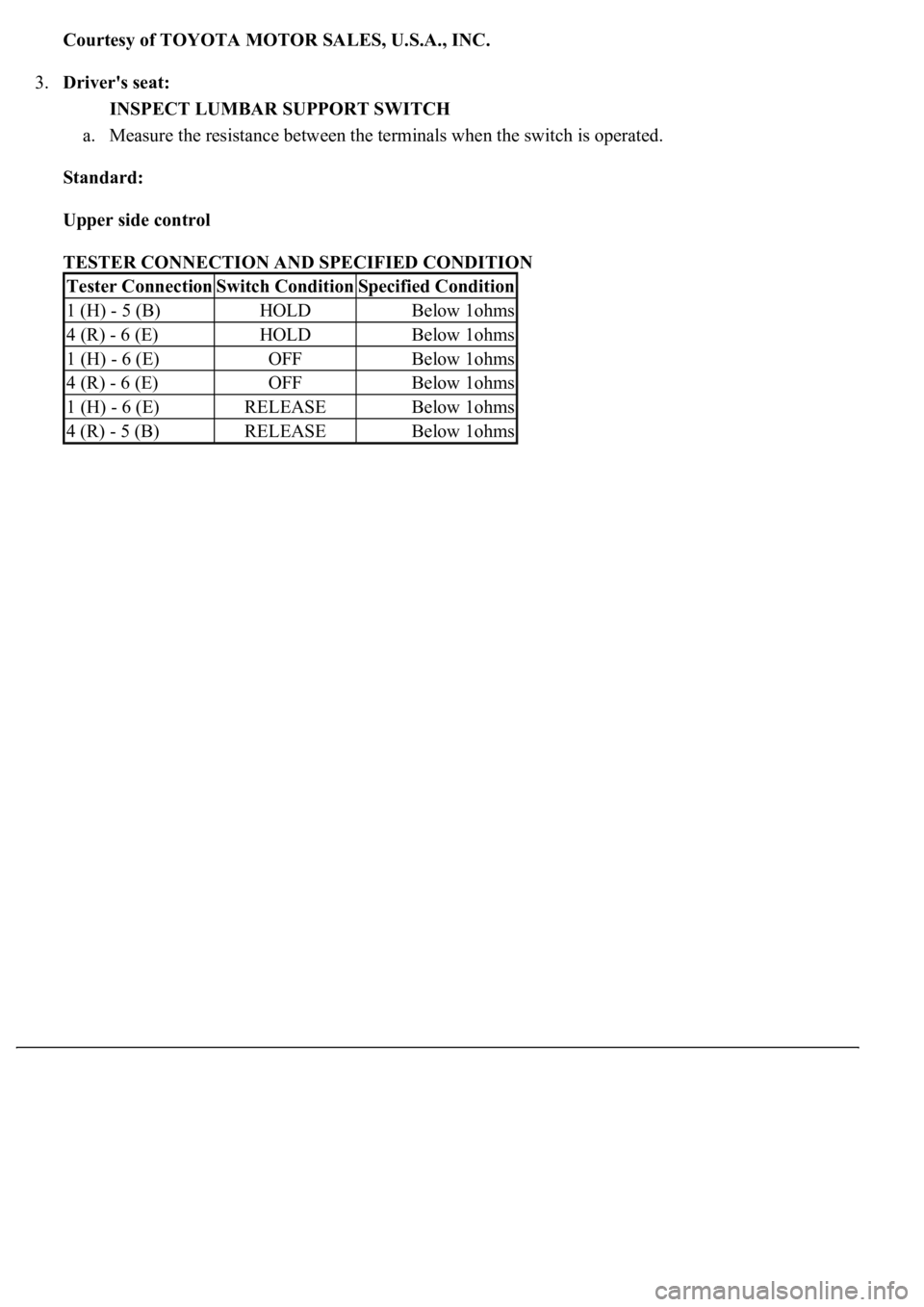

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 3.Driver's seat: INSPECT LUMBAR SUPPORT SWITCH a. Measure the resistance between the terminals when the switch is operated. Standard: Upper side

Page 3978 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3979 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 41: Identifying Lumbar Support Switch Connector Terminals -Driver Seat Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. Lower side control TESTER CONNECTION AND SPECIFIED CONDITION If the result

Page 3980 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 42: Identifying Lumbar Support Switch Connector Terminals - Passenger Seat Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.Driver's seat: INSPECT POWER SEAT CUSHION SWITCH a. Measure the

Page 3981 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 3982 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 43: Identifying Power Seat Cushion Switch Connector Terminals -Driver Seat Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.Passenger's seat: INSPECT POWER SEAT SWITCH SUB a. Measure the r

Page 3983 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 44: Identifying Power Seat Cushion Switch Connector Terminals - Passenger Seat Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 7.INSPECT POWER SEAT MOTOR a. Check operation of the slide motor. 1

Page 3984 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 45: Checking Operation Of Slide Motor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Check operation of the vertical motor. 1. Check if the motor rotates smoothly when the battery is connecte
