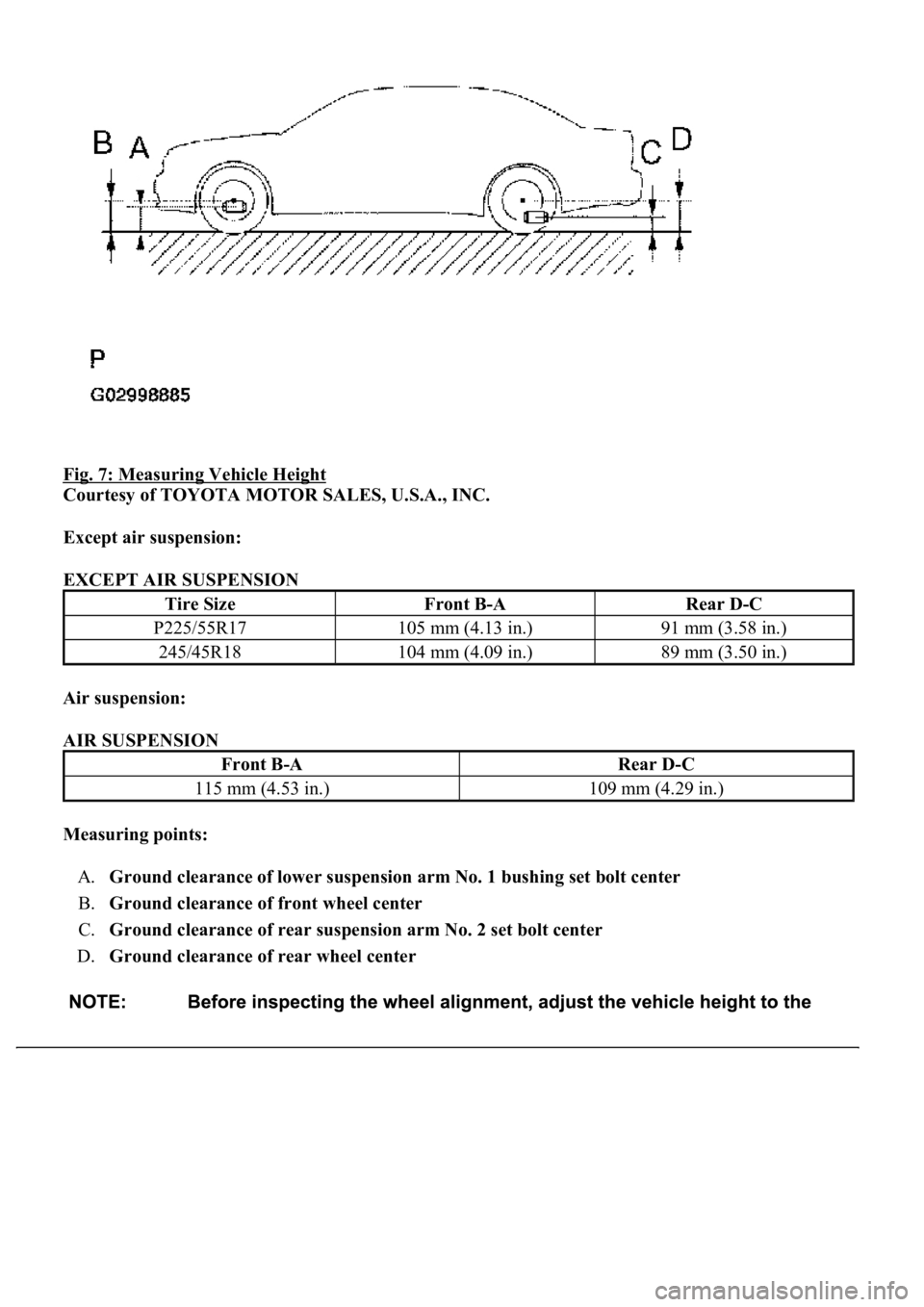

Fig. 7: Measuring Vehicle Height
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Except air suspension:
EXCEPT AIR SUSPENSION
Air suspension:
AIR SUSPENSION
Measuring points:
A.Ground clearance of lower suspension arm No. 1 bushing set bolt center
B.Ground clearance of front wheel center
C.Ground clearance of rear suspension arm No. 2 set bolt center
D.Ground clearance of rear wheel center
Tire SizeFront B-ARear D-C
P225/55R17105 mm (4.13 in.)91 mm (3.58 in.)
245/45R18104 mm (4.09 in.)89 mm (3.50 in.)
Front B-ARear D-C
115 mm (4.53 in.)109 mm (4.29 in.)
