Page 3385 of 4500

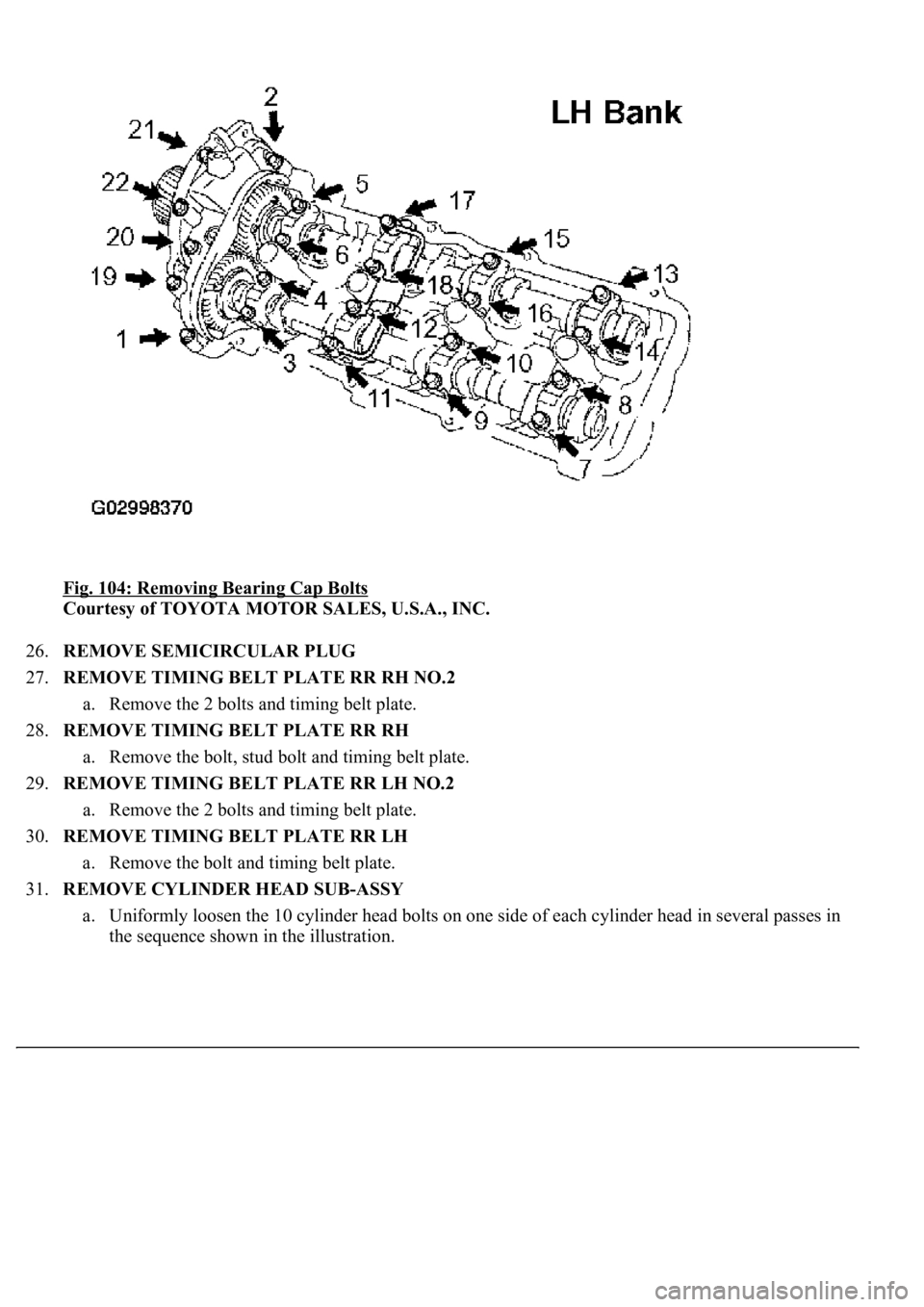

LEXUS LS430 2003 Factory Repair Manual Fig. 104: Removing Bearing Cap Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 26.REMOVE SEMICIRCULAR PLUG 27.REMOVE TIMING BELT PLATE RR RH NO.2 a. Remove the 2 bolts and timing belt plate.

Page 3386 of 4500

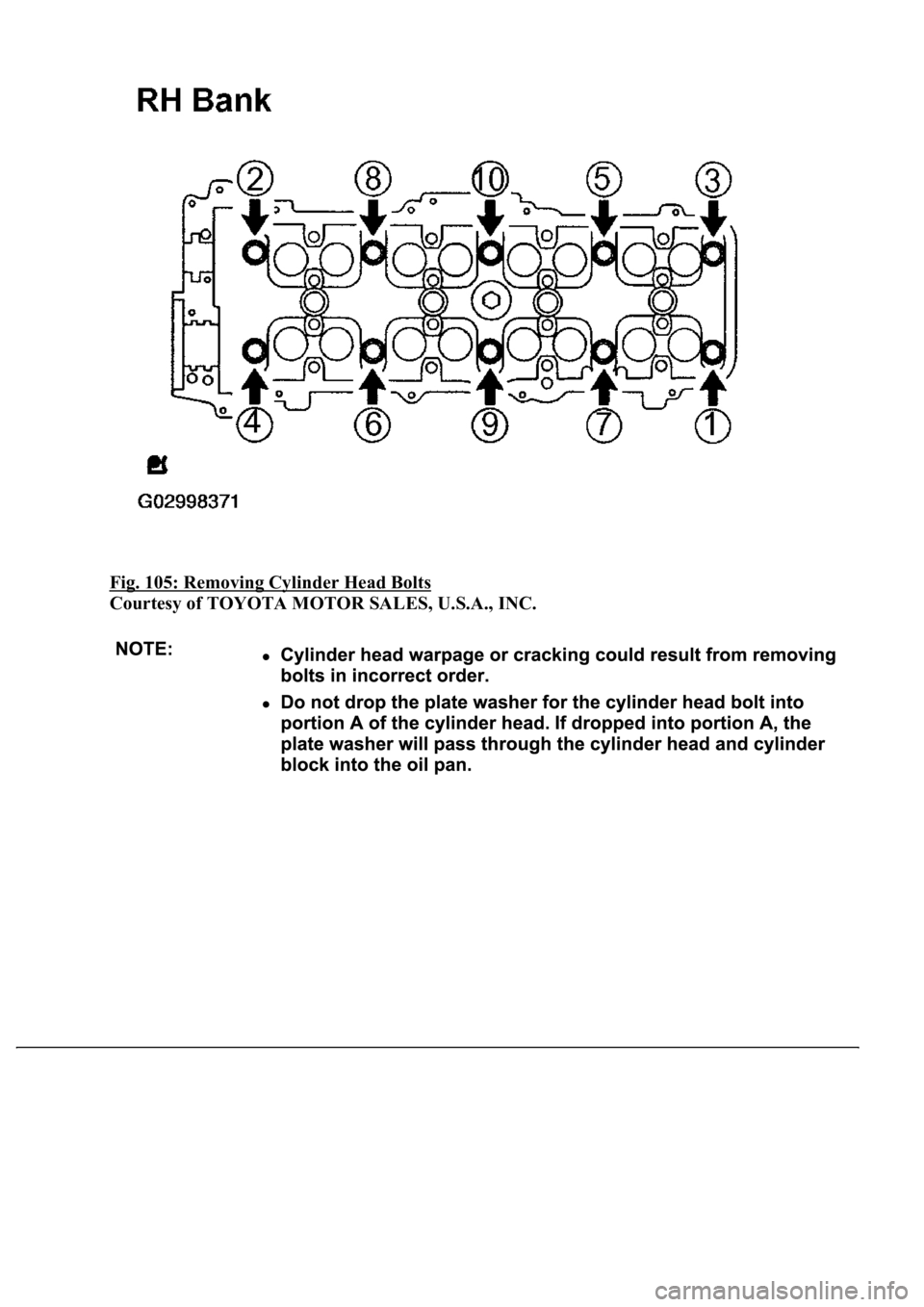

LEXUS LS430 2003 Factory Repair Manual Fig. 105: Removing Cylinder Head Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3387 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 106: Identifying Cylinder Head Bolt Into Portion A Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Lift the cylinder head from the dowels on the cylinder block, and place the cylinder head on

Page 3388 of 4500

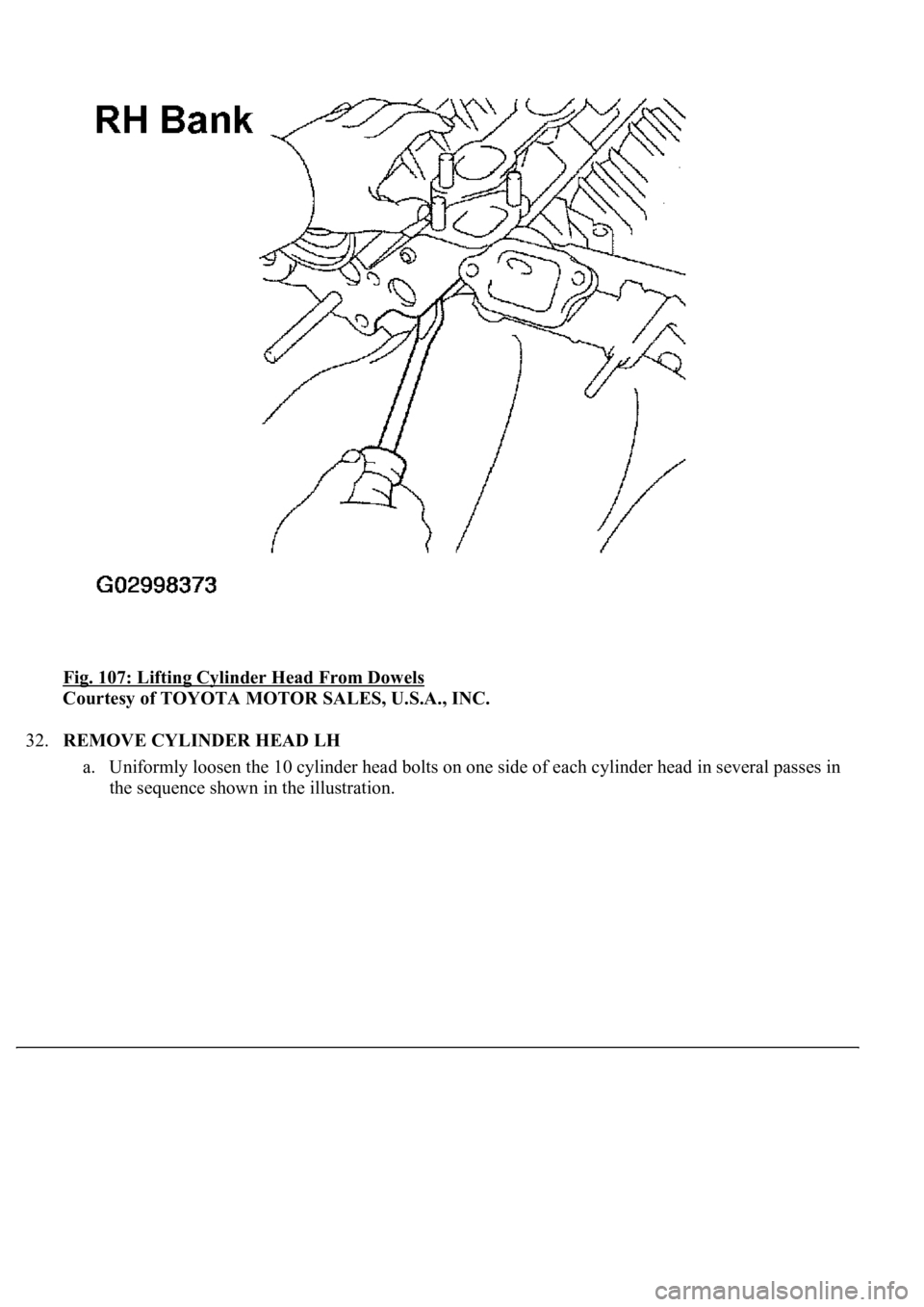

LEXUS LS430 2003 Factory Repair Manual Fig. 107: Lifting Cylinder Head From Dowels Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 32.REMOVE CYLINDER HEAD LH a. Uniformly loosen the 10 cylinder head bolts on one side of each cylinder head

Page 3389 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 108: Identifying Cylinder Head LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3390 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 109: Identifying Cylinder Head Bolt Into Portion A Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Lift the cylinder head from the dowels on the cylinder block, and place the cylinder head on

Page 3391 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 110: Lifting Cylinder Head From Dowels Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 33.REMOVE WATER PUMP ASSY a. Remove the 5 bolts, 2 stud bolts and nut, water pump and gasket. 34.REMOVE OI

Page 3392 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 111: Removing Engine Rear Oil Seal Retainer Using Screwdriver Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 40.REMOVE SPARK PLUG TUBE GASKET a. Bend the 4 ventilation case claws installed on th
