Page 401 of 4500
Fig. 147: Identifying Location Of Fuse (A/C)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
3.INSPECT AIR CONDITIONING AMPLIFIER (B - BODY GROUND)
a. Remove the A/C amplifier assy and disconnect the connector.
b. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (B - BODY GROUND) VOLTAGE
NG: REPAIR OR REPLACE WIRE HARNESS (AIR CONDITIONING AMPLIFIER -
BATTERY)
Tester connectionConditionSpecified condition
A11-21 (+B) - Body groundAlways10 to 14 V
Page 402 of 4500
Fig. 148: Inspecting Air Conditioning Amplifier (B - Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
The main power source is supplied to the A/C amplifier when the ignition switch is turned to the ON position.
The power source supplied is used for operating the A/C amplifier and servomotor, etc.
WIRING DIAGRAM
Page 403 of 4500
Fig. 149: IG Power Source Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
HINT:
Start the engine before inspection. Check the IG1 relay or battery if the engine does not start.
1.INSPECT FUSE (P-IG)
a. Remove the P-IG fuse from the passenger side J/B.
b. Measure the resistance according to the value (s) in the table below.
Standard:
Page 404 of 4500
FUSE (P-IG) RESISTANCE
NG: CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO
FAILURE FUSE
OK: Go to next step
2.INSPECT AIR CONDITIONING AMPLIFIER (IG - GND)
a. Remove the A/C amplifier assy with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (IG - GND) VOLTAGE
NG: Go to STEP 3
Tester itemConditionSpecified condition
P-IG fuseAlwaysBelow 1 ohms
Tester connectionConditionSpecified condition
A11-9 (IG) - 14-1 (GND)Ignition switch ON10 to 14V
Page 405 of 4500
<0029004c004a00110003001400180013001d0003002c005100560053004800460057004c0051004a00030024004c005500030026005200510047004c0057004c00520051004c0051004a0003002400500053004f004c0049004c004800550003000b002c00
2a0003[- GND)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)
(SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER - BATTERY VOLTAGE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester connectionConditionSpecified condition
A11-9 (IG) - Body groundIgnition switch OFF --> ONBelow 1.0V --> 10 to 14 V
Page 406 of 4500

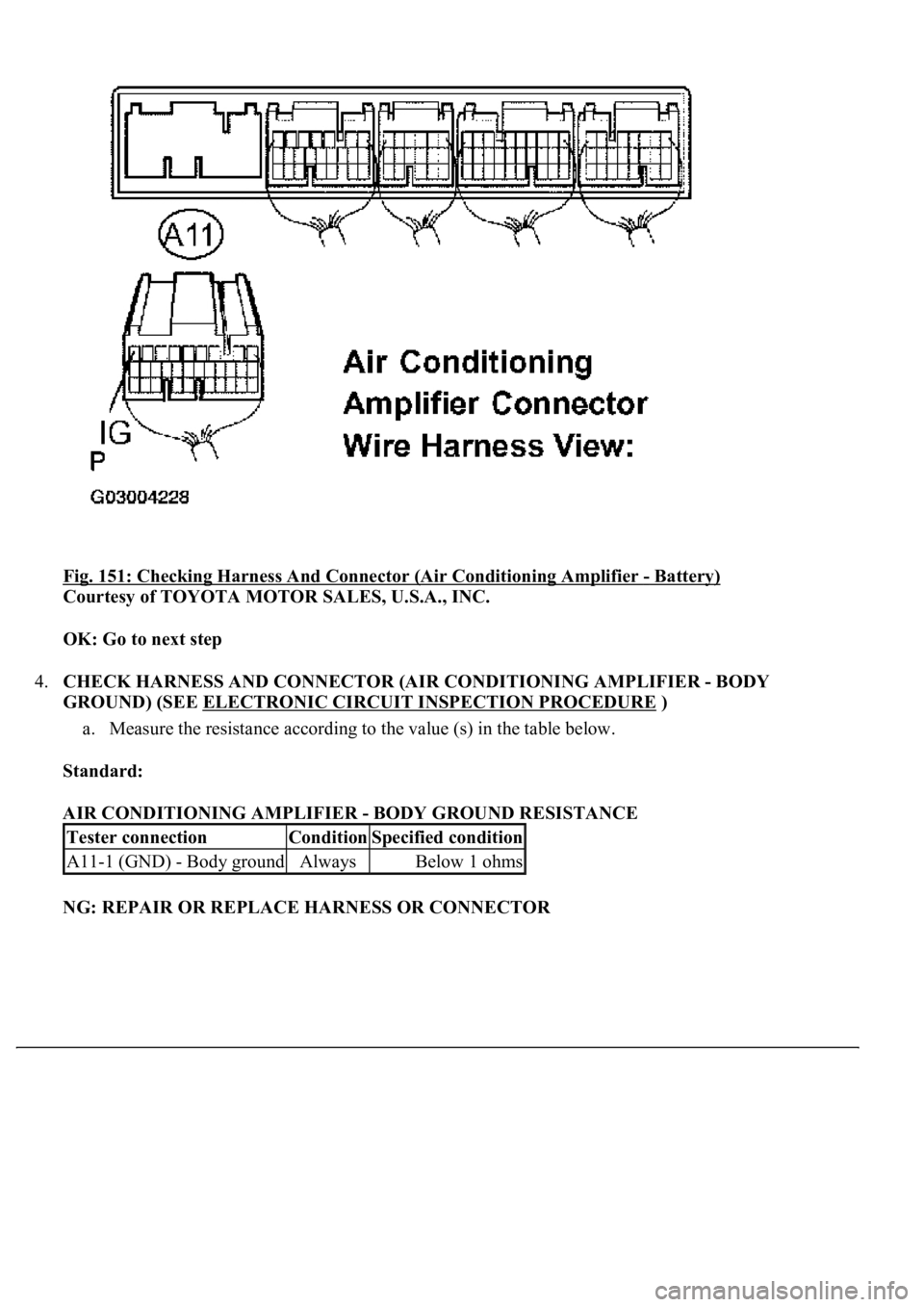

Fig. 151: Checking Harness And Connector (Air Conditioning Amplifier - Battery)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
4.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY
GROUND) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
a. Measure the resistance according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER - BODY GROUND RESISTANCE
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Tester connectionConditionSpecified condition
A11-1 (GND) - Body groundAlwaysBelow 1 ohms
Page 407 of 4500
Fig. 152: Checking Harness And Connector (Air Conditioning Amplifier - Body Ground)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This is the power source for the A/C amplifier and servomotors, etc.
WIRING DIAGRAM
Page 408 of 4500

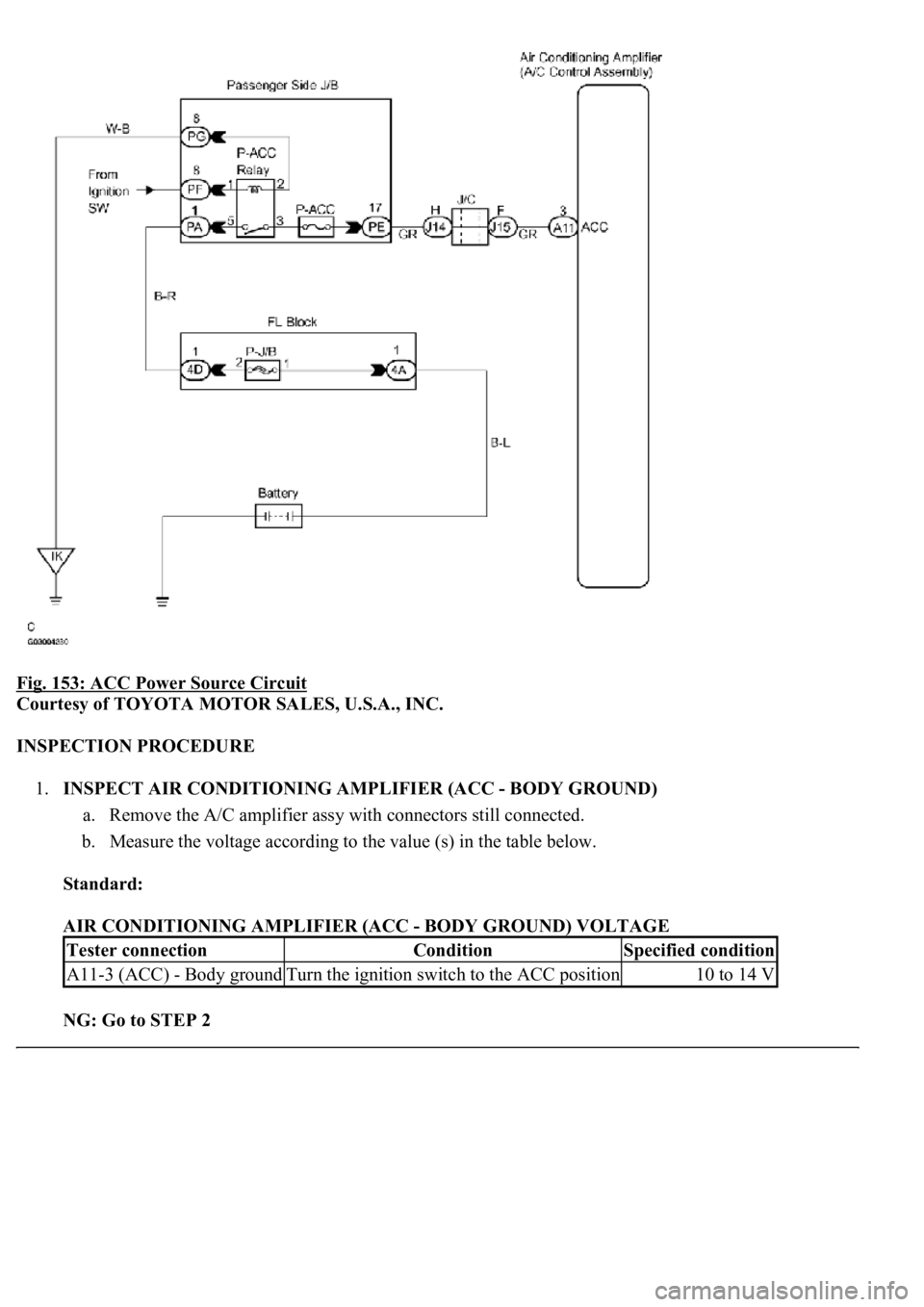

Fig. 153: ACC Power Source Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT AIR CONDITIONING AMPLIFIER (ACC - BODY GROUND)
a. Remove the A/C amplifier assy with connectors still connected.
b. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (ACC - BODY GROUND) VOLTAGE
NG: Go to STEP 2
Tester connectionConditionSpecified condition
A11-3 (ACC) - Body groundTurn the ignition switch to the ACC position10 to 14 V
