Page 649 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 15: Removing Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Remove the navigation ECU with bracket along the guide as shown in the illustration.

Page 650 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Removing Navigation ECU With Bracket Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Remove the 4 screws and 2 brackets. HINT: After the replacement, perform the screen noise automatic a

Page 651 of 4500

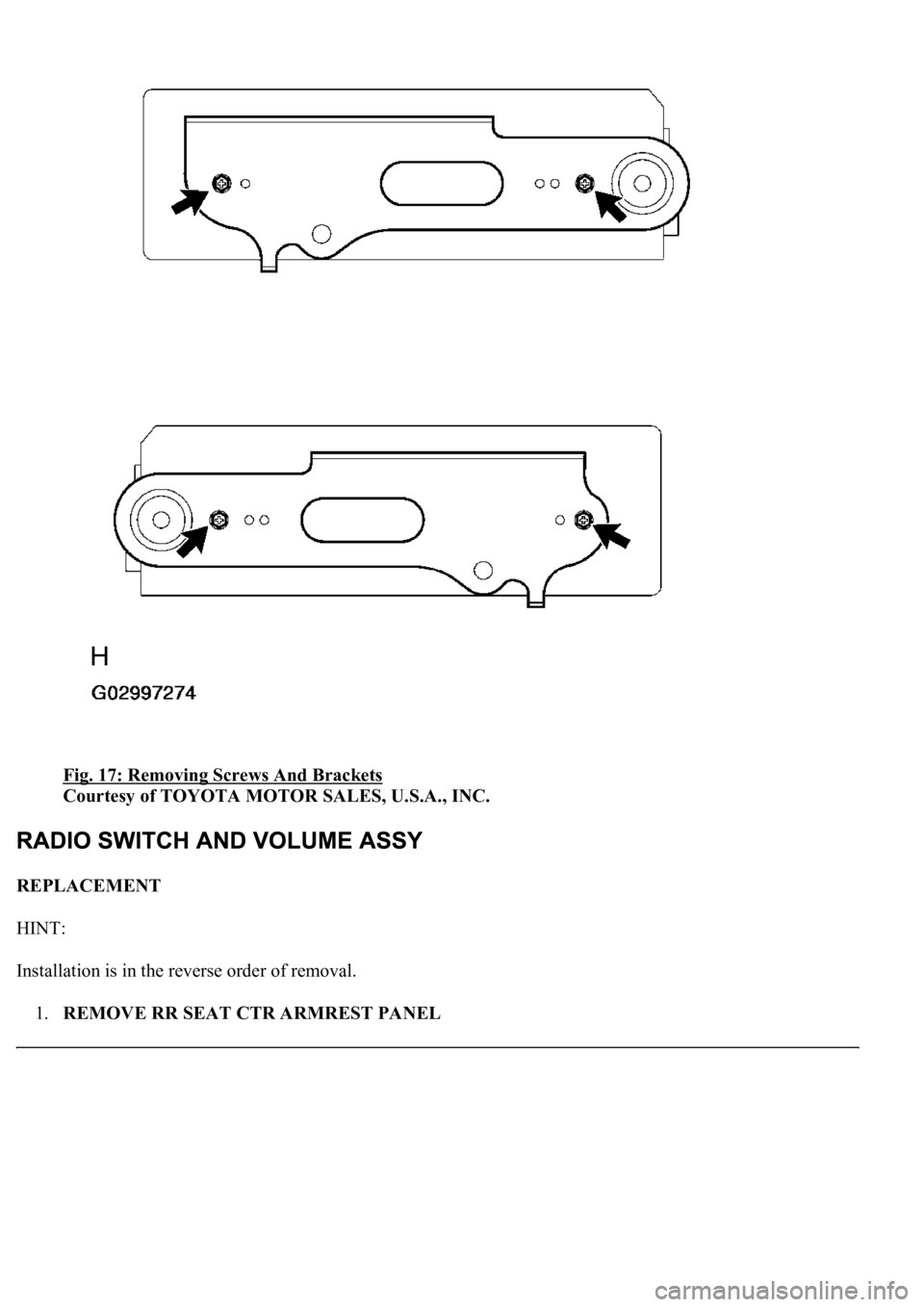

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Removing Screws And Brackets Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: Installation is in the reverse order of removal. 1.REMOVE RR SEAT CTR ARMREST PANEL

Page 652 of 4500

LEXUS LS430 2003 Factory Repair Manual a. Remove the 2 rear seat back covers. b. Remove the 2 screws and disconnect the rear seat armrest board. Fig. 18: Removing RR Seat CTR Armrest Panel Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 653 of 4500

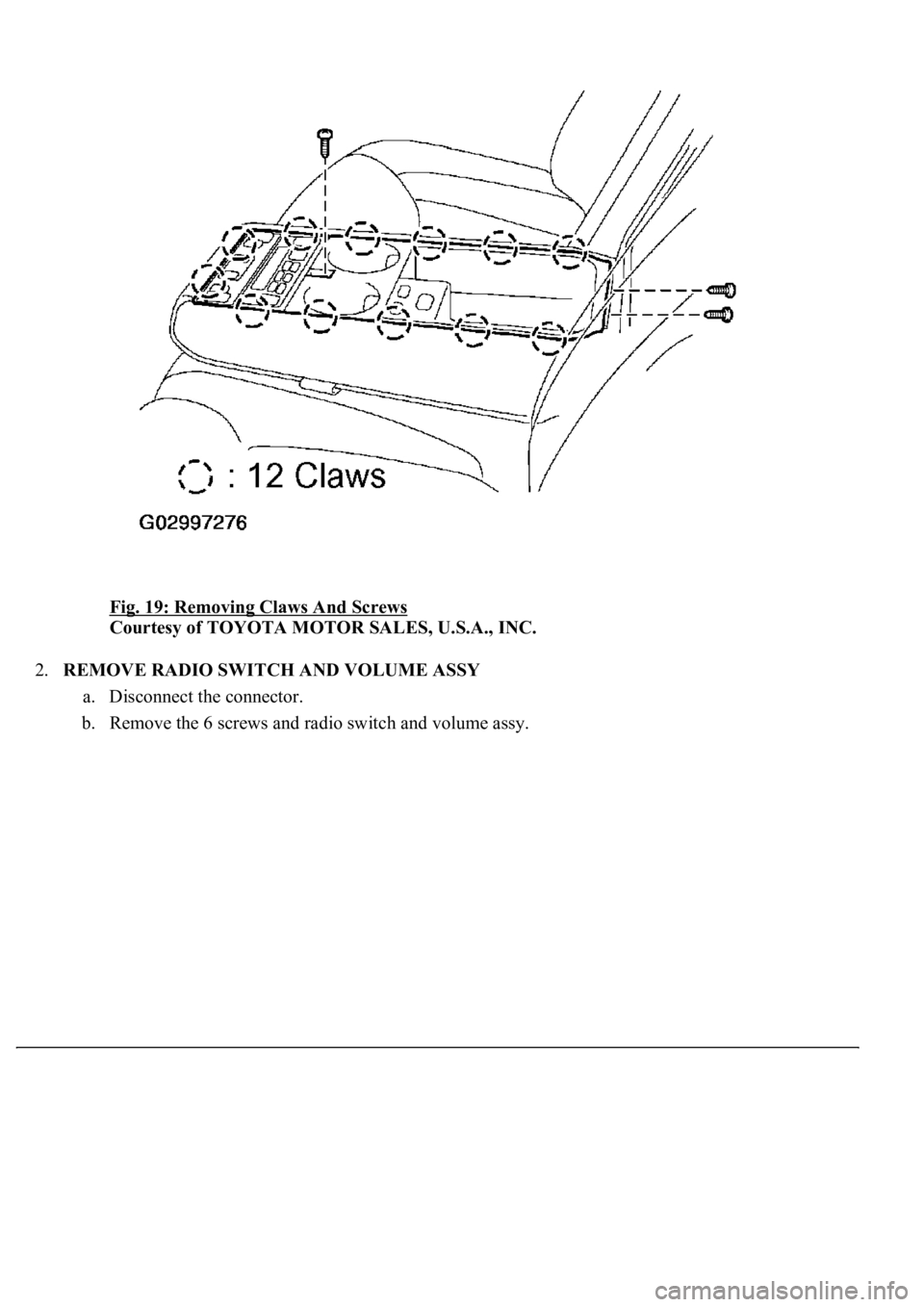

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Removing Claws And Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2.REMOVE RADIO SWITCH AND VOLUME ASSY a. Disconnect the connector. b. Remove the 6 screws and radio switch and volu

Page 654 of 4500

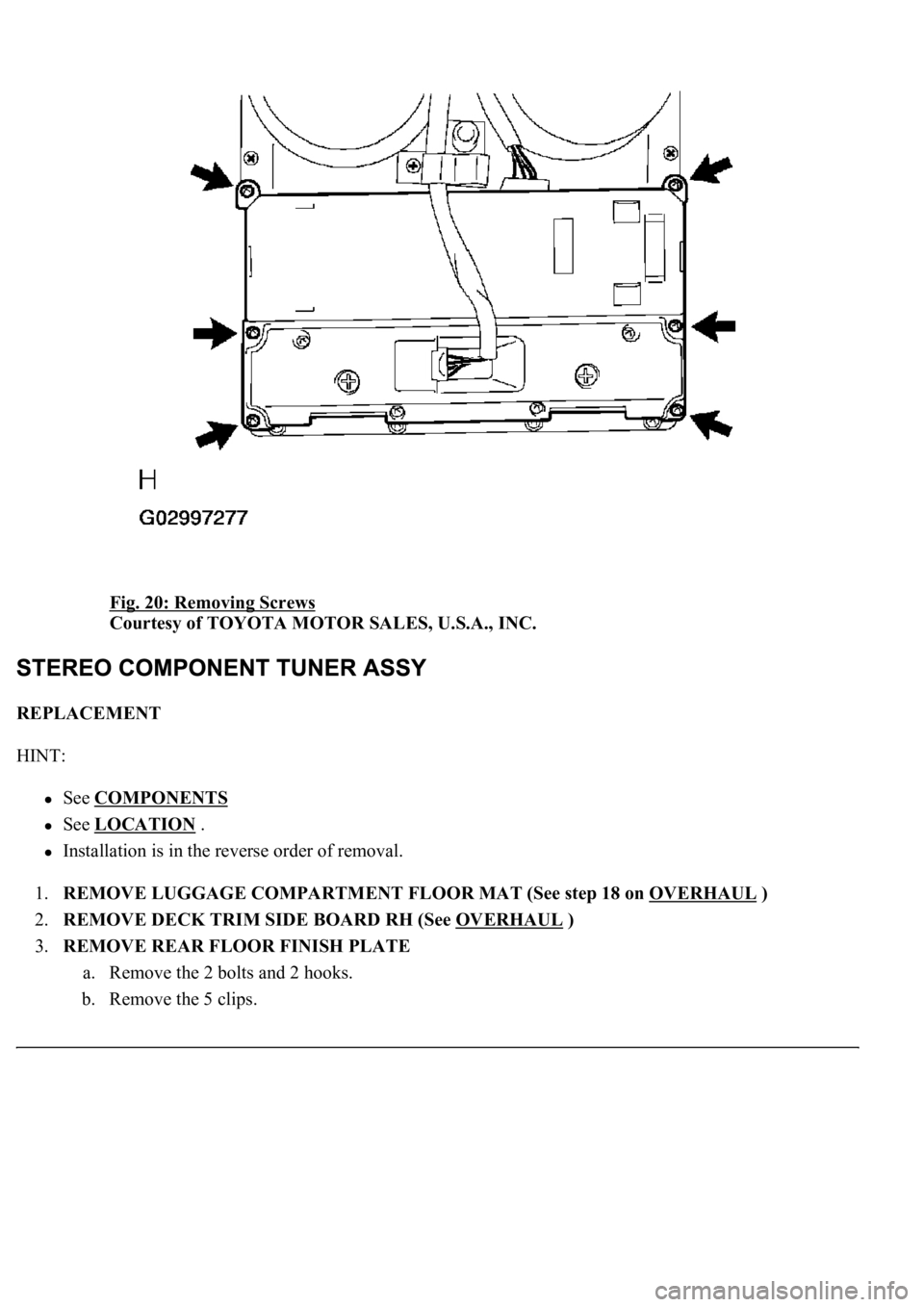

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Removing Screws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT HINT: See COMPONENTS See LOCATION . Installation is in the reverse order of removal. 1.REMOVE LUGGAGE COMPAR

Page 655 of 4500

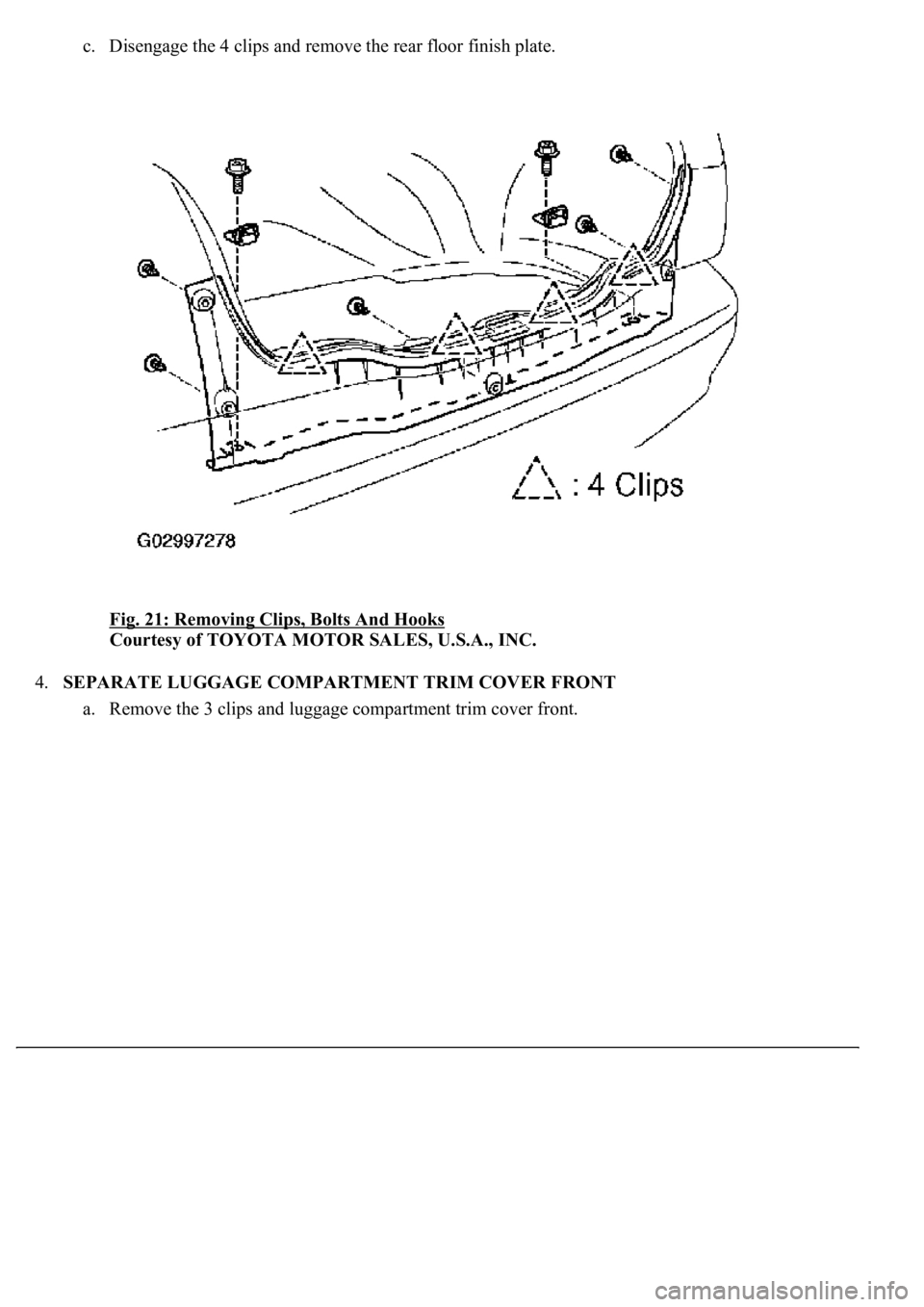

LEXUS LS430 2003 Factory Repair Manual c. Disengage the 4 clips and remove the rear floor finish plate. Fig. 21: Removing Clips, Bolts And Hooks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4.SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRO

Page 656 of 4500

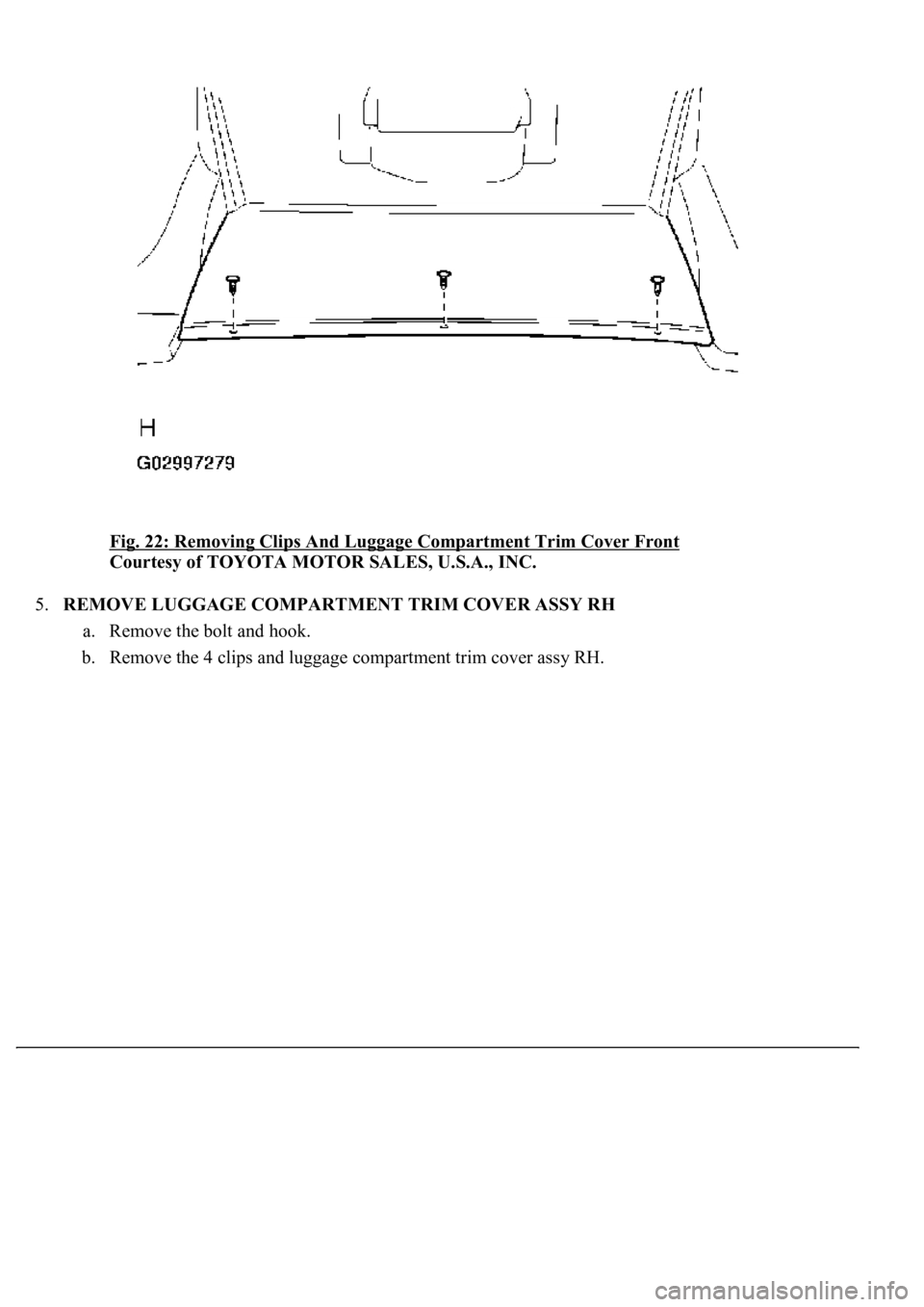

LEXUS LS430 2003 Factory Repair Manual Fig. 22: Removing Clips And Luggage Compartment Trim Cover Front Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH a. Remove the bolt and hook. b. Remov
