Fig. 29: Transponder Key ECU Assy Data List
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: "ON" (Key is in ignition key cylinder) appears on the screen.
NG: Go to step 2
OK: REPLACE TRANSPONDER KEY ECU ASSY
2.INSPECT UNLOCK WARNING SWITCH ASSY
a. Remove the unlock warning switch.
b. Measure the resistance of the switch.
Fig. 30: Inspecting Unlock Warning Switch Assy
Page 3258 of 4500
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:
UNLOCK WARNING SWITCH - RESISTANCE TABLE
NG: REPLACE UNLOCK WARNING SWITCH ASSY
OK: Go to next step
3.CHECK WIRE HARNESS (UNLOCK WARNING SWITCH ASSY - BODY GROUND)
a. Disconnect the U7 switch connector.
b. Measure the resistance of the wire harness side connector.
Tester ConnectionSwitch PositionSpecified Condition
1 -2PushedBelow 1 ohms
1 -2Not pushed10 kohms or higher
Page 3259 of 4500
Fig. 31: Identifying U7 Switch Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:
UNLOCK WARNING SWITCH - BODY GROUND - RESISTANCE TABLE
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step
Tester connectionSpecified condition
U7-1 - Body groundBelow 1 ohms
Page 3260 of 4500
4.CHECK WIRE HARNESS (TRANSPONDER KEY ECU ASSY - UNLOCK WARNING SWITCH
ASSY)
a. Disconnect the T9 ECU connector.
b. Disconnect the U7 switch connector.
c. Measure the resistance of the wire harness side connectors.
Page 3261 of 4500
Page 3262 of 4500

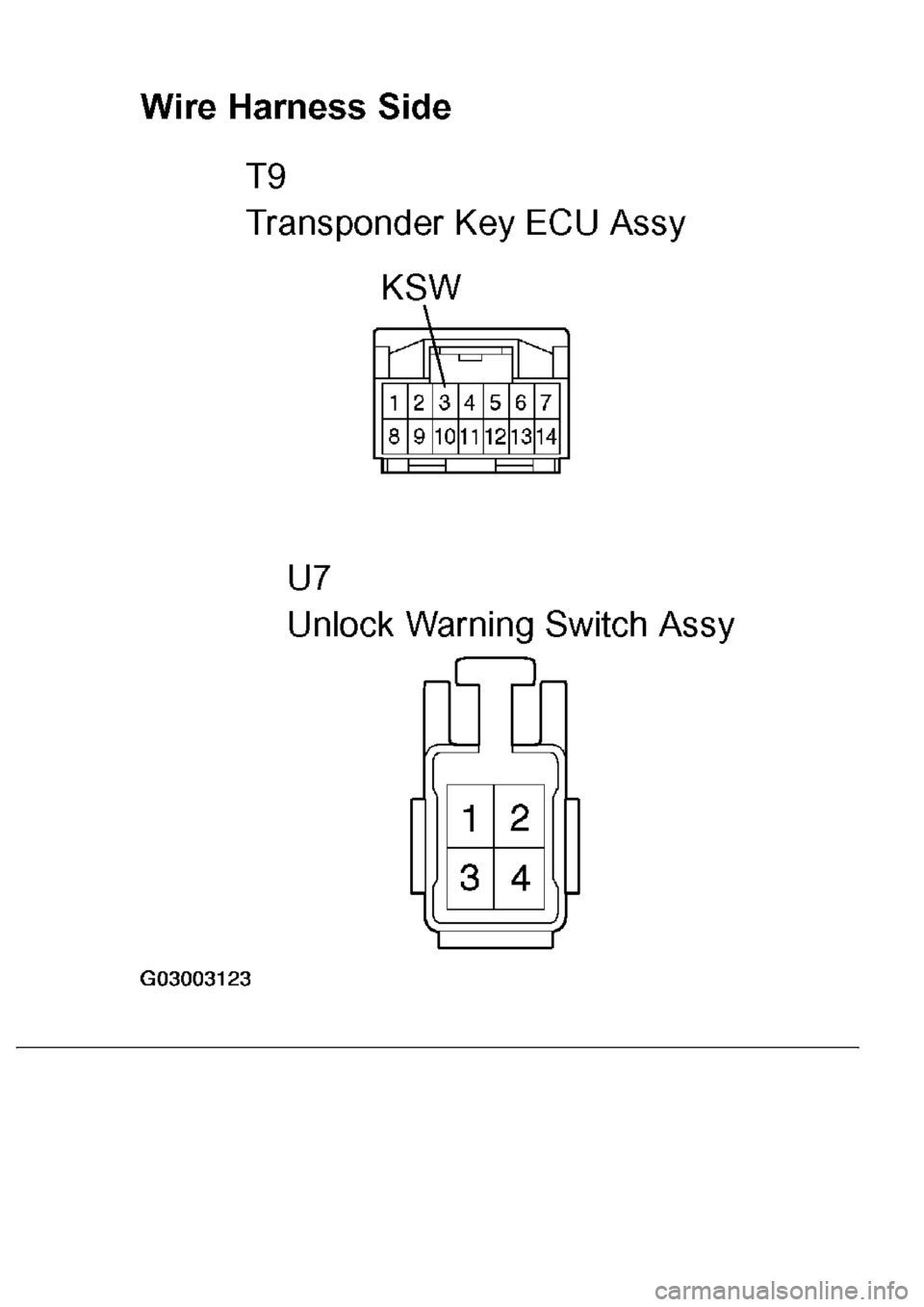

Fig. 32: Identifying U7 Switch And T9 ECU Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Standard:
TRANSPONDER KEY ECU - UNLOCK WARNING SWITCH - RESISTANCE TABLE
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE TRANSPONDER KEY ECU ASSY
CIRCUIT DESCRIPTION
This DTC is output when: 1) during the key code registration, a key malfunction occurs; or 2) the key code was
unable to be registered properly. Follow the inspection procedure below.
DTC REFERENCE TABLE
INSPECTION PROCEDURE
1.RE-REGISTER KEY
a. Delete the DTC (see DTC CHECK/CLEAR
).
b. Re-register the key (see REGISTRATION
), and check that the engine starts with the key.
OK: Engine starts.
NG: REPLACE KEY
OK: NORMAL (INSPECTION FINISHED)
CIRCUIT DESCRIPTION
This DTC is output when a key with an incomplete key code is inserted into the ignition key cylinder.
DTC REFERENCE TABLE
Tester connectionSpecified condition
T9-3 (KSW) - U7-2Below 1ohms
DTC No.DTC Detection ConditionTrouble Area
B2793Transponder chip malfunctionKey
DTC No.DTC Detection ConditionTrouble Area
B2794Key with incomplete key code is insertedKey
Page 3263 of 4500
INSPECTION PROCEDURE
REPLACE KEY
CIRCUIT DESCRIPTION
This DTC is output when a key with a key code that has not been registered in the ECU is inserted into the
ignition key cylinder.
DTC REFERENCE TABLE
INSPECTION PROCEDURE
1.DELETE DTC AND INSERT ALL PRESENTLY AVAILABLE KEYS TO CHECK WHETHER
ENGINE STARTS OR NOT
OK: Engine starts.
NG: REPLACE KEY THAT CANNOT START ENGINE
OK: NO PROBLEM (BECAUSE OF KEY RE-REGISTRATION)
CIRCUIT DESCRIPTION
This DTC is output when a key that does not have a transponder chip is inserted into the ignition key cylinder or
if communication between the key and transponder key ECU is not possible.
Fig. 33: DTC Reference Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
DTC No.DTC Detection ConditionTrouble Area
B2795Key with unregistered key code is insertedKey
Page 3264 of 4500
Fig. 34: DTCs B2796, B2798 - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.READ DATA LIST USING HAND-HELD TESTER
a. Connect the hand-held tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
b. Turn the ignition switch ON with the key that cannot start the engine.
c. Read the DATA LIST.
Transponder key ECU assy:
Fig. 35: Transponder Key ECU Assy Data List
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: "UNSET" (Ignition switch ON) appears on the screen.
NG: Go to step 2
OK: REPLACE TRANSPONDER KEY ECU ASSY
2.CHECK WHETHER ENGINE STARTS WITH OTHER KEYS
