Page 4297 of 4500

LEXUS LS430 2003 Factory Repair Manual 7.REMOVE REAR SEAT BACK ASSY (See step 4 in OVERHAUL ) 8.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See step 4 in REPLACEMENT ) 9.REMOVE ROOF SIDE GARNISH INNER RH (See see step 3 in REPLACEMENT ) 1

Page 4298 of 4500

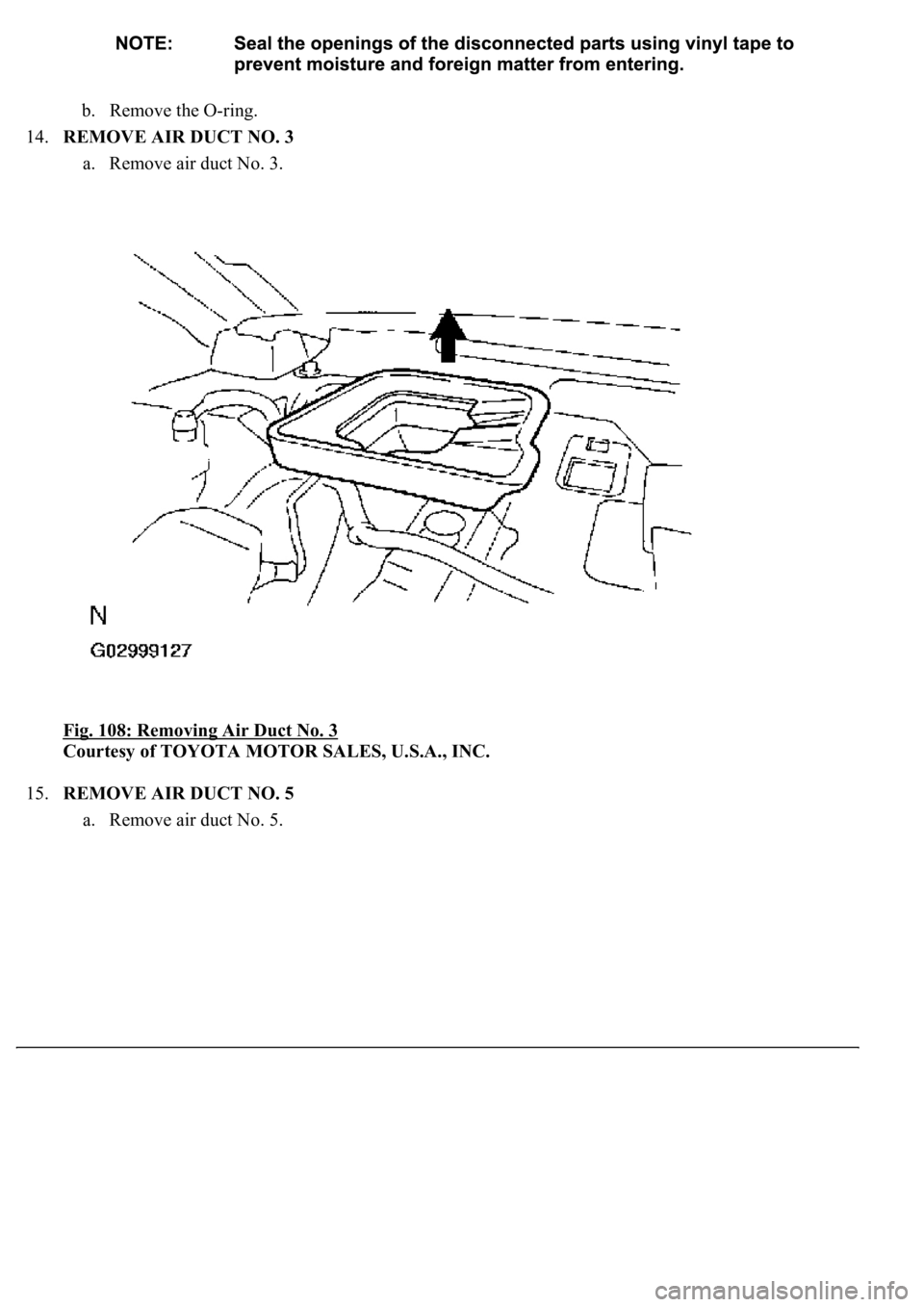

LEXUS LS430 2003 Factory Repair Manual b. Remove the O-ring. 14.REMOVE AIR DUCT NO. 3 a. Remove air duct No. 3. Fig. 108: Removing Air Duct No. 3 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 15.REMOVE AIR DUCT NO. 5 a. Remove air

Page 4299 of 4500

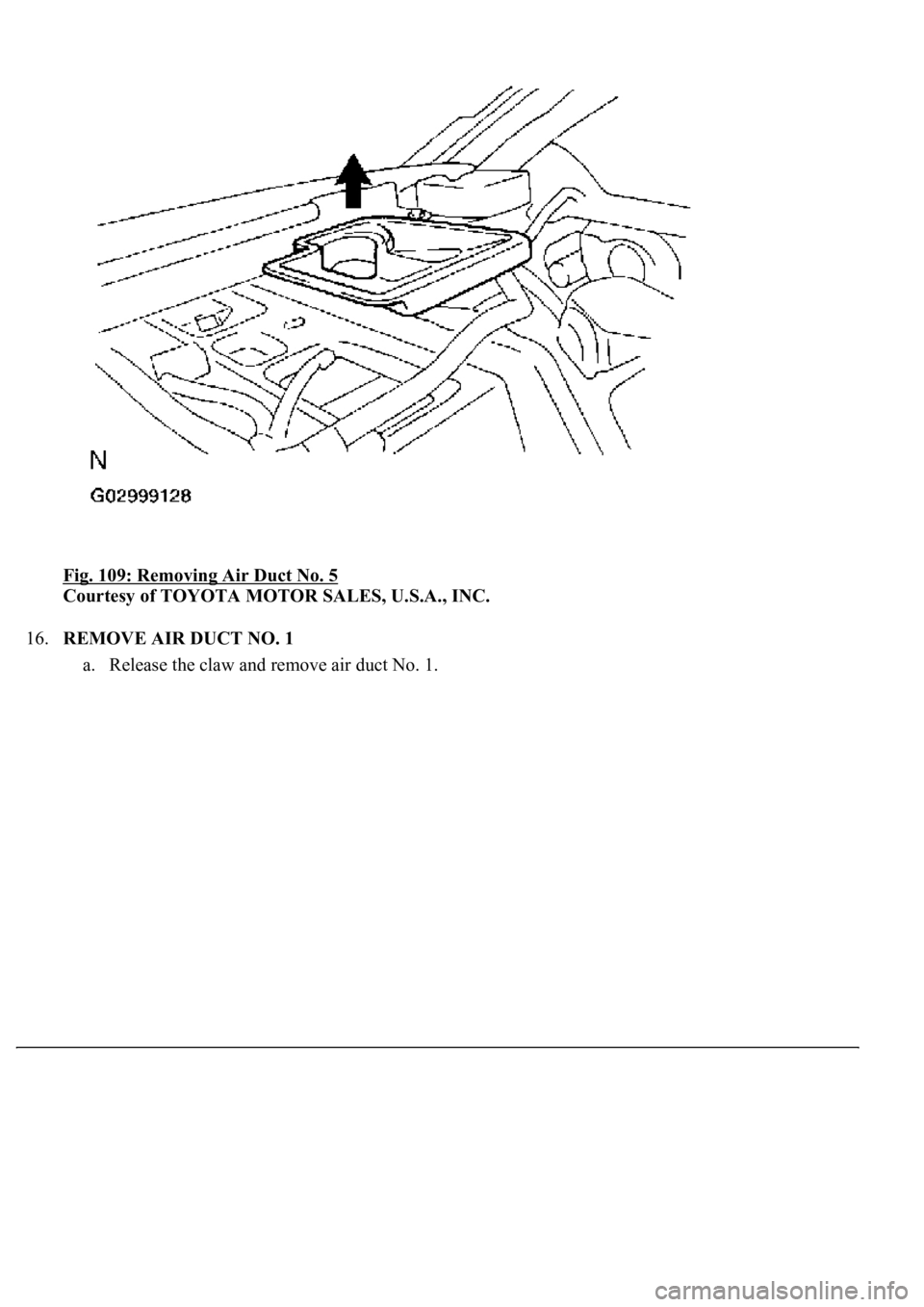

LEXUS LS430 2003 Factory Repair Manual Fig. 109: Removing Air Duct No. 5 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 16.REMOVE AIR DUCT NO. 1 a. Release the claw and remove air duct No. 1.

Page 4300 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 110: Removing Air Duct No. 1 Claw Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 17.REMOVE AIR DUCT NO. 2 a. Release the claw and remove air duct No. 2.

Page 4301 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 111: Removing Air Duct No. 2 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 18.REMOVE AIR DUCT NO. 4 a. Release the claw and remove air duct No. 4.

Page 4302 of 4500

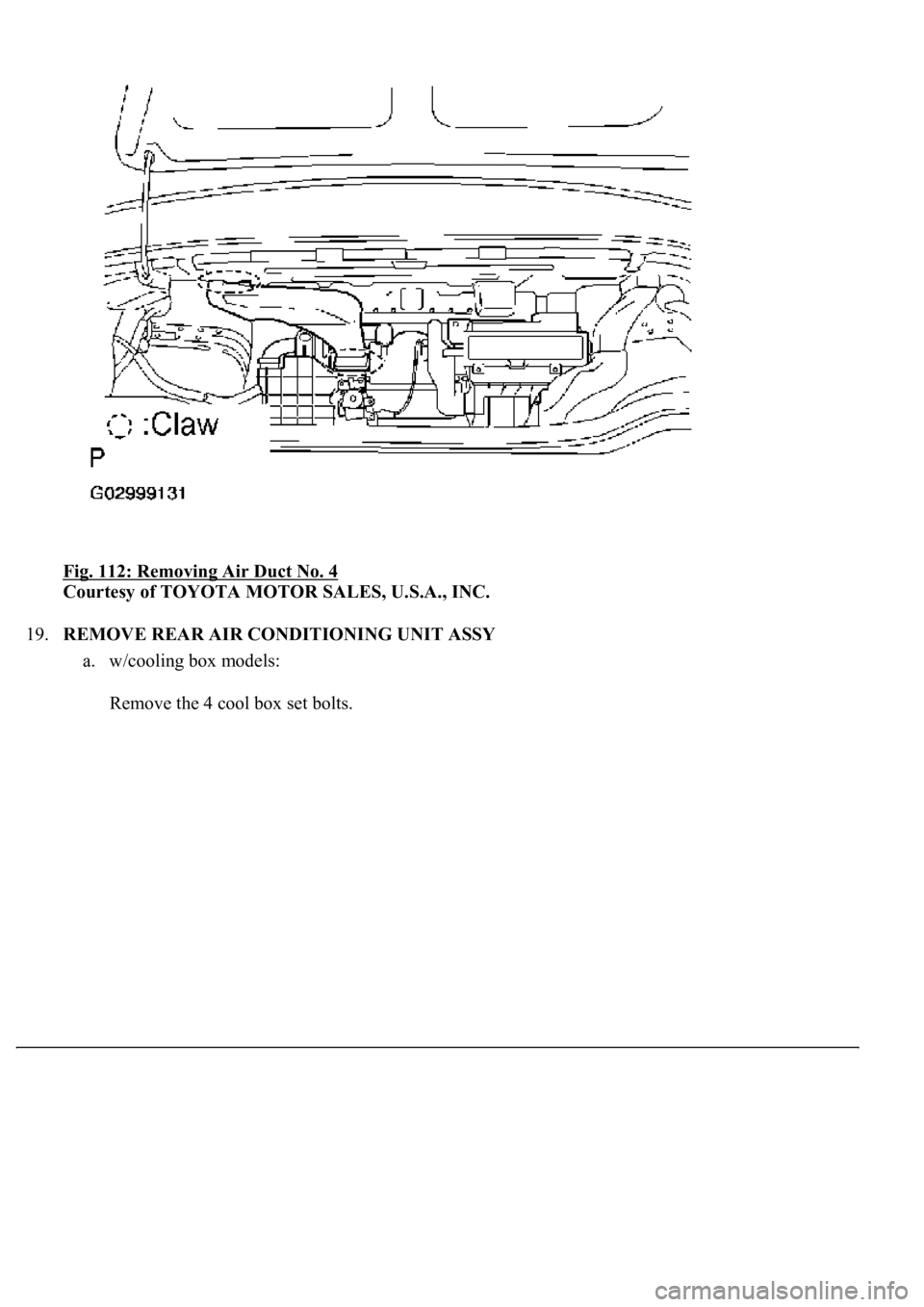

LEXUS LS430 2003 Factory Repair Manual Fig. 112: Removing Air Duct No. 4 Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.REMOVE REAR AIR CONDITIONING UNIT ASSY a. w/cooling box models: Remove the 4 cool box set bolts.

Page 4303 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 113: Removing Rear Air Conditioning Unit Assy (W/Cooling Box Models) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Disconnect the connector. c. Remove the 2 nuts and 2 bolts. d. Remove th

Page 4304 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 114: Removing Rear Air Conditioner Unit Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE COOLER UNIT DRAIN HOSE NO. 2 21.REMOVE REAR COOLER FILTER 22.REMOVE COOLING BOX LAMP SUB-
