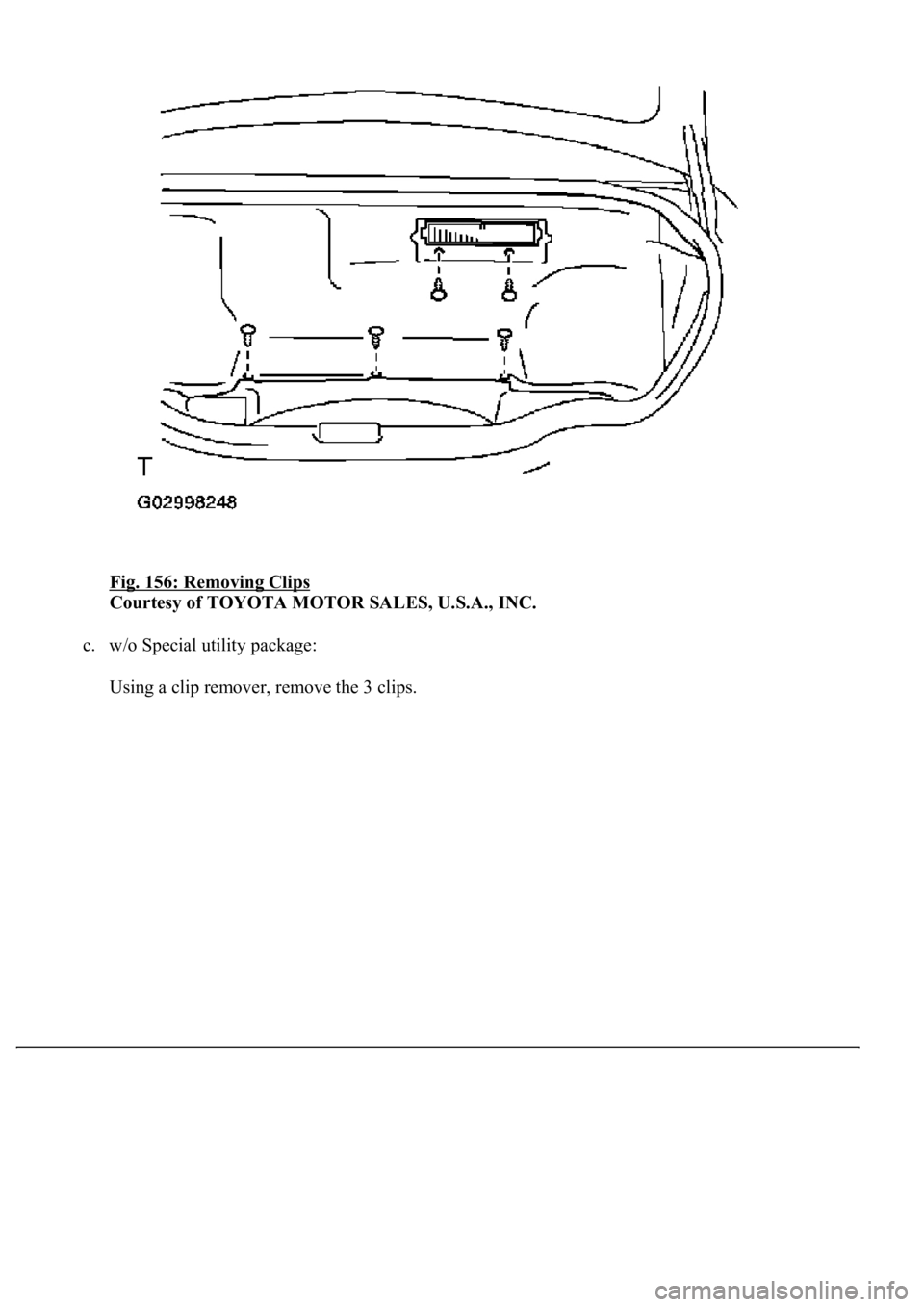

LEXUS LS430 2003 Factory Repair Manual Fig. 156: Removing Clips Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. w/o Special utility package: Usin g a clip remover, remove the 3 clips.

Page 3146 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 157: Removing 3 Clips Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Using a screwdriver, remove the wire harness cover. HINT: Tape the screwdriver tip before use. e. Using a screwdriver, r

Page 3147 of 4500

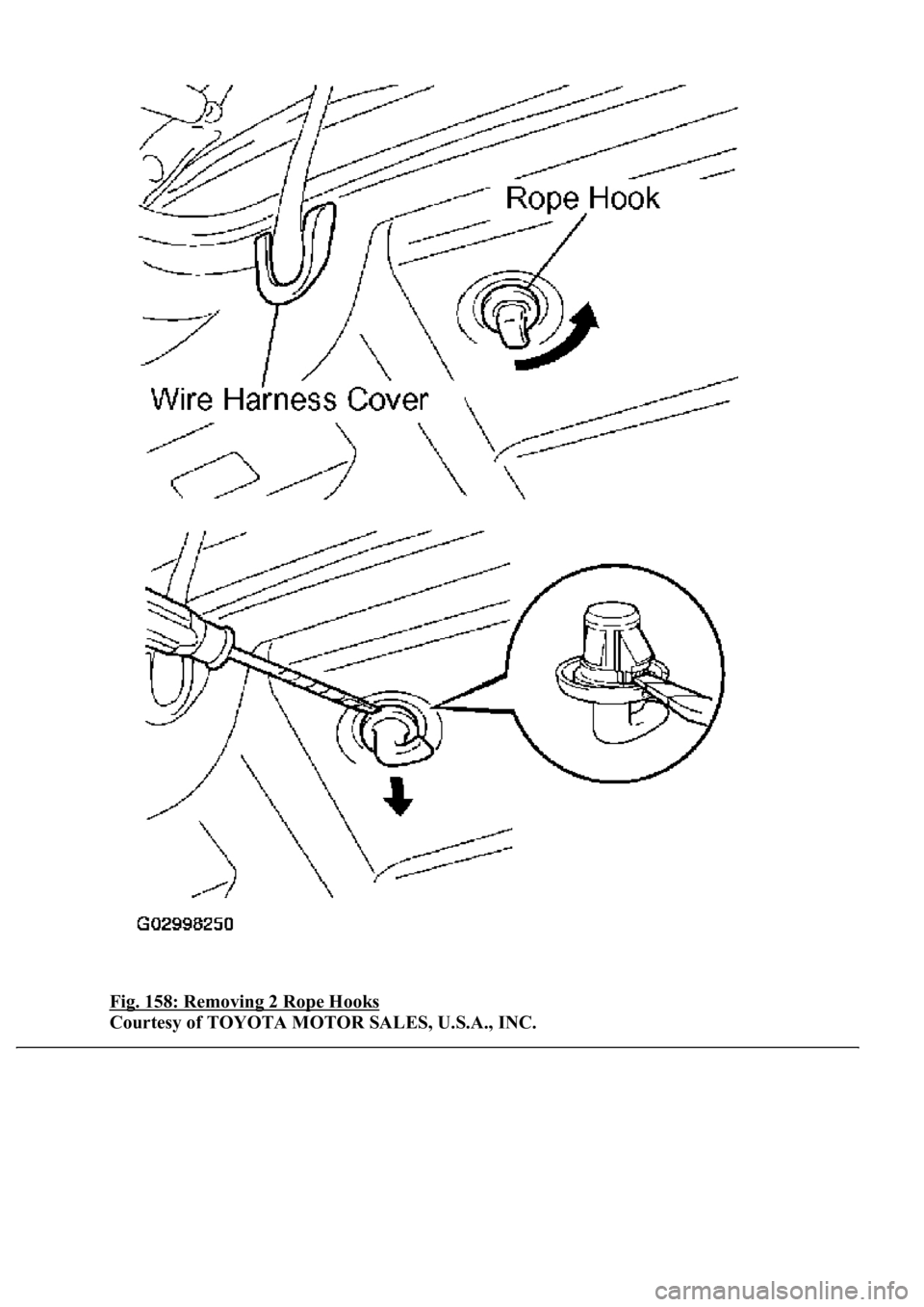

LEXUS LS430 2003 Factory Repair Manual Fig. 158: Removing 2 Rope Hooks Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3148 of 4500

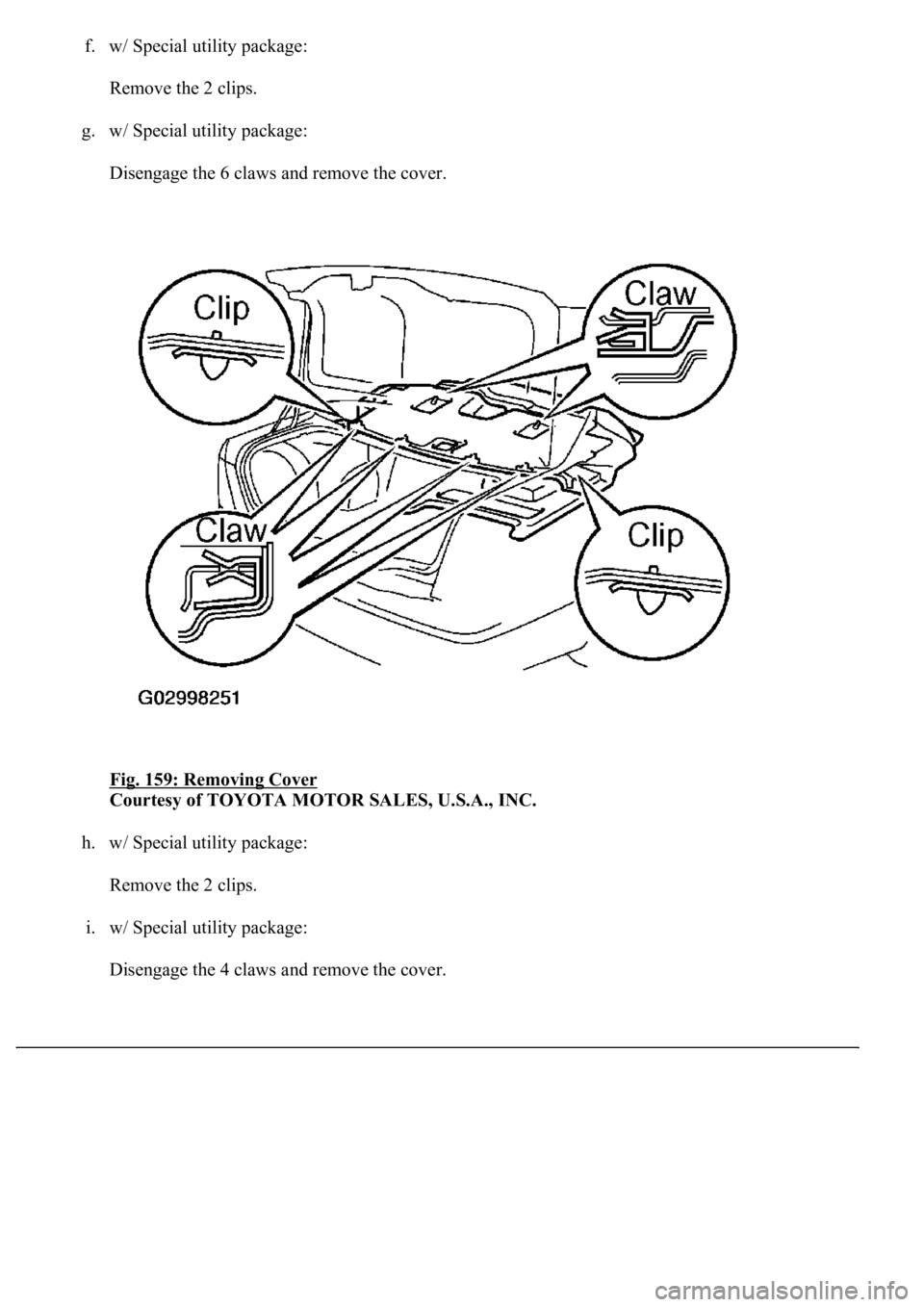

LEXUS LS430 2003 Factory Repair Manual f. w/ Special utility package: Remove the 2 clips. g. w/ Special utility package: Disengage the 6 claws and remove the cover. Fig. 159: Removing Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC

Page 3149 of 4500

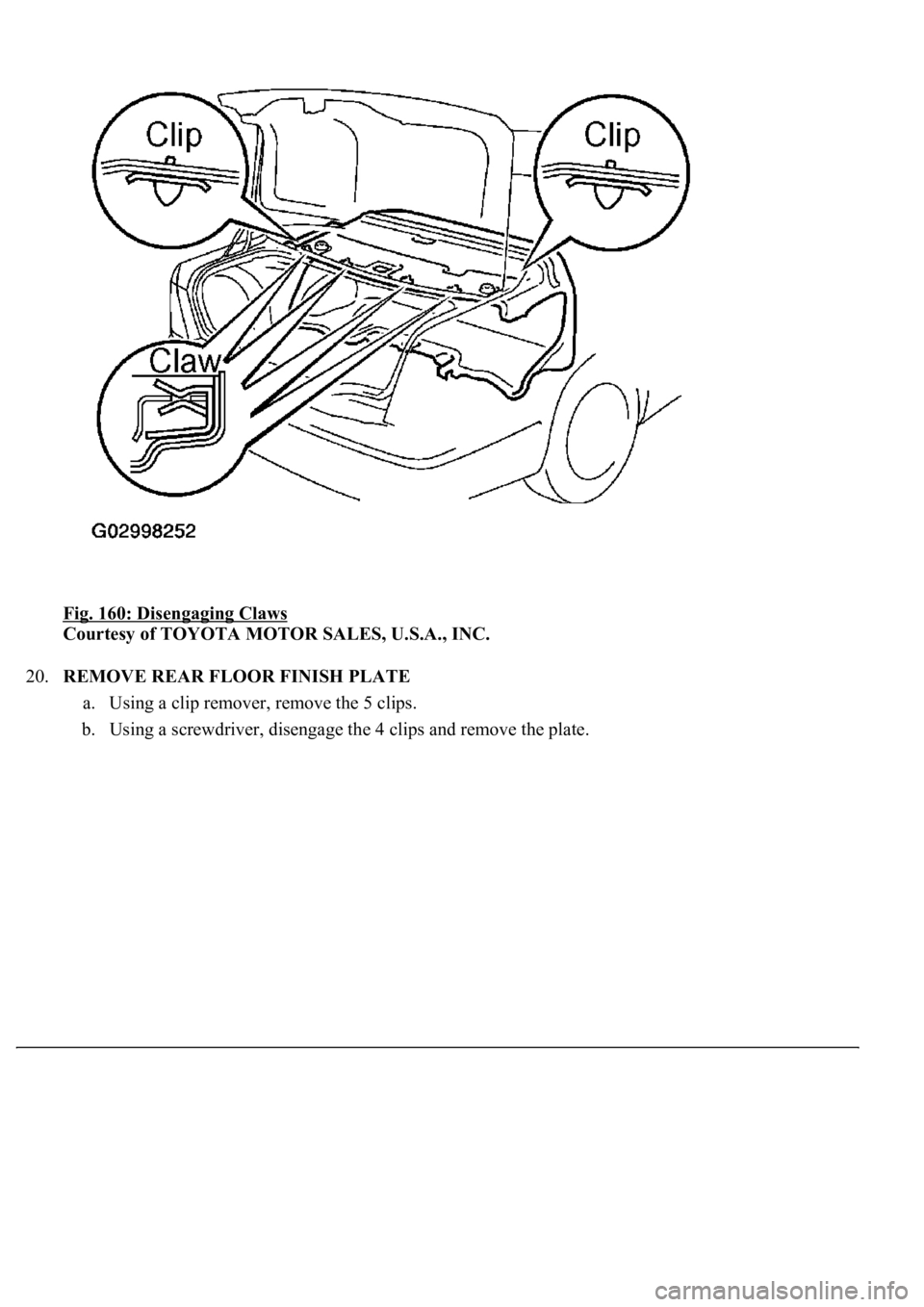

LEXUS LS430 2003 Factory Repair Manual Fig. 160: Disengaging Claws Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE REAR FLOOR FINISH PLATE a. Using a clip remover, remove the 5 clips. b. Using a screwdriver, disengage the 4 cli

Page 3150 of 4500

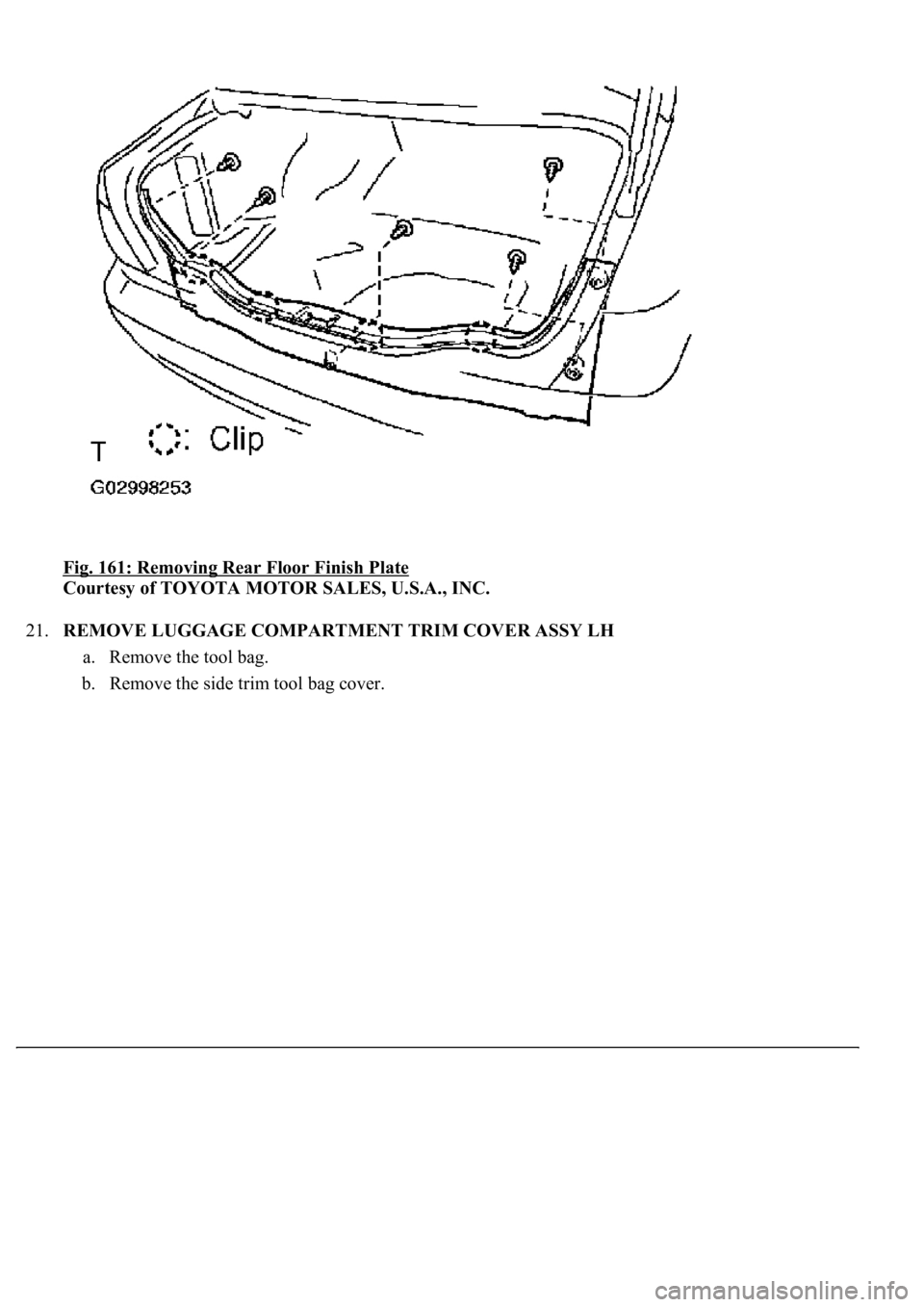

LEXUS LS430 2003 Factory Repair Manual Fig. 161: Removing Rear Floor Finish Plate Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 21.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH a. Remove the tool bag. b. Remove the side trim tool bag c

Page 3151 of 4500

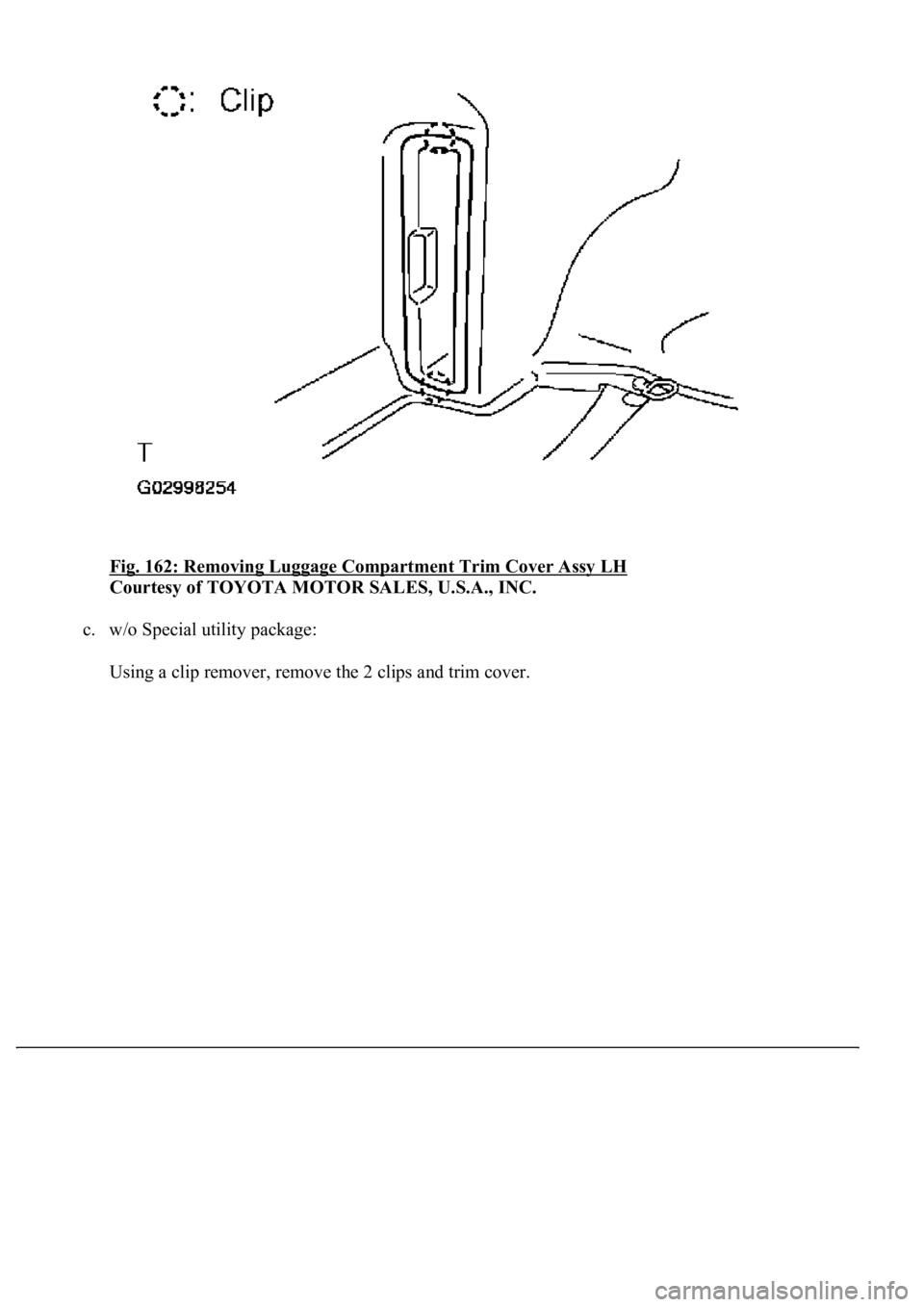

LEXUS LS430 2003 Factory Repair Manual Fig. 162: Removing Luggage Compartment Trim Cover Assy LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. w/o Special utility package: Usin g a clip remover, remove the 2 clips and trim cover.

Page 3152 of 4500

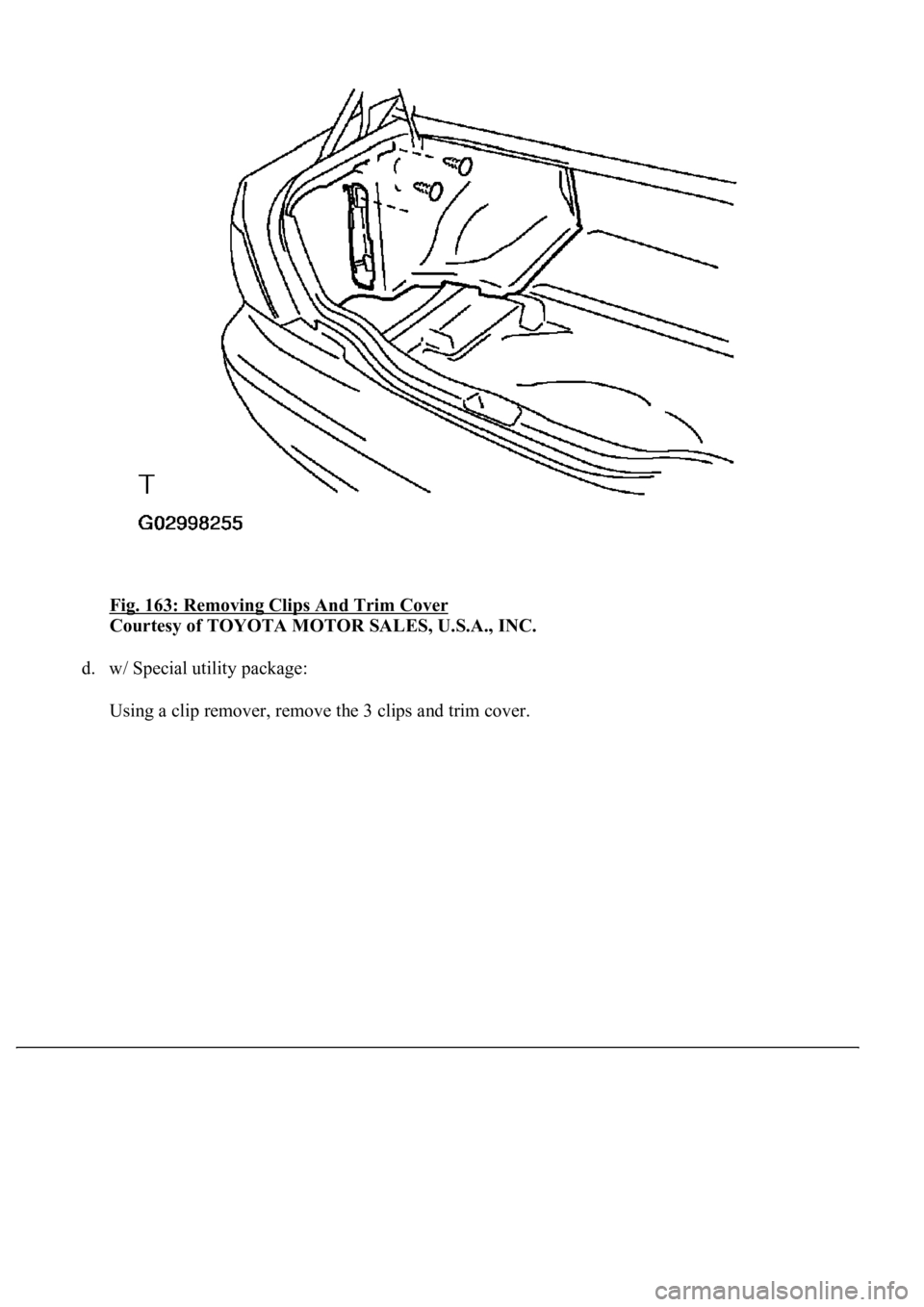

LEXUS LS430 2003 Factory Repair Manual Fig. 163: Removing Clips And Trim Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. w/ Special utility package: Usin g a clip remover, remove the 3 clips and trim cover.
