Page 3833 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 48: Applying Double-Sided Tape To Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Install the molding. 1. Using a heat light, heat the body and molding. 2. Remove the peeling paper f

Page 3834 of 4500

LEXUS LS430 2003 Factory Repair Manual 1. Using a heat light, heat the molding. 2. Remove the double-sided tape from the molding. 3. Wipe off the stains with cleaner. 4. Apply new double-sided tape to the molding, as shown in Fig. 49

Page 3835 of 4500

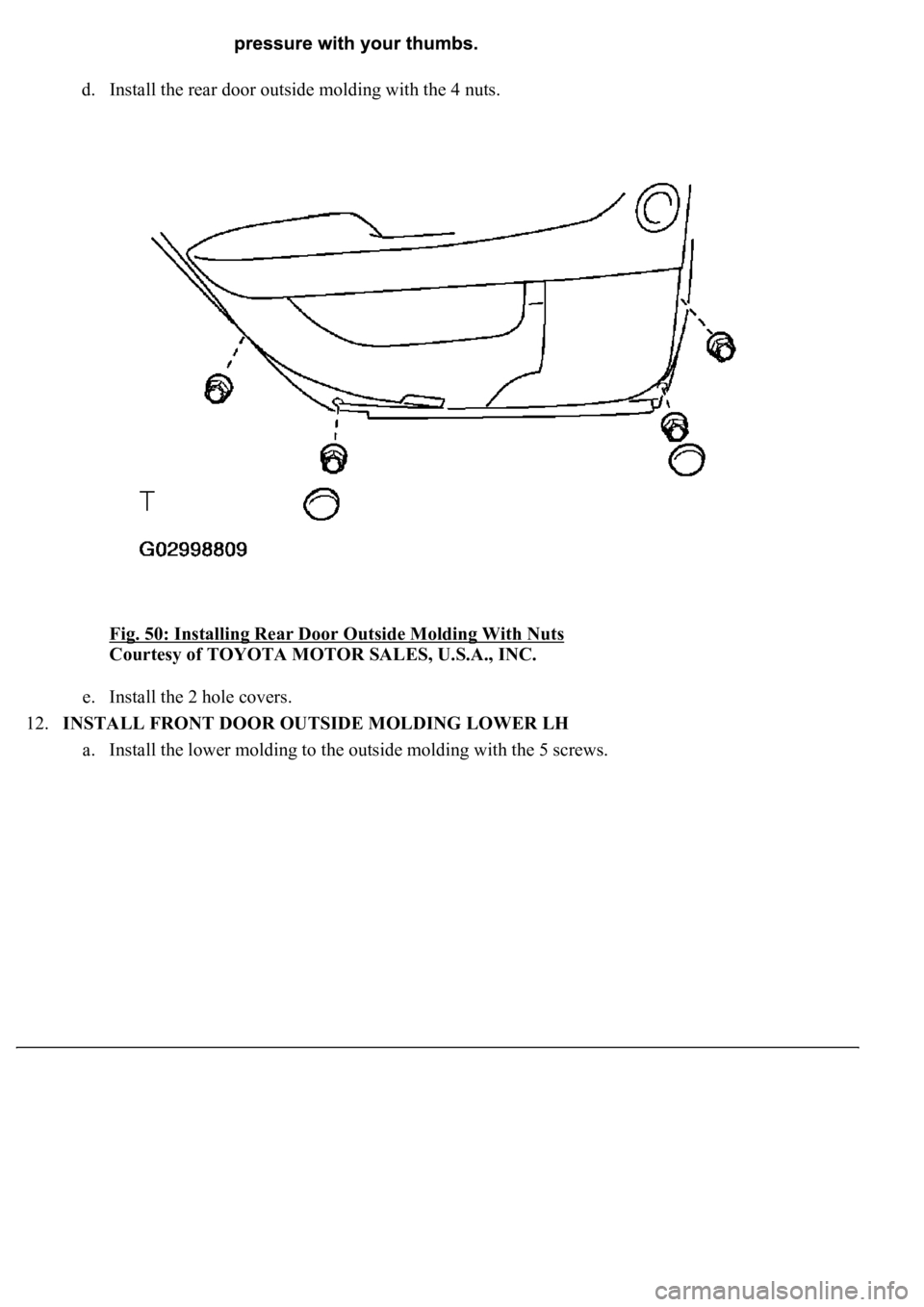

LEXUS LS430 2003 Factory Repair Manual d. Install the rear door outside molding with the 4 nuts. Fig. 50: Installing Rear Door Outside Molding With Nuts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Install the 2 hole covers. 12.IN

Page 3836 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 51: Installing Front Door Outside Molding Lower LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 13.INSTALL FRONT DOOR OUTSIDE MOLDING UPPER LH a. Clean the body surface. 1. Using a heat light

Page 3837 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 52: Applying Double-Sided Tape To Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Install the molding. 1. Using a heat light, heat the body and molding. 2. Release the peeling paper

Page 3838 of 4500

LEXUS LS430 2003 Factory Repair Manual Clean the molding. 1. Using a heat light, heat the molding. 2. Remove the double-sided tape from the molding. 3. Wipe off the stains with cleaner. 4. Apply new double-sided tape to the molding,

Page 3839 of 4500

LEXUS LS430 2003 Factory Repair Manual d. Install the molding with the 4 nuts. Fig. 54: Installing Molding With Nuts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Install the hole cover. 15.INSTALL FRONT FENDER OUTSIDE molding LH

Page 3840 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 55: Applying New Double-Sided Tape To Molding Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Install the molding. 1. Using a heat light, heat the body and molding. 2. Remove the peeling pap
