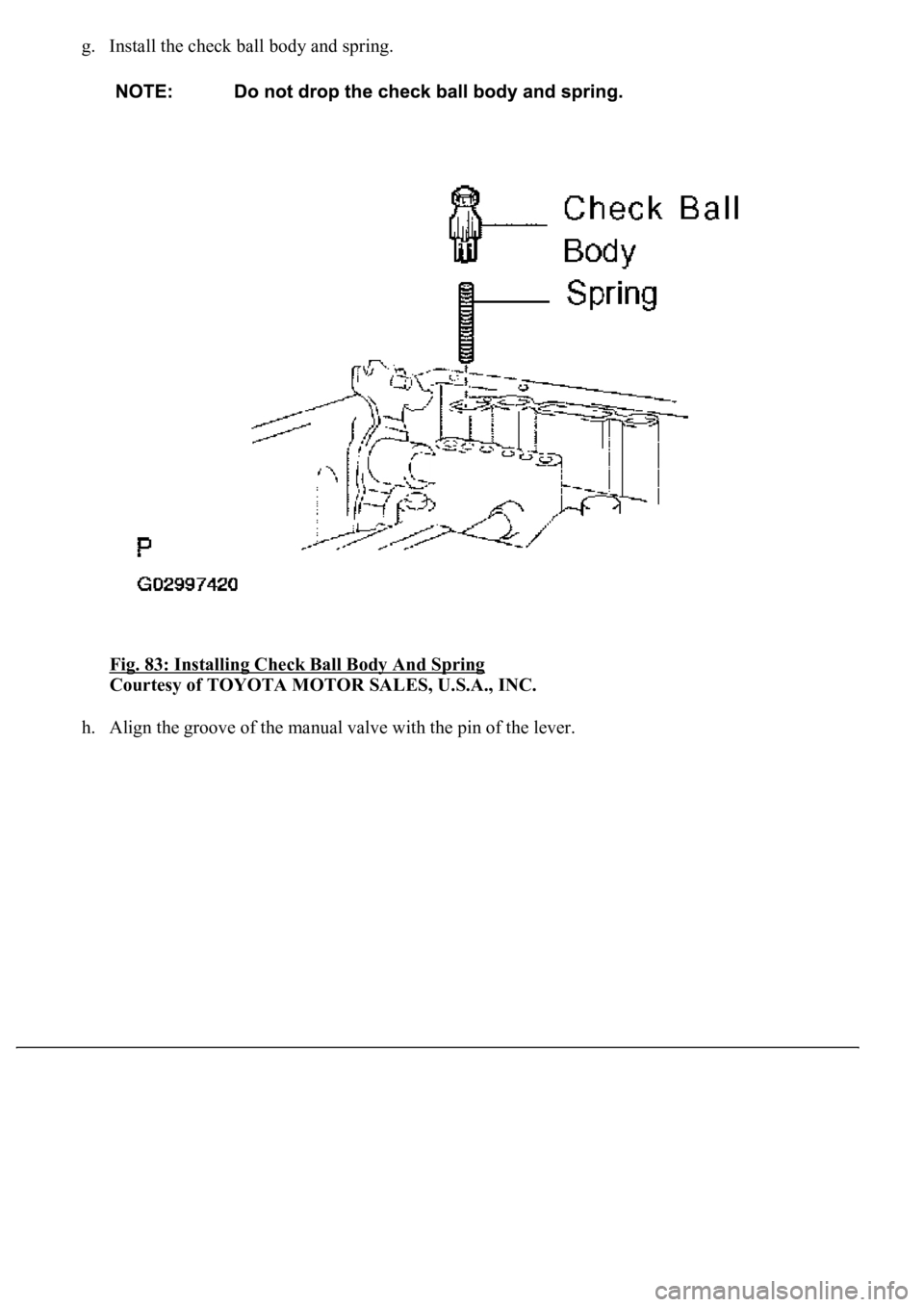

g. Install the check ball body and spring.
Fig. 83: Installing Check Ball Body And Spring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
h. Align the groove of the manual valve with the pin of the lever.
Page 906 of 4500
Fig. 84: Aligning Groove Of Manual Valve With Pin Of Lever
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i. Install the 20 bolts.
Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)
Bolt length:
Bolt A: 36 mm (1.42 in.)
Bolt B: 25 mm (0.98 in.)
Bolt C: 45 mm (1.77 in.)
Bolt D: 50 mm (1.97 in.)
Page 907 of 4500
Fig. 85: Installing 20 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL TRANSMISSION WIRE
a. Coat a new O-ring of the ATF temperature sensor with ATF.
b. Connect the 9 connectors to the solenoid valves.
c. Install the 2 clamps with the 2 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
d. Install the ATF temperature sensor and lock plate with the bolt.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
Page 908 of 4500
Fig. 86: Installing ATF Temperature Sensor And Lock Plate With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL VALVE BODY OIL STRAINER ASSY
a. Coat a new O-ring with ATF.
b. Install the O-ring.
Page 909 of 4500
Fig. 87: Installing O-ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the oil strainer with the 4 bolts.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

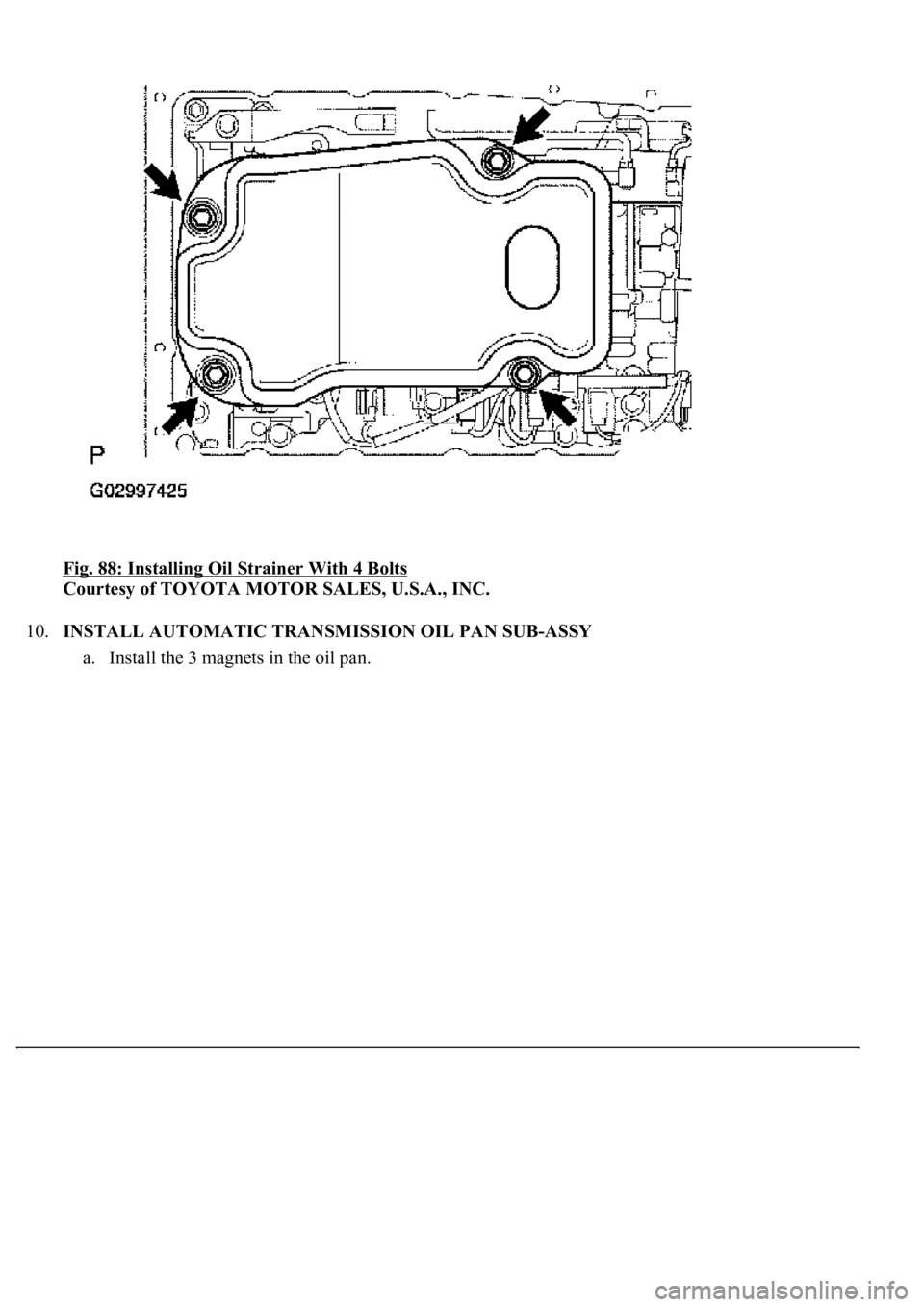

Page 910 of 4500
Fig. 88: Installing Oil Strainer With 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
a. Install the 3 ma
gnets in the oil pan.
Page 911 of 4500
Fig. 89: Installing 3 Magnets In Oil Pan
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a new gasket, install the oil pan with the 20 bolts to the transmission case.
Torque: 4.4 N.m (44 kgf.cm, 39 in..lbf)
Page 912 of 4500
Fig. 90: Installing Oil Pan With 20 Bolts To Transmission Case
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
11.CONNECT BATTERY NEGATIVE TERMINAL
12.ADD AUTOMATIC TRANSMISSION FLUID (SEE ADJUSTMENT
)
Fluid type: ATF WS
Capacity: 4.3 liters (4.5 US qts, 3.8 Imp.qts)
13.RESET MEMORY (SEE INITIALIZATION
)
14.PERFORM INITIALIZATION (SEE INITIALIZATION
)
REPLACEMENT
1.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
2.REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT
)
3.REMOVE INSTRUMENT PANEL FINISH PANEL (SEE REPLACEMENT
)
4.REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE REPLACEMENT
)
5.REMOVE SWITCH BRACE HOLE COVER (SEE REPLACEMENT
)
