Page 2993 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.REMOVE HOOD INSULATOR a. Using a clip remover, disengage the 10 clips and remove the insulator. 2.REMOVE HOOD TO RADIATOR SUPPORT SEAL a. Using a clip remover, disengage the 13 clips and remove

Page 2994 of 4500

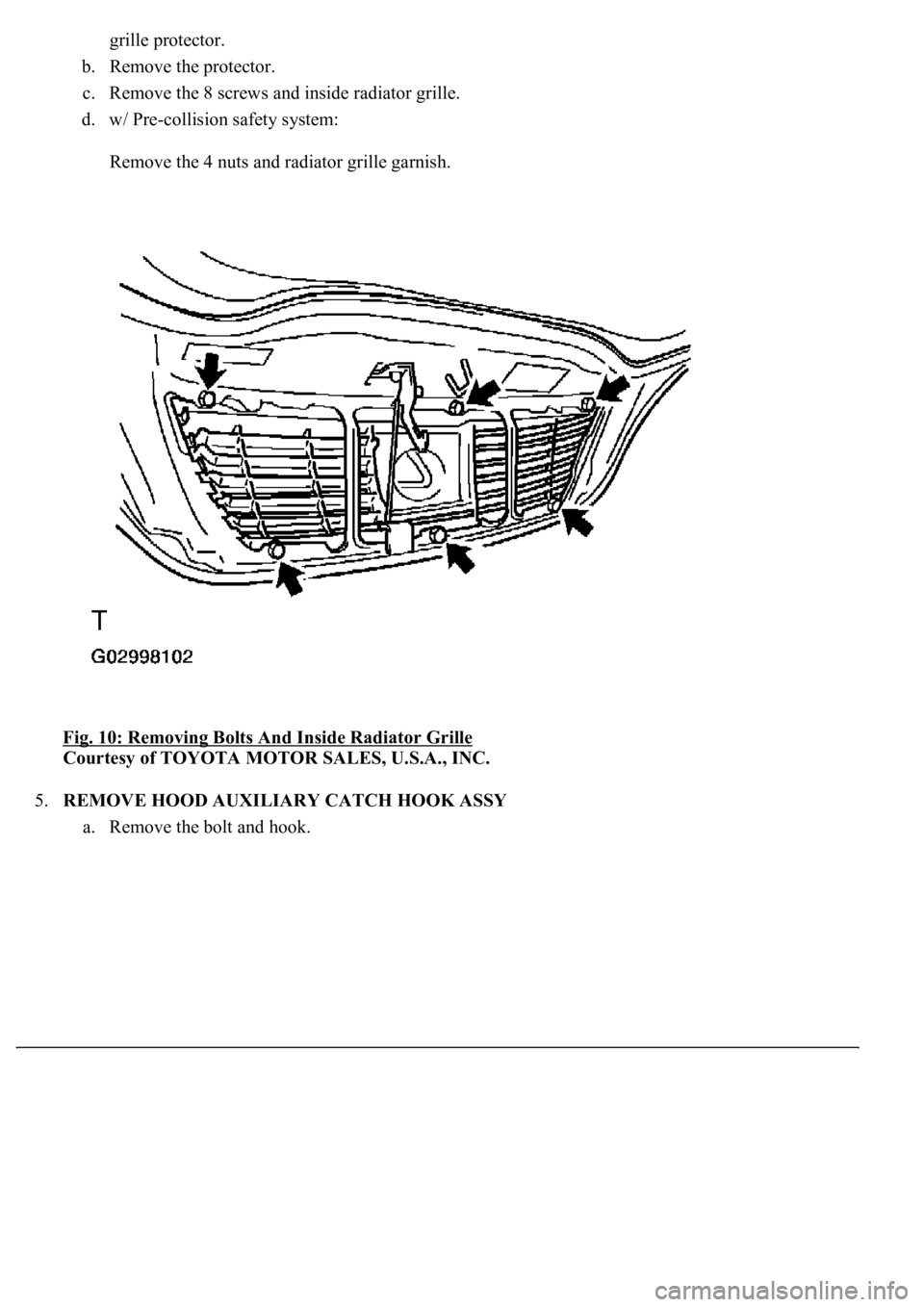

LEXUS LS430 2003 Factory Repair Manual grille protector. b. Remove the protector. c. Remove the 8 screws and inside radiator grille. d. w/ Pre-collision safety system: Remove the 4 nuts and radiator grille garnish. Fig. 10: Removin

Page 2995 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 11: Removing Bolt And Hook Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE HOOD SUPPORT ASSY LH (See REPLACEMENT ) 7.REMOVE HOOD SUPPORT ASSY RH 8.REMOVE HOOD LOCK ASSY a. w/ Pre-co

Page 2996 of 4500

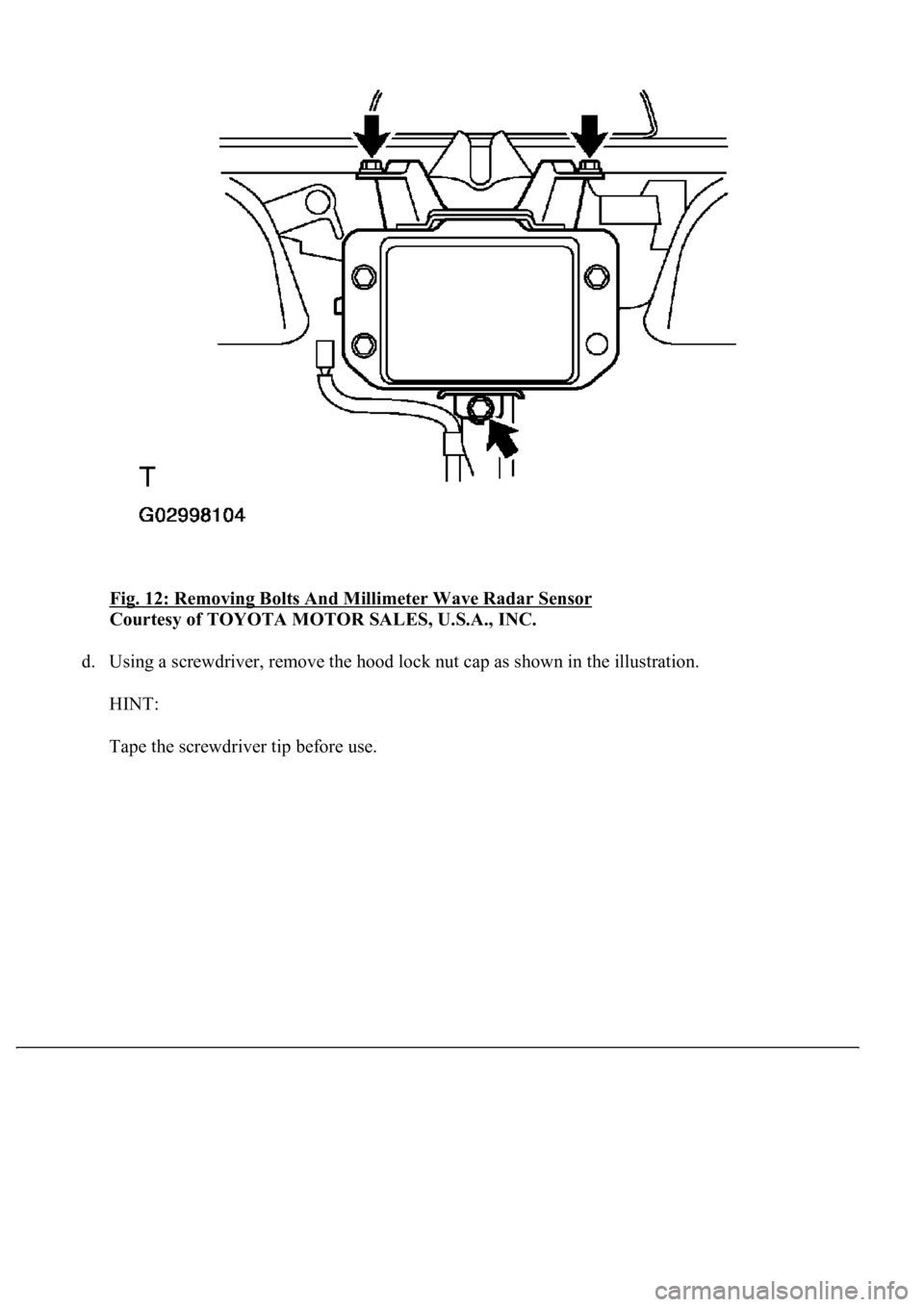

LEXUS LS430 2003 Factory Repair Manual <0029004c004a0011000300140015001d000300350048005000520059004c0051004a000300250052004f00570056000300240051004700030030004c004f004f004c005000480057004800550003003a004400590048000300350044004700440055000

Page 2997 of 4500

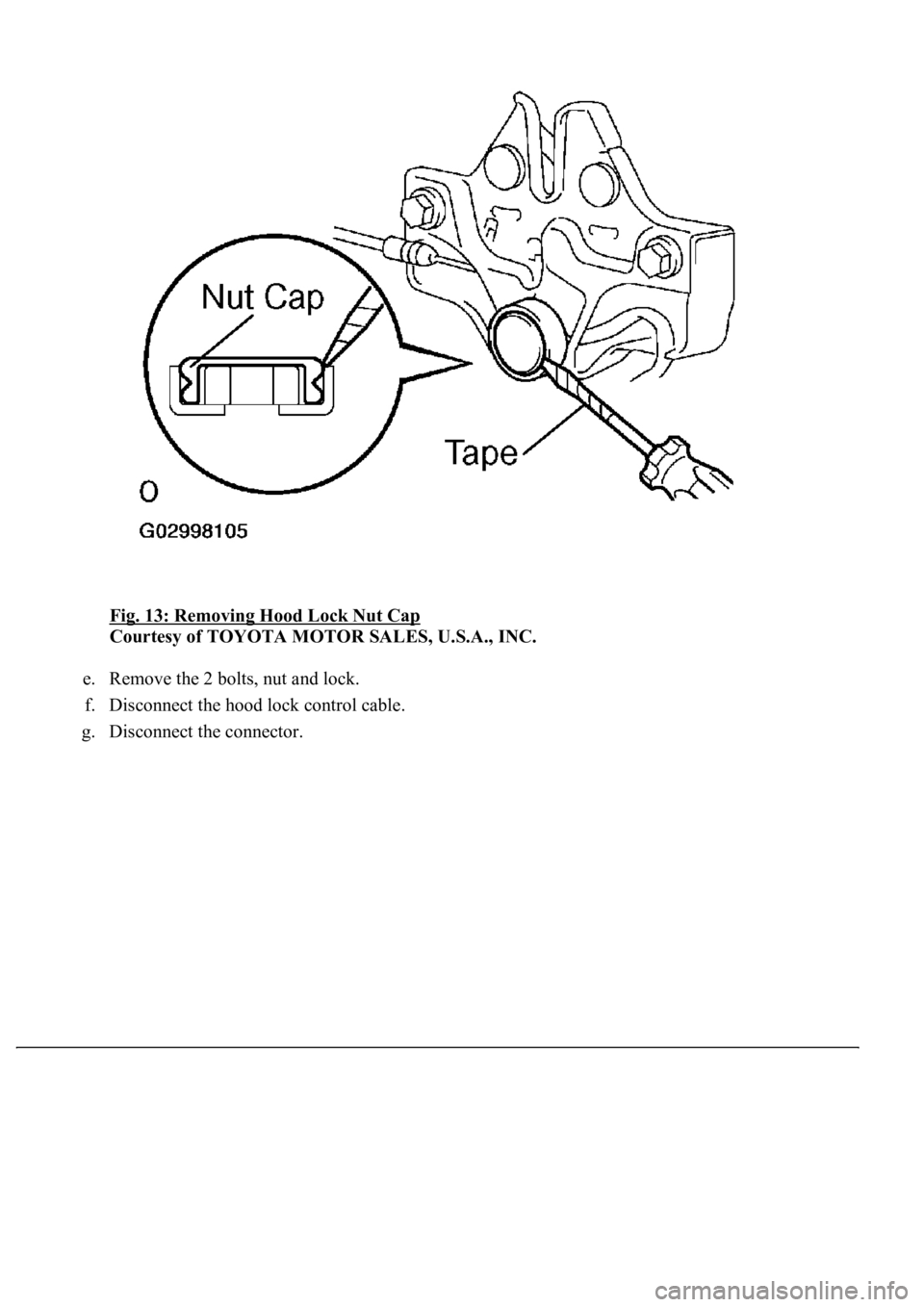

LEXUS LS430 2003 Factory Repair Manual Fig. 13: Removing Hood Lock Nut Cap Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. e. Remove the 2 bolts, nut and lock. f. Disconnect the hood lock control cable. g. Disconnect the connector.

Page 2998 of 4500

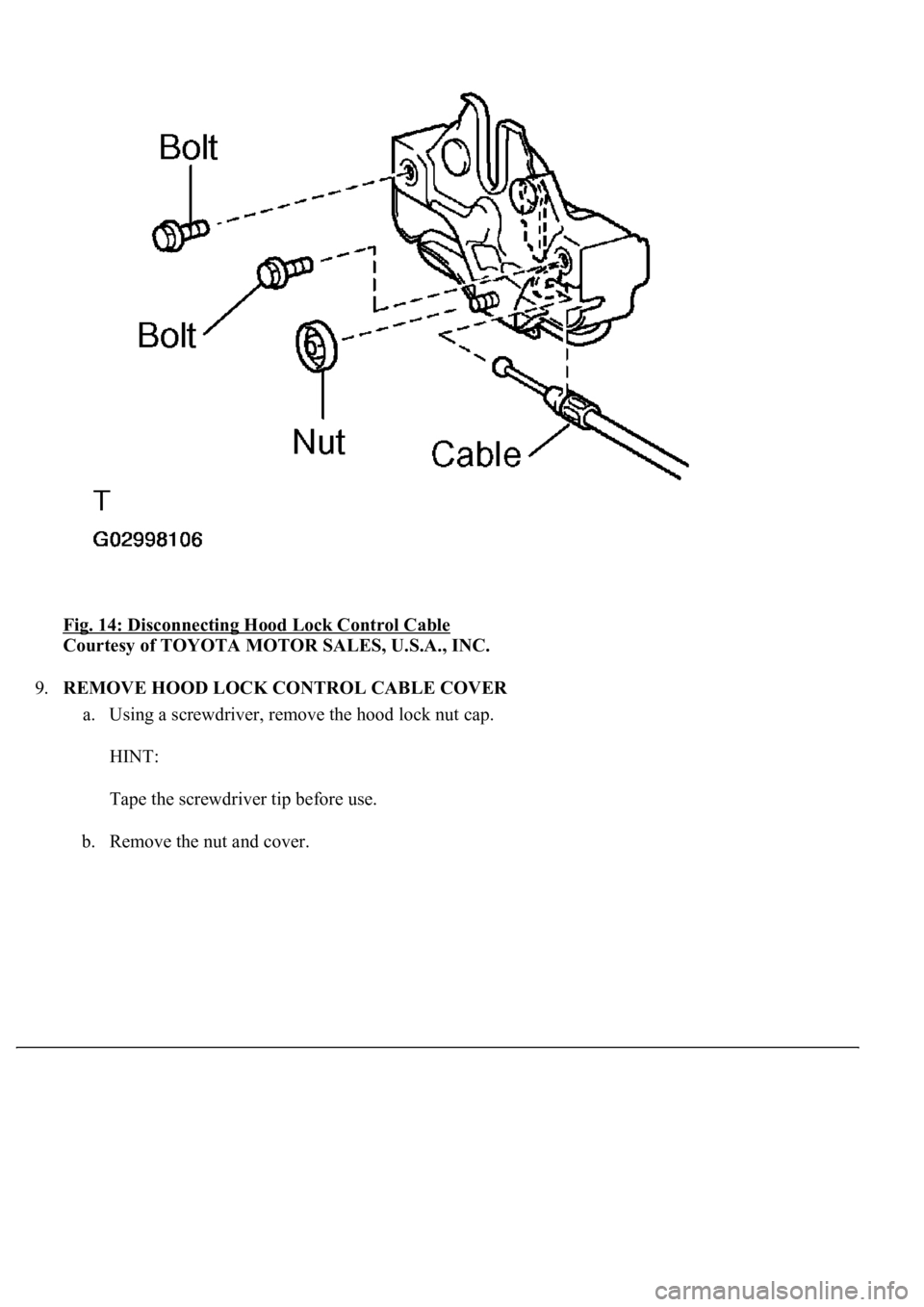

LEXUS LS430 2003 Factory Repair Manual Fig. 14: Disconnecting Hood Lock Control Cable Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.REMOVE HOOD LOCK CONTROL CABLE COVER a. Using a screwdriver, remove the hood lock nut cap. HINT: Tape

Page 2999 of 4500

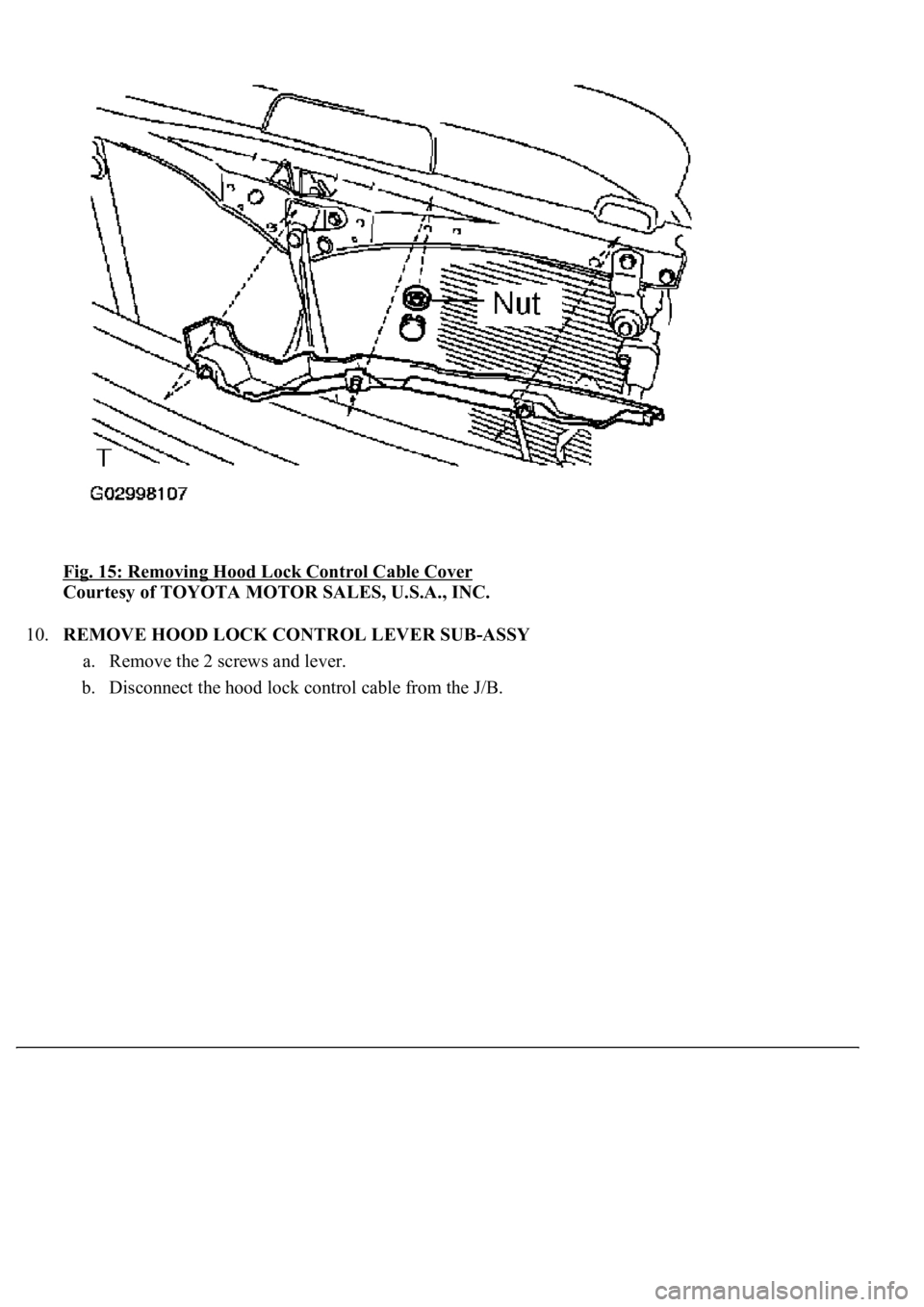

LEXUS LS430 2003 Factory Repair Manual Fig. 15: Removing Hood Lock Control Cable Cover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSY a. Remove the 2 screws and lever. b. Disconnect the hood lo

Page 3000 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Disconnecting Hood Lock Control Cable From J/B Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.REMOVE HOOD LOCK CONTROL CABLE ASSY a. Using a screwdriver, disconnect the cable clamps as sh
