Page 3097 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 110: Removing Screws And Motor Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 19.REMOVE REAR DOOR WINDOW GUIDE SUB-ASSY FRONT LH a. Remove the 2 bolts and guide. HINT: Remove the guide throug

Page 3098 of 4500

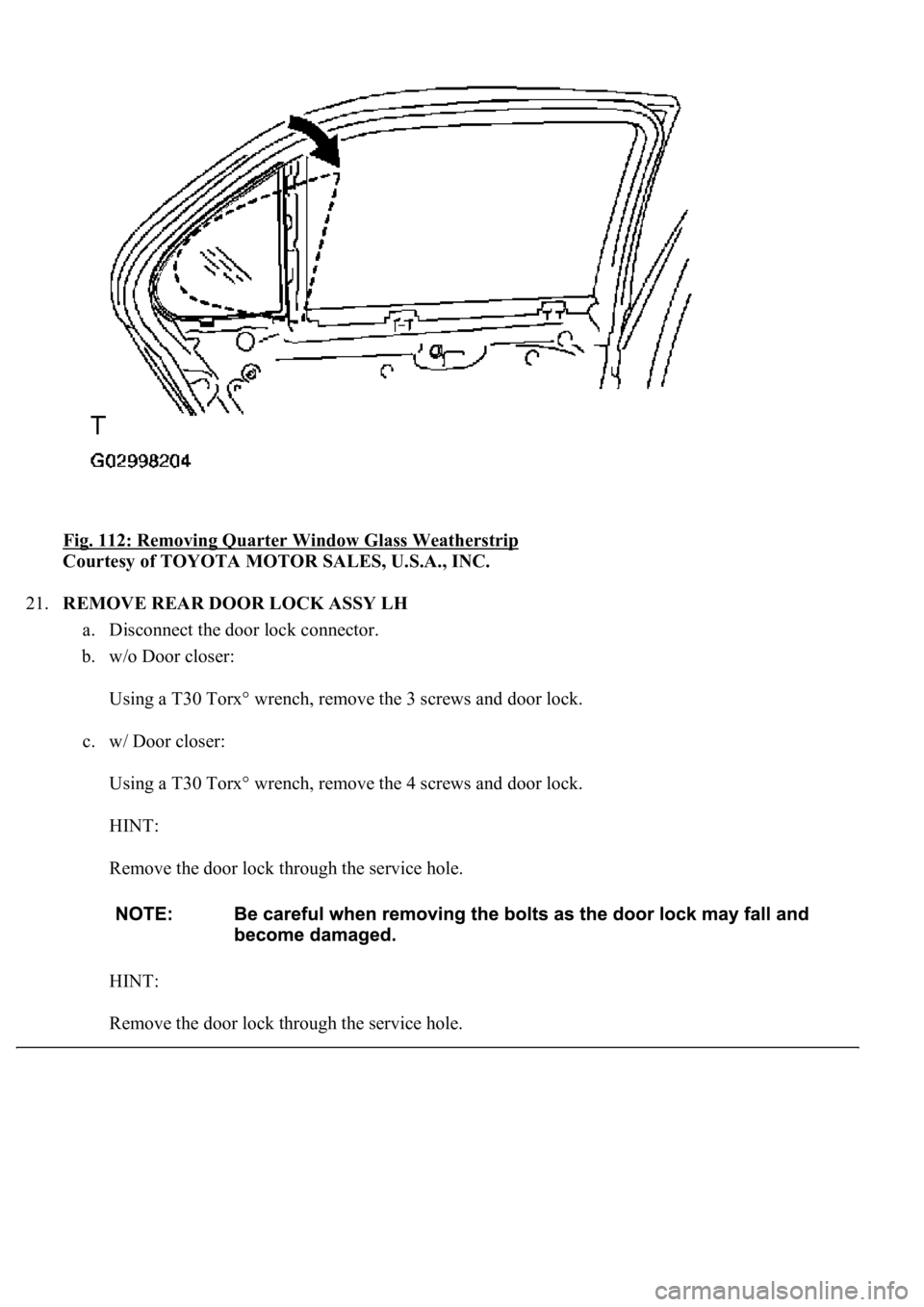

LEXUS LS430 2003 Factory Repair Manual Fig. 111: Removing Rear Door Window Guide Sub-Assy Front LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 20.REMOVE REAR DOOR QUARTER WINDOW GLASS LH a. Remove the window glass in the direction indi

Page 3099 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400140015001d000300350048005000520059004c0051004a000300340058004400550057004800550003003a004c005100470052005a0003002a004f0044005600560003003a004800440057004b0048005500560057005

Page 3100 of 4500

LEXUS LS430 2003 Factory Repair Manual d. Remove the door remote control cable and door inside locking cable. Fig. 113: Removing Door Remote Control Cable And Door Inside Locking Cable Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 3101 of 4500

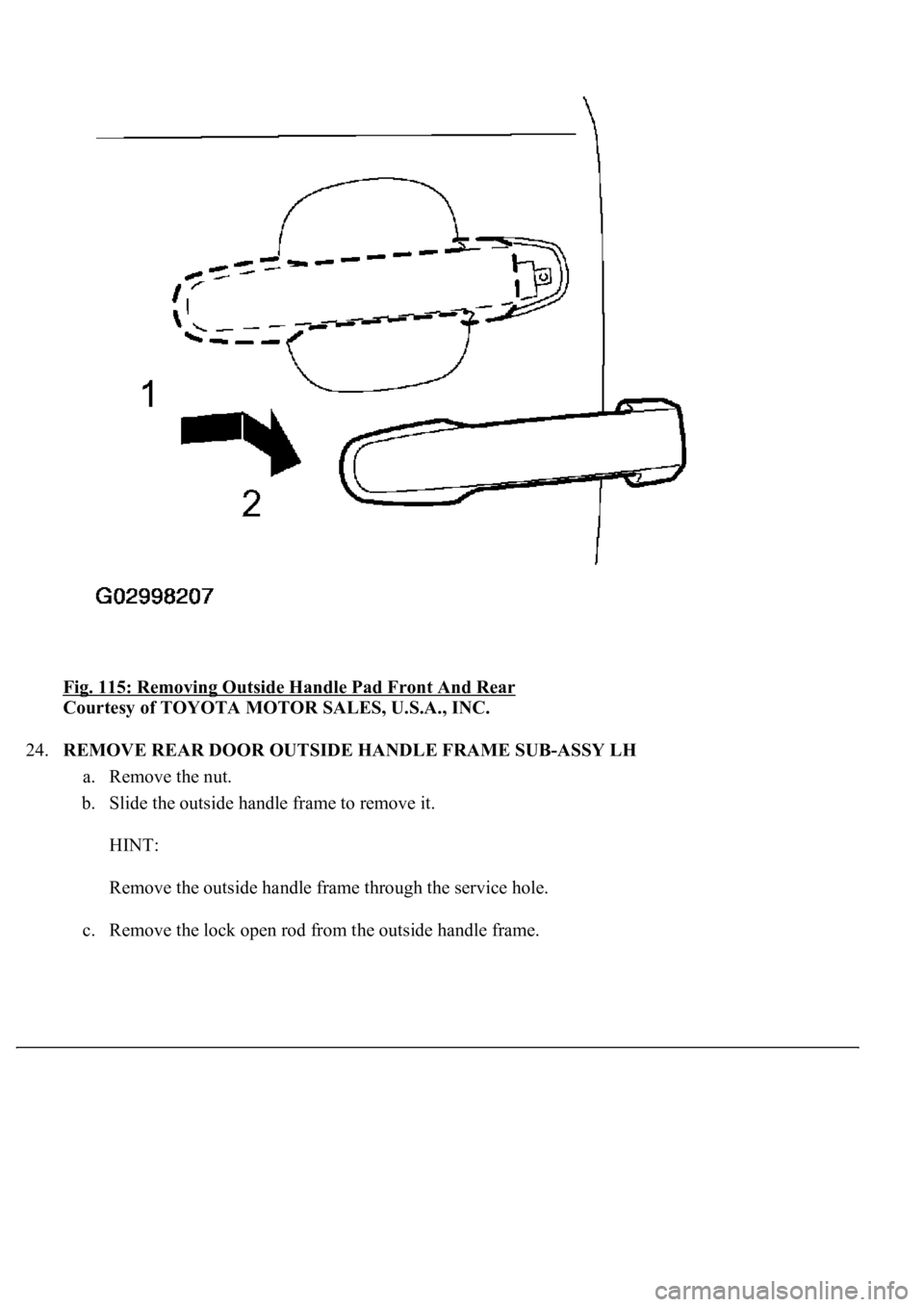

LEXUS LS430 2003 Factory Repair Manual 22.REMOVE DOOR OUTSIDE HANDLE COVER ASSY a. Remove the bolt and cover. Fig. 114: Removing Door Outside Handle Cover Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 23.REMOVE REAR DOOR OUTSIDE

Page 3102 of 4500

LEXUS LS430 2003 Factory Repair Manual <0029004c004a00110003001400140018001d000300350048005000520059004c0051004a00030032005800570056004c004700480003002b004400510047004f00480003003300440047000300290055005200510057000300240051004700030035004

Page 3103 of 4500

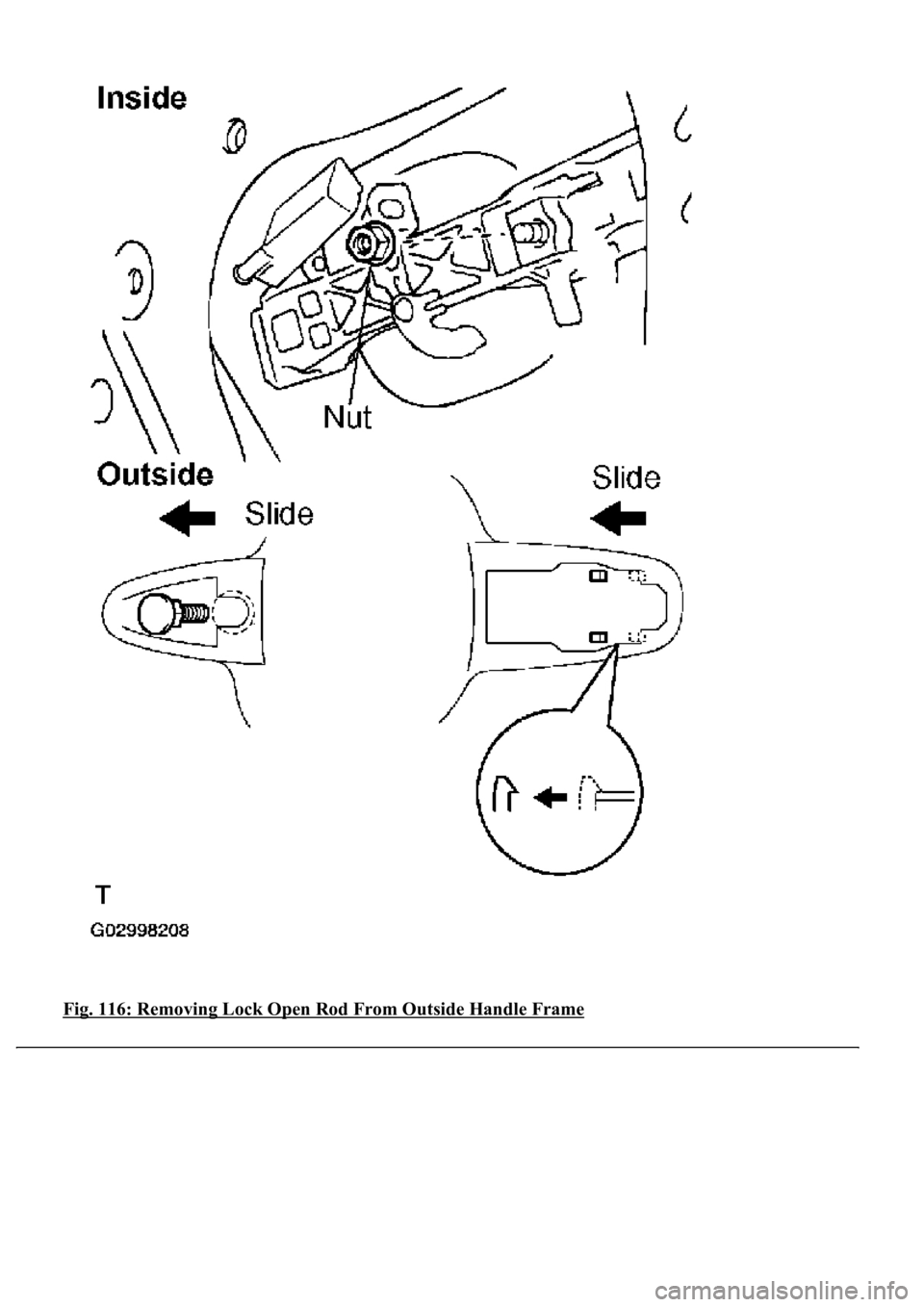

LEXUS LS430 2003 Factory Repair Manual Fig. 116: Removing Lock Open Rod From Outside Handle Frame

Page 3104 of 4500

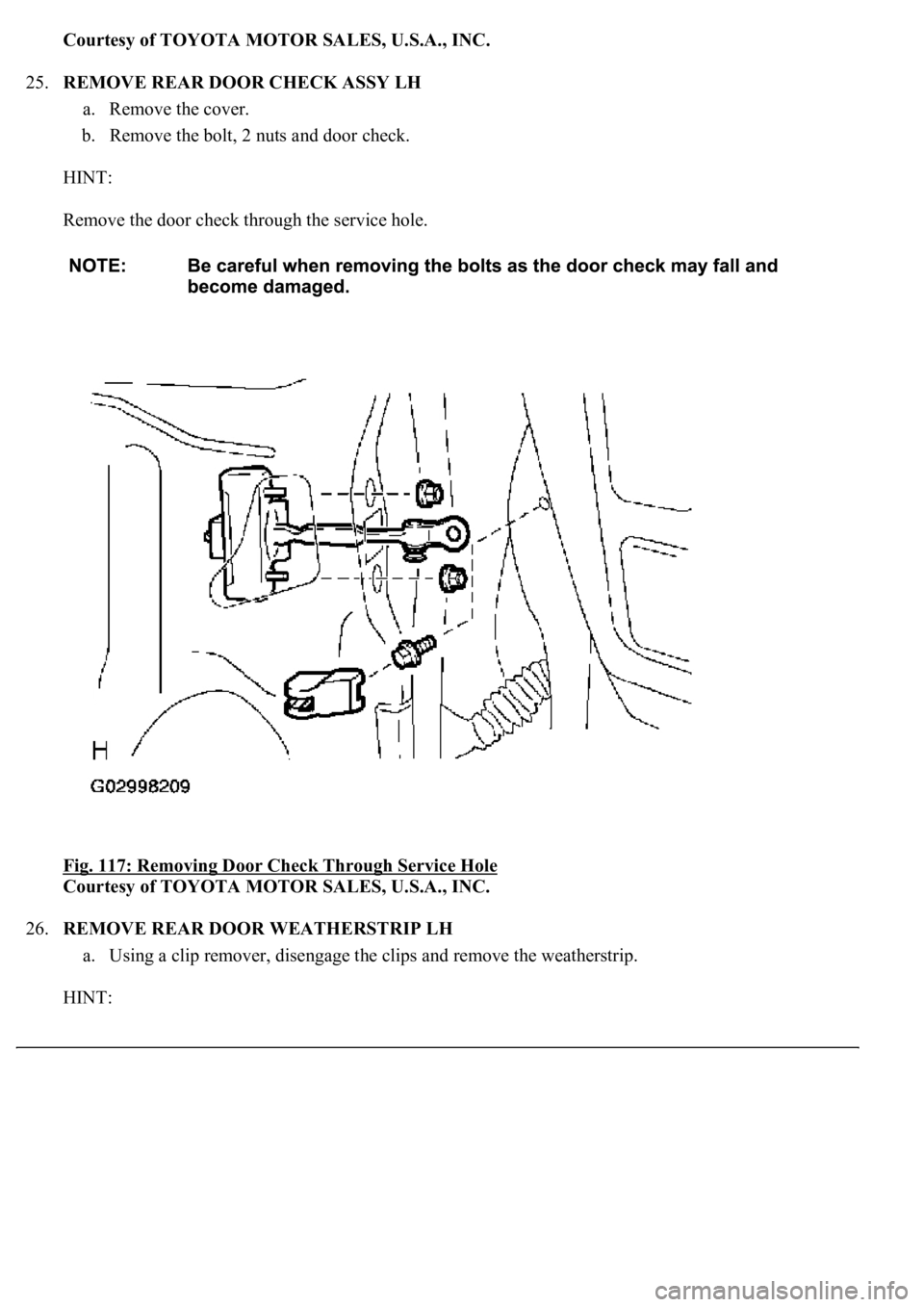

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.REMOVE REAR DOOR CHECK ASSY LH a. Remove the cover. b. Remove the bolt, 2 nuts and door check. HINT: Remove the door check through the service hol
