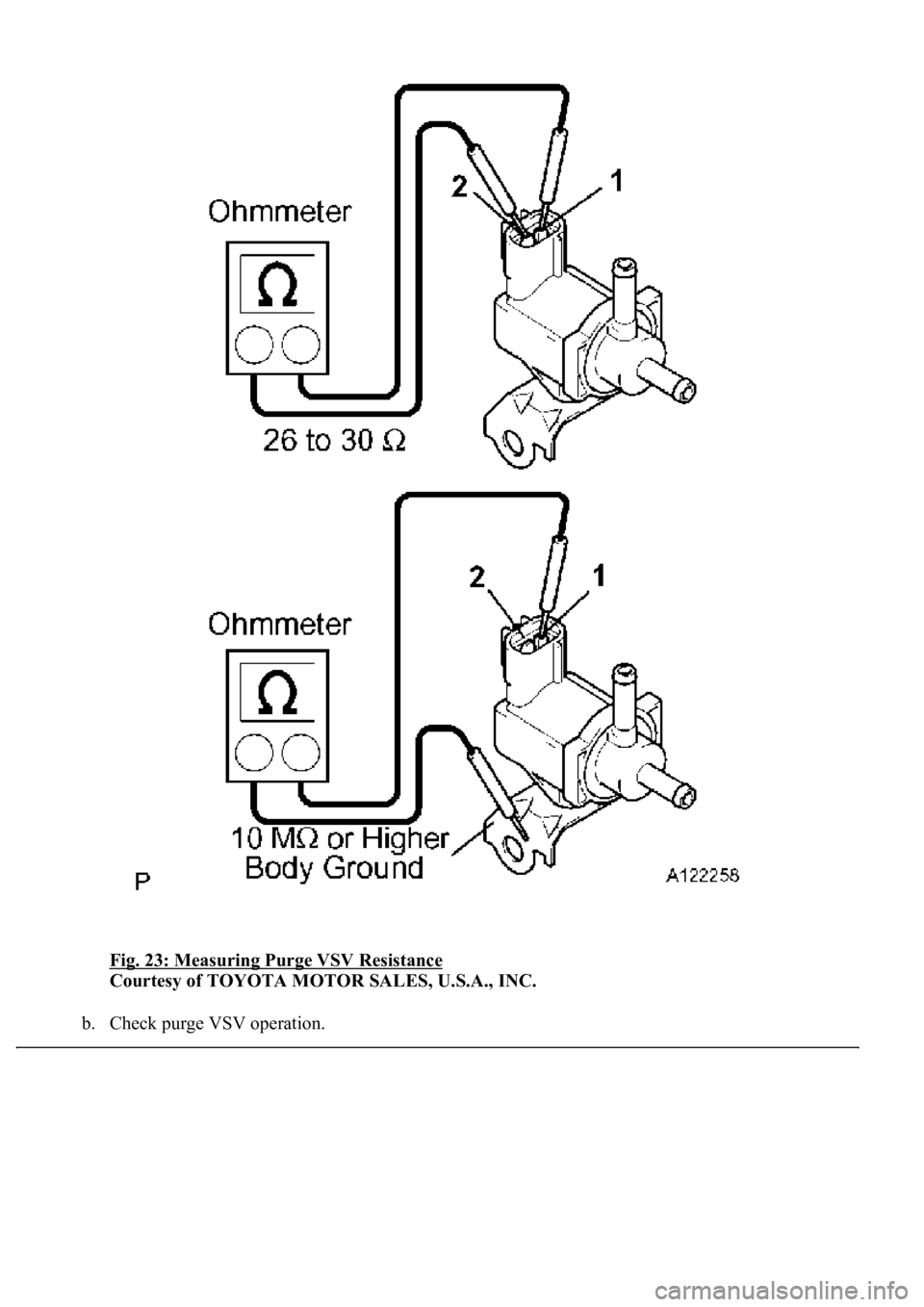

Fig. 23: Measuring Purge VSV Resistance
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Check purge VSV operation.
Page 2930 of 4500
1. Check that air does not flow from port E to port F.
If the result is not as specified, replace the purge VSV.

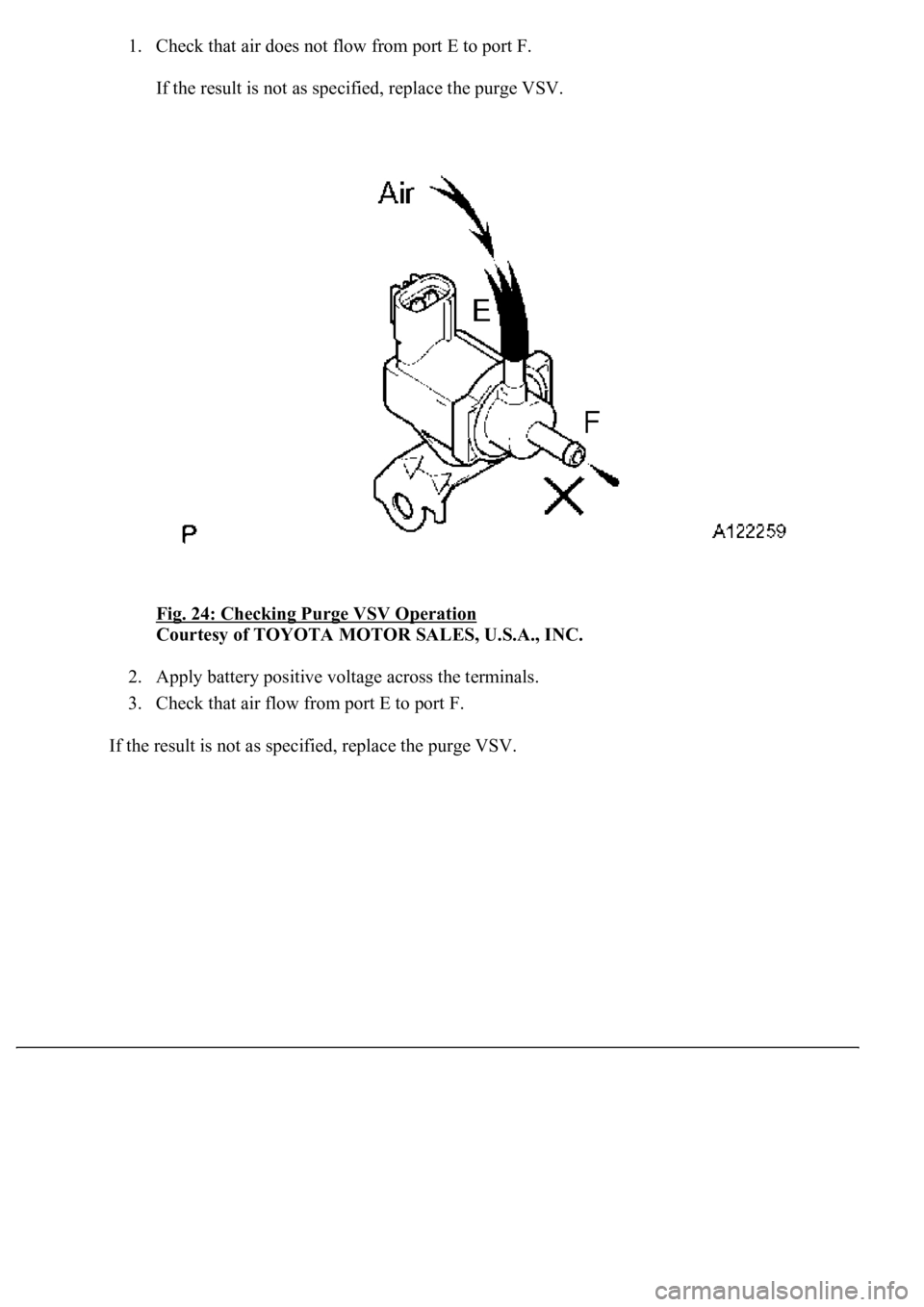

Fig. 24: Checking Purge VSV Operation
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Apply battery positive voltage across the terminals.
3. Check that air flow from port E to port F.
If the result is not as specified, replace the pur
ge VSV.
Page 2931 of 4500

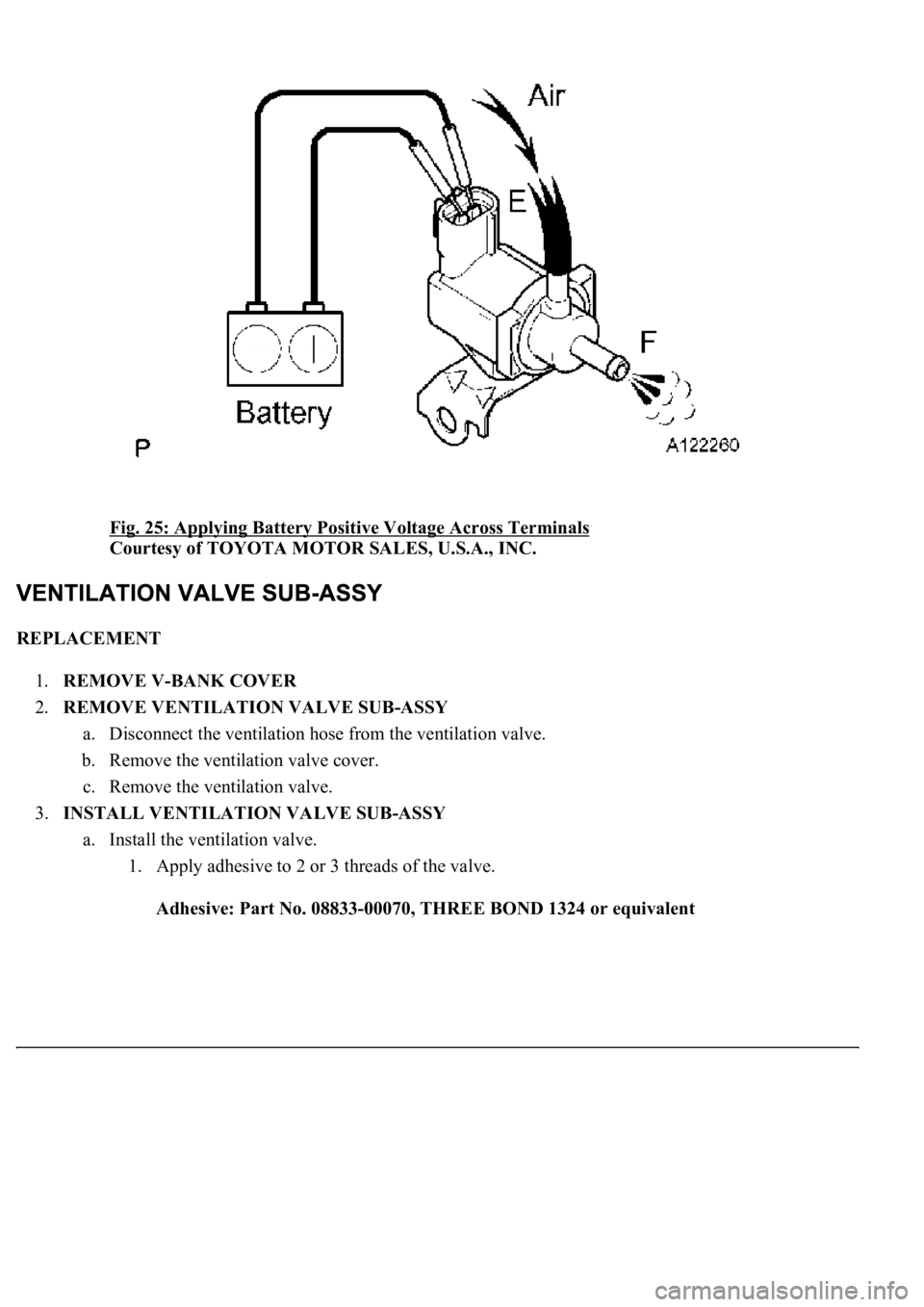

Fig. 25: Applying Battery Positive Voltage Across Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.REMOVE V-BANK COVER
2.REMOVE VENTILATION VALVE SUB-ASSY
a. Disconnect the ventilation hose from the ventilation valve.
b. Remove the ventilation valve cover.
c. Remove the ventilation valve.
3.INSTALL VENTILATION VALVE SUB-ASSY
a. Install the ventilation valve.
1. Apply adhesive to 2 or 3 threads of the valve.
Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent
Page 2932 of 4500
Fig. 26: Applying Adhesive
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Install the valve.
Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)
HINT:
After applying the specified torque, turn the valve clockwise with the port facing the direction
shown in the illustration.
b. Install the ventilation valve cover.
c. Connect the ventilation hose to the valve.
Page 2933 of 4500

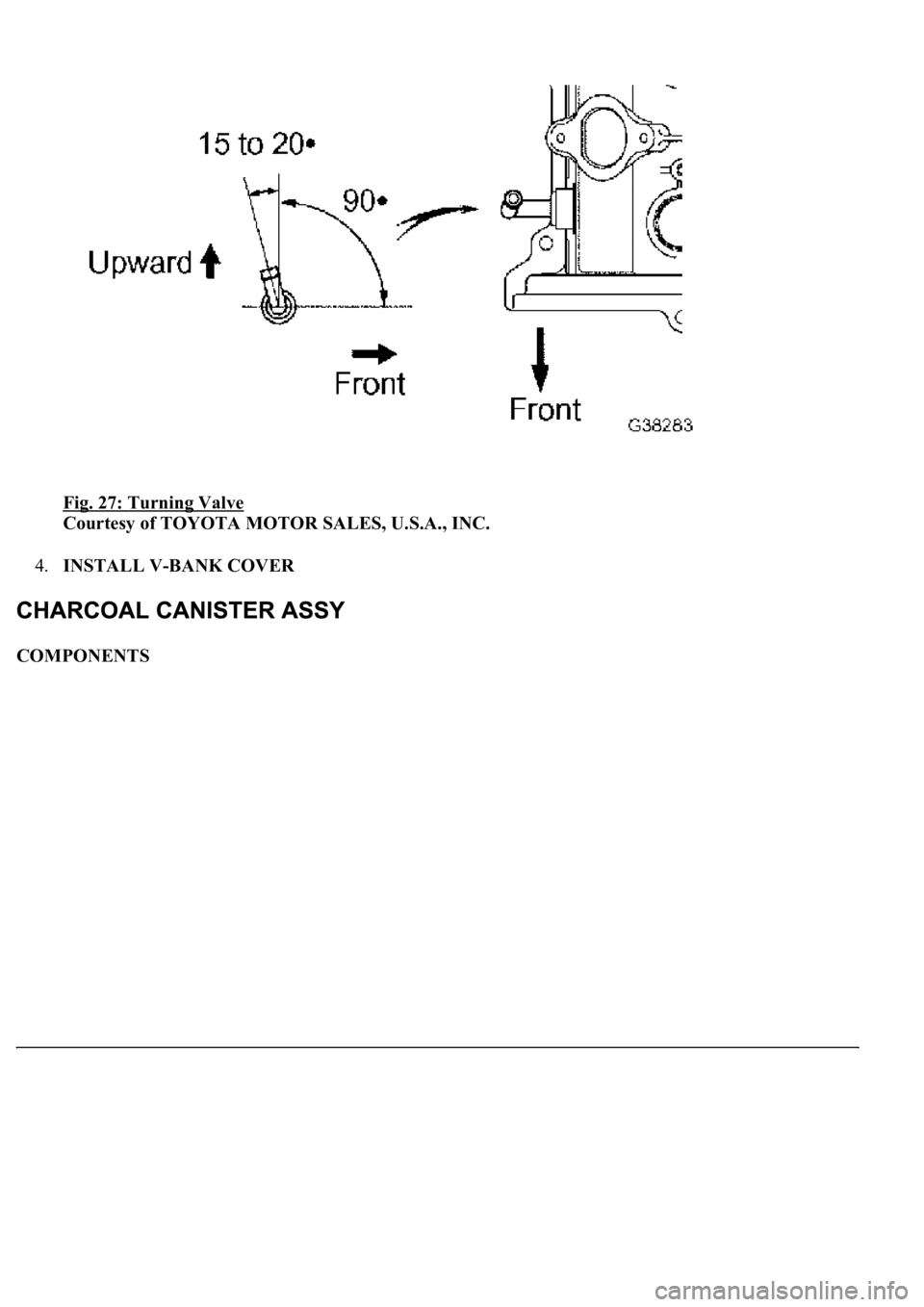

Fig. 27: Turning Valve
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.INSTALL V-BANK COVER
COMPONENTS
Page 2934 of 4500
Fig. 28: Identifying Components Charcoal Canister Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Page 2935 of 4500
2.DISCONNECT REAR DRIVE SHAFT RH (See REAR DRIVE SHAFT )
3.REMOVE CHARCOAL CANISTER ASSY
a. Disconnect the connector.

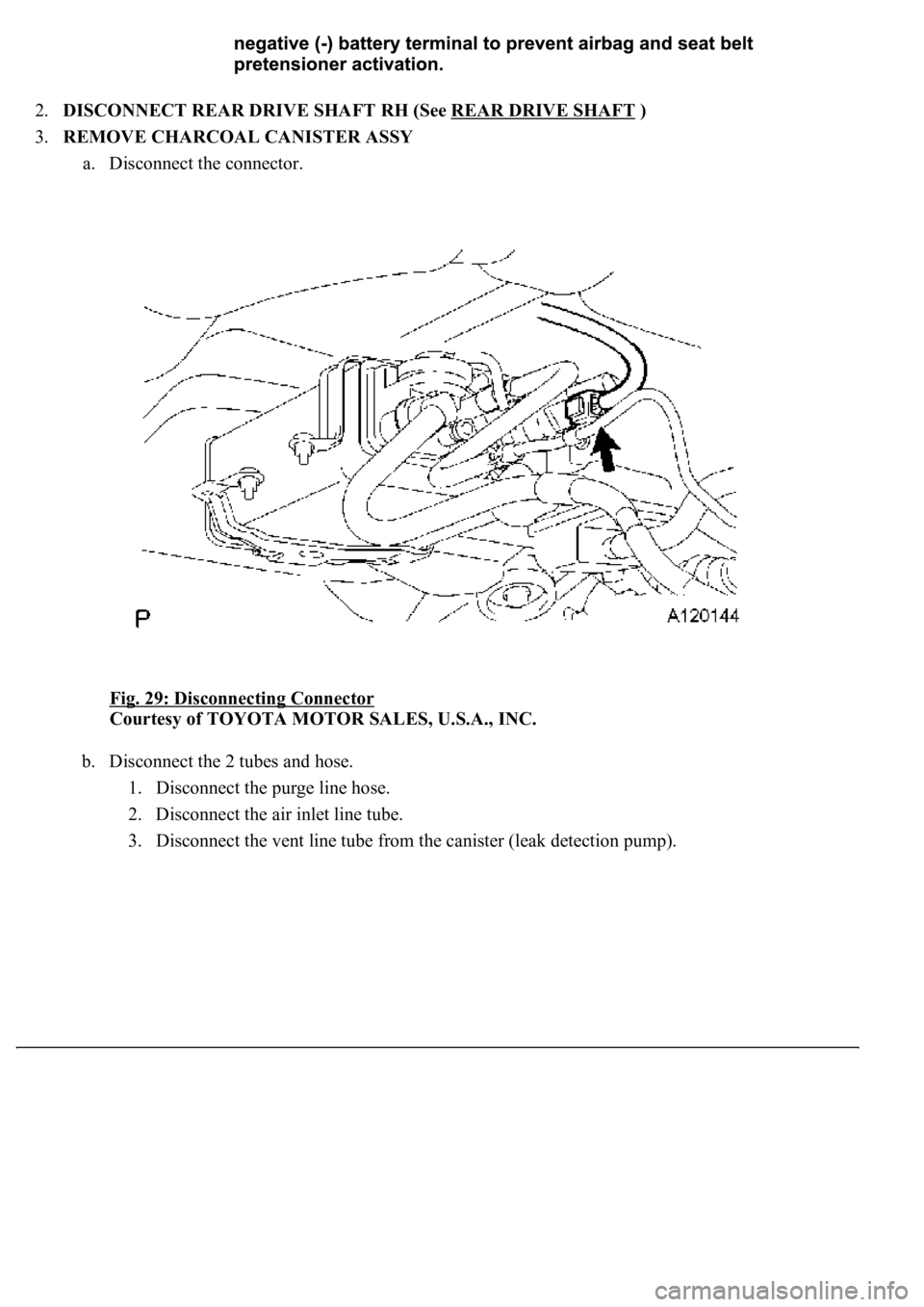

Fig. 29: Disconnecting Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Disconnect the 2 tubes and hose.
1. Disconnect the purge line hose.
2. Disconnect the air inlet line tube.
3. Disconnect the vent line tube from the canister (leak detection pump).
Page 2936 of 4500

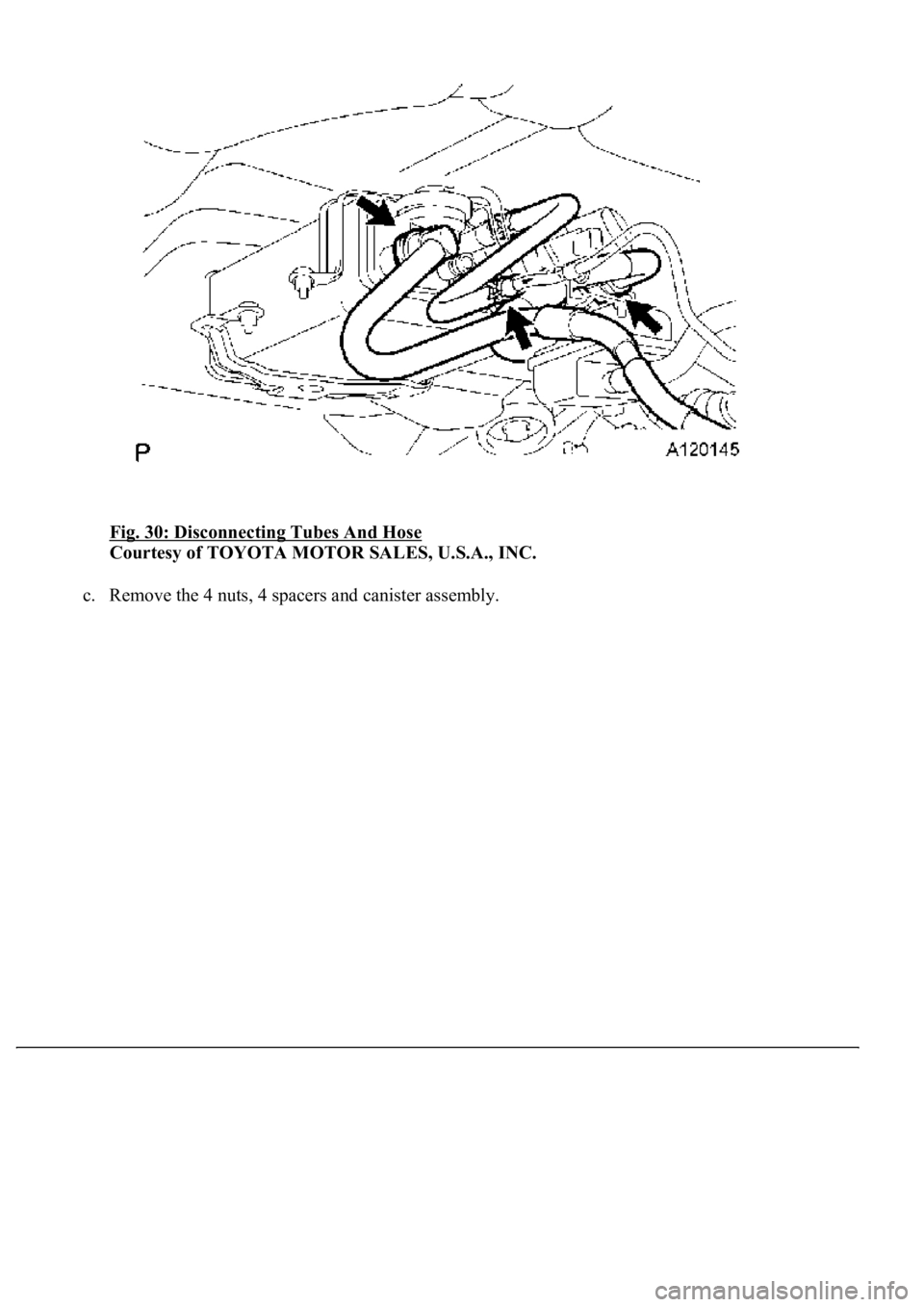

Fig. 30: Disconnecting Tubes And Hose
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Remove the 4 nuts, 4 spacers and canister assembly.
