Page 865 of 4500
Fig. 46: Installing Automatic Transmission Assy To Engine With 9 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the 6 torque converter clutch mounting bolts.
Torque: 48 N.m (490 kgf.cm, 35 ft.lbf)
HINT:
First install the black colored bolt and then the remainin
g 5 bolts.
Page 866 of 4500
Fig. 47: Installing 6 Torque Converter Clutch Mounting Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
42.INSTALL FLYWHEEL HOUSING UNDER COVER
a. Install the fly wheel housing under cover with the 2 bolts.
Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
Page 867 of 4500
Fig. 48: Installing Fly Wheel Housing Under Cover With 2 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

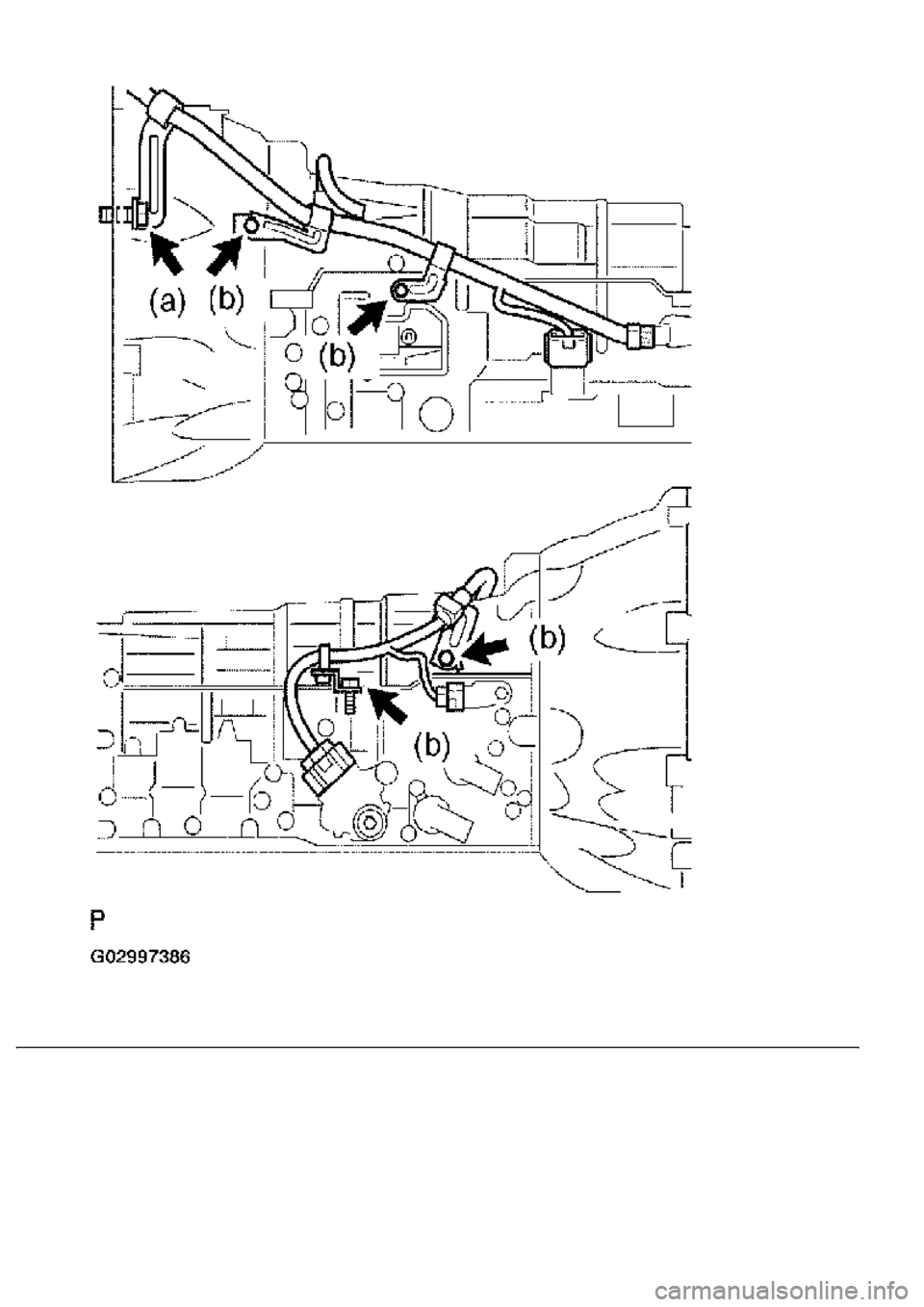

43.INSTALL WIRE HARNESS
a. Install the wire harness clamps with the 5 bolts.
Torque:
Bolt (a): 68 N.m (694 kgf.cm, 51 ft.lbf)
Bolt (b): 7.5 N.m (76 kgf.cm, 66 in..lbf)
HINT:
Bolt (a) is ti
ghtened to the transmission housing.
Page 868 of 4500
Page 869 of 4500
Fig. 49: Installing Wire Harness Clamps With 5 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
44.INSTALL ENGINE REAR MOUNTING MEMBER
a. Install the engine rear mounting member with the 4 nuts.
Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
Fig. 50: Installing Engine Rear Mounting Member With 4 Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the engine rear mounting member with the 4 bolts.
Torque: 26 N.m (270 kgf.cm, 20 ft.lbf)
Page 870 of 4500
Fig. 51: Installing Engine Rear Mounting Member With 4 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
45.CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
a. Connect the floor shift gear shifting rod sub-assy with the nut.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
Page 871 of 4500
<0029004c004a0011000300180015001d00030026005200510051004800460057004c0051004a00030029004f00520052005500030036004b004c004900570003002a00480044005500030036004b004c00490057004c0051004a0003003500520047000300
3600580045[-Assy With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
46.INSTALL OIL COOLER OUTLET TUBE NO.1
a. Temporarily install the oil cooler outlet tube No.1.
b. Temporarily install the oil cooler inlet tube No.1.
c. Install the 2 clamps with the 2 bolts.
Torque: 5 N.m (51 kgf.cm, 43 in..lbf)
Page 872 of 4500
Fig. 53: Installing 2 Clamps With 2 Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Tighten the oil cooler outlet tube No.1.
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
47.INSTALL OIL COOLER INLET TUBE NO.1
a. Tighten the oil cooler inlet tube No.1.
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
48.INSTALL EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSY
a. Install the exhaust pipe No.1 support bracket sub-assy with the 2 bolts.
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
