Page 3825 of 4500

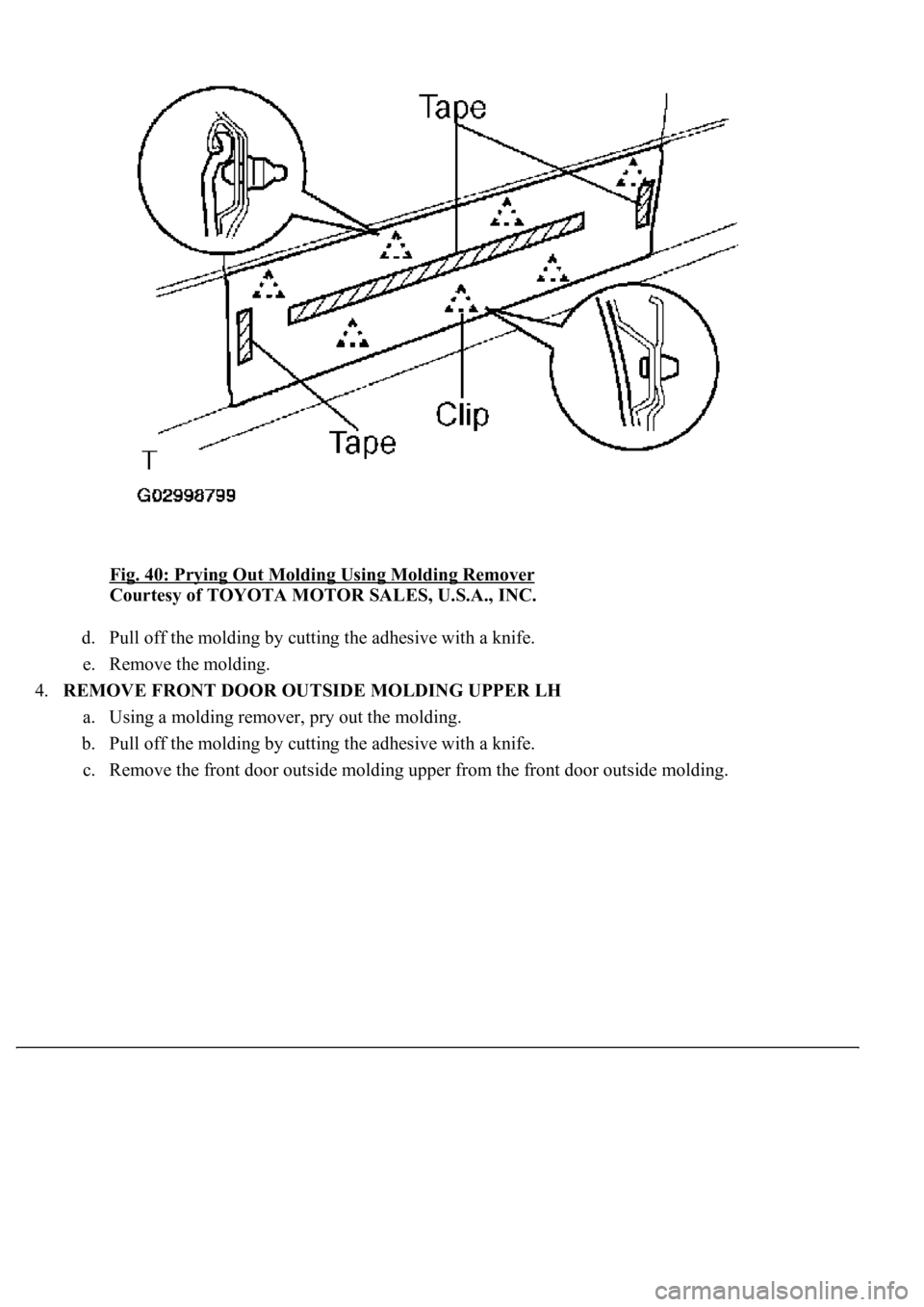

LEXUS LS430 2003 Factory Repair Manual Fig. 40: Prying Out Molding Using Molding Remover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Pull off the molding by cutting the adhesive with a knife. e. Remove the molding. 4.REMOVE FRONT

Page 3826 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 41: Removing Front Door Outside Molding Upper LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.REMOVE FRONT DOOR OUTSIDE MOLDING LOWER LH a. Remove the 5 screws and front door outside moldin

Page 3827 of 4500

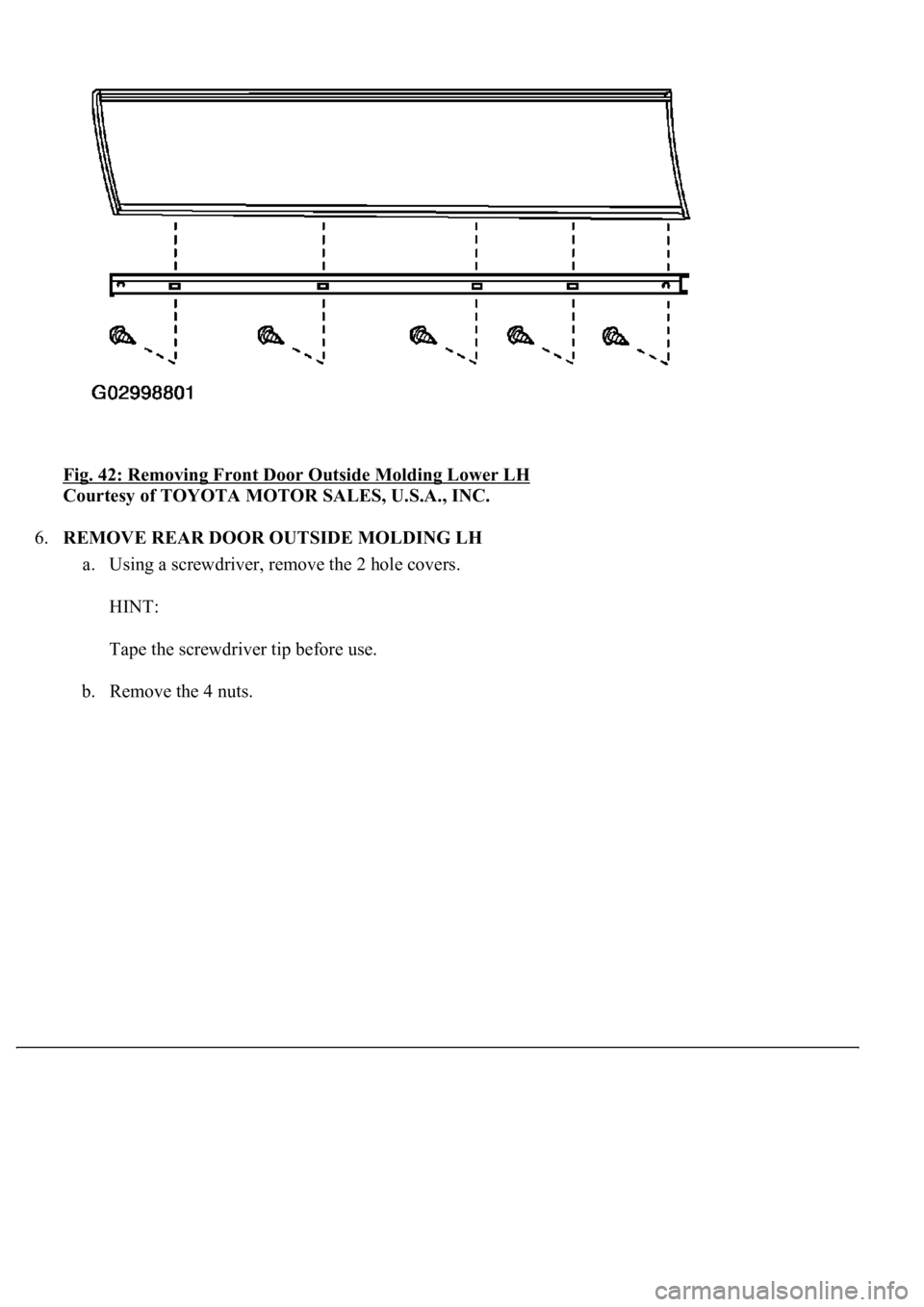

LEXUS LS430 2003 Factory Repair Manual Fig. 42: Removing Front Door Outside Molding Lower LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 6.REMOVE REAR DOOR OUTSIDE MOLDING LH a. Using a screwdriver, remove the 2 hole covers. HINT: Ta

Page 3828 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 43: Removing 4 Nuts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. c. Usin g a molding remover, pry out the molding.

Page 3829 of 4500

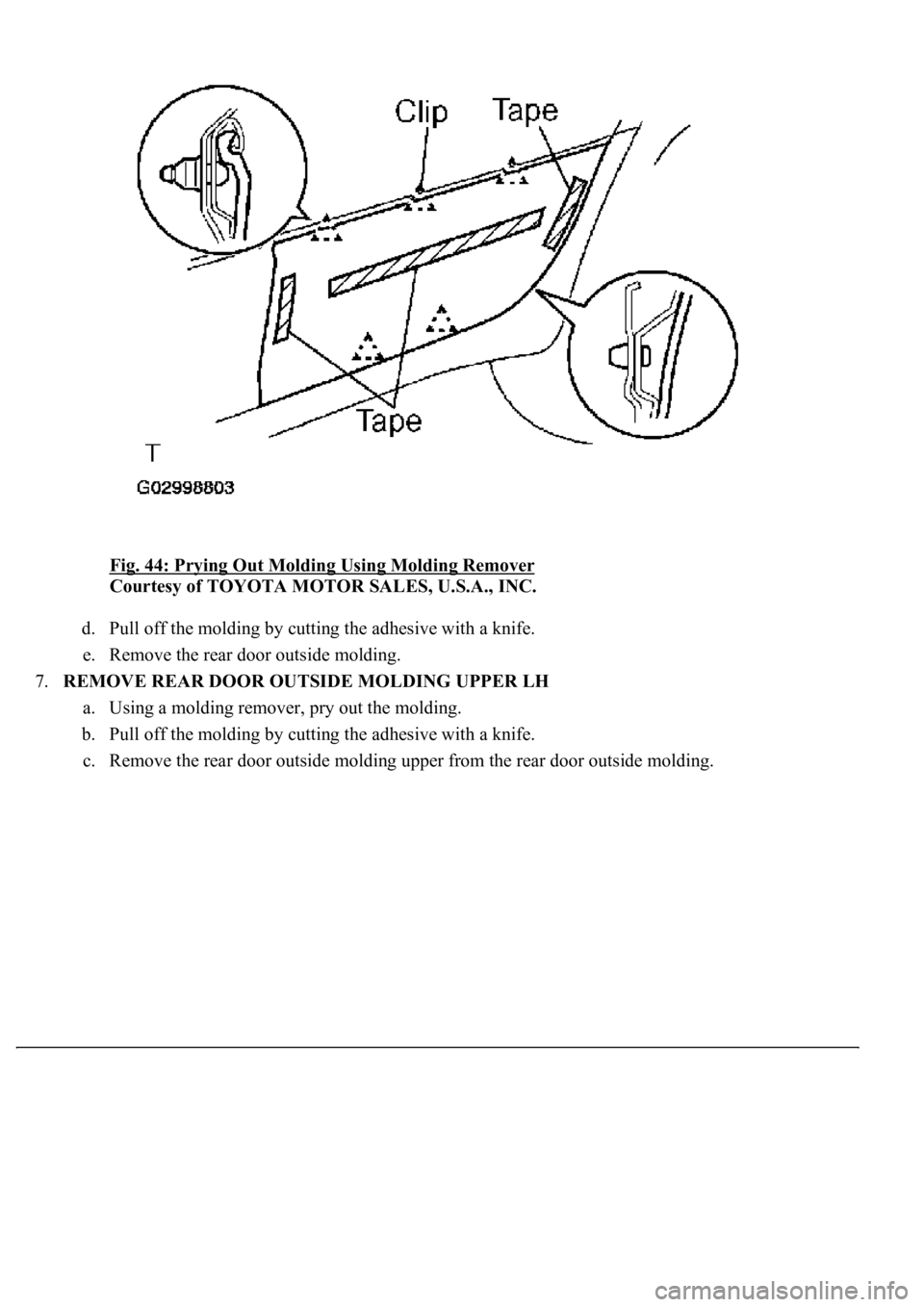

LEXUS LS430 2003 Factory Repair Manual Fig. 44: Prying Out Molding Using Molding Remover Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. d. Pull off the molding by cutting the adhesive with a knife. e. Remove the rear door outside molding

Page 3830 of 4500

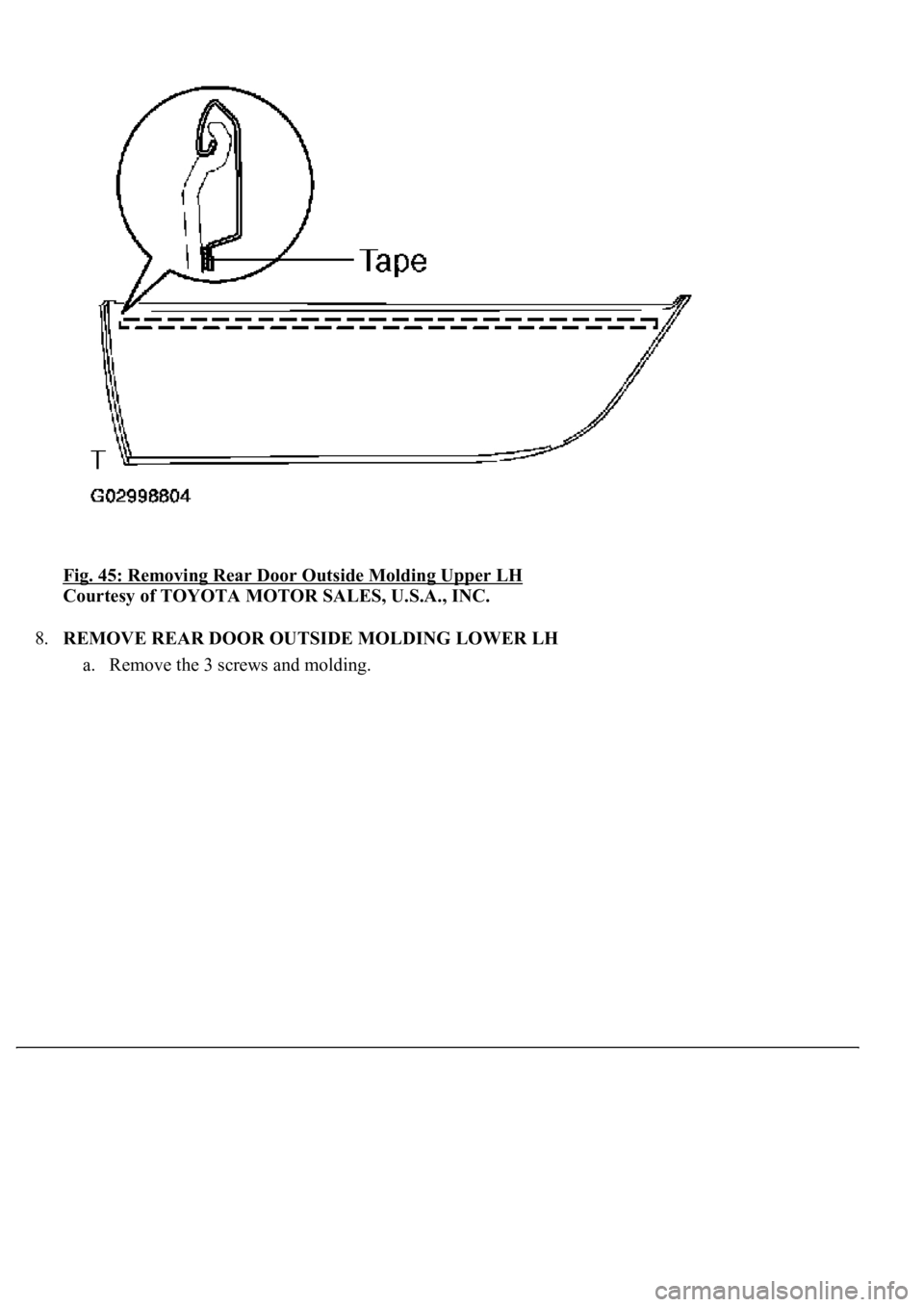

LEXUS LS430 2003 Factory Repair Manual Fig. 45: Removing Rear Door Outside Molding Upper LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 8.REMOVE REAR DOOR OUTSIDE MOLDING LOWER LH a. Remove the 3 screws and moldin g.

Page 3831 of 4500

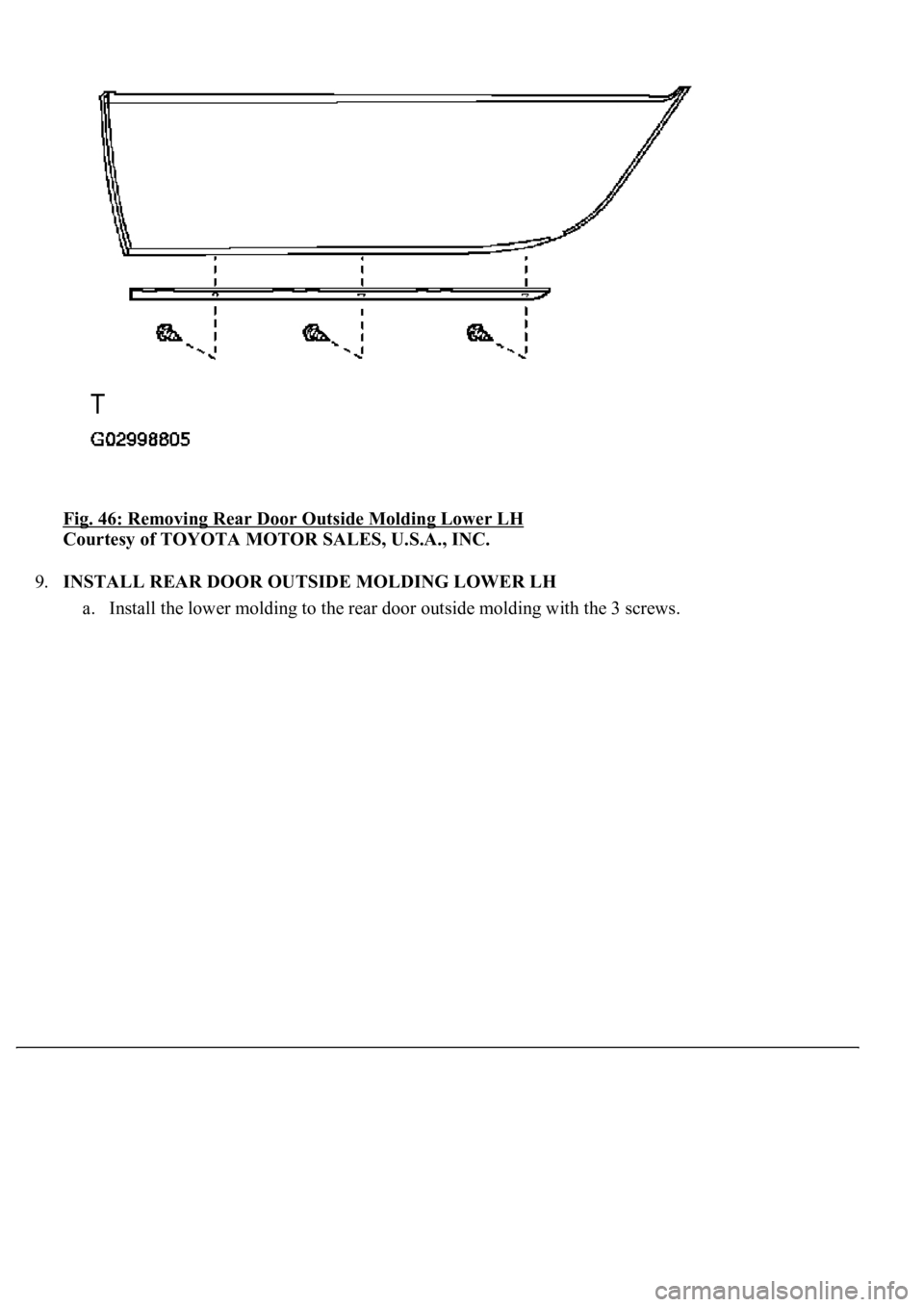

LEXUS LS430 2003 Factory Repair Manual Fig. 46: Removing Rear Door Outside Molding Lower LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSTALL REAR DOOR OUTSIDE MOLDING LOWER LH a. Install the lower moldin g to the rear door outside

Page 3832 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 47: Installing Rear Door Outside Molding Lower LH Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSTALL REAR DOOR OUTSIDE molding UPPER LH a. Clean the body surface. 1. Using a heat light,
