Page 1809 of 4500

LEXUS LS430 2003 Factory Repair Manual

Page 1810 of 4500

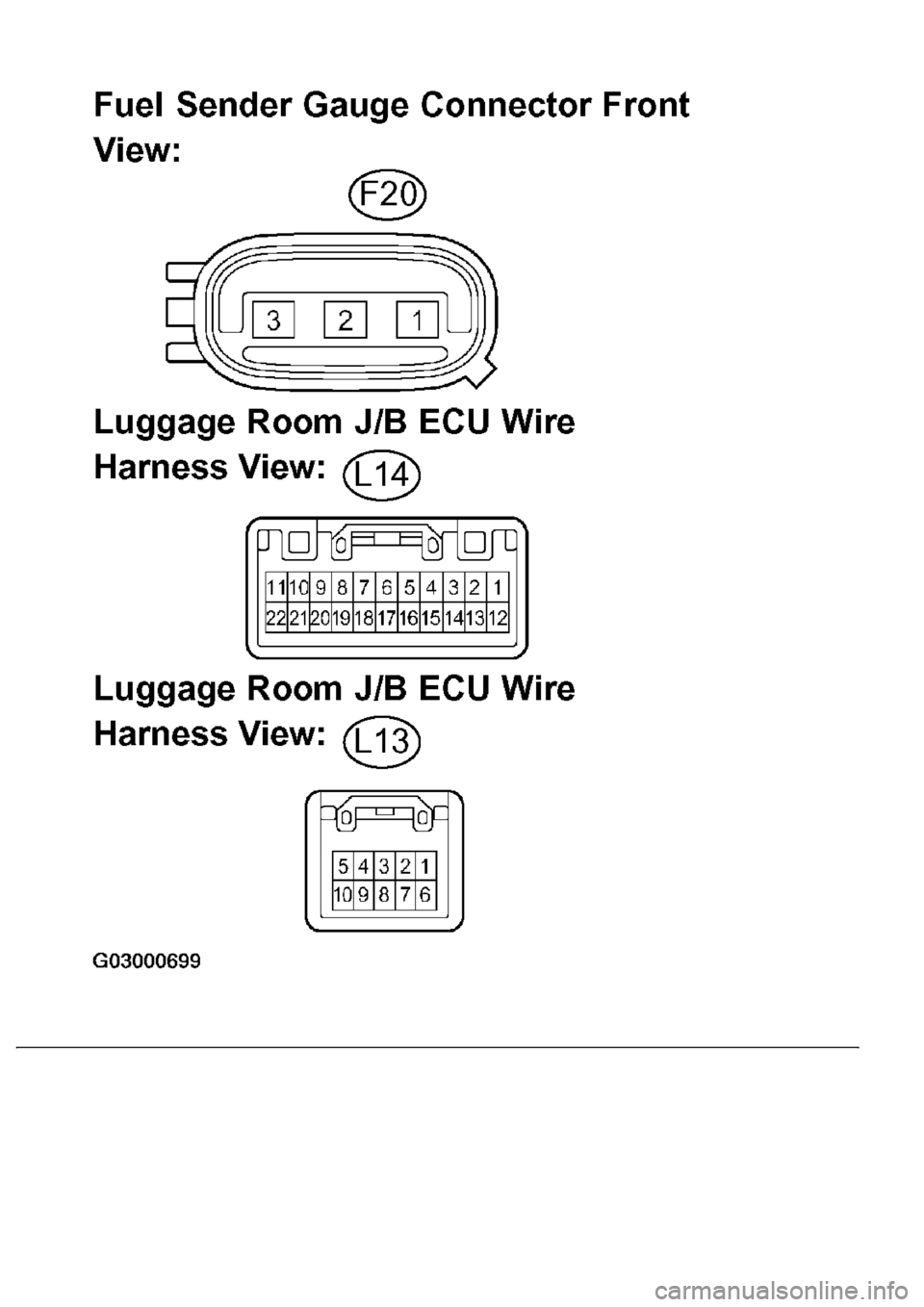

LEXUS LS430 2003 Factory Repair Manual Fig. 63: Identifying Fuel Sender Gauge Assy And Luggage Room Junction Block Assy Connector Terminals Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR OK: RE

Page 1811 of 4500

LEXUS LS430 2003 Factory Repair Manual OK: Needle indication is normal. NG: REPLACE COMBINATION METER ASSY (SEE OVERHAUL ) OK: GO TO NEXT STEP 2.READ VALUE OF HAND-HELD TESTER (ENGINE COOLANT) a. Operate the hand-held tester acco

Page 1812 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 65: Driver'S Seat Belt Warning Lamp Wiring Diagram Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. INSPECTION PROCEDURE HINT: If there is an open in the ground circuit (Airbag sensor assy ce

Page 1813 of 4500

LEXUS LS430 2003 Factory Repair Manual 2.READ VALUE OF HAND-HELD TESTER (DRIVER SEAT BELT) a. Operate the hand-held tester according to the steps on the display and select the "DATA LIST". SRS AIRBAG: Fig. 66: SRS Airbag Data

Page 1814 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 67: Identifying Front Seat Inner Belt Assy (Driver Side) Connector Front View Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: GO TO NEXT STEP 4.CHECK HARNESS AND CONNECTOR (FRONT SEAT INNER

Page 1815 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 68: Identifying Front Seat Inner Belt Assy (Driver Side) Connector Wire Harness View Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. OK: GO TO NEXT STEP 5.CHECK HARNESS AND CONNECTOR (FRONT SEAT

Page 1816 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 69: Identifying B4 And A23 Connector Terminals
