Page 4185 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 2: Selecting Garage Door Opener Switch For Transmitter Code Registration Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2. Press and hold the selected switch for 20 seconds. The garage door opene

Page 4186 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 3: Holding Garage Door Opener Switches Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 4. If the transmitter code registration was successful, the LED of the garage door opener flashes at a cycle

Page 4187 of 4500

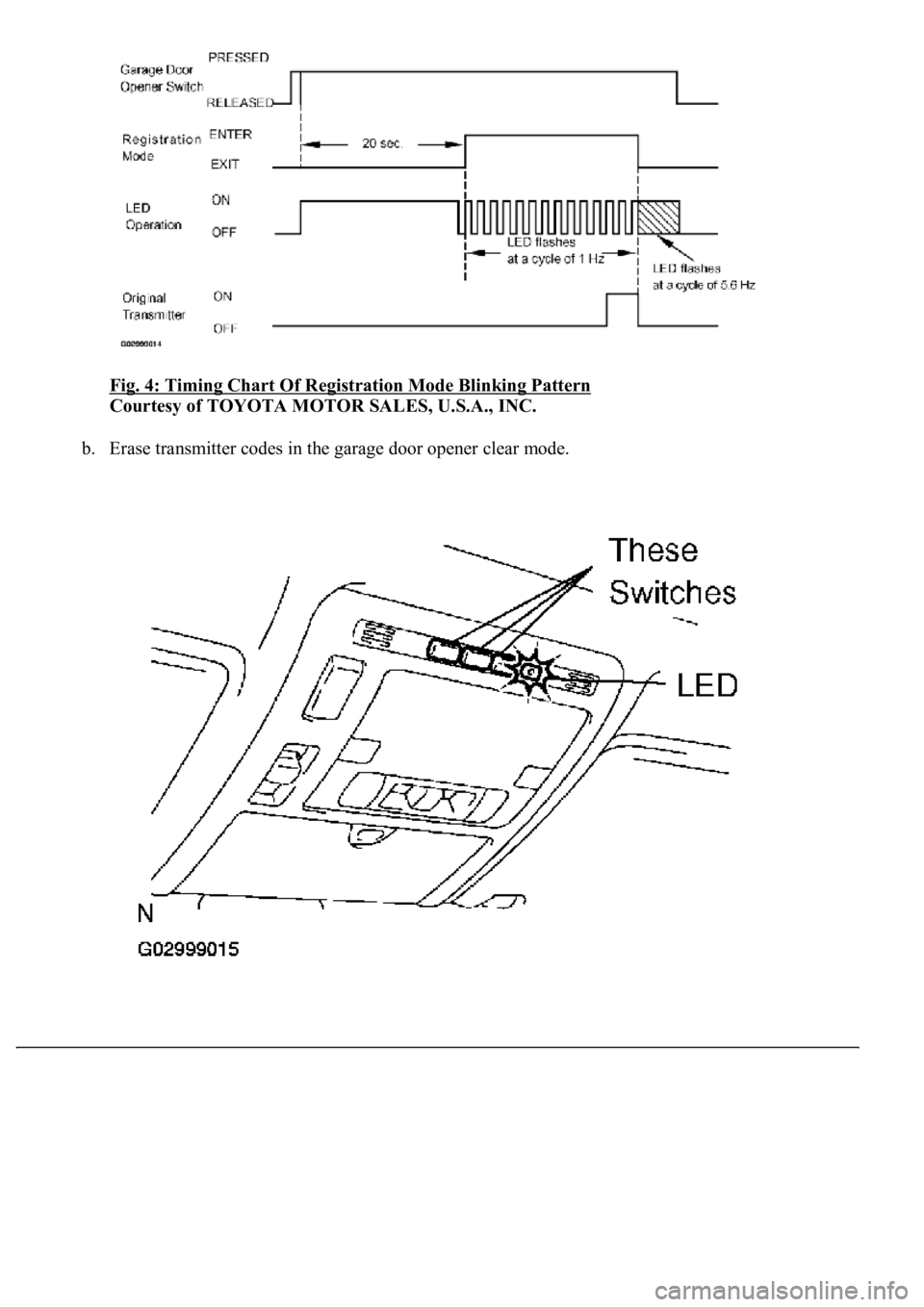

LEXUS LS430 2003 Factory Repair Manual Fig. 4: Timing Chart Of Registration Mode Blinking Pattern Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Erase transmitter codes in the garage door opener clear mode.

Page 4188 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 5: Erasing Transmitter Codes In Garage Door Opener Clear Mode Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. HINT: All 3 registered transmitter codes will be erased. No option exists for only er

Page 4189 of 4500

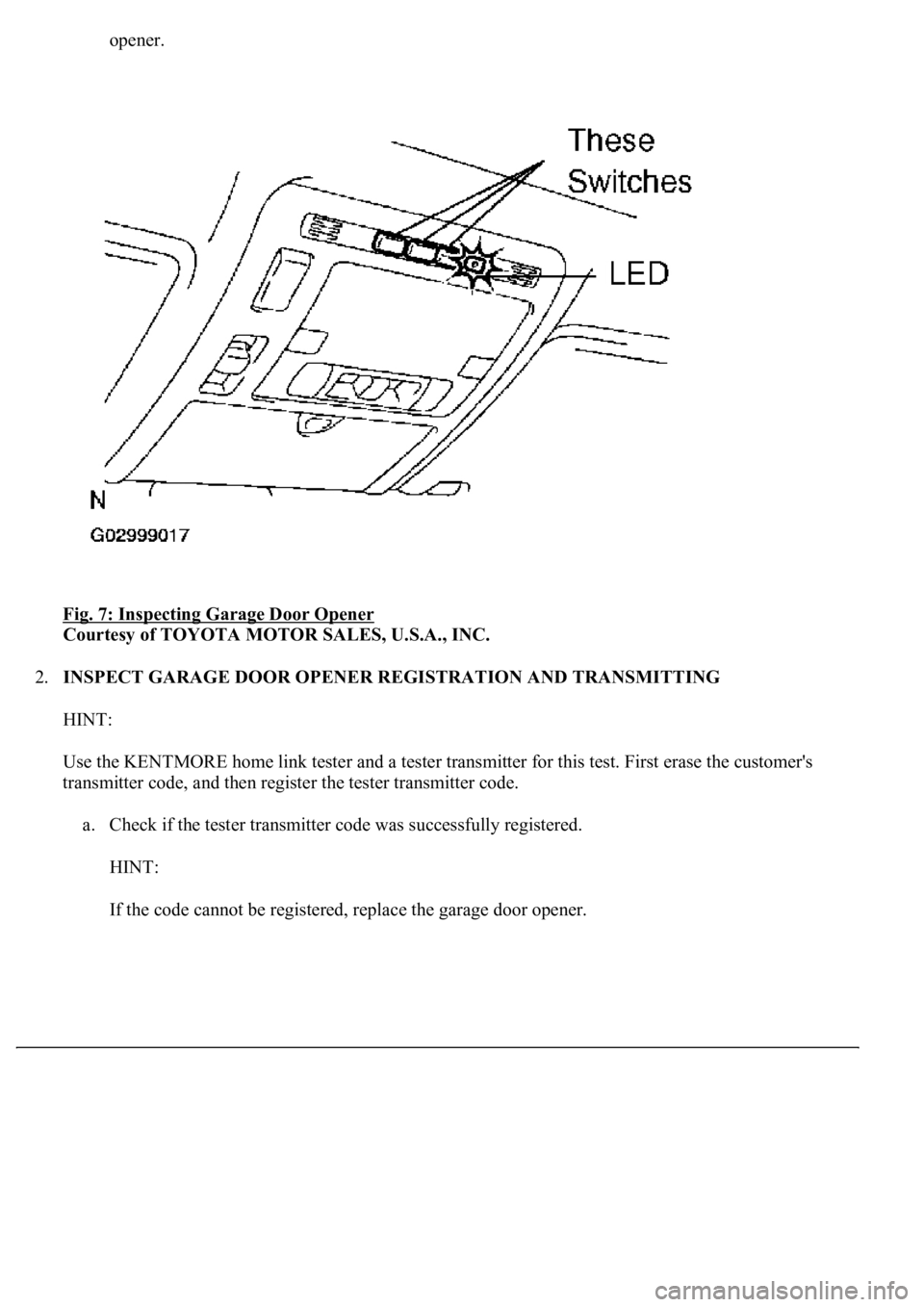

LEXUS LS430 2003 Factory Repair Manual opener. Fig. 7: Inspecting Garage Door Opener Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 2.INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING HINT: Use the KENTMORE home link tester and

Page 4190 of 4500

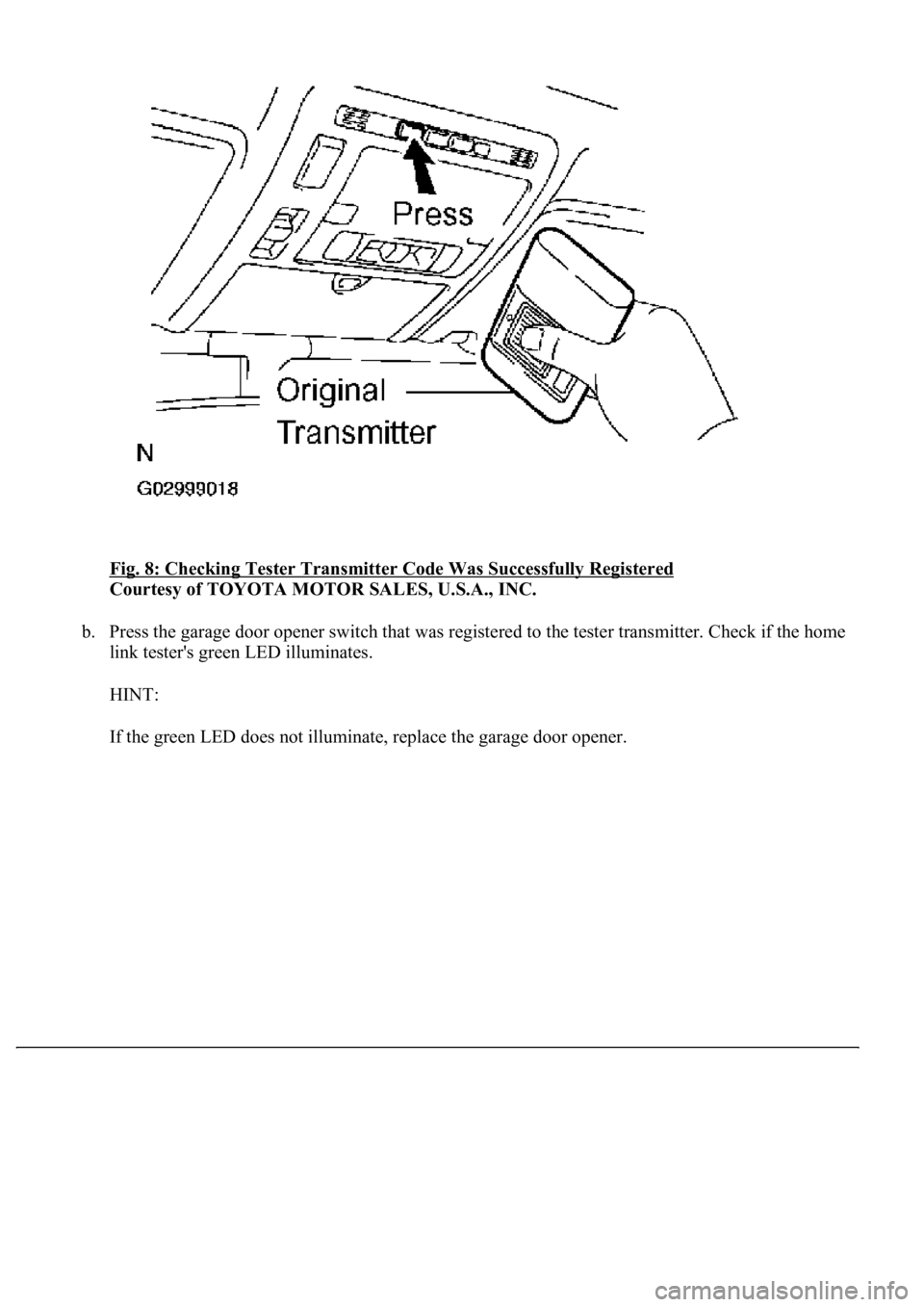

LEXUS LS430 2003 Factory Repair Manual Fig. 8: Checking Tester Transmitter Code Was Successfully Registered Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. b. Press the garage door opener switch that was registered to the tester transmitter

Page 4191 of 4500

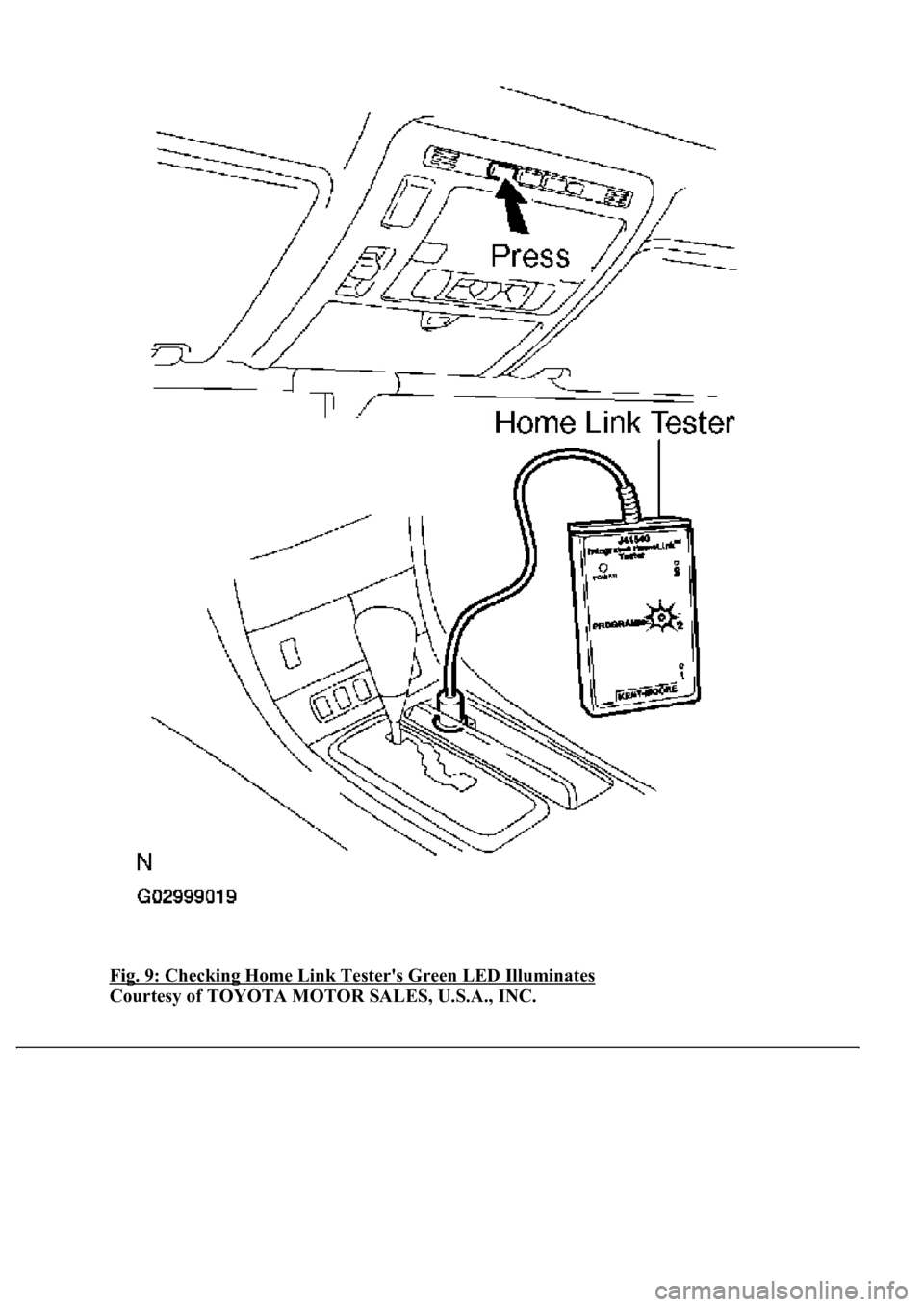

LEXUS LS430 2003 Factory Repair Manual Fig. 9: Checking Home Link Tester's Green LED Illuminates Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 4192 of 4500

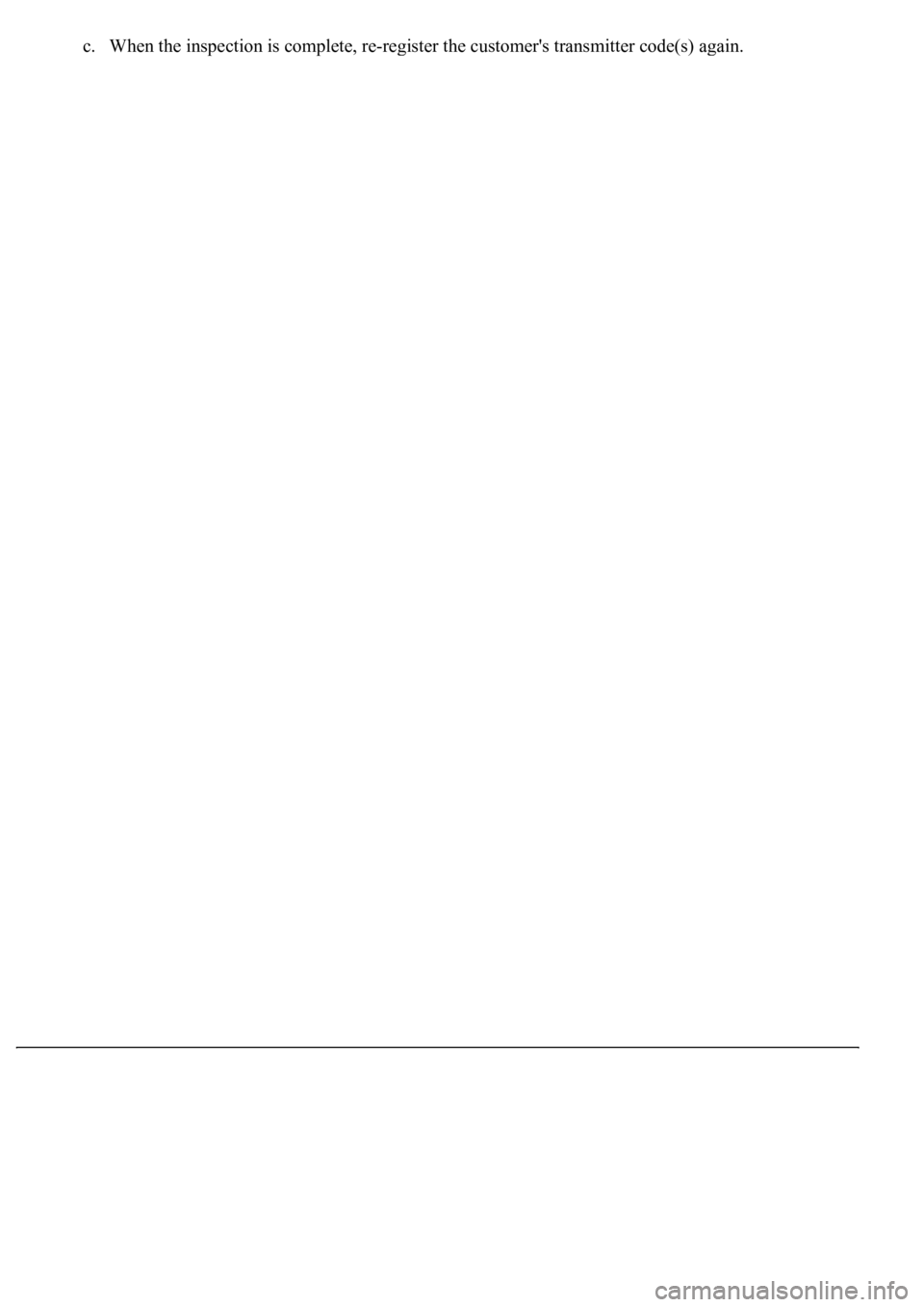

LEXUS LS430 2003 Factory Repair Manual c. When the inspection is complete, re-register the customer's transmitter code(s) again.
