Page 3897 of 4500

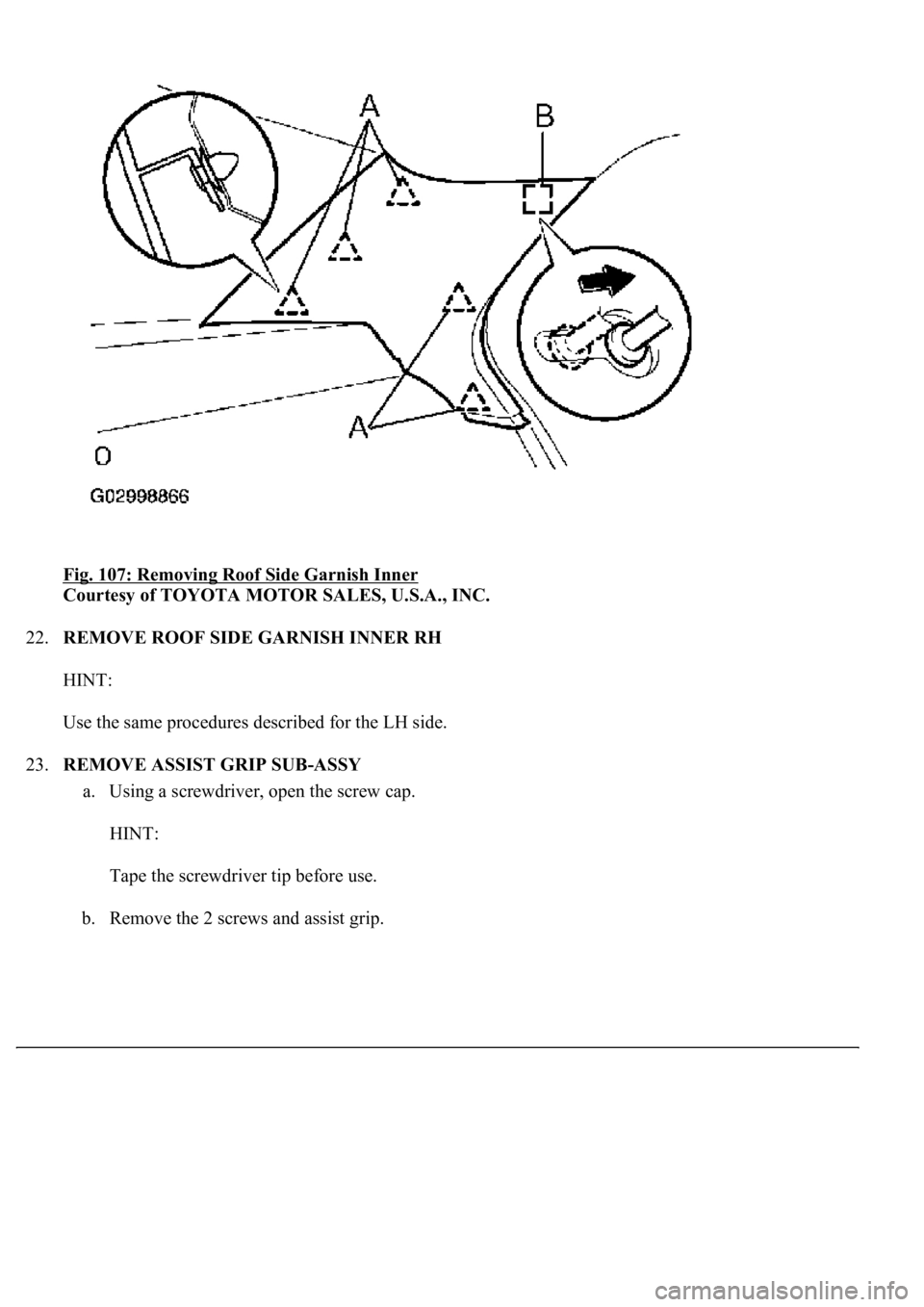

LEXUS LS430 2003 Factory Repair Manual Fig. 107: Removing Roof Side Garnish Inner Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 22.REMOVE ROOF SIDE GARNISH INNER RH HINT: Use the same procedures described for the LH side. 23.REMOVE ASS

Page 3898 of 4500

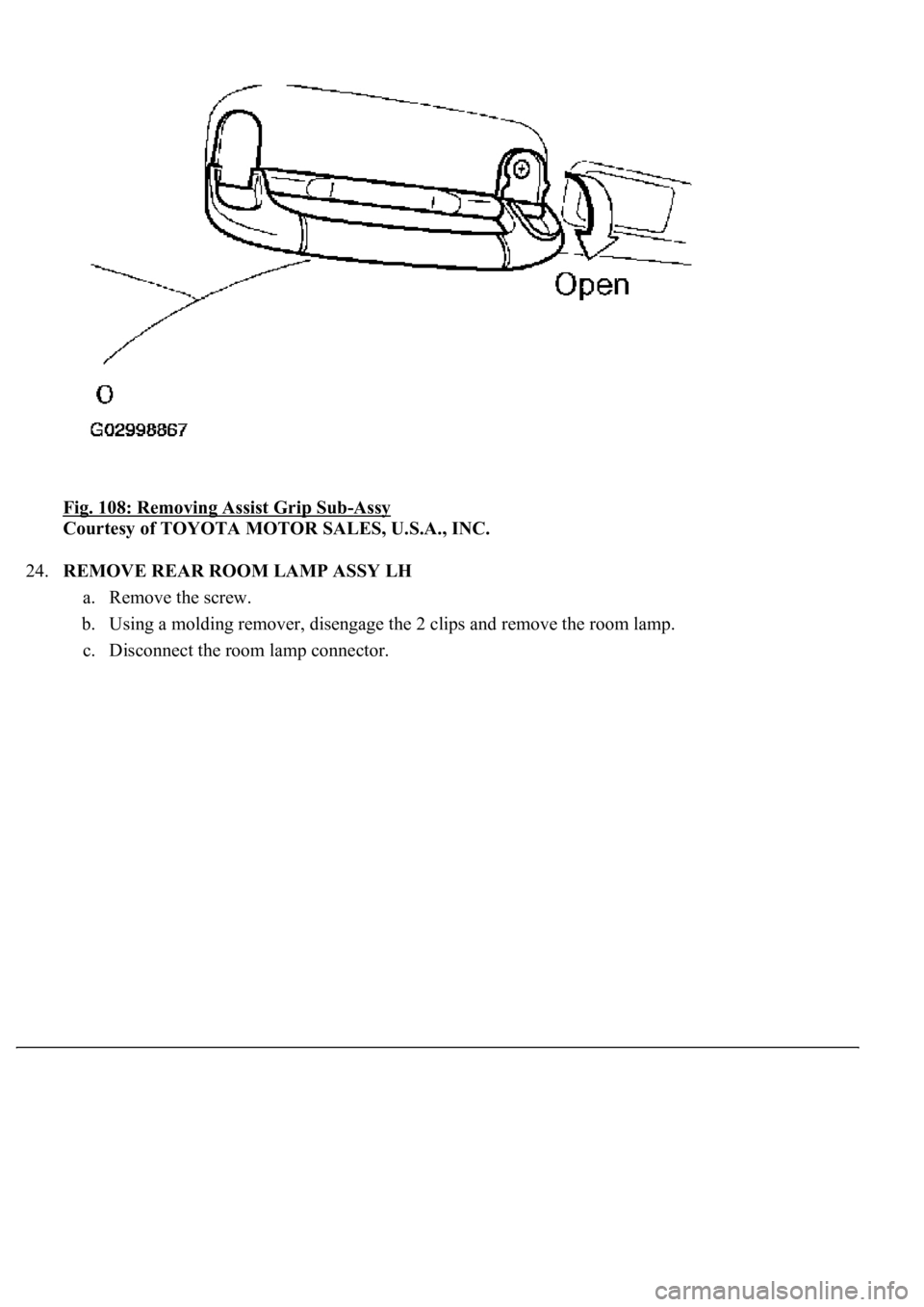

LEXUS LS430 2003 Factory Repair Manual Fig. 108: Removing Assist Grip Sub-Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 24.REMOVE REAR ROOM LAMP ASSY LH a. Remove the screw. b. Using a molding remover, disengage the 2 clips and re

Page 3899 of 4500

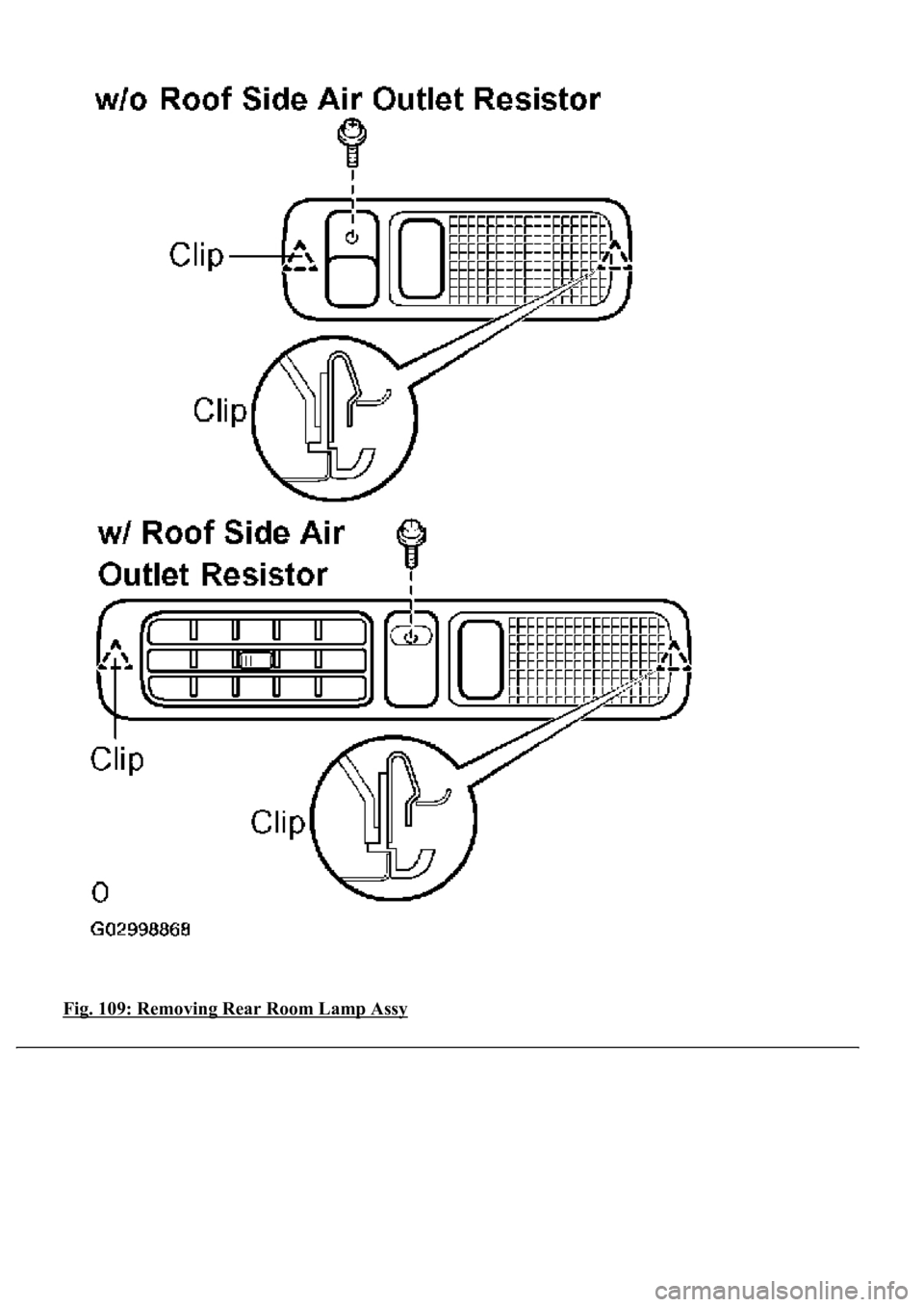

LEXUS LS430 2003 Factory Repair Manual Fig. 109: Removing Rear Room Lamp Assy

Page 3900 of 4500

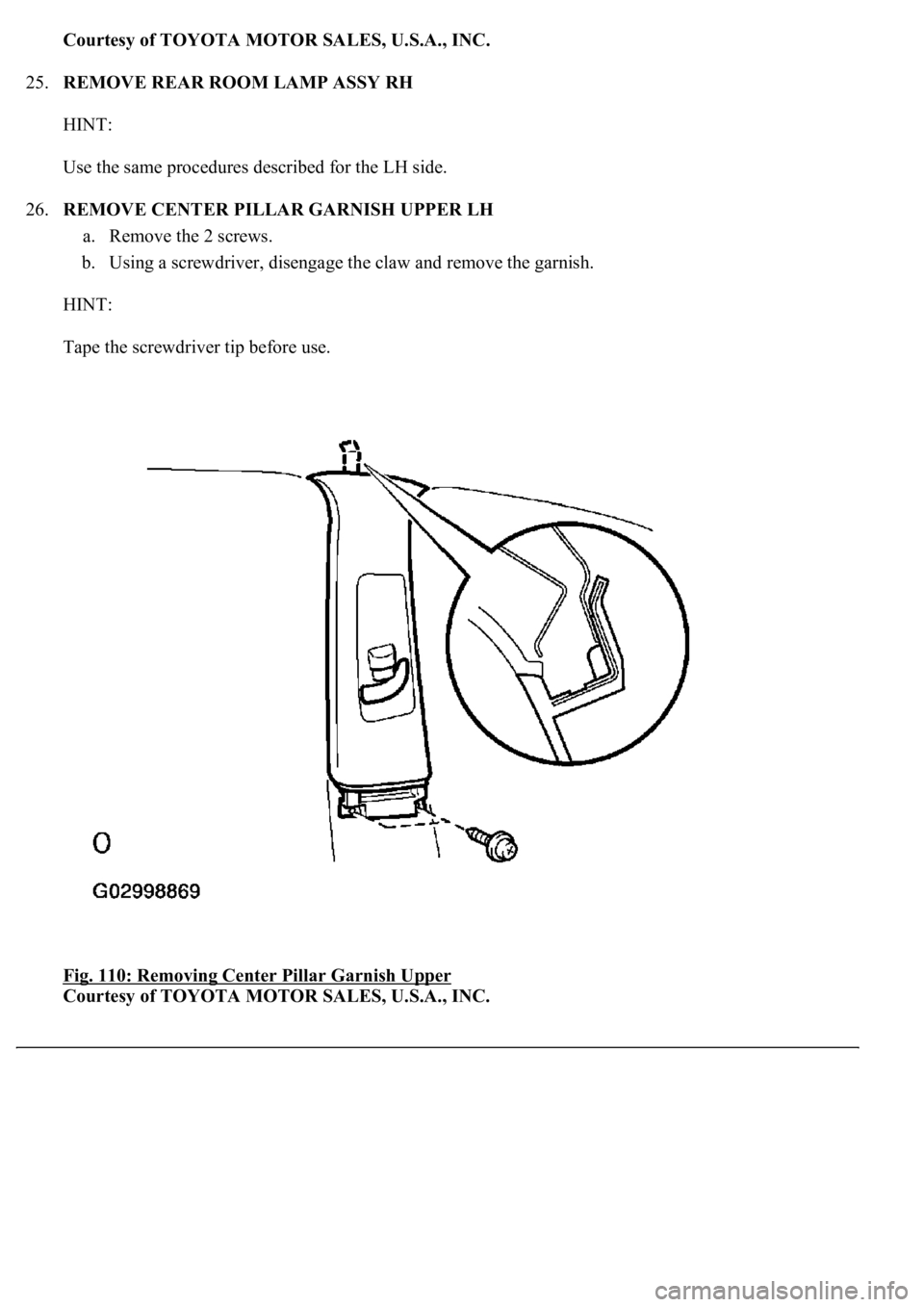

LEXUS LS430 2003 Factory Repair Manual Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 25.REMOVE REAR ROOM LAMP ASSY RH HINT: Use the same procedures described for the LH side. 26.REMOVE CENTER PILLAR GARNISH UPPER LH a. Remove the 2 scre

Page 3901 of 4500

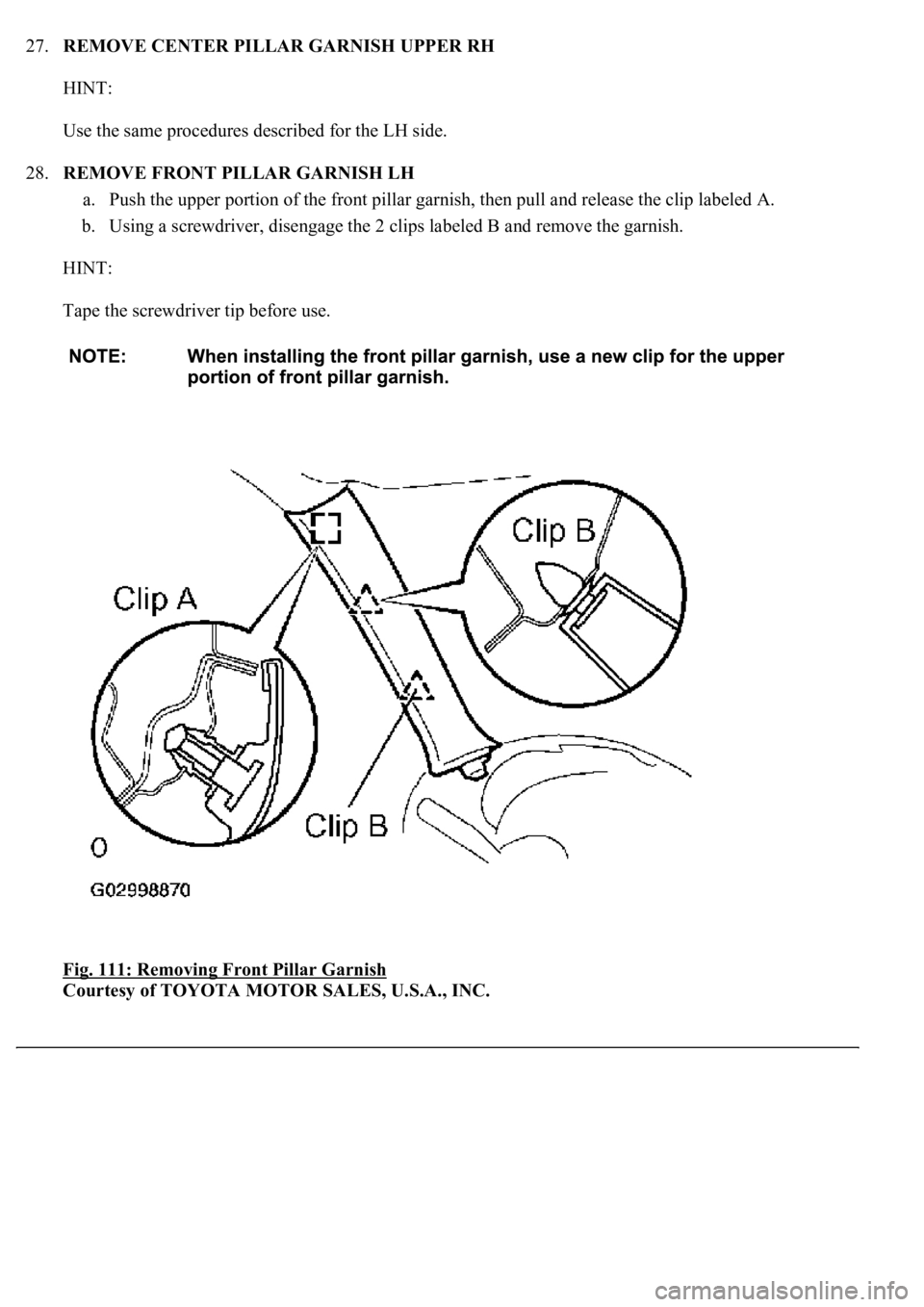

LEXUS LS430 2003 Factory Repair Manual 27.REMOVE CENTER PILLAR GARNISH UPPER RH HINT: Use the same procedures described for the LH side. 28.REMOVE FRONT PILLAR GARNISH LH a. Push the upper portion of the front pillar garnish, then pull

Page 3902 of 4500

LEXUS LS430 2003 Factory Repair Manual 29.REMOVE FRONT PILLAR GARNISH RH HINT: Use the same procedures described for the LH side. 30.REMOVE LH VISOR ASSY a. Using a molding remover, pry out the visor cover. b. Remove the 2 screws.

Page 3903 of 4500

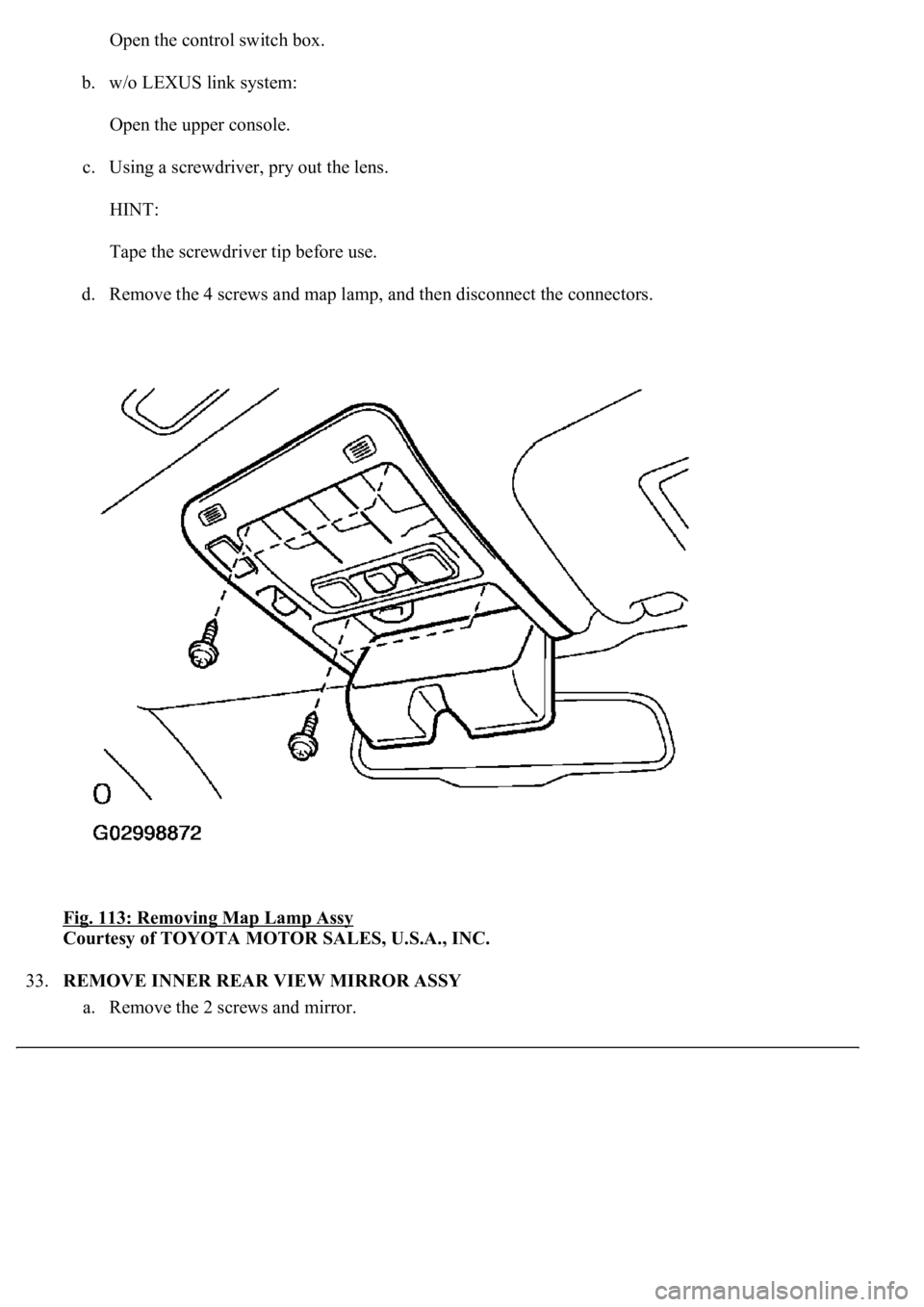

LEXUS LS430 2003 Factory Repair Manual Open the control switch box. b. w/o LEXUS link system: Open the upper console. c. Using a screwdriver, pry out the lens. HINT: Tape the screwdriver tip before use. d. Remove the 4 screws and map

Page 3904 of 4500

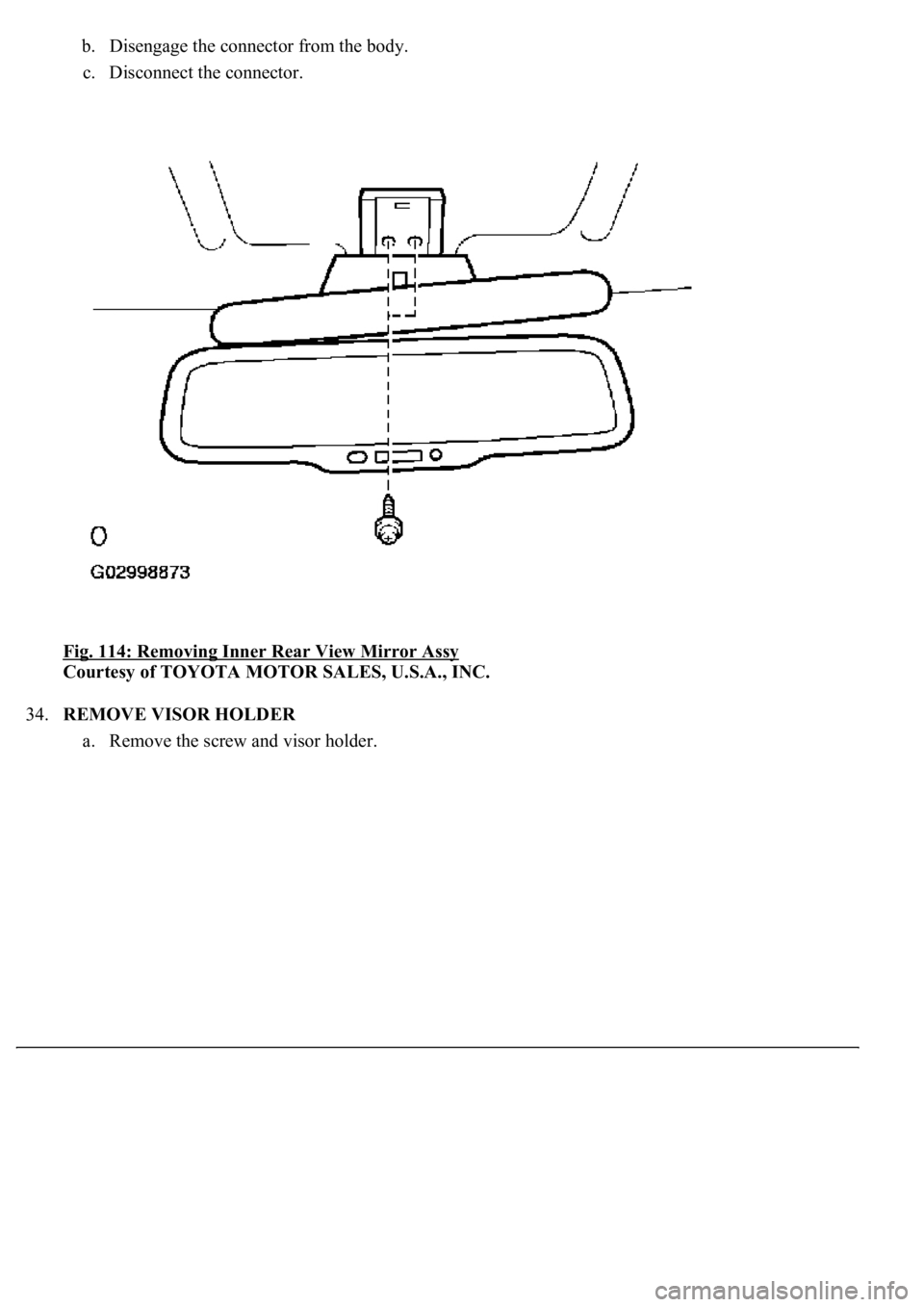

LEXUS LS430 2003 Factory Repair Manual b. Disengage the connector from the body. c. Disconnect the connector. Fig. 114: Removing Inner Rear View Mirror Assy Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 34.REMOVE VISOR HOLDER a. Rem
