Page 1865 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 14: Adding Coolant To Full Line For Radiator And Reservoir Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 5.CHECK FOR ENGINE COOLANT LEAKS 6.INSTALL AIR CLEANER INLET NO.1 (See REPLACEMENT )

Page 1866 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 15: Identifying Water Pump Component Assy (1 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1867 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 16: Identifying Water Pump Component Assy (2 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 1868 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 17: Identifying Water Pump Component Assy (3 Of 2) Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. REPLACEMENT

Page 1869 of 4500

LEXUS LS430 2003 Factory Repair Manual 1.DISCONNECT BATTERY NEGATIVE TERMINAL 2.DRAIN ENGINE COOLANT (See REPLACEMENT ) 3.REMOVE ENGINE UNDER COVER NO.1 4.REMOVE RADIATOR ASSY 5.REMOVE TIMING BELT (See REPLACEMENT ) 6.REMOVE WA

Page 1870 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 19: Removing Bolts, Water Pump And Gasket Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 9.INSTALL WATER PUMP ASSY a. Install a new gasket and the water pump with the 5 bolts, 2 stud bolts and n

Page 1871 of 4500

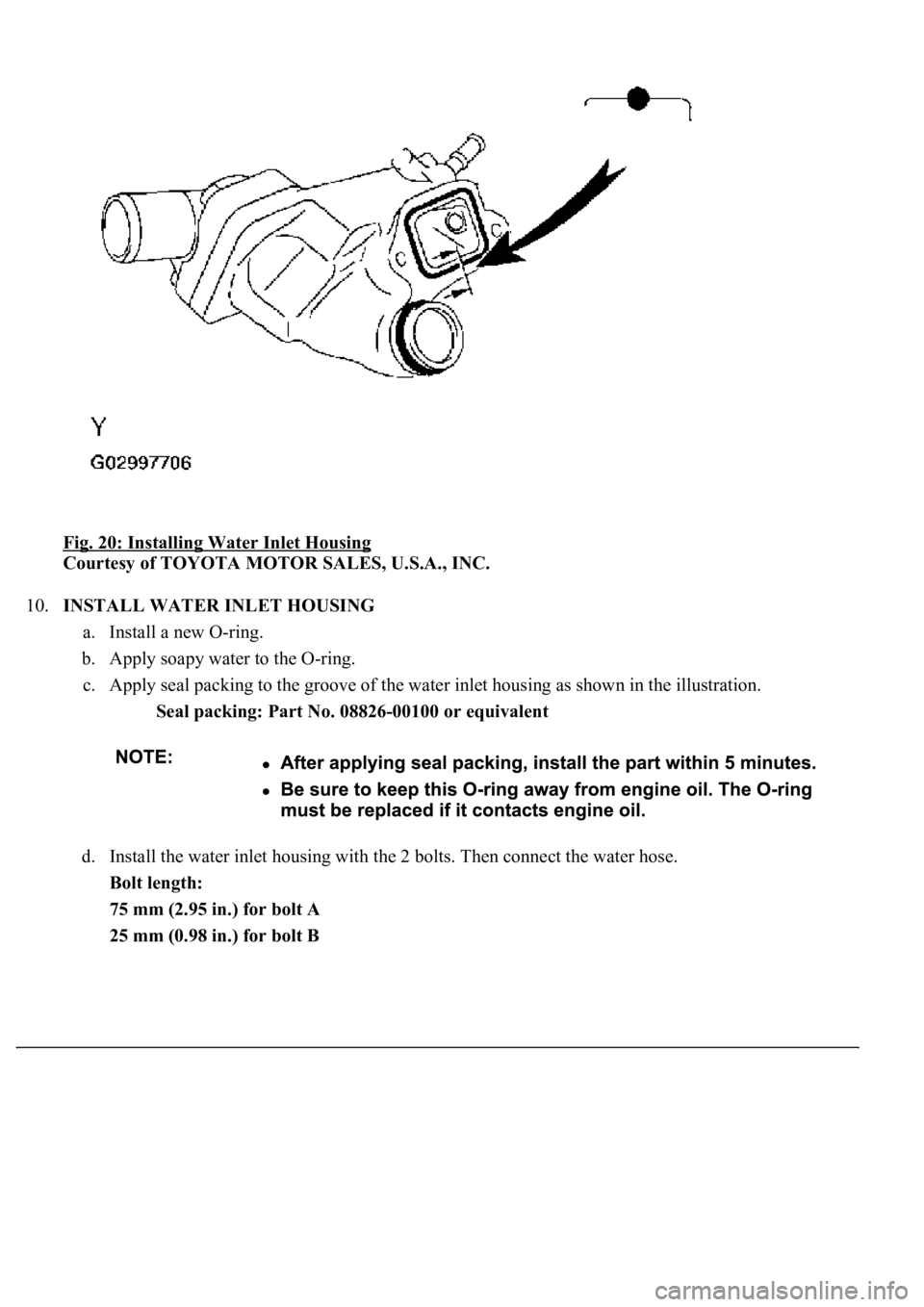

LEXUS LS430 2003 Factory Repair Manual Fig. 20: Installing Water Inlet Housing Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 10.INSTALL WATER INLET HOUSING a. Install a new O-ring. b. Apply soapy water to the O-ring. c. Apply seal pa

Page 1872 of 4500

LEXUS LS430 2003 Factory Repair Manual Fig. 21: Installing Water Inlet Housing With Bolts Courtesy of TOYOTA MOTOR SALES, U.S.A., INC. 11.INSTALL TIMING BELT IDLER SUB-ASSY NO.2 (See OVERHAUL ) 12.INSTALL TIMING BELT (See REPLACEMENT
