2003 LEXUS LS430 Factory Repair Manual

Page 641 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 7: Removing Radio Receiver Assembly Bolts And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. w/ Multi-display:
Remove the 2 bolts.
c. w/ Multi-display:
Disengage the 2 clips and 4 cla

Page 642 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 8: Removing Radio Receiver Assembly Clips And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.SHIP MODE CONFIRMATION
a. See the back side of the radio receiver assy and check that the win

Page 643 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 9: Identifying Ship Mode Confirmation
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE RADIO RECEIVER ASSY
a. Remove the 4 screws and 2 brackets from the radio receiver assembly.

Page 644 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 10: Identifying Radio Receiver Assy Screws And Brackets
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL RADIO RECEIVER ASSEMBLY W/BRACKET
a. Make sure that the battery negative terminal

Page 645 of 4500

LEXUS LS430 2003  Factory Repair Manual 1.SHIP MODE SETTING (See REPLACEMENT )
2.REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on
REPLACEMENT
 )
3.REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (See step 27 on
REPLACEME

Page 646 of 4500

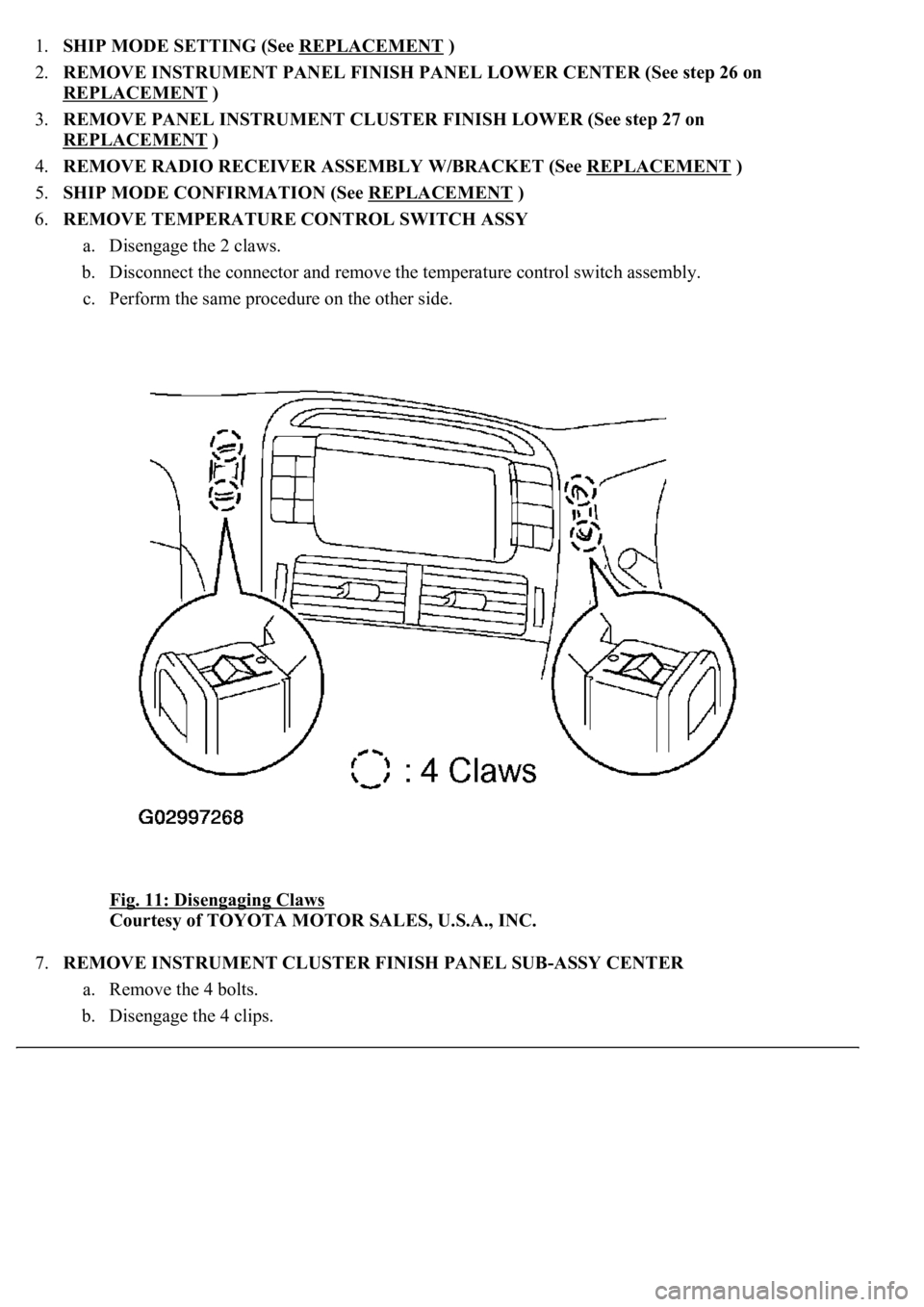

LEXUS LS430 2003  Factory Repair Manual c. Disconnect the connector and remove the instrument cluster finish panel sub-assy center.
Fig. 12: Removing Bolts And Clips

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE MULTI-DISPLAY
a

Page 647 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 13: Removing Multi-Display Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
HINT:
See COMPONENTS .
See LOCATION .
Installation is in the reverse order of removal.
1.REMOV

Page 648 of 4500

LEXUS LS430 2003  Factory Repair Manual OVERHAUL )
5.REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (See step 22 on
OVERHAUL
 )
6.REMOVE NAVIGATION ECU W/BRACKET
a. Disconnect the connector.
b. Remove the 2 nuts and navigation ECU wi
